Popular Linear Guideway Type CNC Lathe Ck6140 *750/1000mm/2000mm
1.FeatureFull enclosure complete, safe and easy operationHardened by induction, the machine bed and carriage has a long durability.Electric turret and gang-tools turret can be both installed.Auto lubrication cnc machine4-position electrical tool post as standard, 6-position is for optional selection......
Send Inquiry
Product Description
1.Feature
Full enclosure complete, safe and easy operation
Hardened by induction, the machine bed and carriage has a long durability.
Electric turret and gang-tools turret can be both installed.
Auto lubrication cnc machine
4-position electrical tool post as standard, 6-position is for optional selection,
Mainly used for turning inner and outer cylindrical surface, end surface, taper surface, arc surface and thread of shaft, etcHigh efficiency and accurate processing.
The bed way has been finely grinned after ultra-tone quenching.
It is applied to various line like automobile, valve, electric tools and hardware,etc.
2.Specification
| Model | CK6140 | ||
| CAPACITY | Max.swing over bed (mm) | Φ400 | |
| Max.swing over toolpos (mm) | Φ220 | ||
| Distance between centers(mm) | 750/1000/1500/2000 | ||
| Msx.machining length(mm) | 750/1000/1500/2000 | ||
| SPINDLEANDCHUCK | Chuck size(mm) | Φ200 | |
| Spindle nose and taper style | C-6 | ||
| Spindle speed range | 60-2600 | ||
| Spindle bore dia.(mm) | Φ55 | ||
| Spindle power | 5.5 | ||
| Max.bar feeding dia.(mm) | Φ48 | ||
| FEED | Rapid traverse speed(X/Z) | 6/8 | |
| TURRET | Stations No. | 4`6 | |
| ACCURACY | X/Z Accuracy of positioning repeatability | 0.01/0.012 | |
| TAILSTOCK | Quill diameter(mm) | Φ75 | |
| Quill travel(mm) | 150 | ||
| Taper of quill | M.T4 | ||
| OTHERS | Guideway width(mm) | 340 | |
4.You may find the accessories of CNC lathe as you like:
Standard Equipment
Cooling system
Auto-lubricating system
Light system
GSK-980TDc or Siemens 808D
4-Position electrical tool post
Iron casting machine stand
Manual 3-jaw chuck
Optional Accessories:
GSK, Siemens or other controller
6/8-Position electrical tool post
Hydraulic chuck
Bar Auto-feeding (KT-16 and KT-20)

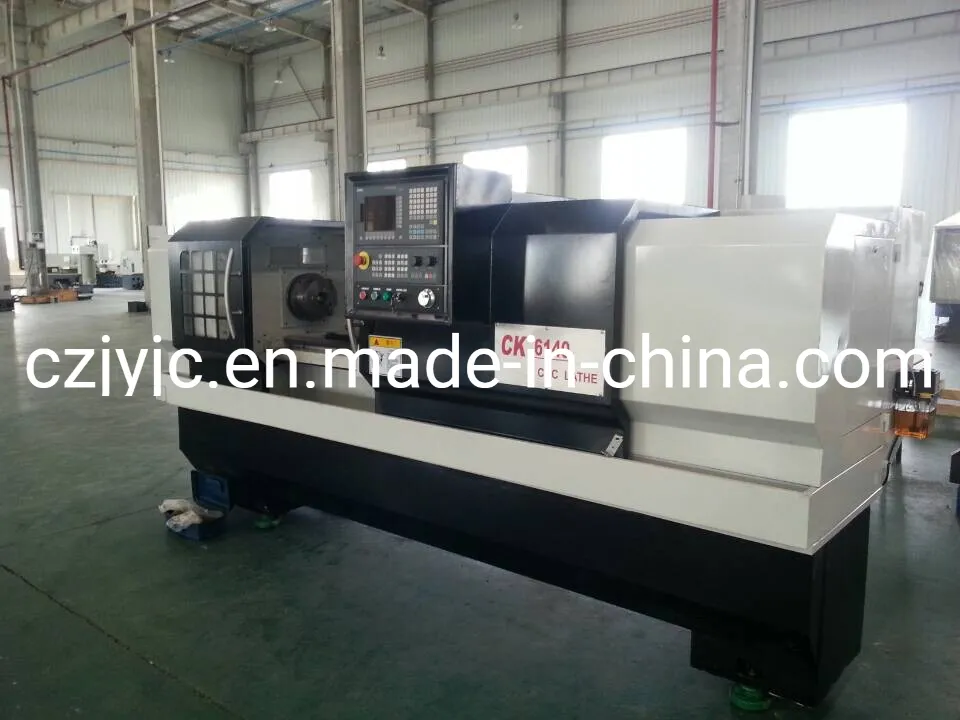

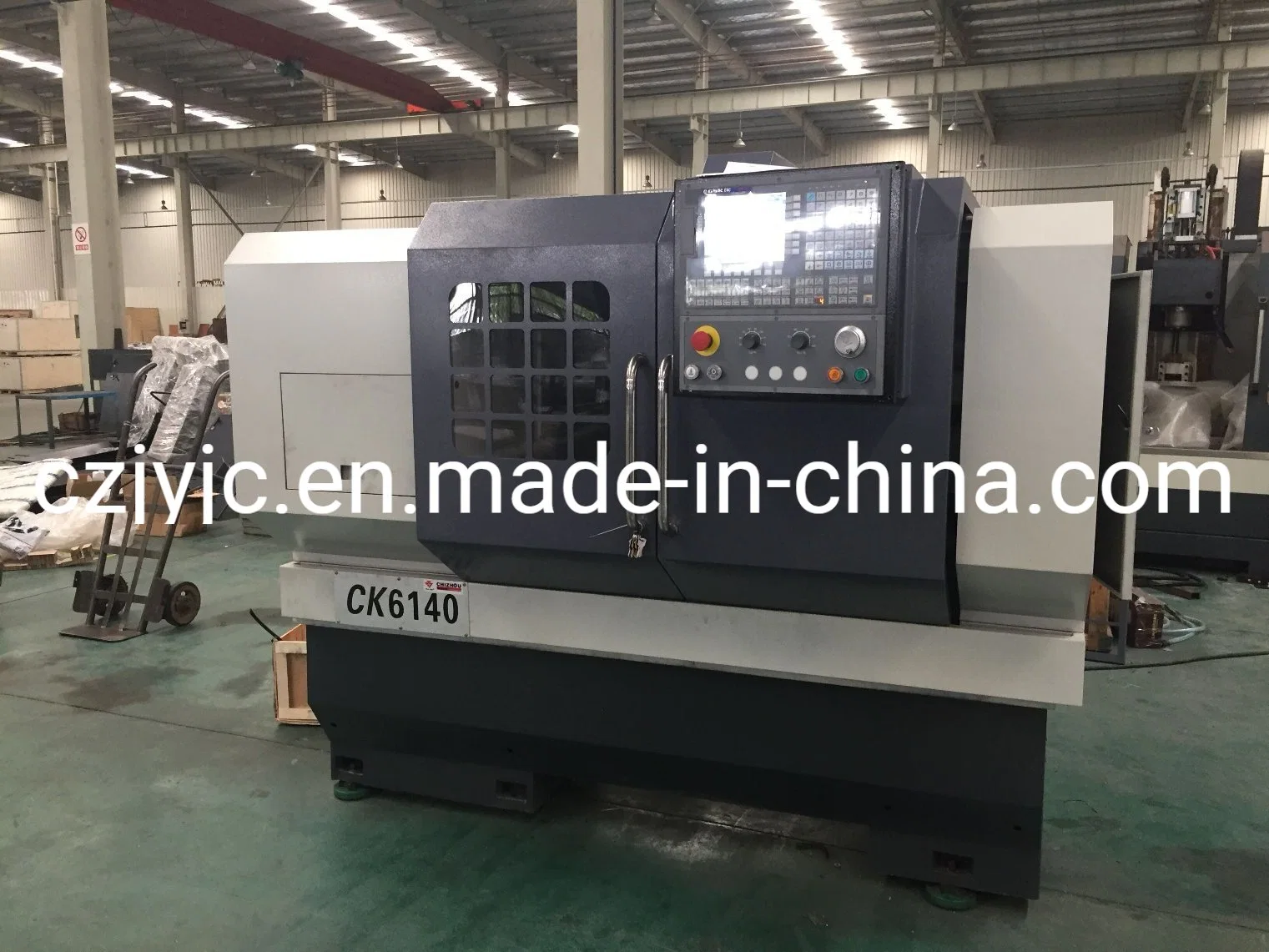

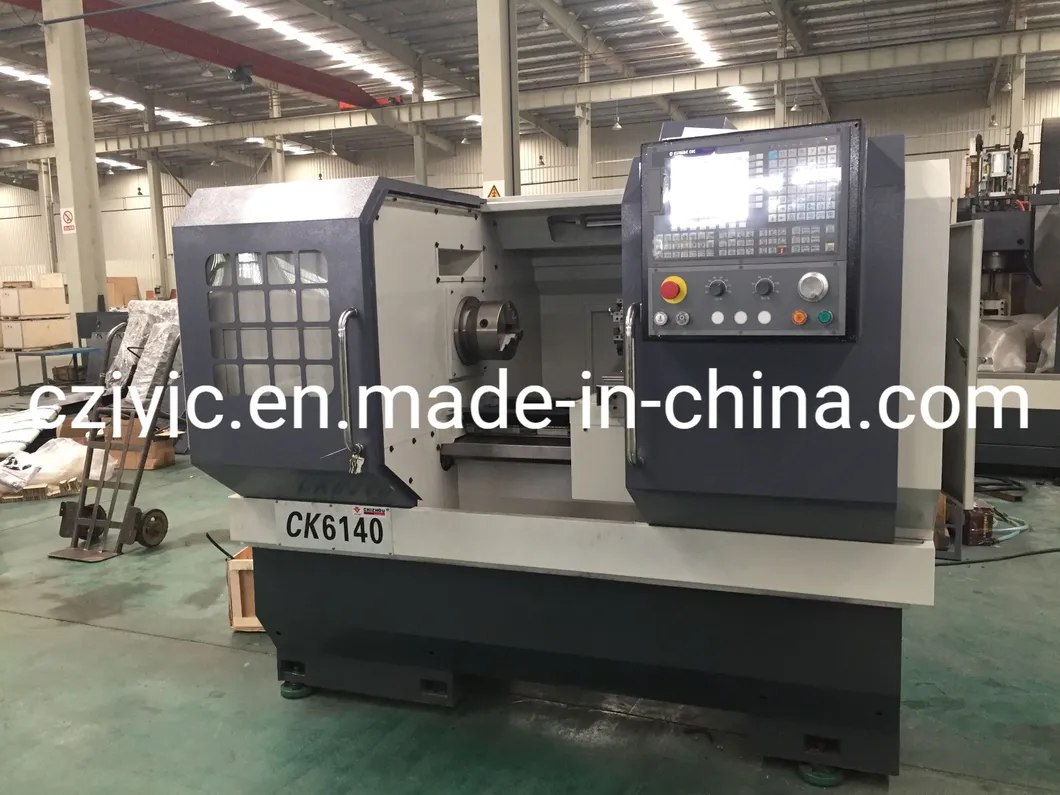

ck6140*2000mm picture

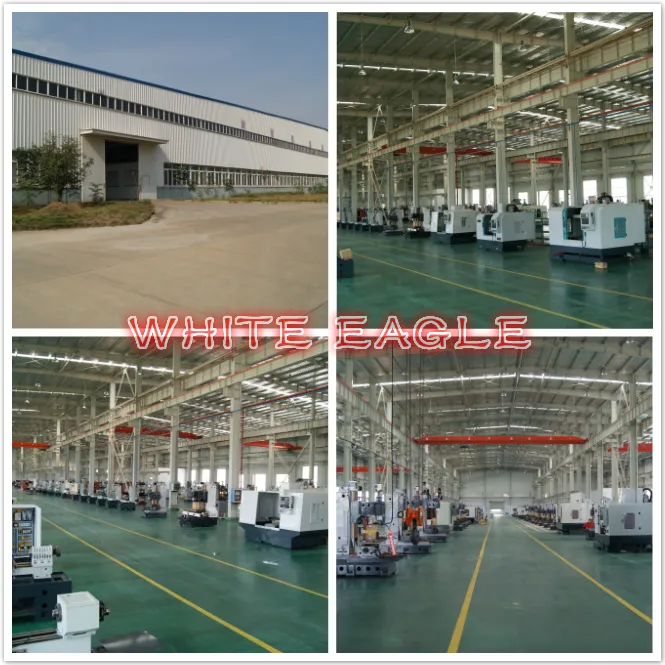

Workshop
Honor and certificate :
