Preda Carbide Long Length Serious 4f Corner Radius Milling Cutters

Product Description

Products Description

1. Preda Carbide Long Length Serious 4F Corner Radius Milling Cutters
2. HRC45/55/60/65 long length serious
3. TIAIN/TICN/TISIN/ALTIN Coating
4.1mm-25mm / 1/16" to 3/4 "
5. Micro Grain Carbide
6. High quality for CNC Metal working

mobile: +86-13327890322
QQ : 2624837993

Products specification

SurfaceTiCN/TiN/TiAlN/Uncoated
Flexural Strength2500-4000N/mm2
Controling ModeCNC
UsageMetal
Chemical Composition6%-12%Co-WC
Density14.45-14.90g/cm3

Coating Classifying and Advantage
Item	Coating Type	AlTin	Tialn	TiSin	Naco
Characteristic	Hardness(HV)	3200	2800	3600	42(GPA)
	Thickness(UM)	2.5-3	2.5-3	3	3
	Oxidation Temp.(ºC)	900	800	1000	1200
	Friction Coefficient	0.3	0.3	0.45	0.4
	Color	Black	Violet	Copper	Blue

1, Chemical Composition: 10%Co-Wc
2, Raw Material: Super Micro grain with Diameter less than 0.2UM
3, International Industrial Standard: WF25 TAIWAN AND K44 germany
4, Application areas: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steel, plastic materials, fiberglass, carbon fiber and other non-metallic.
5, Served industries: Aerospace, Transportation, Medical Equipment, Military Manufacturing, Mold Development, etc.

Specifications:

order number	cutting	Flute	Shank	Corner	A.0.L
order number	d	l	D	R Corner	L
3×8×3D×R0.3×75L×2F	3	8	3	R0.3	75
3×8×4D×R0.3×75L×2F	3	8	4	R0.5	75
3×8×4D×R0.5×75L×2F	3	8	4	R0.5	75
4×10×4D×R0.5×75L×2F	4	10	4	R1.0	75
4×10×4D×R1.0×75L×2F	4	10	4	R0.5	75
4×10×6D×R0.5×75L×2F	4	10	6	R1.0	75
4×10×6D×R1.0×75L×2F	4	10	6	R0.5	75
5×13×6D×R0.5×75L×2F	5	13	6	R1.0	75
5×13×6D×R1.0×75L×2F	5	13	6	R0.5	75
6×15×6D×R0.5×75L×2F	6	15	6	R1.0	75
6×15×6D×R1.0×100L×2F	6	15	6	R0.5	100
8×20×8D×R0.5×100L×2F	8	20	8	R1.0	100
8×20×8D×R1.0×100L×2F	8	20	8	R1.5	100
8×20×8D×R1.5×100L×2F	8	20	8	R0.5	100
10×25×10D×R0.5×100L×2F	10	25	10	R1.0	100
10×25×10D×R1.0×100L×2F	10	25	10	R1.5	100
10×25×10D×R1.5×100L×2F	10	25	10	R2.0	100
10×25×10D×R2.0×100L×2F	10	25	10	R0.5	100
12×30×13D×R0.5×100L×2F	12	30	12	R1.0	100
12×30×13D×R1.0×100L×2F	12	30	12	R1.5	100
12×30×13D×R1.5×100L×2F	12	30	12	R2.0	100

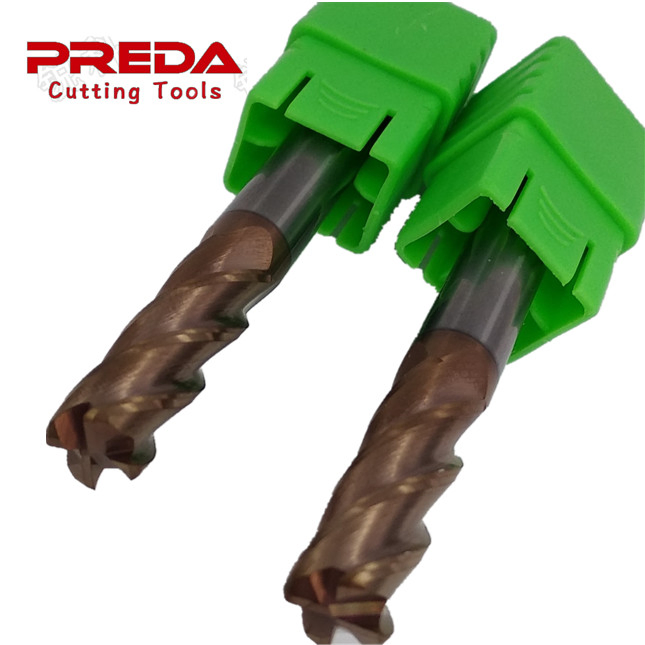

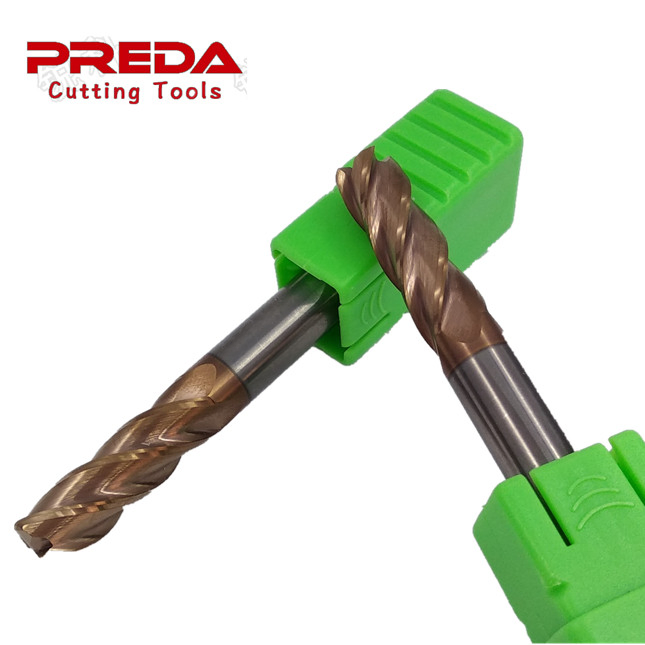

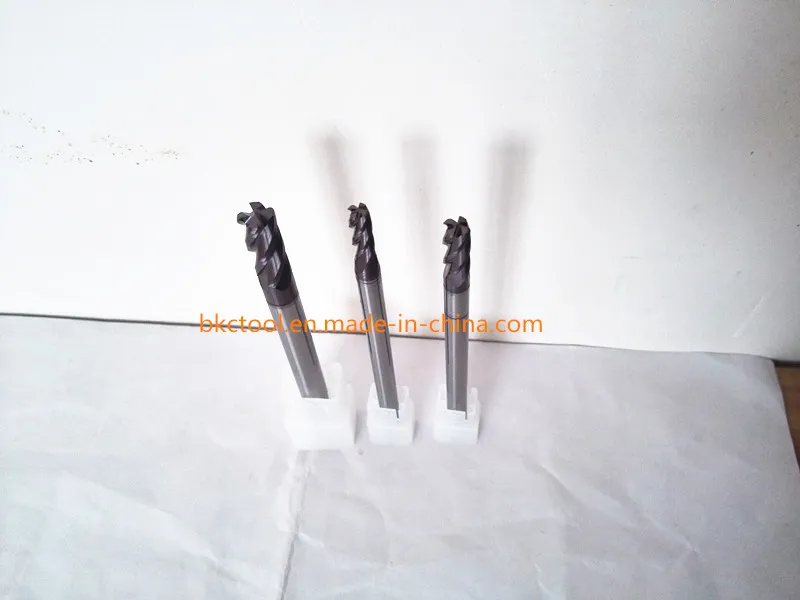

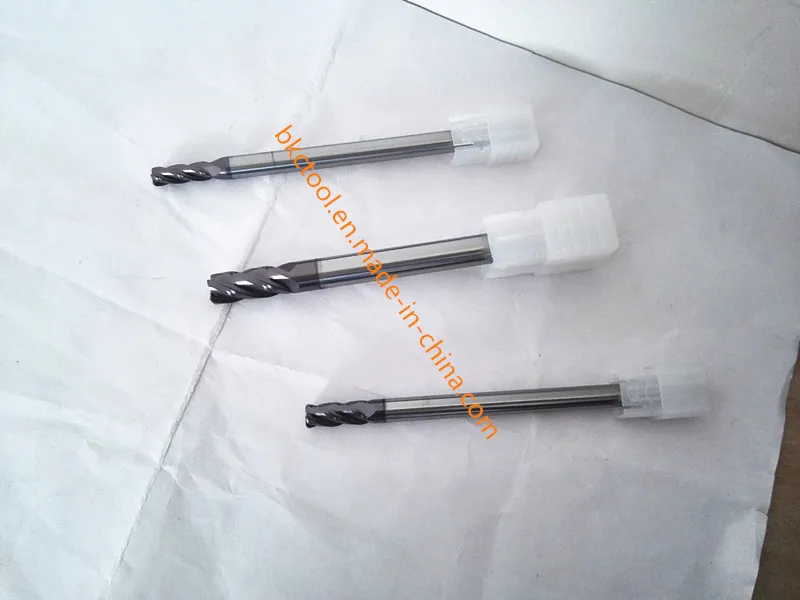

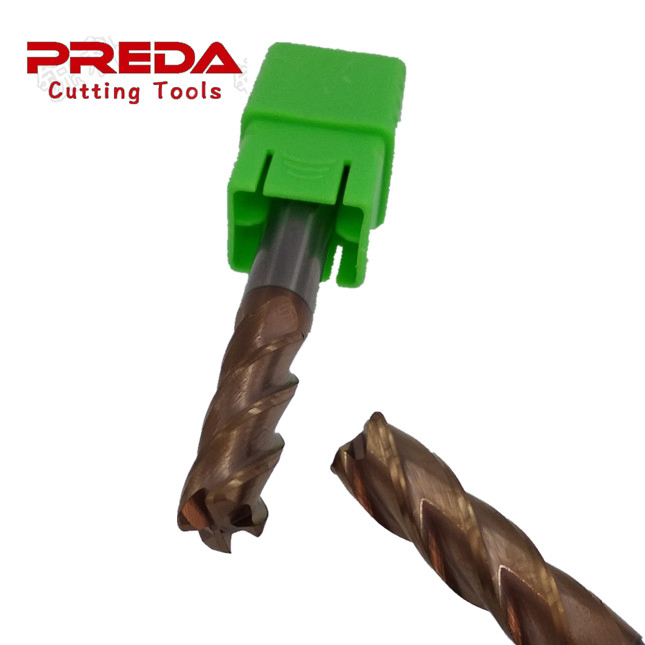

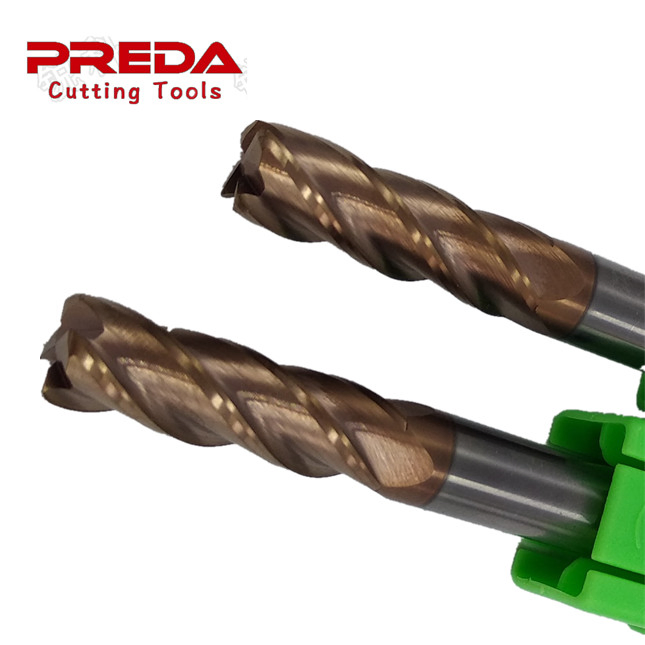

Products Show :

Preda Carbide Long Length Serious 4f Corner Radius Milling Cutters

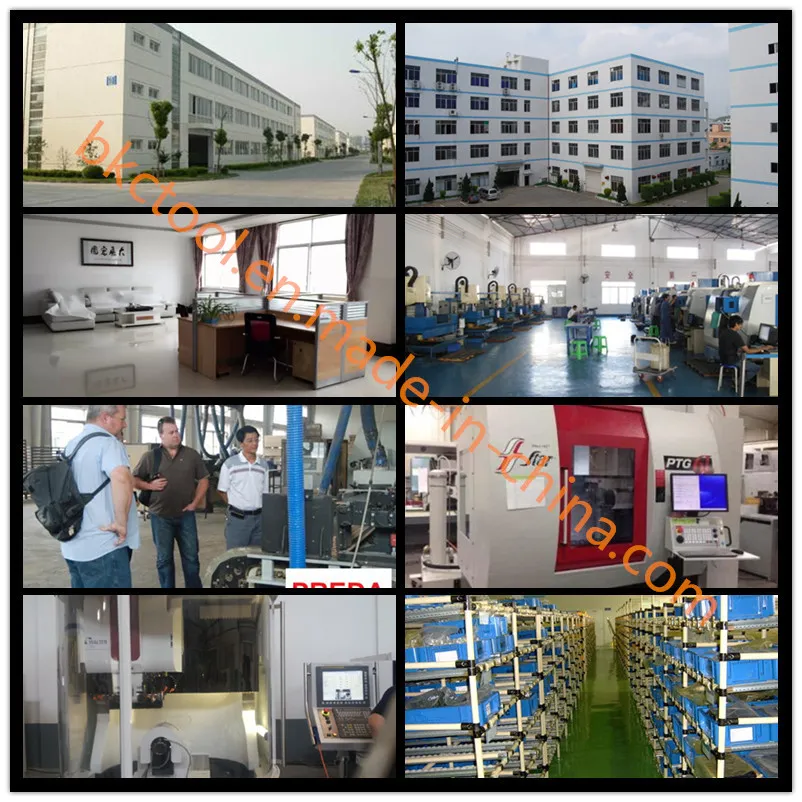

Company Details :

Preda Carbide Long Length Serious 4f Corner Radius Milling Cutters

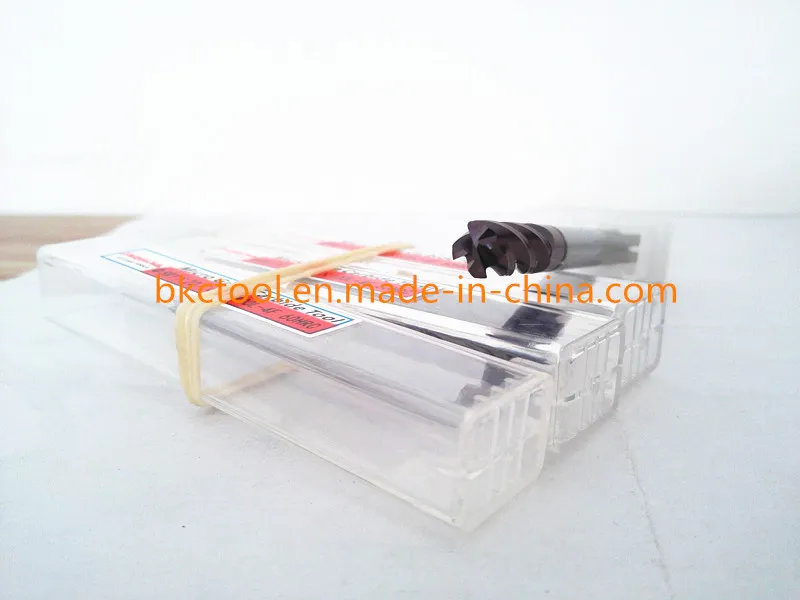

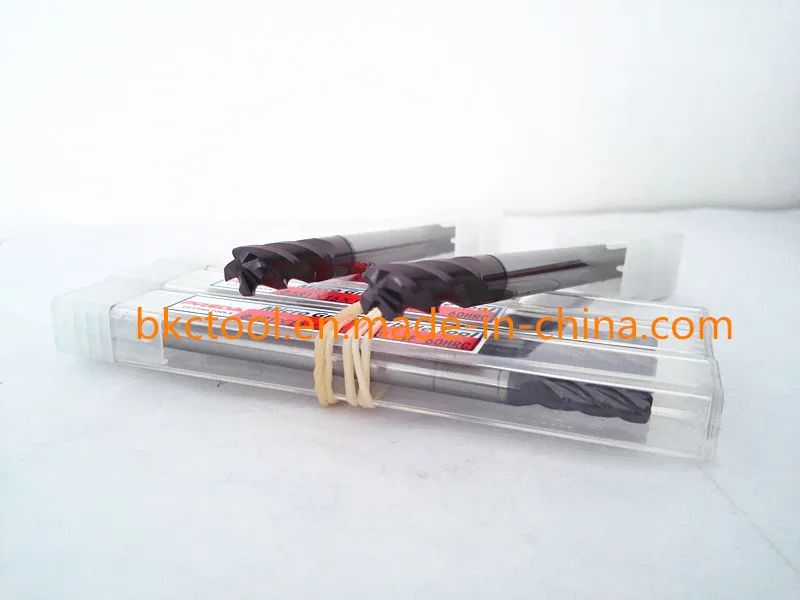

Package details :

Preda Carbide Long Length Serious 4f Corner Radius Milling Cutters

FAQ:

1.  Are you manufacturer? Do you have factory?
---We are Professional manufacturer ,we have more than 15 years experience in this field.

2.  Does free shipping is possible?
----We don't offer free shipping service, but we will give you some discount if you buy large quantity products.

3.  Can you send products to our Forwarder in China?
----Yes, if you have forwarder in China, i will glad to send products to him/her.

4.  Do you make OEM?
----Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.

5.  How about the delivery time?
----According to the sizes and quantity, delivery time is different. Usually be 5~10 days. We can tell you exact inventory state if you need.

6. Can you produce carbide Special Tool ?
--- Yes We can. From 2013 year. Our factory main market is from standard end mills to special tools. Special tool according your drawing and sample

Preda Carbide Long Length Serious 4f Corner Radius Milling Cutters
