Product Description

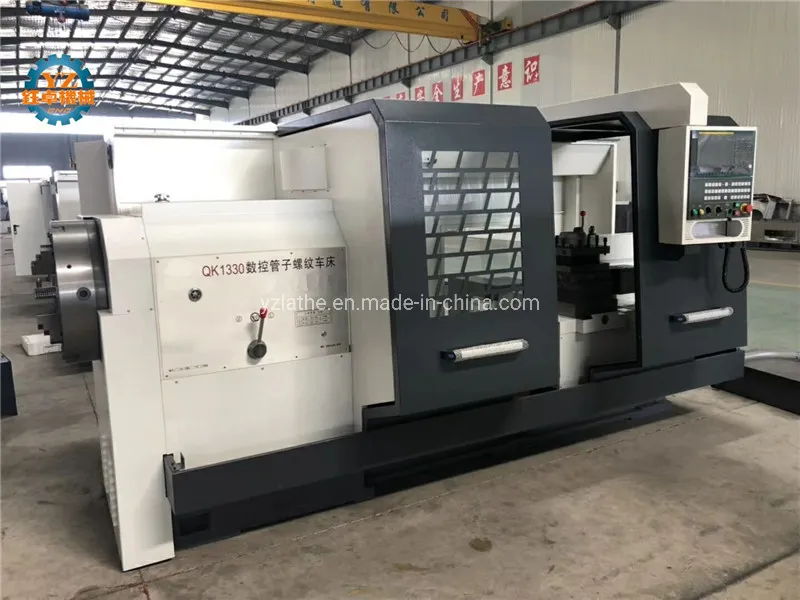

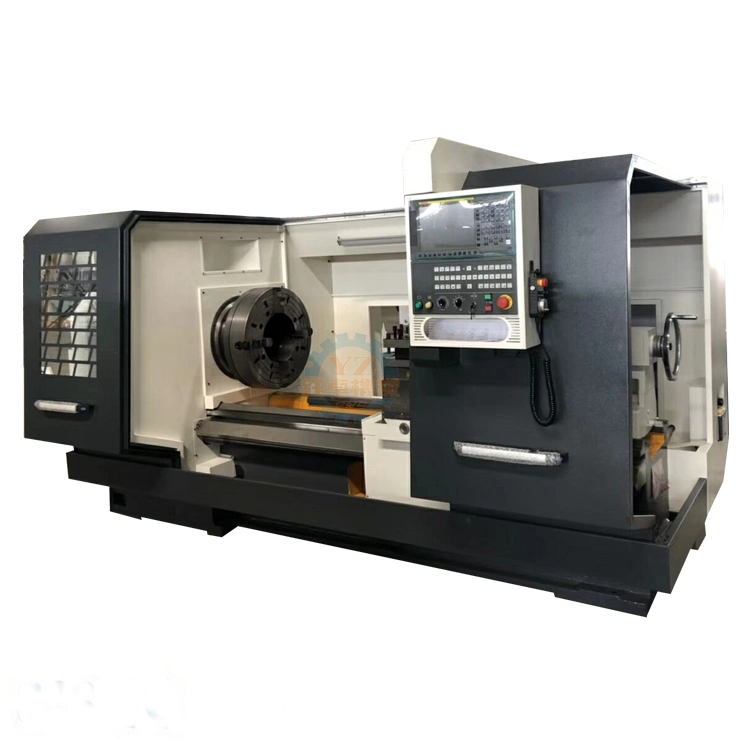

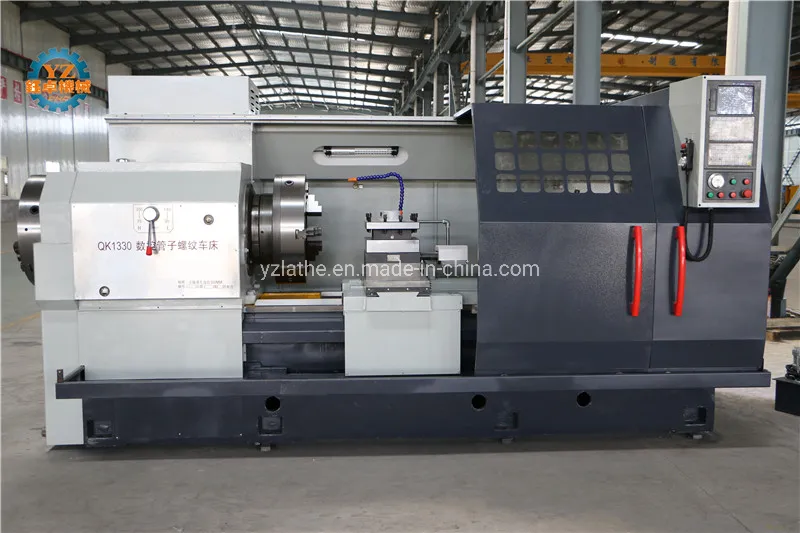

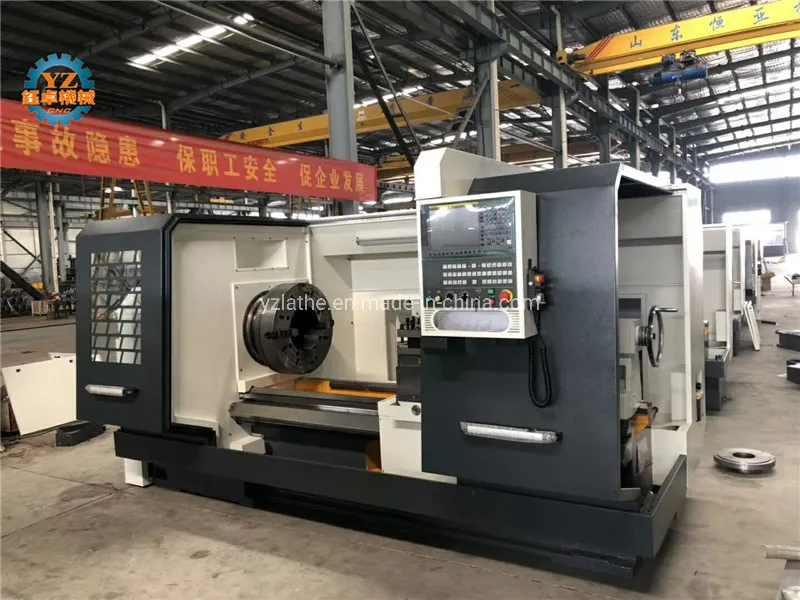

QK1330 QK1322 QK1319 Threaded Pipe CNC Machine Tools Normal Pipe Threading CNC Lathe CNC Machining Turning Center
Optional configuration:
| ITEM | UNIT | QK1330 | |
| Max dia.swing over bed | mm | 800 | |
| Max dia.swing over cross slide | mm | 480 | |
| Max.length of work-piece | mm | 1500 | |
| Width of bed | mm | 755 | |
| Spindle bore | mm | 305 | |
| Power of spindle motor | KW | 15 | |
| Mode of spindle speed | Two gears, smooth adjustment | ||
| Range of spindle speed | r/min | (L):20-100 (H):100-300 | |
| Max.traverse of X/Z | mm | X:450 Z:1250 | |
| X/Z rapid traverse | mm/min | 4000 | |
| X-axis motor | Speed | r/min | 1500 |
| Torgue | N.m | 15/18 | |
| Power | Kw | 2.8 | |
| Z-axis motor | Speed | r/min | 1500 |
| Torgue | N.m | 18/22 | |
| Power | Kw | 3.8 | |
| Tailstock quill | Diameter | mm | 100 |
| Travel | mm | 250 | |
| Taper | Morse NO.6 | ||
| Electric tool-post | Model | SLD170A04N | |
| No.of tool stations | Vertical four-station | ||
| Dimension | mm | 300×300 | |
| Turret indexing time | S | 5.6 | |

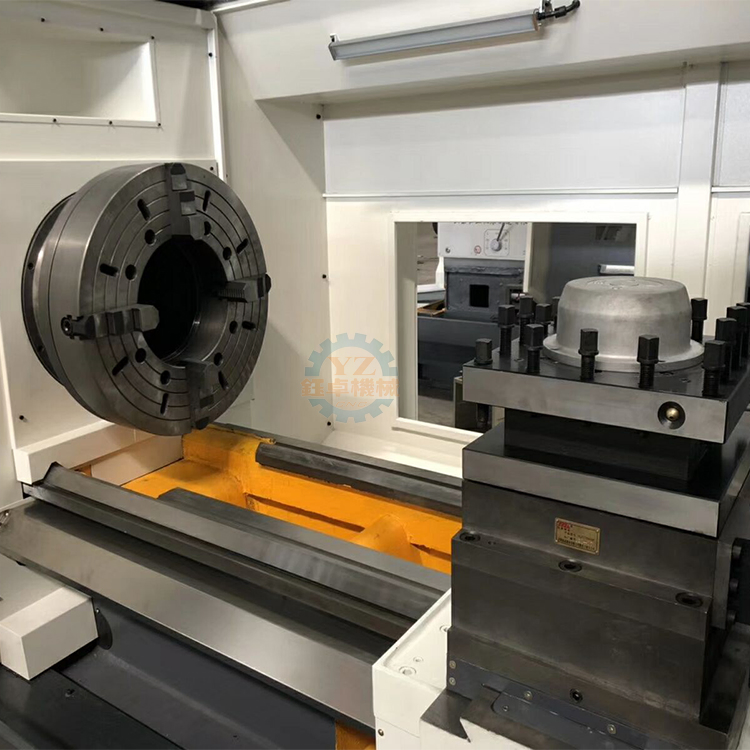

| Chuck | 4 jaws manual | ||
| Positioning accuracy | mm | 0.020 | |
| Repositioning accuracy | mm | 0.01 | |
| Overall dimensions(L*W*H) | mm | 4000x2100x2100 | |
| Machine weight | KG | 7500 | |
Standard configuration:
- CNC system: GSK980.

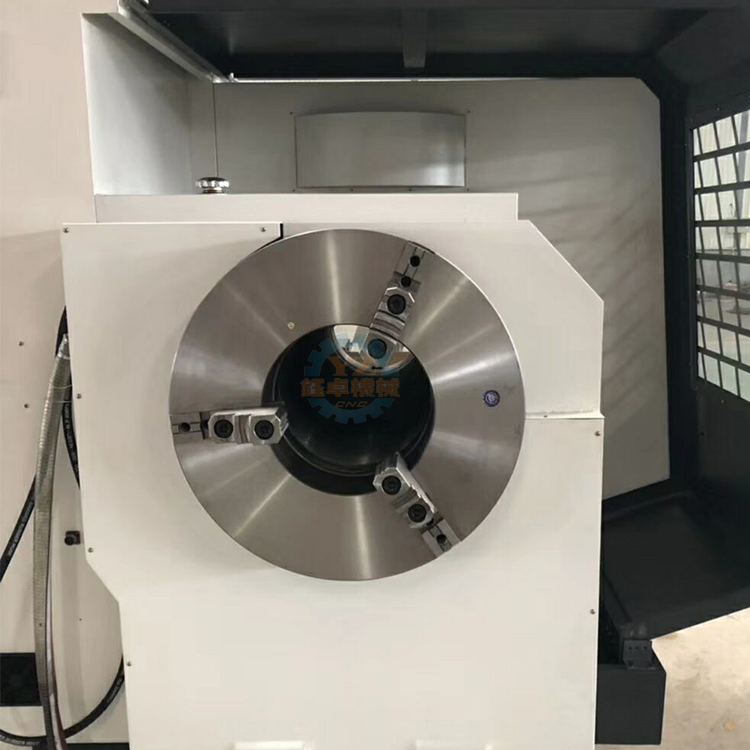

- Front and rear three-jaw manual chuck.

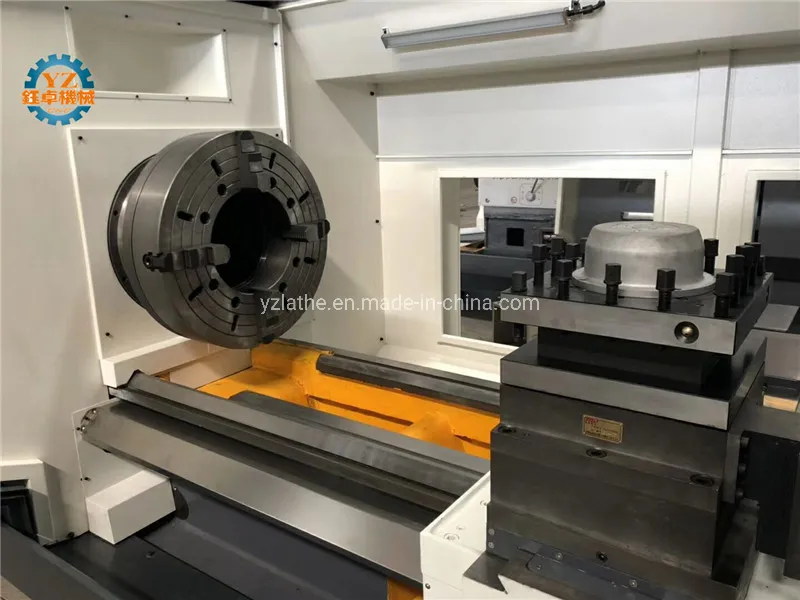

- Vertical four-station electric turret.
- With Manual tailstock.
- Automatic lubrication system.
- Turning cooling system.
- The rear bracket.
- Voltage:380v 50hz 3phases
Optional configuration:
1 CNC system :Siemens, Fanuc.
2 Pneumatic chuck.
3 Horizontal six-station /eight -station electric turret.
4 Center rest ,follow rest and back steady rest .
