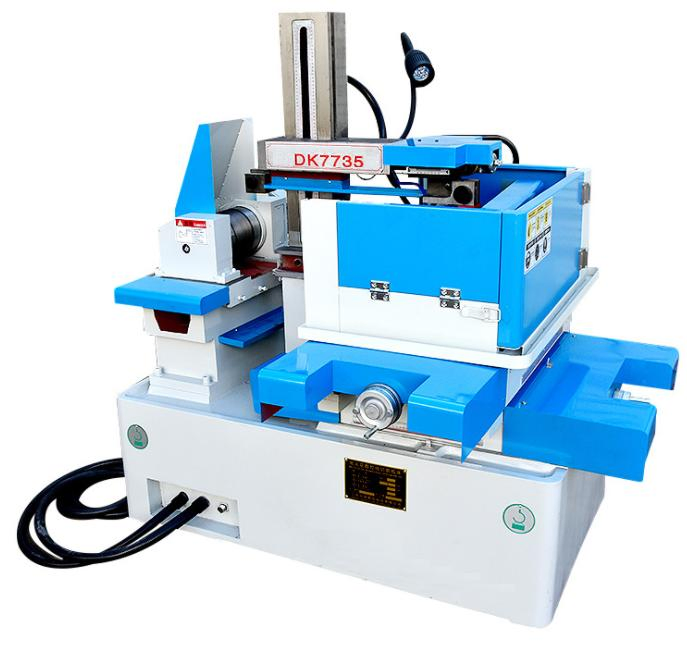

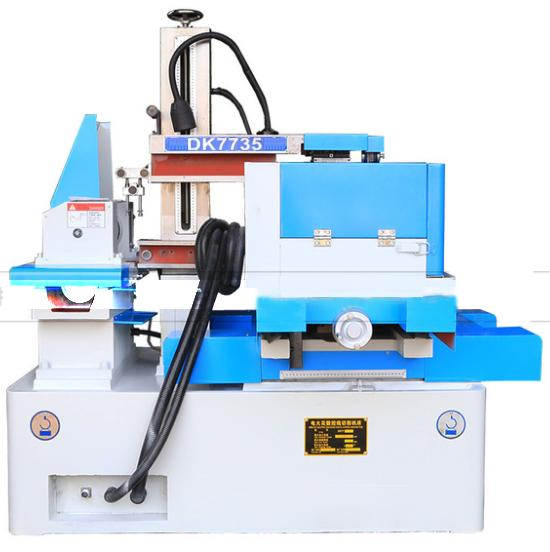

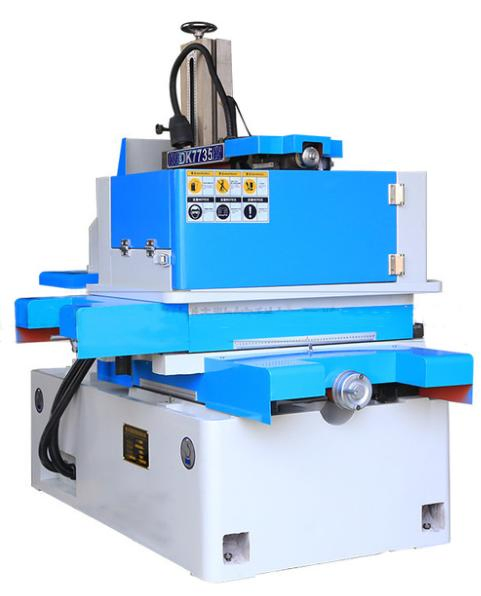

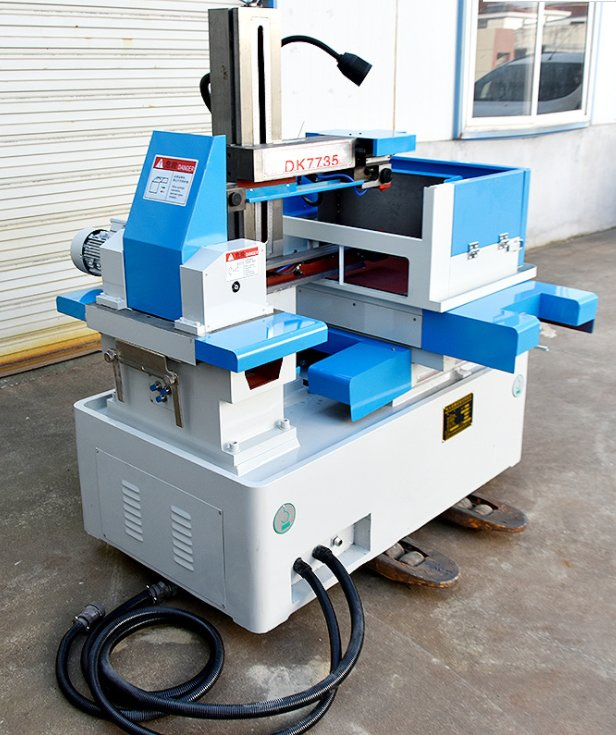

Recommended Product From This Supplier. China Factory Direct Supply! Wirie Cut EDM (Fast-speed) , Fs-WEDM DK7735

Product Description

Technical parameters of FS-WEDM DK77 series
Model	Unit	DK7735
Worktable size	mm	745×500
Worktable travel	mm	350×450
Max.thickness of workpiece	mm	400
Processing taper	mm	=6º(options±15,±30)
Max. cutting speed	mm2/min	≥300
Surface roughness	µm	≤2.5
Diameter of molybdenum wire	mm	0.10-0.20
Max.wire feed rate	mm	11.5
Machining precision	mm	According to standard GB7926-2036 <=0.02mm
Power supply		50Hz380V
Max.loading	kg	300
Machine weight	kg	1300
Machina dimensions	mm	1240×1170×1400

1.high performance: with multiple cutting, intelligent without stripe cover function. Automatic speed regulation of cutting parameters.

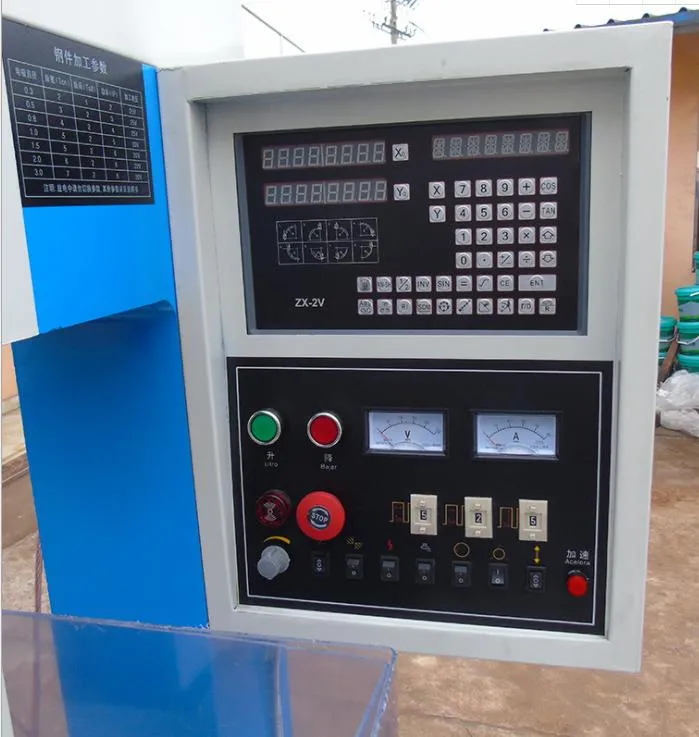

2.CNC system: intelligent CNC system; high-quality PC machine support USB and networking function, HF wire cutting system control.

3.high frequency power supply: high speed digital oscillation, high power VMOS field effect tube, adjustable frequency, stable performance, high output power, fast cutting speed, high surface finish, low loss of electrode wire, etc.

4.three - dimensional, four - axis linkage, CAD interface, DXF graphics files read directly into programming, ISO code control, Real - time graphics tracking, Three - dimensional profile, Multiple processing status display.

5.with upper and lower profile, equal cone, taper cutting, Time-sharing control, blackout memory, short circuit back-back, broken wire protection, edge positioning, simulation check, automatic shutdown, automatic center finding, arbitrary angle rotation, quick zero check, special graphics automatic programming and other more than 20 functions.
