Rt-75nc Metal Steel Stainless Power Sales Hydraulic Pipe Bender Tube Bending Machine
Main Features:Using industrial touch screen, with the simple operation interface in English; high precision, high degree of automation and multifunctional; each action of machine is controlled by PLC programmed control system or IPC.1. 3D mandrel pipe bending machine2. Equipped with 3 programmable a......
Send Inquiry
Product Description
Main Features:
Using industrial touch screen, with the simple operation interface in English; high precision, high degree of automation and multifunctional; each action of machine is controlled by PLC programmed control system or IPC.
1. 3D mandrel pipe bending machine
2. Equipped with 3 programmable axis (YBC)
3. Feeding (Y-axis): AC servomotor drive; Rotation (B-axis): AC servomotor drive.
4. Bending (C-axis): Hydraulic drive (2A type) or AC servomotor drive (3A type)
5. High quality hydraulic system and PLC unit (standard components).
6. Automatic lubrication system for moving areas
7. Self-diagnostic system, detecting the error immediately
8. Multiple groups pipe-bending information storage
9. Touch screen system and human/machine interface control provide user friendly operations.
10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
11. Optional: the auto loading and unloading system.
12. Optional: IPC Industrial PC assorted with touch screen display, capable of 3D bending simulation, 3D preview and collision prevention(optional); TeamViewer can make the remote control for the machine.
Technical parameters:
Company Details
Professional: 10 years into machinery.
Brand: RUNTAI, China Famous Brand
Engineers: 9 professional and experienced engineers
Certificates: CE, ISO9001:2008
Letters patents: 12 official patents
Examining report: 5 official examining reports
Innovation project: 2 innovative program awards
Exported Countries: South Africa, India, Australia, Russia, UK, Mexico, Ukraine etc
Trade information:
FOB Shanghai, CIF your port
Payment Terms: T/T, L/C
Delivery Terms: 30% deposit, 70% paid before shipment.
Delivery Time: 30days after receiving deposit
Minimum Order Quantity: 1 set
Warranty: 1 year
Package Details: wooden box
Supply Ability: 30 Sets per Month
Free Sample: No
Notes:
If you have any doubts about this machine, please contact me through below e-mail addresss.
Using industrial touch screen, with the simple operation interface in English; high precision, high degree of automation and multifunctional; each action of machine is controlled by PLC programmed control system or IPC.
1. 3D mandrel pipe bending machine
2. Equipped with 3 programmable axis (YBC)
3. Feeding (Y-axis): AC servomotor drive; Rotation (B-axis): AC servomotor drive.
4. Bending (C-axis): Hydraulic drive (2A type) or AC servomotor drive (3A type)
5. High quality hydraulic system and PLC unit (standard components).
6. Automatic lubrication system for moving areas
7. Self-diagnostic system, detecting the error immediately
8. Multiple groups pipe-bending information storage
9. Touch screen system and human/machine interface control provide user friendly operations.
10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
11. Optional: the auto loading and unloading system.
12. Optional: IPC Industrial PC assorted with touch screen display, capable of 3D bending simulation, 3D preview and collision prevention(optional); TeamViewer can make the remote control for the machine.
Technical parameters:

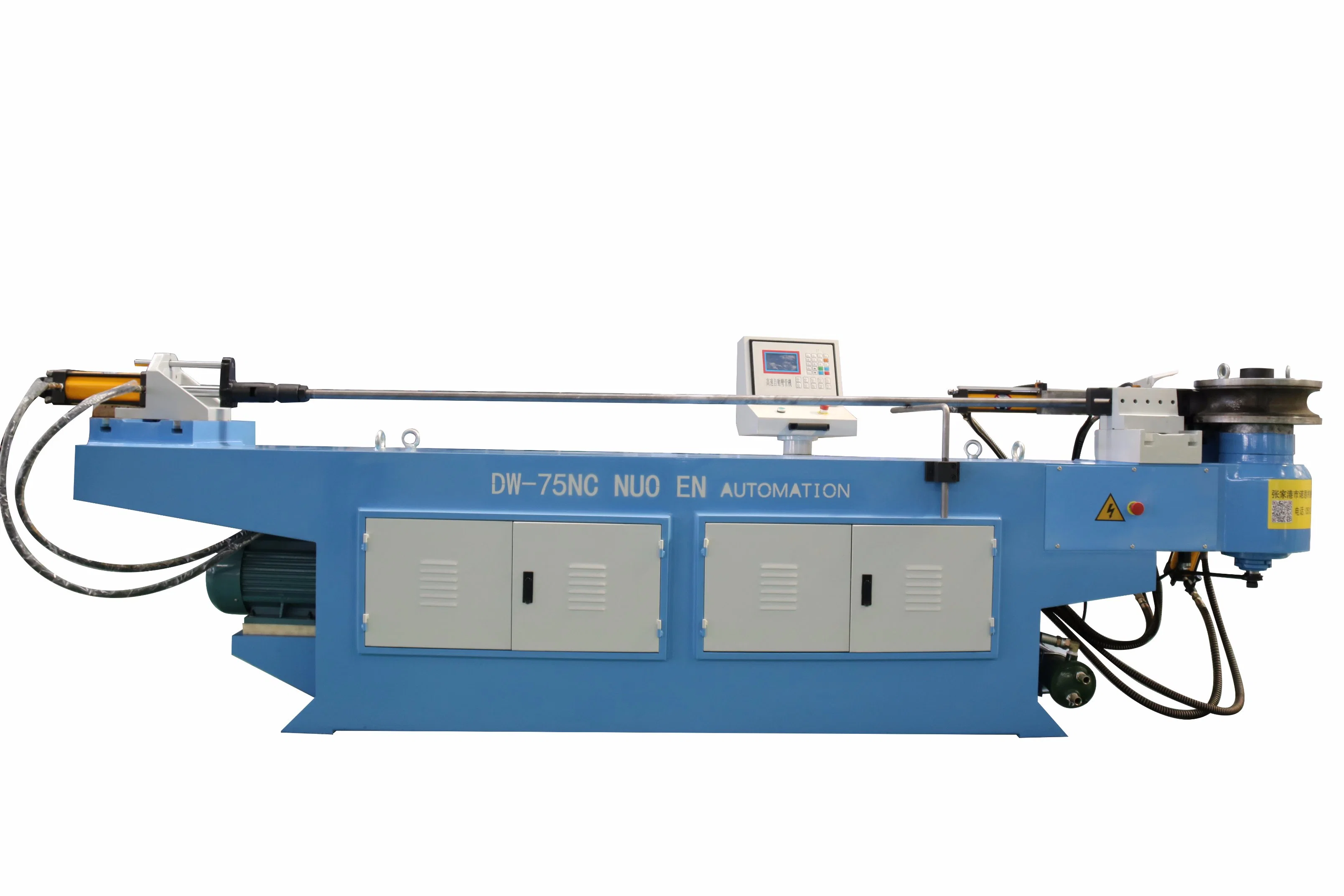

| Model | DW-75NC |
| Bending capability (carbon steel) OD×WT | Φ75×4.0 mm |
| Bending radius | 35~200 mm |
| Bending angle | 0~195° |
| Max bending length with mandrel | 2600mm |
| Bending speed | 90°/sec |
| Bending accuracy | ±0.1° |
| Feeding speed | 20~600 mm/sec |
| Feeding accuracy | ±0.1 mm |
| Rotating speed | 240°/sec |
| Rotating accuracy | ±0.1° |
| Tools stack | 1 |
| Bending | Hydraulic (2A) AC servomotor (3A) |
| Feeding/Booster drive | AC Servomotor |
| Rotating drive | AC Servomotor |
| Main motor power | 7.5 KW |
| System hydraulic pressure | 12MPa |
| Size | 5500×1550×1500mm |
| Weight | 1900 kg |
Company Details
Professional: 10 years into machinery.
Brand: RUNTAI, China Famous Brand
Engineers: 9 professional and experienced engineers
Certificates: CE, ISO9001:2008
Letters patents: 12 official patents
Examining report: 5 official examining reports
Innovation project: 2 innovative program awards
Exported Countries: South Africa, India, Australia, Russia, UK, Mexico, Ukraine etc
Trade information:
FOB Shanghai, CIF your port
Payment Terms: T/T, L/C
Delivery Terms: 30% deposit, 70% paid before shipment.
Delivery Time: 30days after receiving deposit
Minimum Order Quantity: 1 set
Warranty: 1 year
Package Details: wooden box
Supply Ability: 30 Sets per Month
Free Sample: No
Notes:
If you have any doubts about this machine, please contact me through below e-mail addresss.
