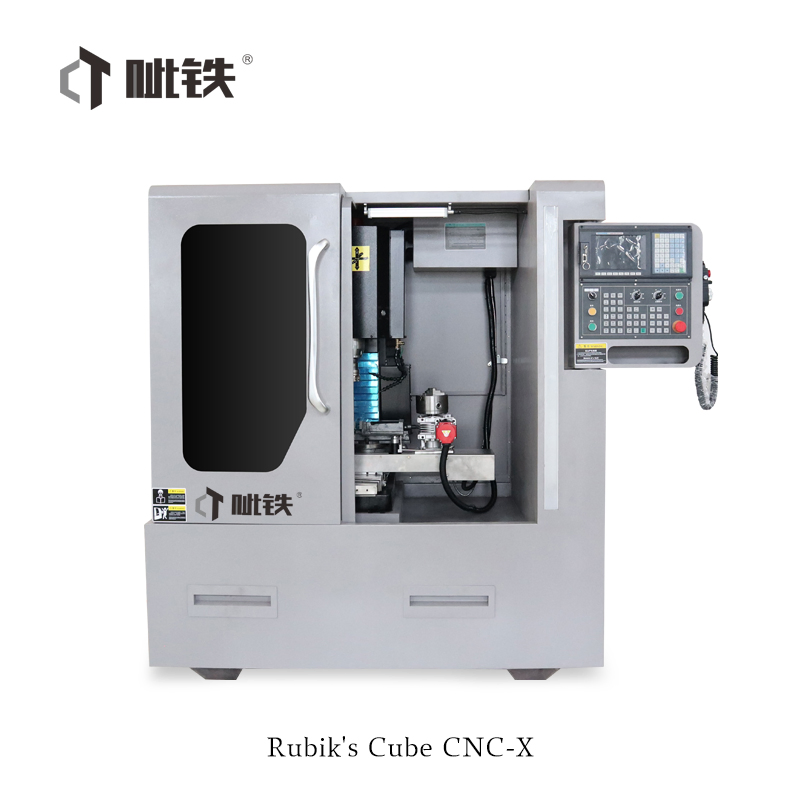

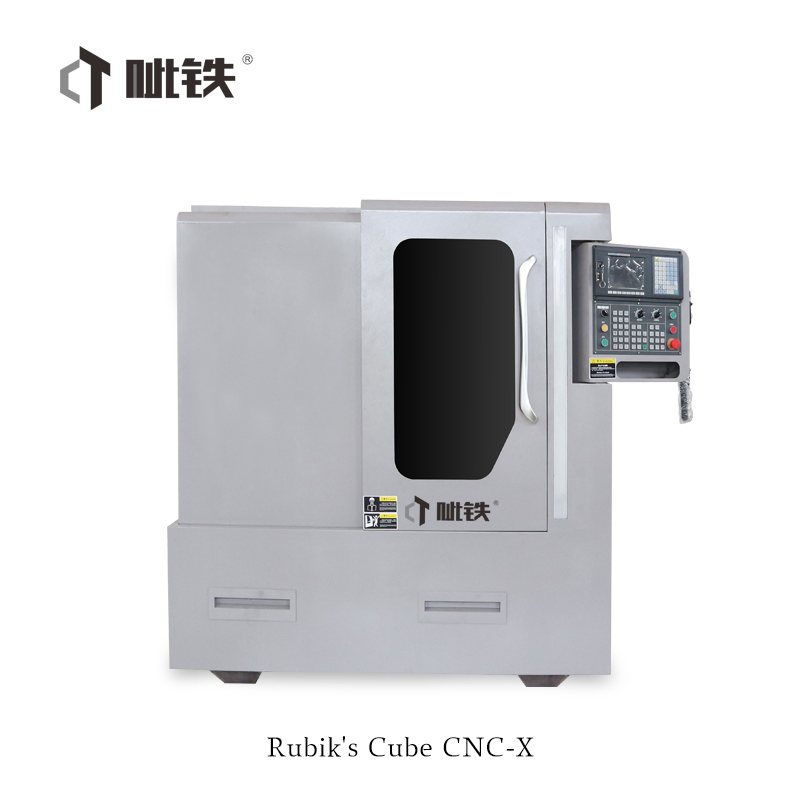

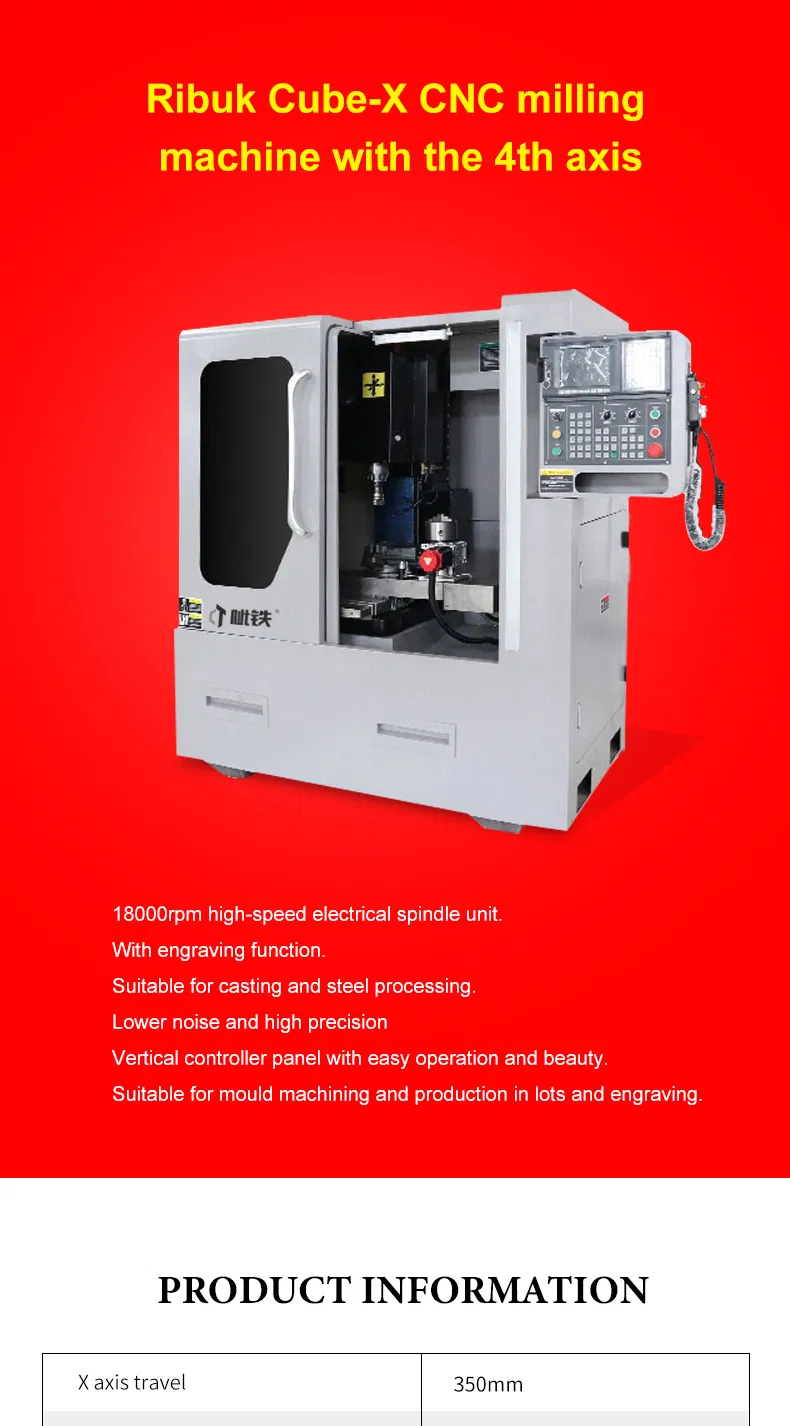

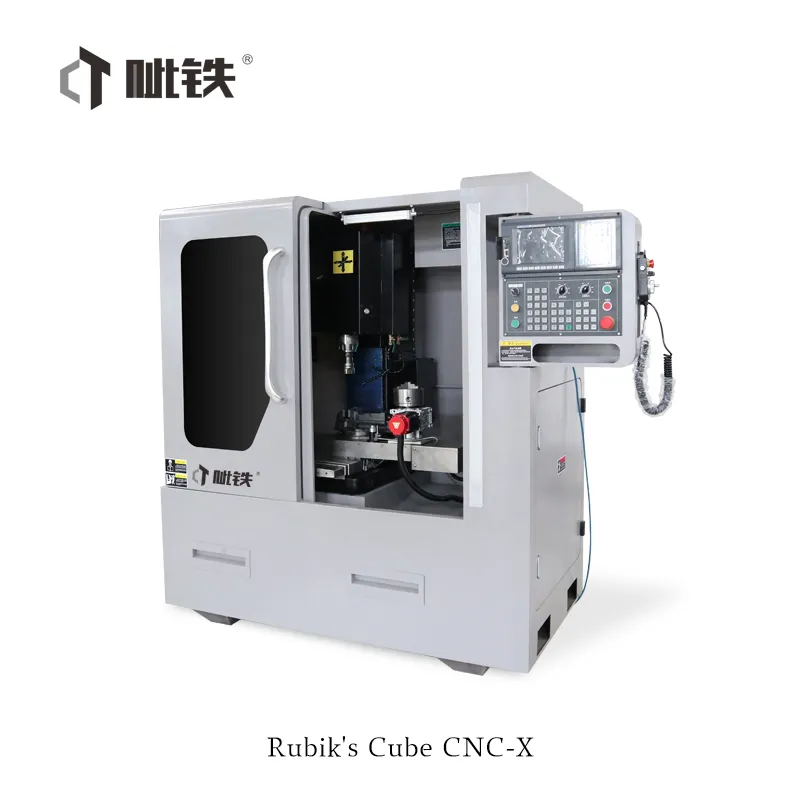

Rubik Cube-X Factory Supply Attractive Hot Selling Good Quality CNC Machine Milling and Drilling
X axis travel350mmY axis travel160mmZ axis travel400mmSpindle nose to table distance476.4mmSpindle center to column distance161mmWorktable size600X163mmMain motor3KWSpindle speed18000/minCoolant systemliuquid coolingChange tool wayPnumeticSpindle taperBT30ATC TypeUmbrella typeCapacity of ATC8TAir co......
Send Inquiry
Product Description

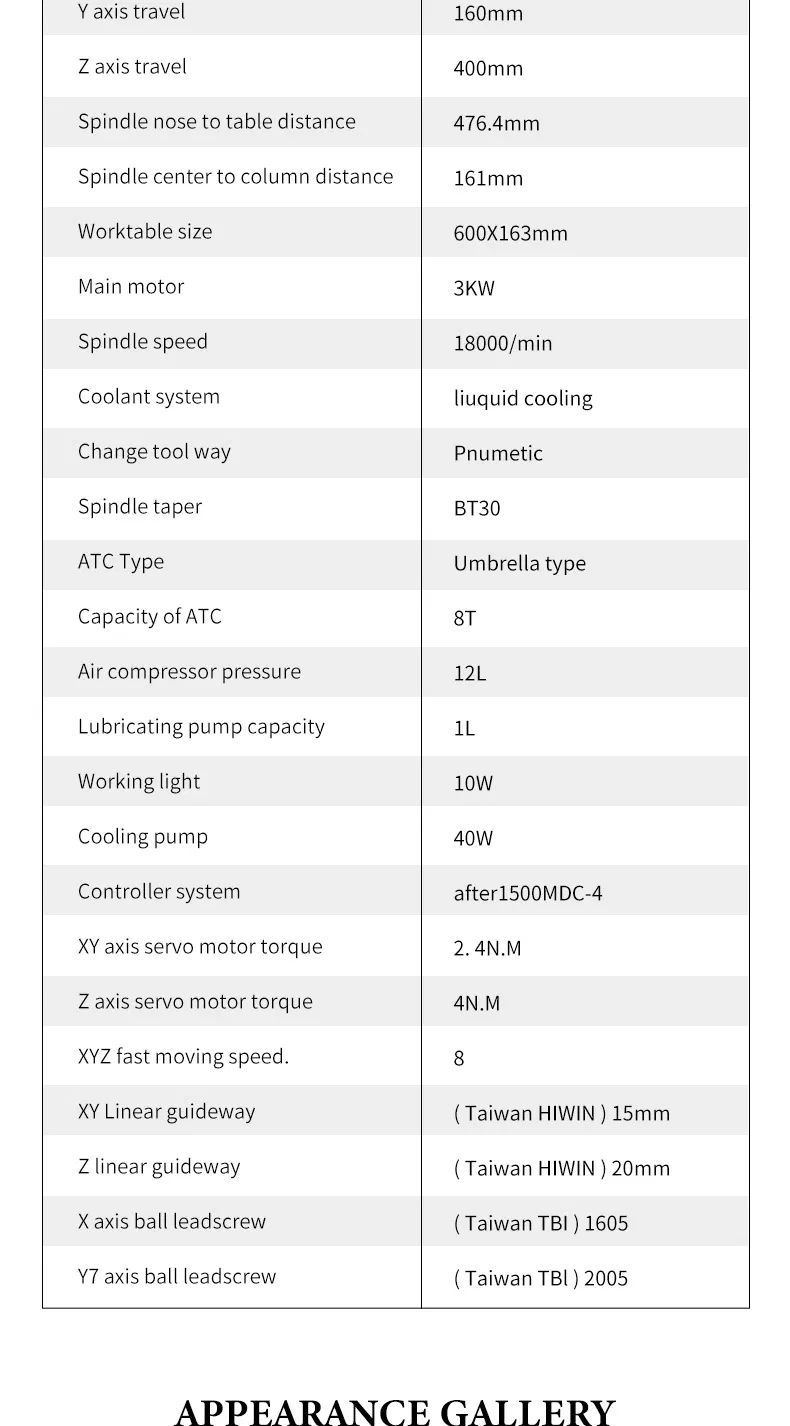

| X axis travel | 350mm |
| Y axis travel | 160mm |
| Z axis travel | 400mm |
| Spindle nose to table distance | 476.4mm |
| Spindle center to column distance | 161mm |
| Worktable size | 600X163mm |
| Main motor | 3KW |
| Spindle speed | 18000/min |
| Coolant system | liuquid cooling |
| Change tool way | Pnumetic |
| Spindle taper | BT30 |
| ATC Type | Umbrella type |
| Capacity of ATC | 8T |
| Air compressor pressure | 12L |
| Lubricating pump capacity | 1L |
| Working light | 10W |
| Cooling pump | 40W |
| Controller system | after1500MDC-4 |
| XY axis servo motor torque | 2. 4N.M |
| Z axis servo motor torque | 4N.M |
| XYZ fast moving speed. | 8 |
| XY Linear guideway | ( Taiwan HIWIN ) 15mm |
| Z linear guideway | ( Taiwan HIWIN ) 20mm |
| X axis ball leadscrew | ( Taiwan TBI ) 1605 |
| Y7 axis ball leadscrew | ( Taiwan TBl ) 2005 |
