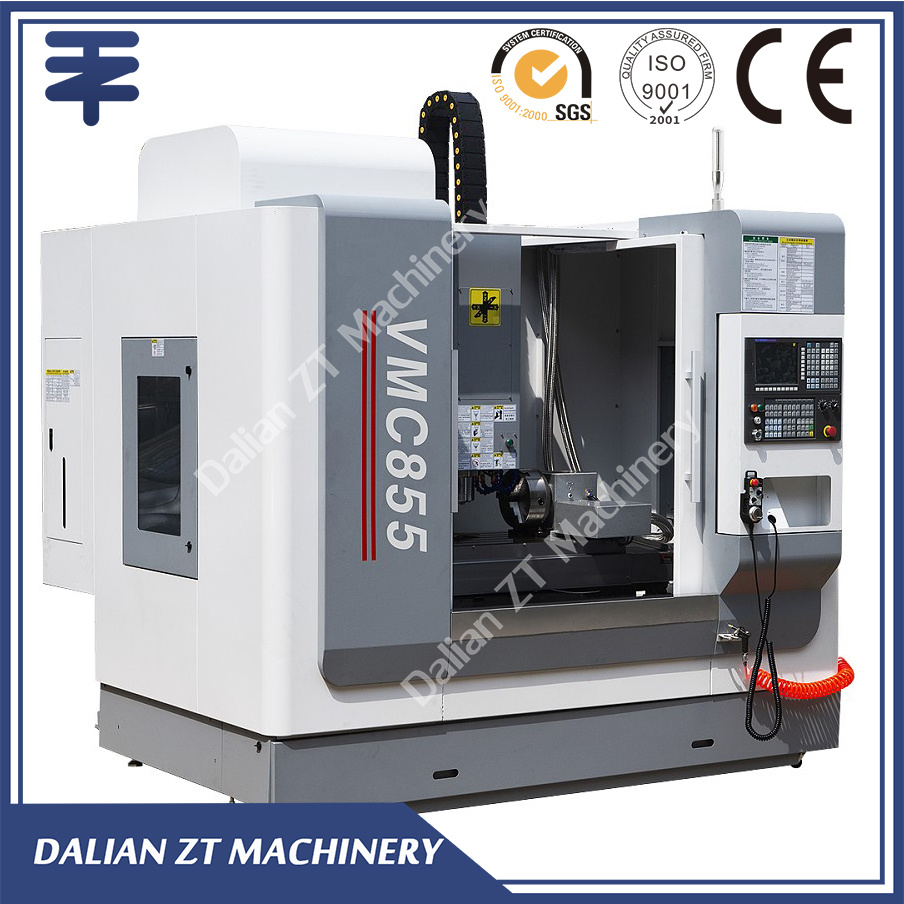

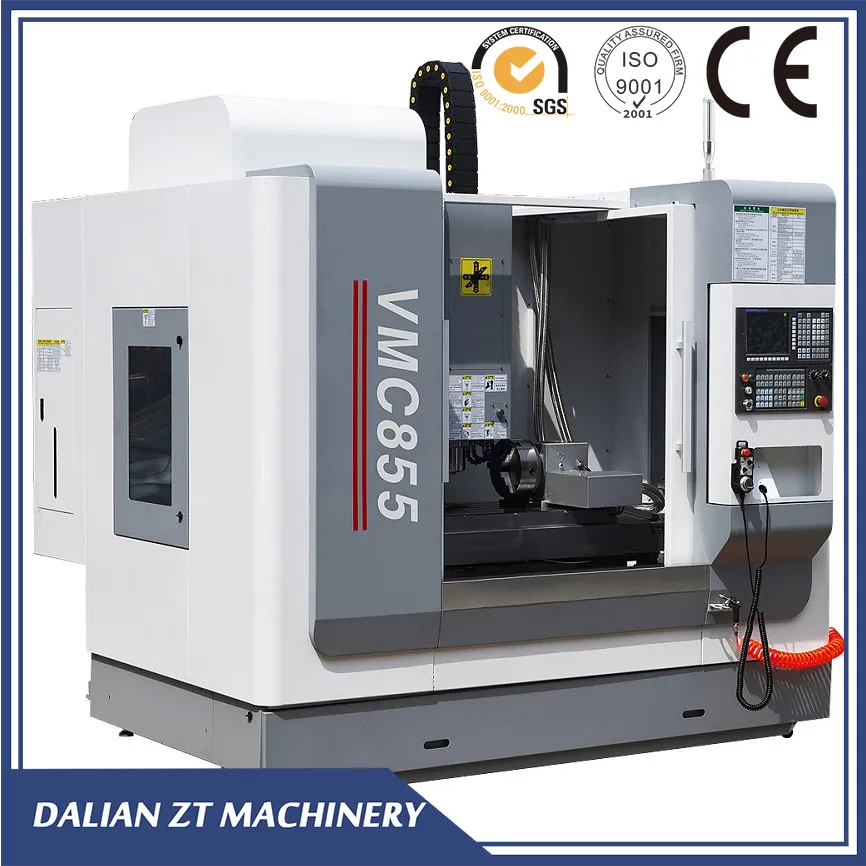

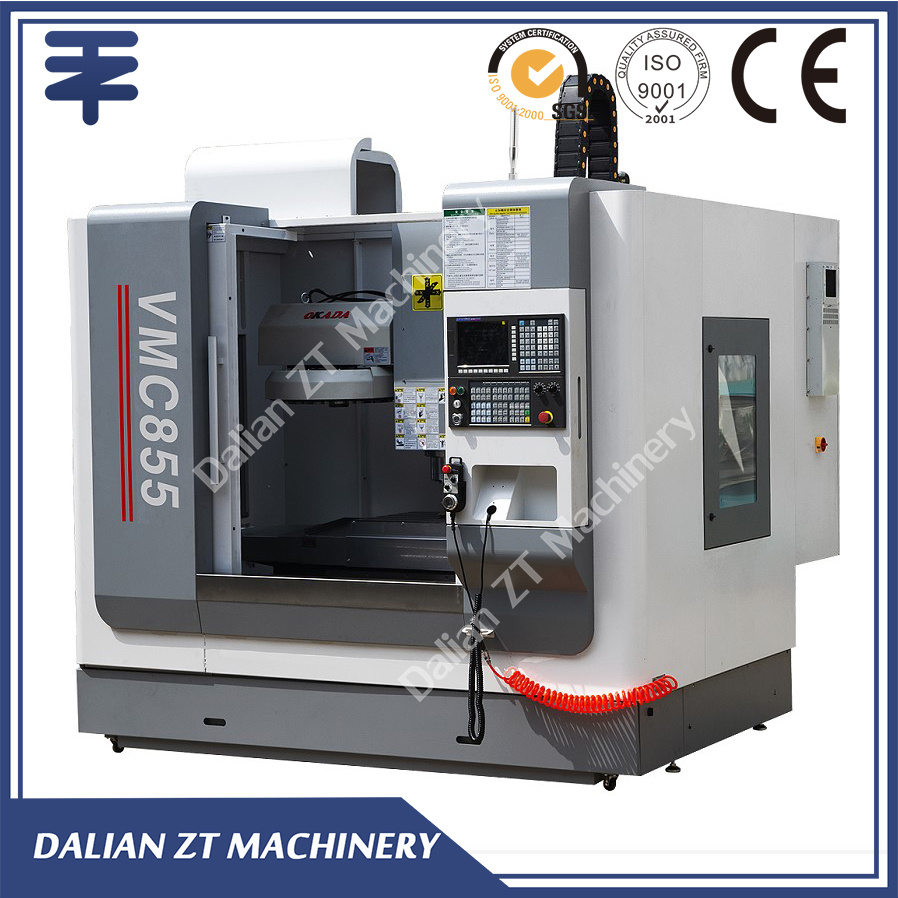

Siemens 4-axis Controller High Speed 12000RPM Vertical Machining Center VMC855 with 24 Tools
FeaturesVMC855 is designed for machining complicated mold profile, automotive parts, and housing parts. It has distinguished advantage in machining mold, especially the small size mold. It has big torque output at low speed range, which is suitable for high strength steel and high temperature allo......
Send Inquiry
Product Description
Features
VMC855 is designed for machining complicated mold profile, automotive parts, and housing parts. It has distinguished advantage in machining mold, especially the small size mold. It has big torque output at low speed range, which is suitable for high strength steel and high temperature alloy steel which are difficult for machining.
Suitable to machine large machinery parts, automative part, mold etd;
With Taiwan high speed spindle to 10000rpm;
High accuracy; High speed; High rigidity; Low noise
Main technical parameters
CNC control system
The system has complete and reliable interlock, safety protection and fault diagnosis and alarm functions, equipped with RS232 standard and network communication interface, and computer program control and storage.
WORKSHOP
CUSTOMERS' VISITING & EXHIBITION
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
VMC855 is designed for machining complicated mold profile, automotive parts, and housing parts. It has distinguished advantage in machining mold, especially the small size mold. It has big torque output at low speed range, which is suitable for high strength steel and high temperature alloy steel which are difficult for machining.
Suitable to machine large machinery parts, automative part, mold etd;
With Taiwan high speed spindle to 10000rpm;
High accuracy; High speed; High rigidity; Low noise
Main technical parameters
| Specification | Unit | VMC850 | VMC855 | VMC1060 |
| Table size | mm | 1000x500 | 1000x550 | 1200×600 |
| Table travel X/Y/Z | mm | 800/500/500 | 850/550/550 | 1000/600/600 |
| Distance between spindle and table surface | mm | 150-650 | 120-670 | 120-720 |
| Spindle center to column surface | mm | 550 | 595 | 650 |
| Rapid feed speed X | m/min | 24 | 24 | 24 |
| Rapid feed speed Y | m/min | 24 | 24 | 24 |
| Rapid feed speed Z | m/min | 20 | 20 | 20 |
| Cutting feed rate | mm/min | 1-10000 | 1-10000 | 1-8000 |
| Max table load | kg | 500 | 600 | 800 |
| T-slot (N/W/D) | 5/18/100 | 5/18/100 | 5/18/100 | |
| Spindle speed range | rpm | 10000(optional 12000) | 10000(optional 12000) | |
| Spindle diameter | mm | 150 | 150 | 150 |
| Spindle taper | / | BT40 | BT40 | BT40 |
| Spindle motor power | kw | 7.5 | 7.5 | 7.5/11 |

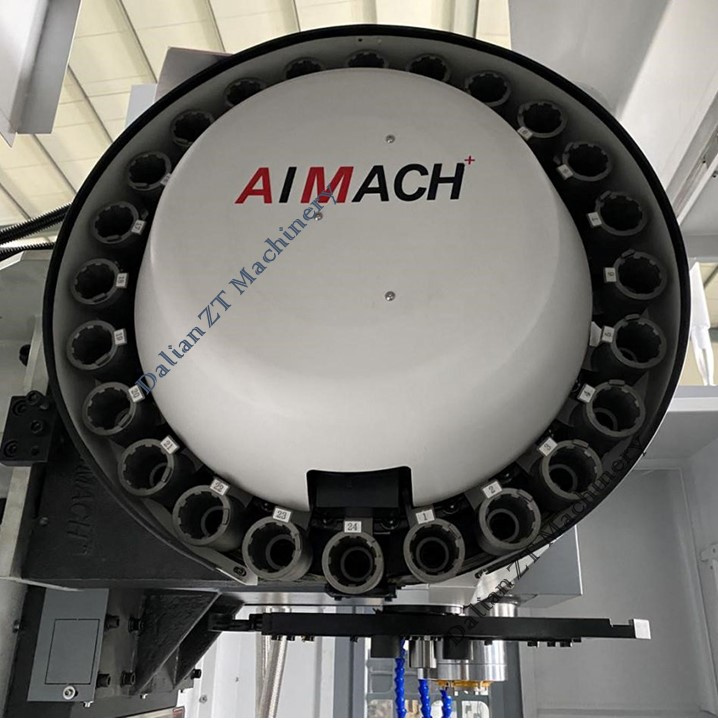

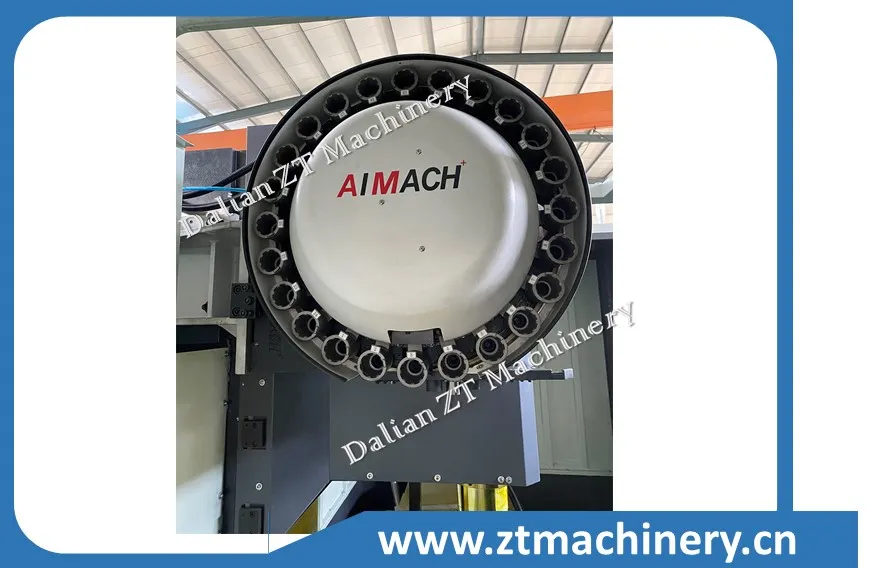

| Magazine capacity | T | 24 | 24 | 24 |
| Tool magazine type | Disk type with arm | Disk type with arm | Disk type with arm | |
| Max tool diameter | mm | Φ80/150 | Φ80/150 | Φ80/150 |
| Max tool length | mm | 200 | 200 | 200 |
| Max tool weight | kg | 8 | 8 | 8 |
| Overall size | mm | 2750×2300×2300 | 2750×2300×2300 | 3350×2300×2550 |
| Net weight | kg | 4500 | 5300 | 5800 |
The system has complete and reliable interlock, safety protection and fault diagnosis and alarm functions, equipped with RS232 standard and network communication interface, and computer program control and storage.

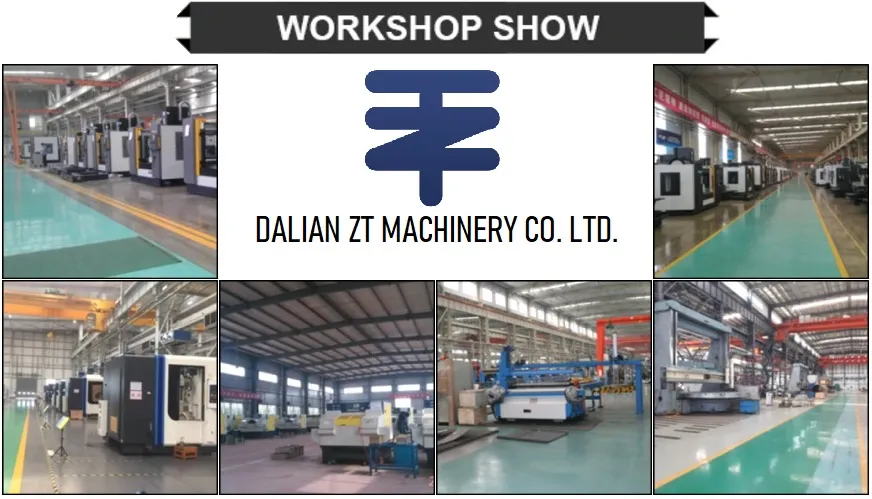

WORKSHOP
CUSTOMERS' VISITING & EXHIBITION
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
