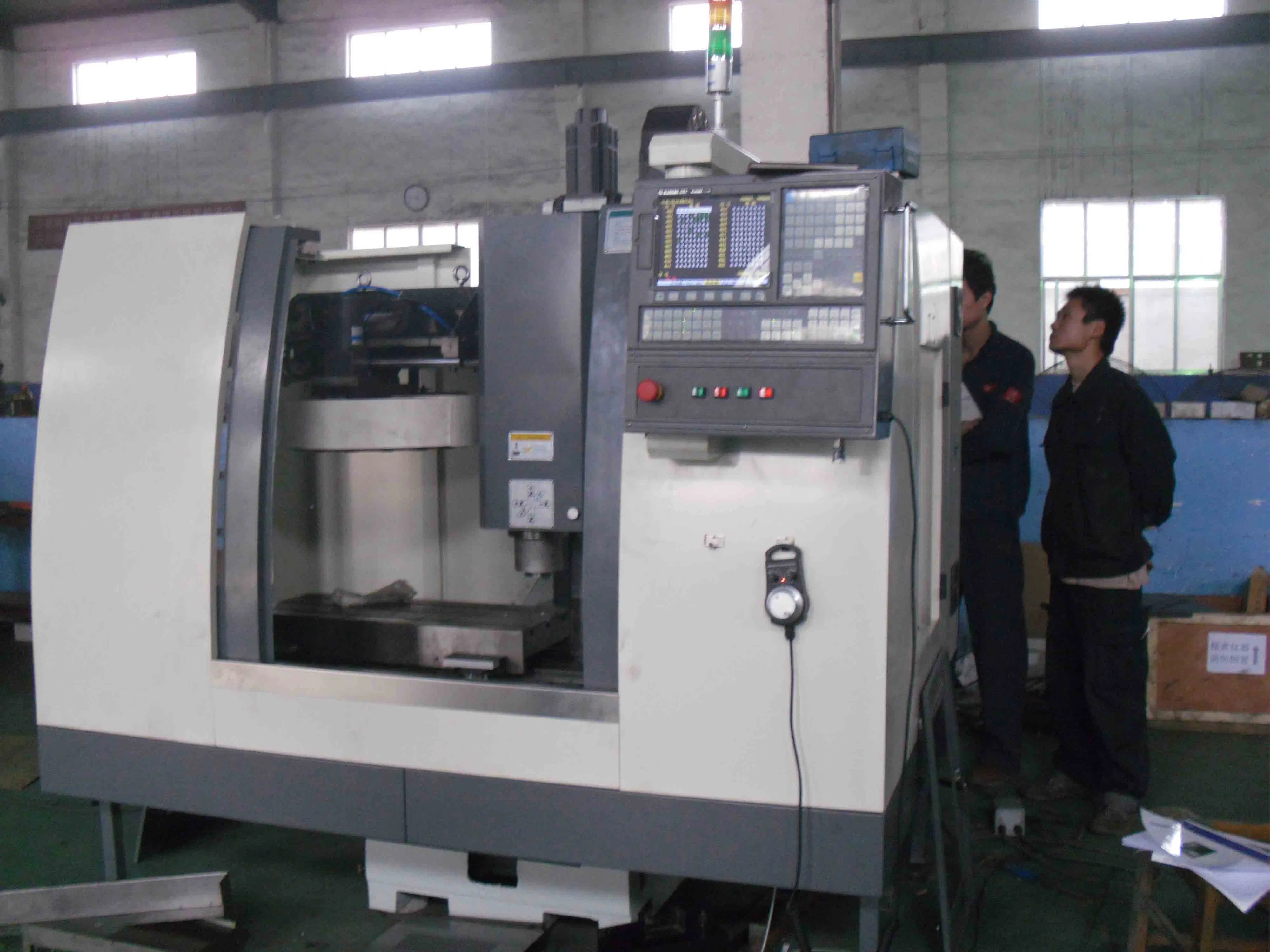

China Small Vertical Machine Center CNC Mill (VMC550L)

Product Description

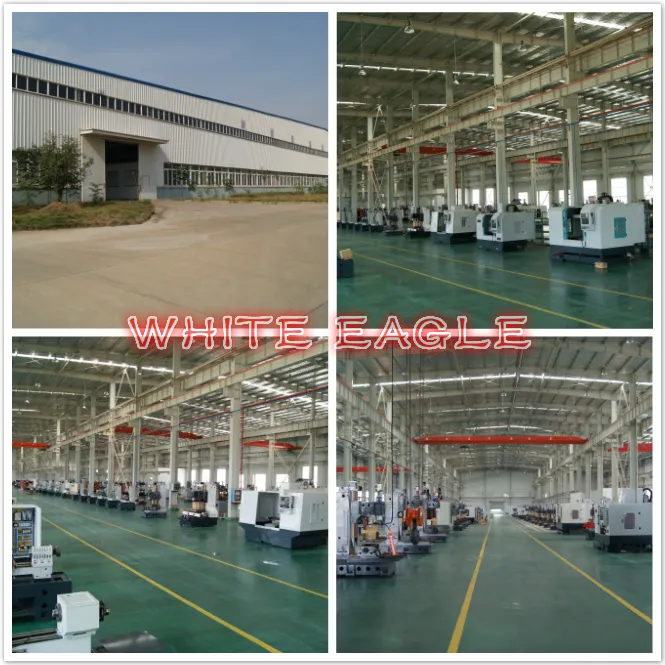

We mainly manufacture Multi-Purpose Machine series, Bench Lathe series, Precision Bench Lathe series, Turning & Milling complex machine, Milling & Drilling Machine series, Drilling machine series, Woodworking machine series, mini mill, mini lathe and Mini machine center etc. with distinctive advantages of excellent function, artistic appearance, compact construction, our products are distributed to nearly 60 countries and regions throughout the world and win high recognition from customers.

ITEM	VMC550L
Table size L(mm)× W(mm)	800× 320
T slot QTY /width/center distance(mm)	3-14-100
Maximum load(KG)	300
X travel (mm)	550
Y travel (mm)	340
Z travel (mm)	460
Spindle nose to table (mm)	100-560
Spindle center to column (mm)	380
Spindle taper	BT40
spindle motor drive method	belt
3 axes motor drive method	direct
Max. spindle speed (Rpm)	8000
Main motor (kW)	5.5
X torque(N. M)	6
Y torque(N. M)	6
Ztorque(N. M)	7.7
Rapid moving speed (m/min. )	12/12/10
Cutting speed (mm/min)	1-5000
Ball screw (diametermm/pitch )mm X, Y axis	32/10
Ball screw (diametermm/pitch )mm Z axis	32/10
Positioning accuracy (mm)	0.016
Repeatability accuracy (mm)	0.008
Funnel type (optional ) BT30	12 or 16
Air pressure Mpa	0.6
frame ---Machine weight (kg)	2000
complete--- Machine weight (kg)	2500
frame ---Machine overall size: L(mm)× W(mm)× H(mm)	1600x1860x2100
complete---Machine overall size: L(mm)× W(mm)× H(mm)	2200x1600x2300
controller	GSK218M
