Spindle Hsk-32e 3 Axis Compact Mini CNC Milling Machine with Tool Changer
Spindle HSK-32E 3 Axis Compact Mini CNC Milling Machine With Tool ChangerProduct DescriptionSpecificationUHB 500System828D-280 system (with Top Surface)Product NameConprofe High Precision Ultrasonic Machining CenterWork tableDimension500x400Max.Load200TravelsMax.Travel in X-/Y-/Z-axis500×4......
Send Inquiry
Product Description
Spindle HSK-32E 3 Axis Compact Mini CNC Milling Machine With Tool Changer

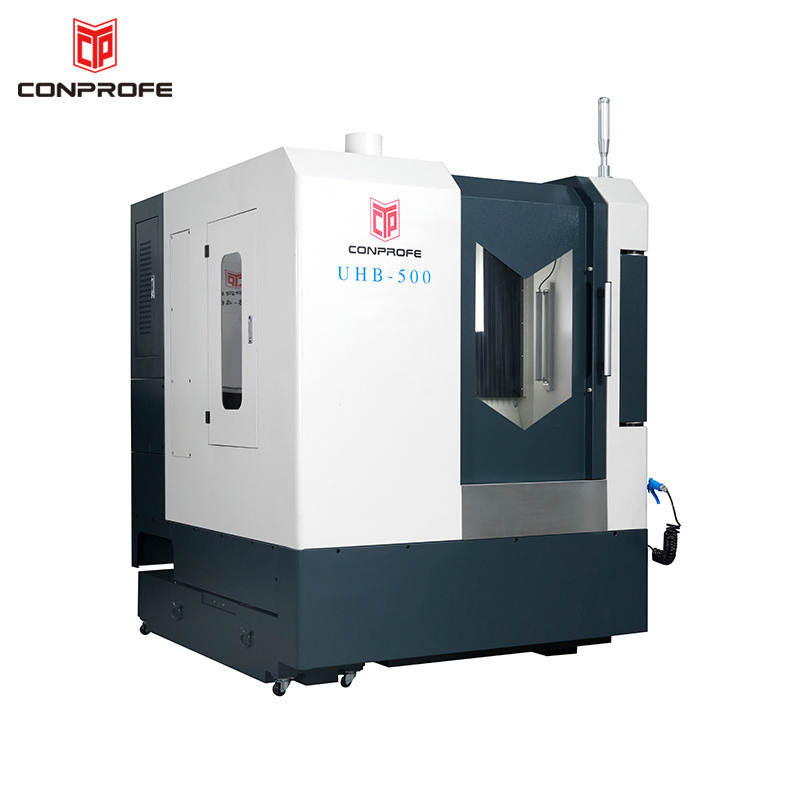

| UHB 500 | ||

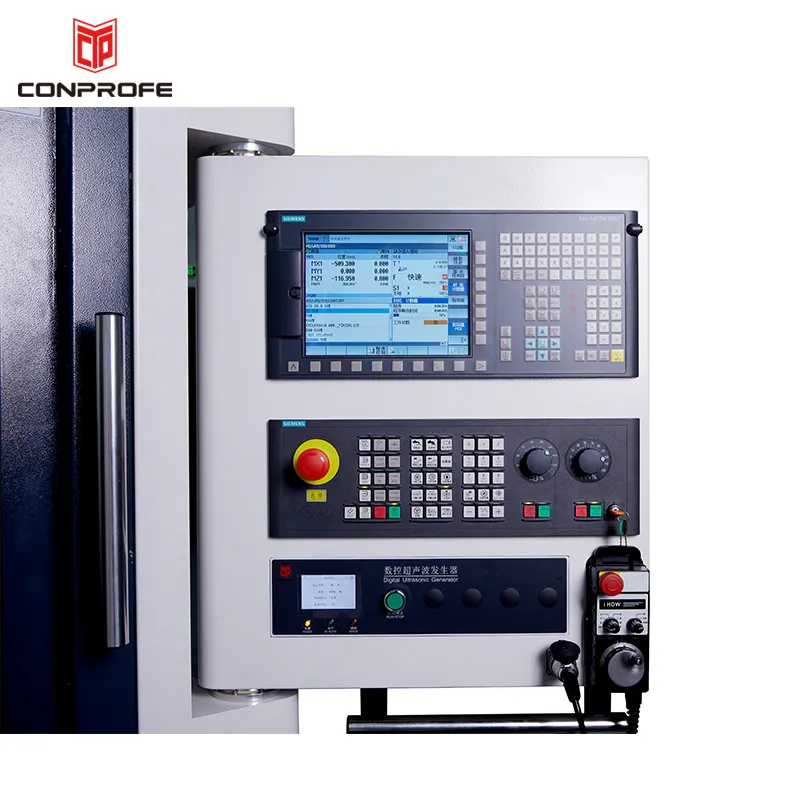

| System | 828D-280 system (with Top Surface) | |

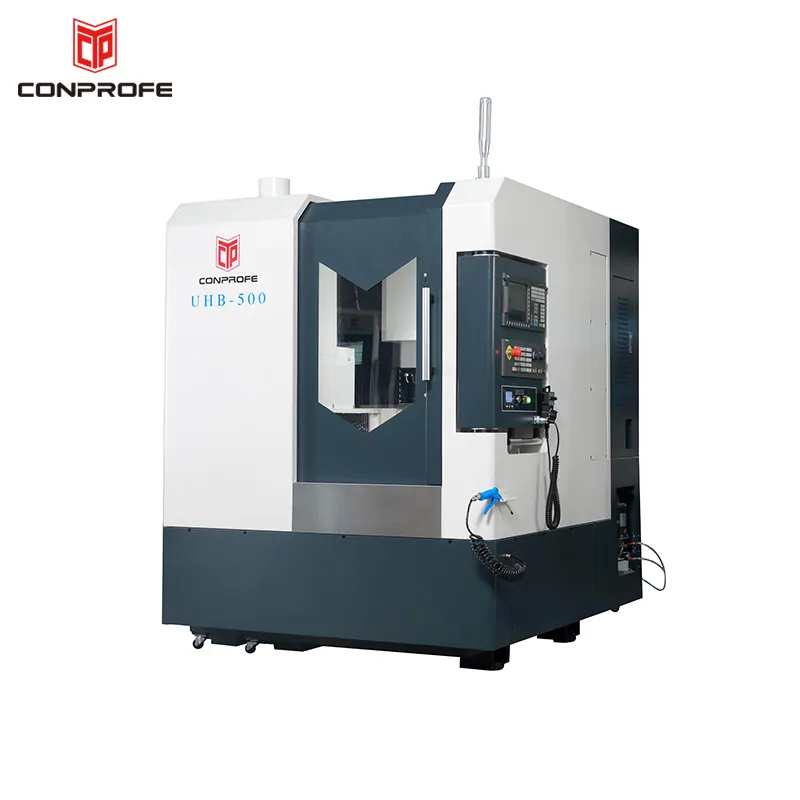

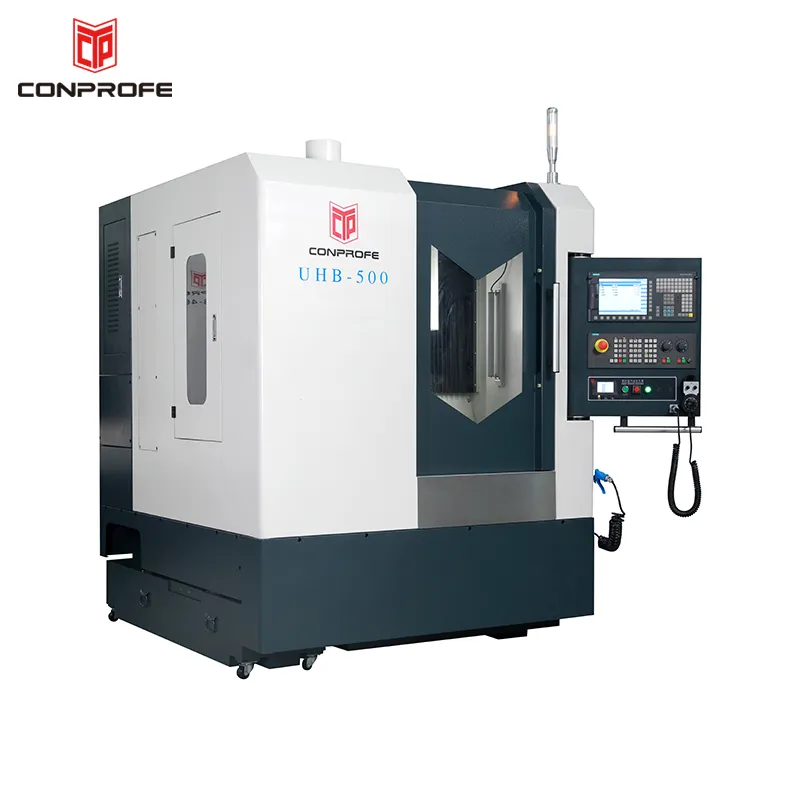

| Product Name | Conprofe High Precision Ultrasonic Machining Center | |
| Work table | Dimension | 500x400 |
| Max.Load | 200 | |
| Travels | Max.Travel in X-/Y-/Z-axis | 500×400×300mm |
| FeedRate | Rapid Traverse in X-/Y-/Z-axis | 15/15/12m/min |

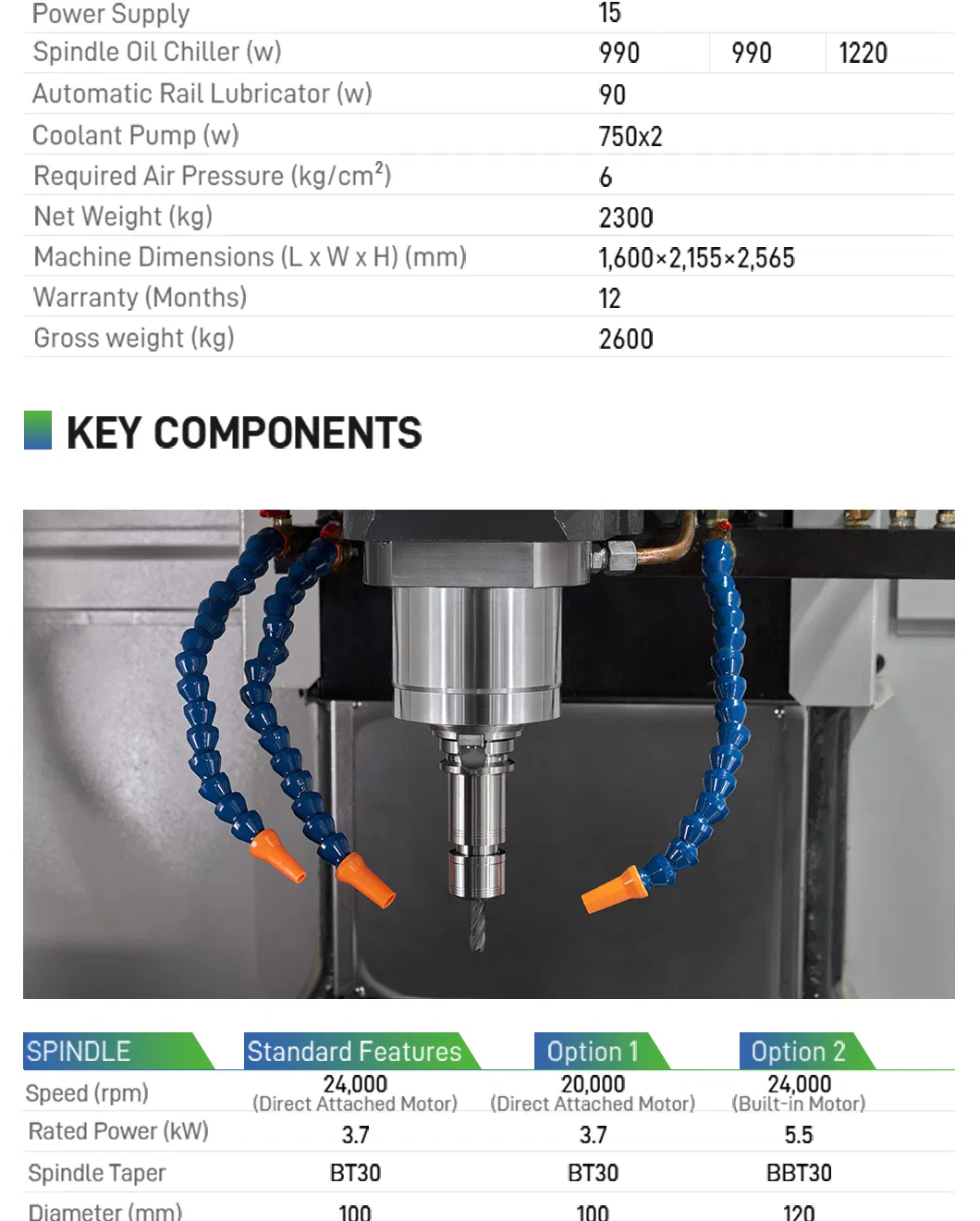

| Spindle | Diameter | 100mm |
| Power Rating | 6.5kW | |
| Max.Speed | 40000rpm | |

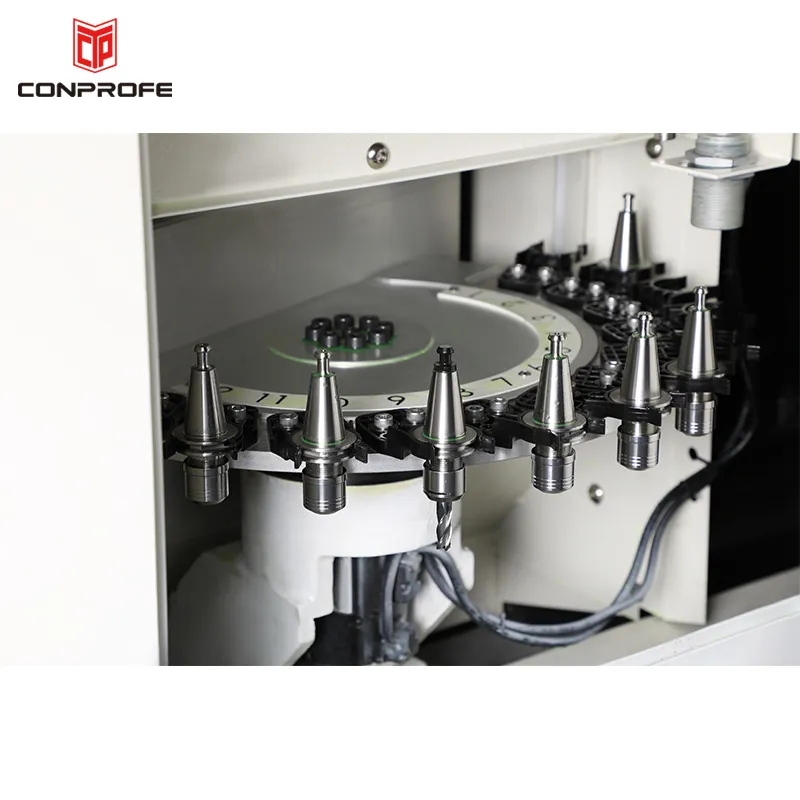

| Magazine | Tool Capacity | 13Positions |
| Tool Holder Spindle | HSK-32E | |
| Tool Overhang | 80mm | |
| Accuracy | Positioning Accuracy in X-/Y-/Z-axis | 0.005mm |
| Repeatability Accuracy in X-/Y-IZ-axis | 0.003mm | |
| Power and Dimensions | PowerSupply | 3-phase AC, 380V/50Hz/25A |
| Weight | 3500kg | |
| Required Compressed Air Connection | ≥0.6MPa | |

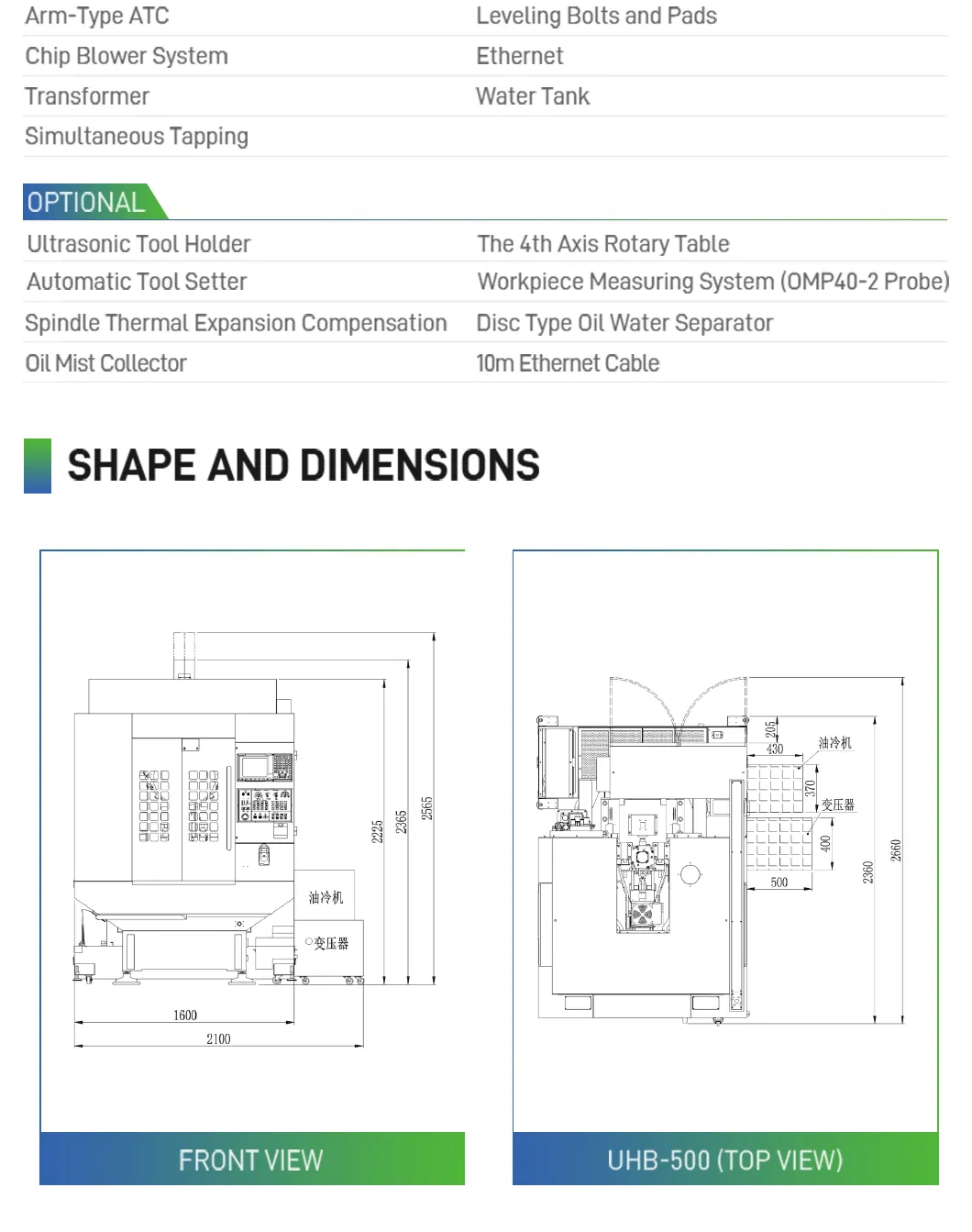

| Dimensions(X/Y/Z) | 1800 × 1900 × 2100mm | |
