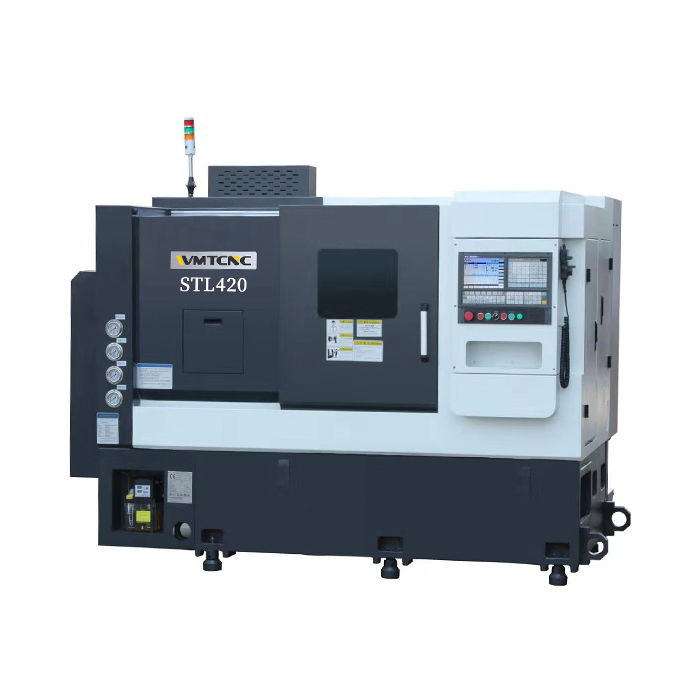

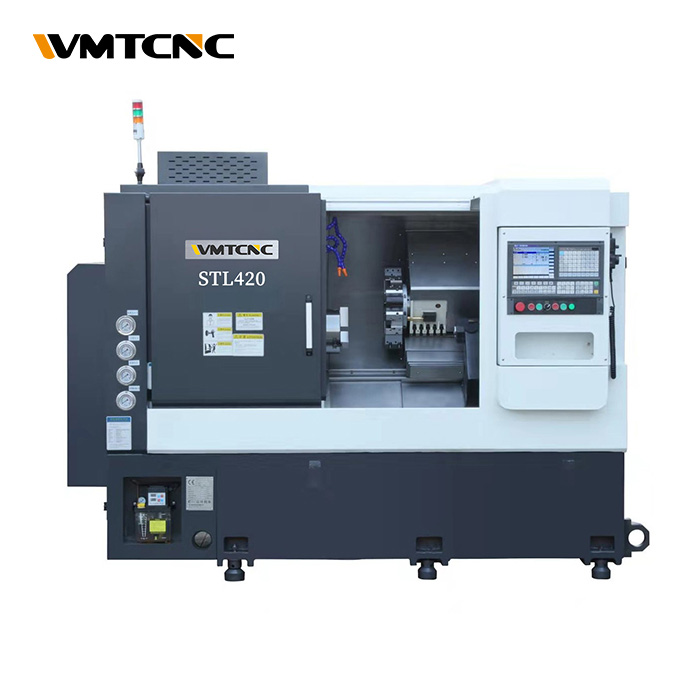

STL420 Slant bed CNC lathe machine with turning milling center
STL420 Slant bed CNC lathe machine with turning milling centerFeatures:CNC lathes features a cast mono-block,slant bed design and has configurable tooling options.The STL series lathes are typically equipped with a high-speed bidrectional indexing turret,a hydraulic chuck and a tailstock.-Cast Mono......
Send Inquiry

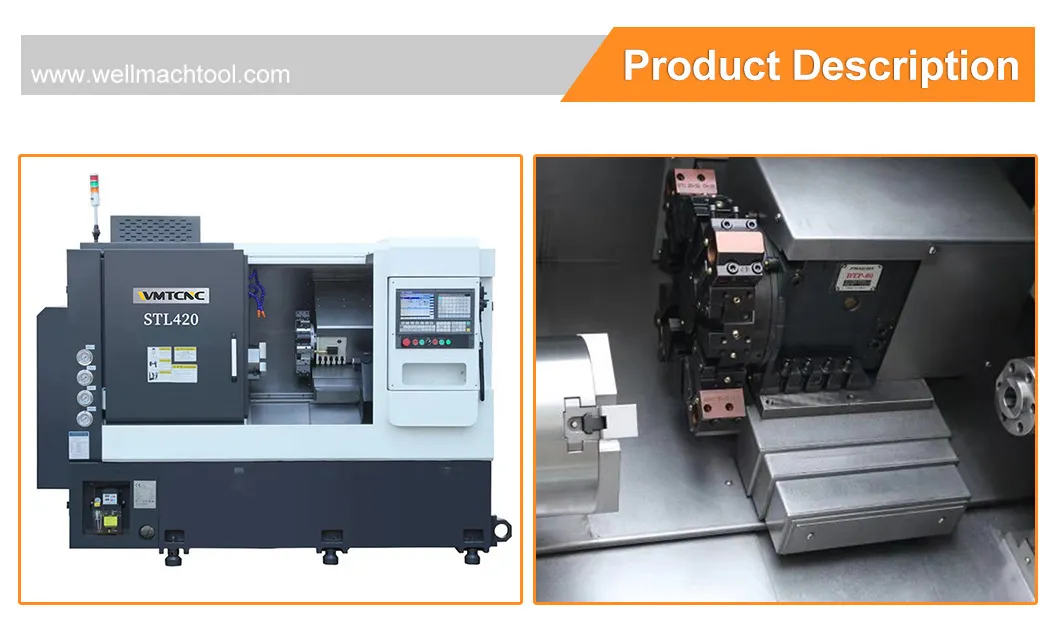

Product Description
Features:
CNC lathes features a cast mono-block,slant bed design and has configurable tooling options.The STL series lathes are typically equipped with a high-speed bidrectional indexing turret,a hydraulic chuck and a tailstock.
-Cast Mono-block,"Ture Align" slant bed structure;
-Adjustable "Ergonomic" operator control panel;
-Servo spindle motor-high speed with constant torque;
-Handheld electronic hand wheel;

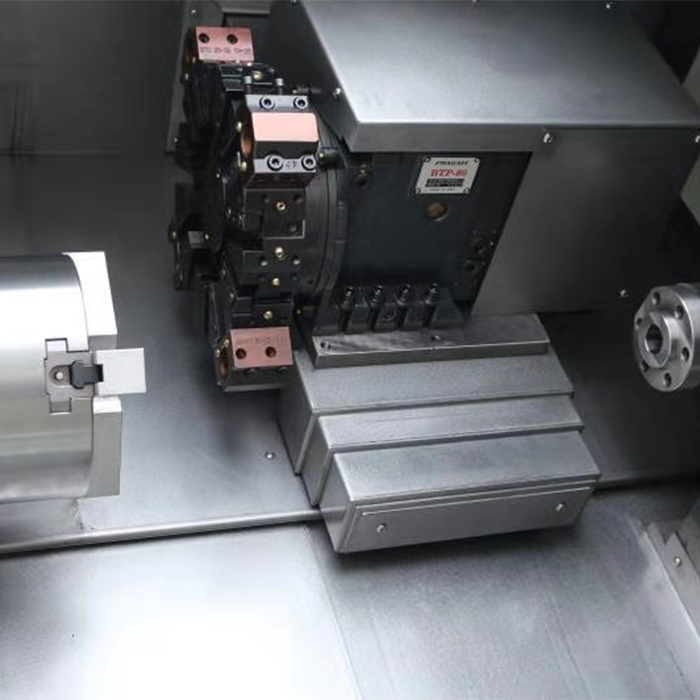

-Highly efficient turret-indexting,bi-directional,non-lifting;
-Schneider Superior quality electrical components.
Standard equipment:
-35degree true slant bed structure, machine base and bed are one-piece casting;
-HIWIN/PMI linear motion guideway;
-PMI ballscrews;
-Guideway&ballscrews are fully enclosed and protected;
-Schneider electronic components;
-Heat exchanger for electric cabinet;
-Auto lubrication system;
-Auto coolant system;
-Tri-color warning light;
-Foot pads.

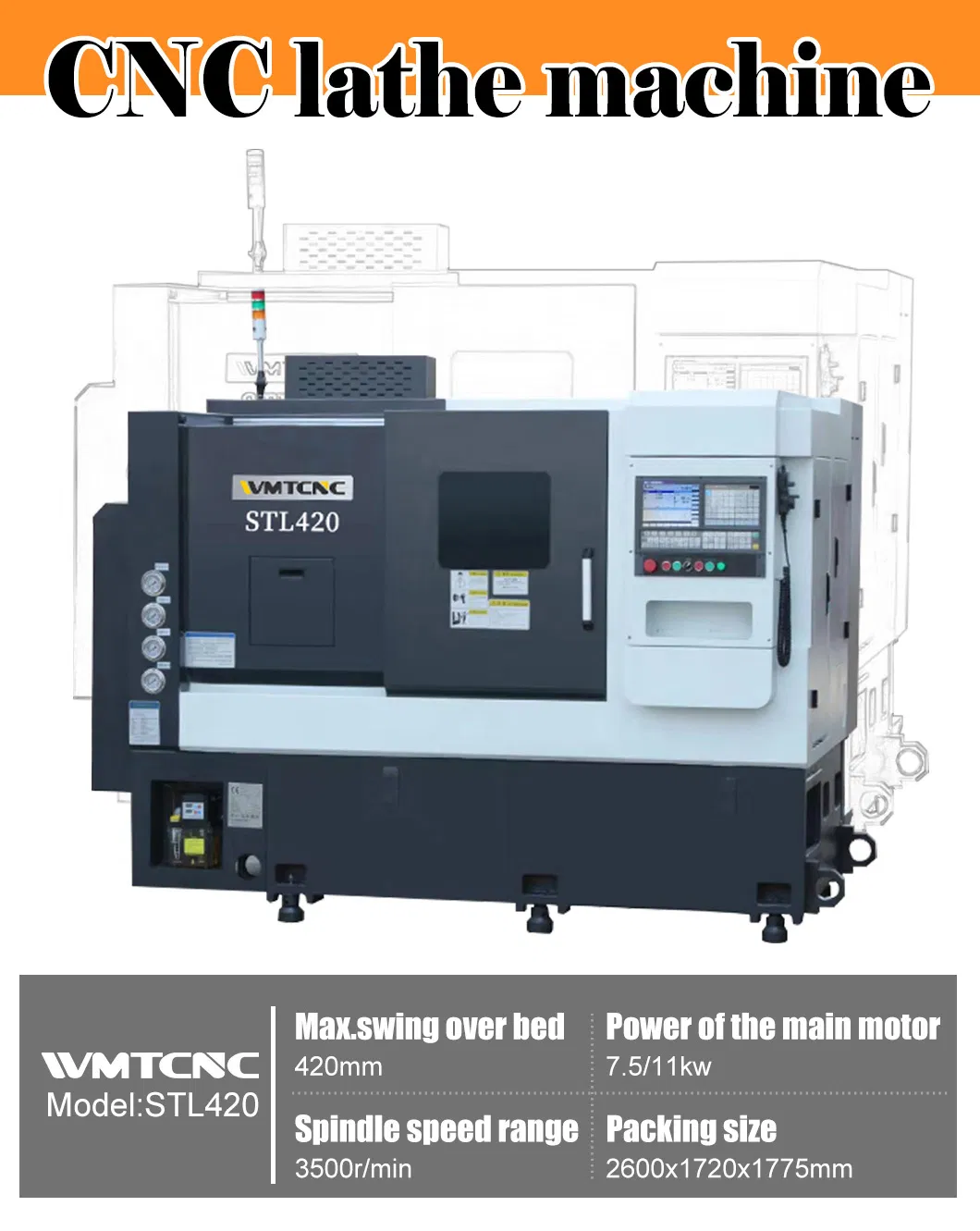

Main Specificaiton for STL420:
Specification | STL420 |
Max.swing over bed | 420mm |
Max.swing over cross slide | 210mm |
Max.length of work piece | 450mm |
Spindle bore diameter | 62mm |
Spindle nose | A2-6 |
Spindle speed range | 3500r/min |
Power of the main motor | 7.5/11kw |
Hydraulic chuck | 8" |
Hydraulic station | 8 |
Taper of tailstock quill | MT4 |
Quill travel | 400mm |
Packing size | 2600x1720x1775mm |
G.W | 33000ks |
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.

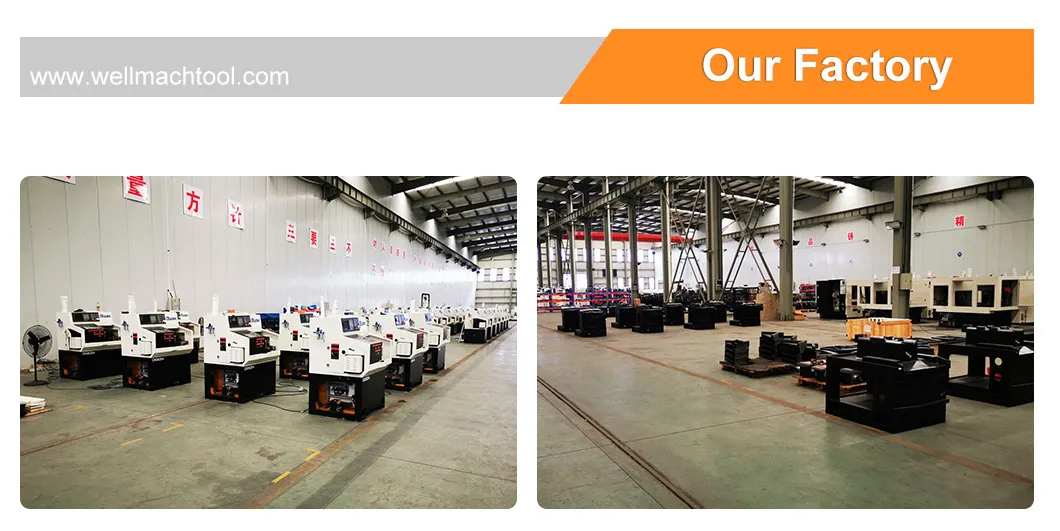

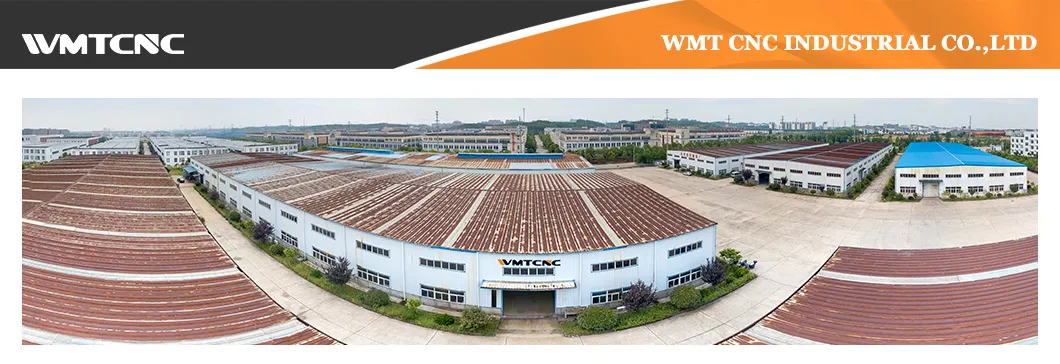

Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
