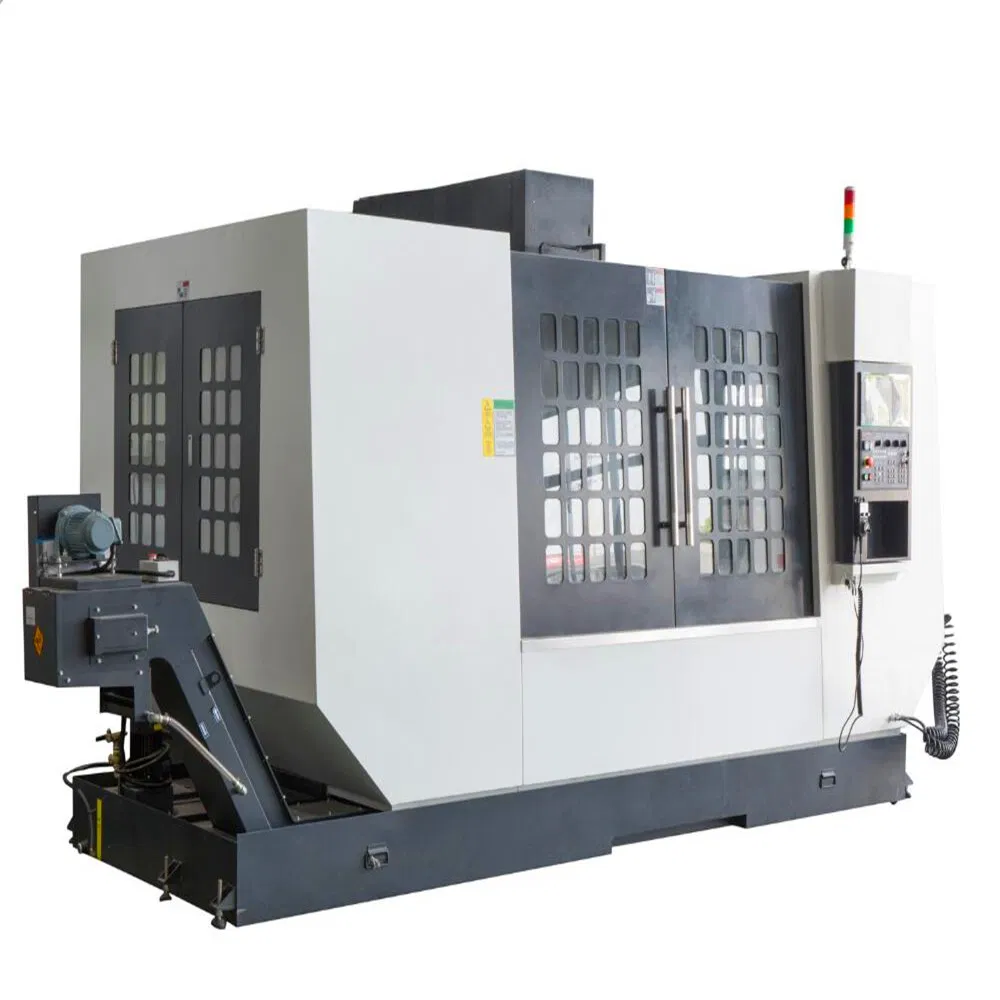

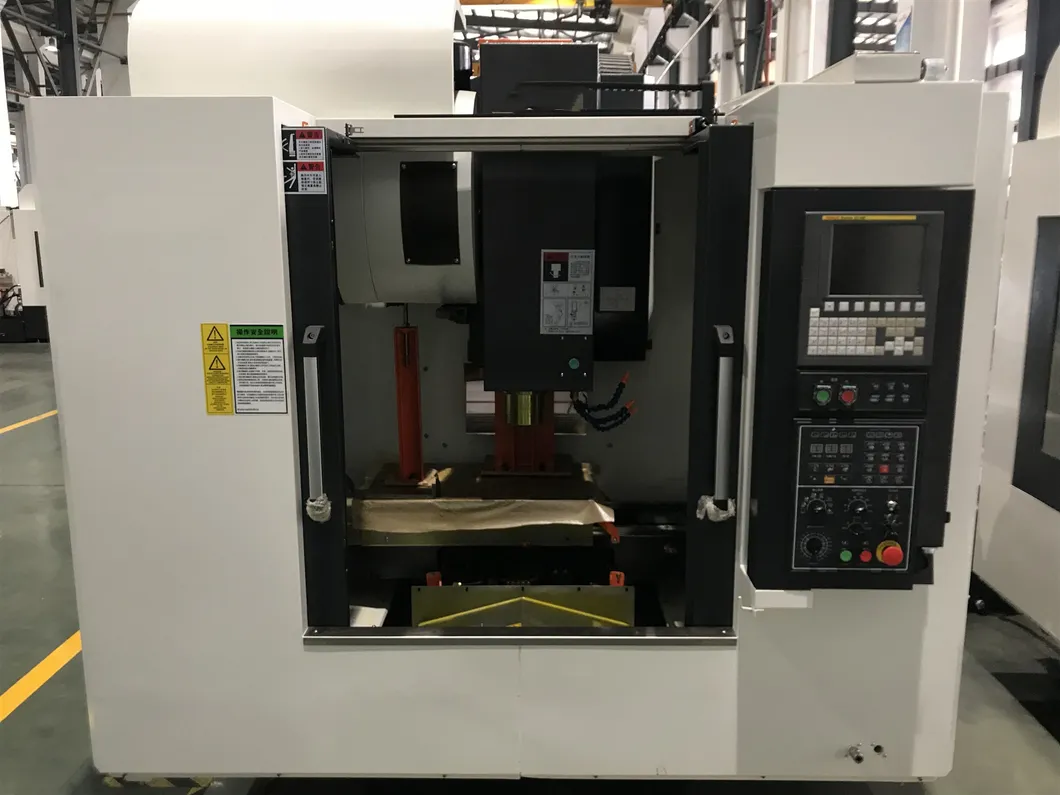

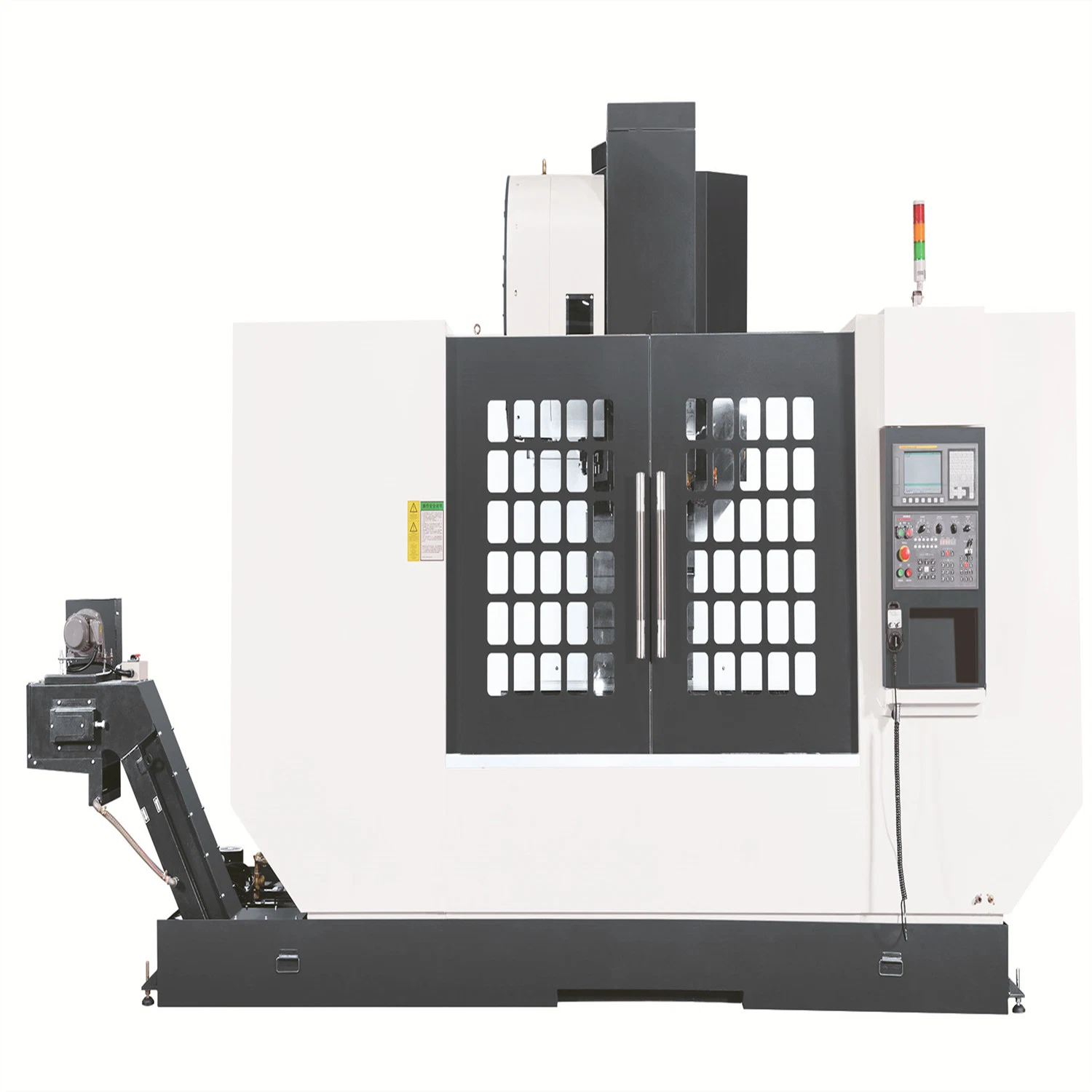

Stock 3/4/5 Axis Vertical CNC Machining Center Milling Machine 1250/650/ 630mm
GEEPRO COMPANY MISSION "Supply Exact Machine Recommendation,Solving Every Client's Problem" Specification List for:1. Vertical machine center 2. Gantry machine center3/4/5 Axis Gantry/Vertical/Horizontal Machining Center CNC Milling Lathe Machine Also Focus on Laser Sheet Met......
Send Inquiry
Product Description
GEEPRO COMPANY MISSION
"Supply Exact Machine Recommendation,Solving Every Client's Problem"
Specification List for:
1. Vertical machine center
2. Gantry machine center
3/4/5 Axis Gantry/Vertical/Horizontal Machining Center CNC Milling Lathe Machine

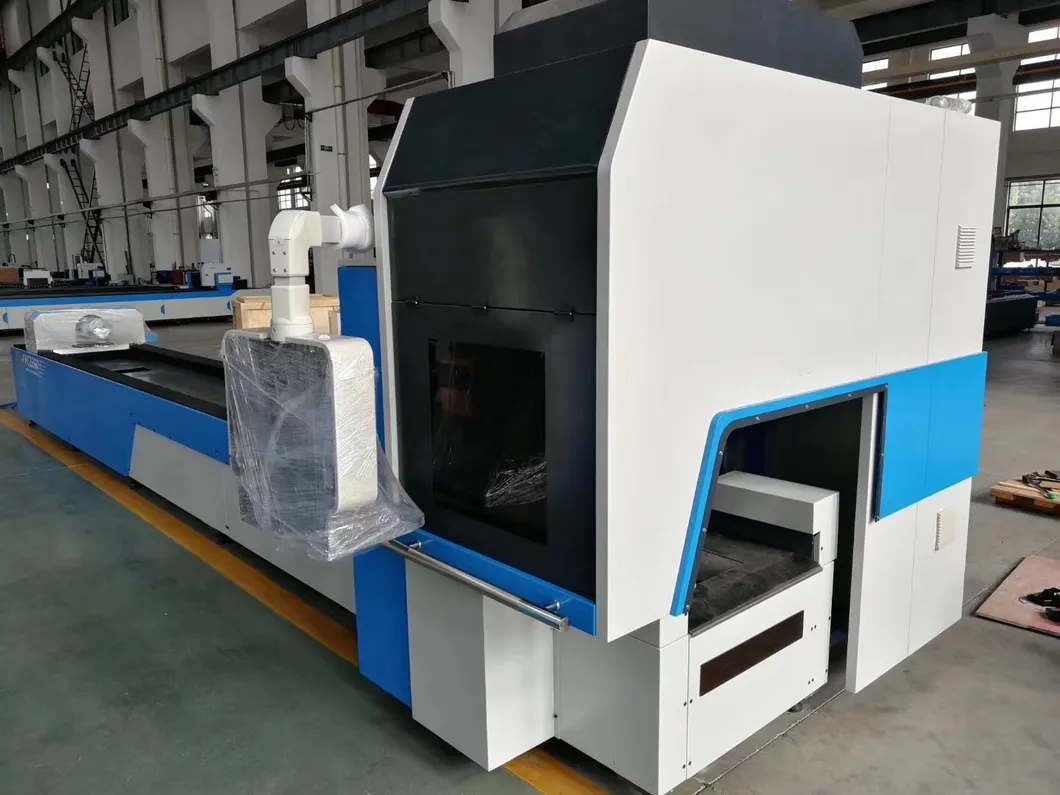

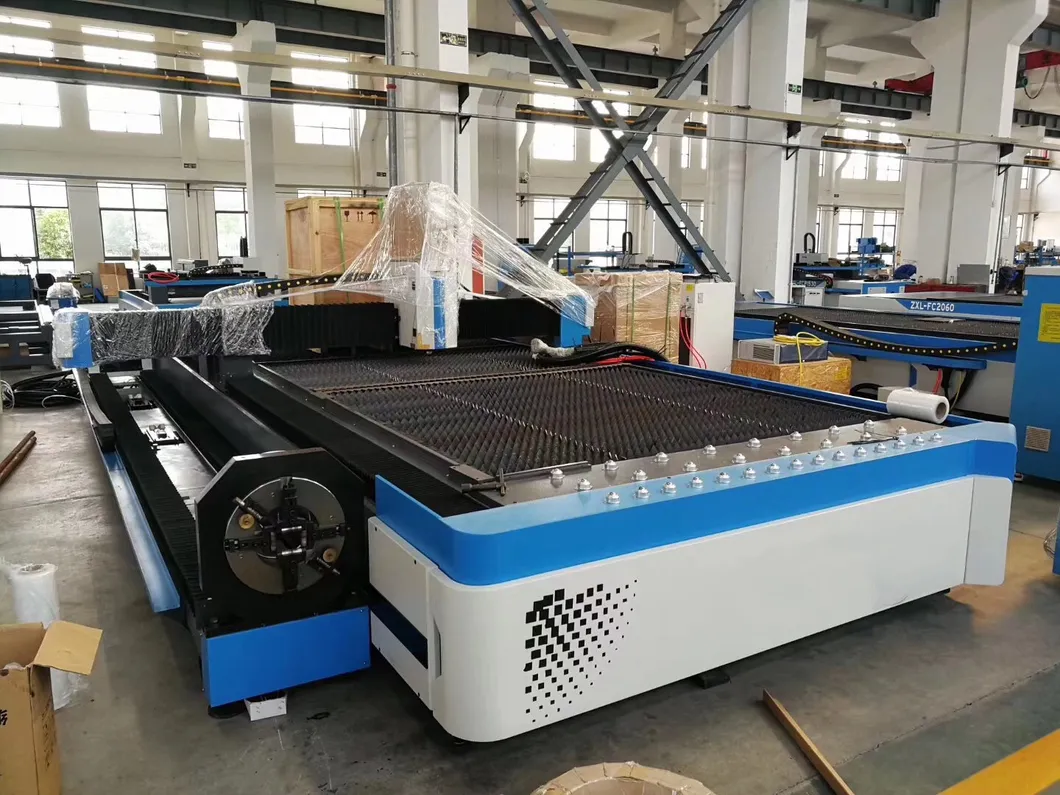

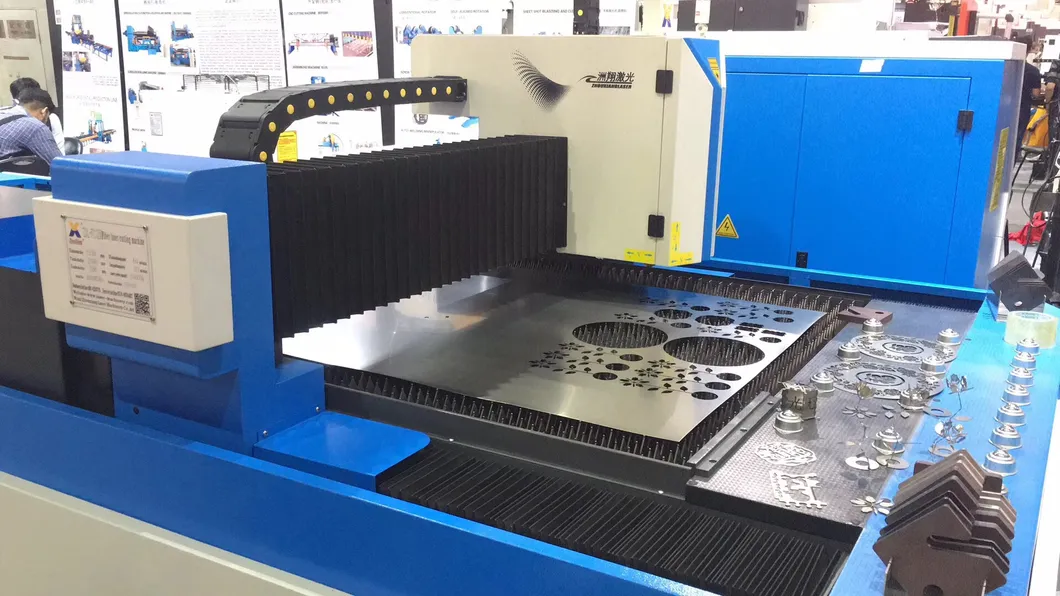

Also Focus on Laser Sheet Metal&Pipe Cutting Machine For Sale
CV Series main characteristics:
Rapid feed rate (X / Y / Z axis): 48/48/48m/min
Three-axis travel(X/Y/Z-axis): CV-640:600/420/450mm
CV-750:750/420/450mm

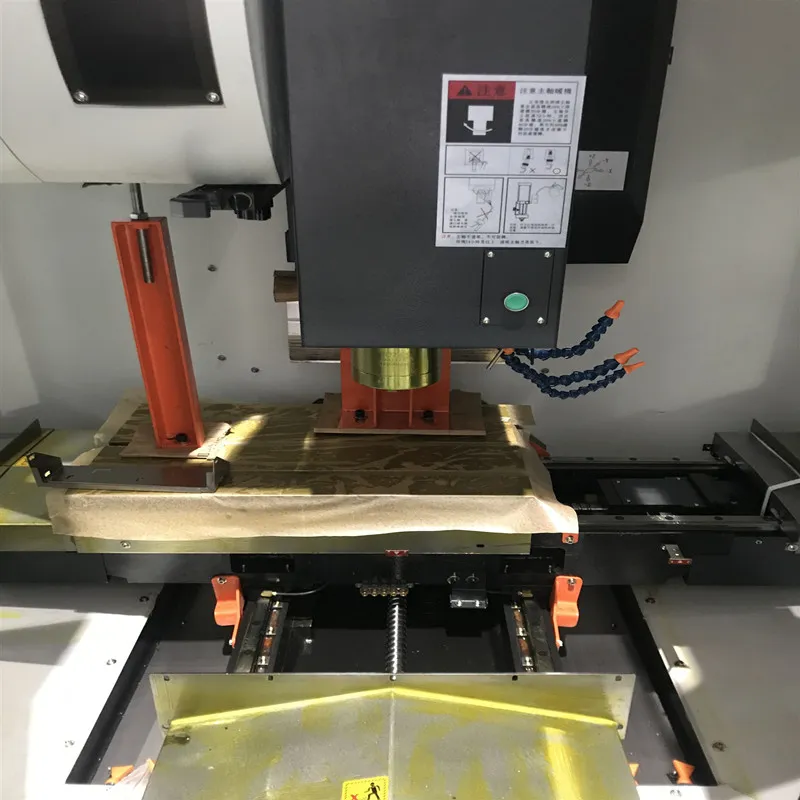

1.Three axis line rail:
X / Y-axis ball rail line, Z-axis roller rail line, less friction, shortening the movement time, improving the efficiency; meanwhile, high precision processing can be completed by the excellent repeating positioning accuracy.
2.Z-axis drive without counterweight:
Z-axis with brake type servo motors, non-counterweight design, for batch processing of high-speed drilling and tapping parts.
3.Three-axis direct-type drive design:
Three-axis motor and screw with direct-type drive design, no noise from the belt or gear without backlash and vibration problems, three-axes rapid movement up to 48m / min, greatly saving the non-processing time.
Application:
Suitable for: telecommunications,medical equipment,automobile parts,molds,3C products processing
"Supply Exact Machine Recommendation,Solving Every Client's Problem"
Specification List for:
1. Vertical machine center
2. Gantry machine center
3/4/5 Axis Gantry/Vertical/Horizontal Machining Center CNC Milling Lathe Machine
Also Focus on Laser Sheet Metal&Pipe Cutting Machine For Sale
| Travel | UNIT | CV640 | CV750 | CV850 | CV1020 | CV1165 | CV1265 | CV1165+ | CV1265+ | CV1480 | CV1690 | CV1890 | DV-650+ | DV-850+ | DV850E | EV850 | TV500 | TV700 |
| X-axis travel | mm | 600 | 750 | 850 | 1020 | 1120 | 1250 | 1120 | 1250 | 1420 | 1600 | 1800 | 600 | 800 | 800 | 850 | 500 | 700 |
| Y-axis travel | mm | 420 | 420 | 520 | 520 | 650 | 650 | 650 | 650 | 800 | 900 | 900 | 500 | 500 | 500 | 520 | 400 | 400 |
| Z-axis travel | mm | 450 | 450 | 550 | 550 | 630 | 630 | 630 | 630 | 700 | 800 | 800 | 550 | 550 | 550 | 550 | 370 | 350 |
| Worktable area | mm | 700*420 | 800*420 | 1000*520 | 1100*520 | 1200*630 | 1350*630 | 1200*630 | 1350*630 | 1550*800 | 1800*900 | 2000*900 | 760*500 | 910*500 | 910*500 | 1000*520 | 610*400 | 700*420 |
| X/Y/Z-axis rapid feed | 48/48/48 | 48/48/48 | 36/36/36 | 36/36/36 | 36/36/36 | 30/30/30 | 36/36/30 | 30/30/30 | 24/24/24 | 24/24/20 | 24/24/20 | 48/48/48 | 48/48/48 | 48/48/48 | 36/36/36 | 60/60/60 | 60/60/60 | |

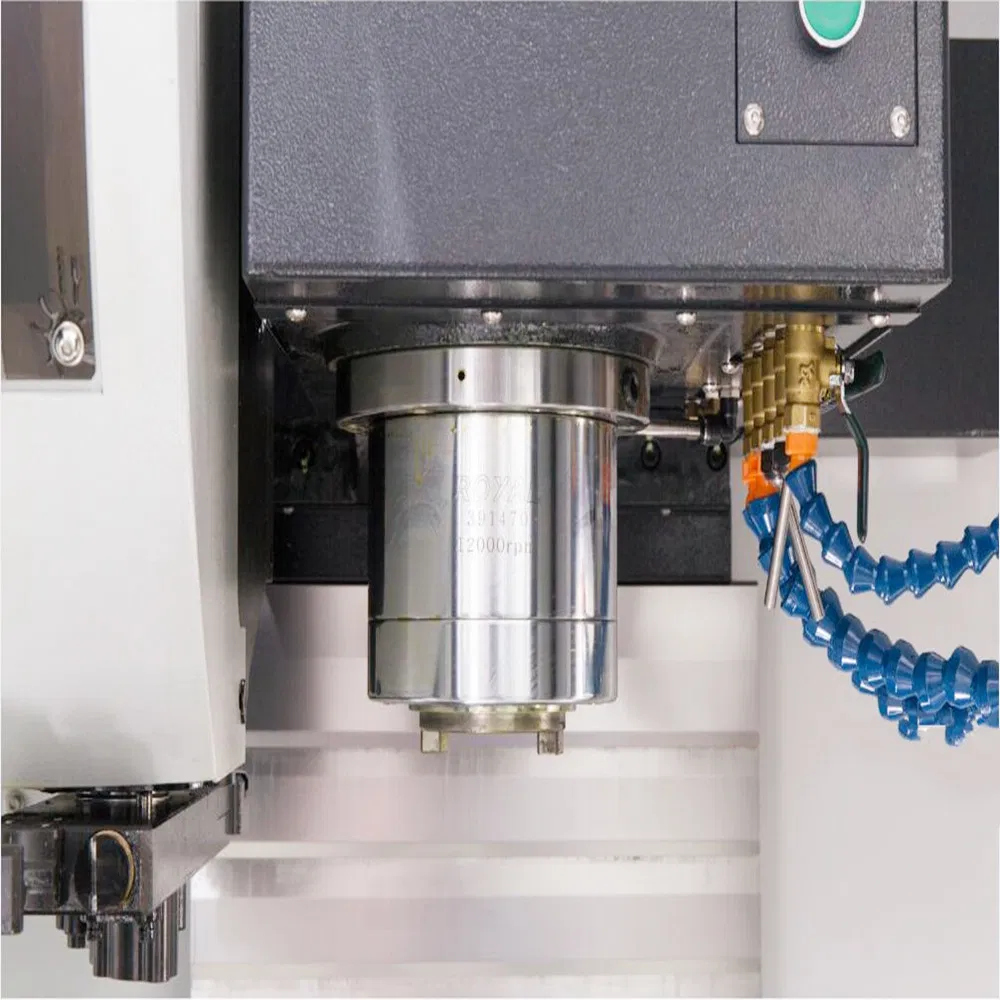

| Spindle speed(option) | r.p.m | 12000 | 12000 | 10000 | 10000 | 8000 | 8000 | 8000 | 8000 | 6000 | 6000 | 6000 | 10000 | 10000 | 8000 | 10000 | 20000 | 20000 |
| Spindle transmission type(option) | direct type | direct type | direct type | direct type | belt type | belt type | belt type | belt type | belt type | belt type | belt type | direct type | direct type | belt type | belt type | direct type | direct type | |
| Spindle tapper | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | BT50 | BT50 | BT50 | BT50 | BT50 | BT40 | BT40 | BT40 | BT40 | BT30 | BT30 | |
| Positioning precision | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.01 | ±0.01 | ±0.01 | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Repeat positioning precision | mm | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.005 | ±0.005 | ±0.005 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
| Tool number(option) | Tool | 20 | 20 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 21 | 21 |

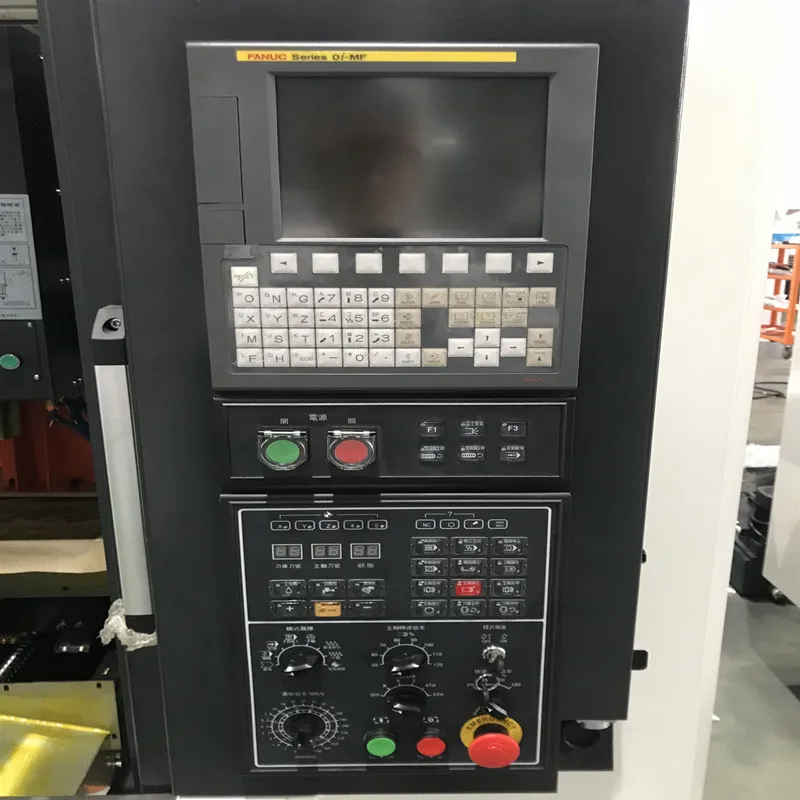

| Controller(option) | 0I-MF | 0I-MF | 0I-MF | 0I-MF | 0I-MF | 0I-MF | 0I-MF | 0I-MF | 0I-MF | 0I-MF | 0I-MF | 0I-MF | 0I-MF | 0I-MF | 0I-MF | M80 | M80 |
CV Series main characteristics:
Rapid feed rate (X / Y / Z axis): 48/48/48m/min
Three-axis travel(X/Y/Z-axis): CV-640:600/420/450mm
CV-750:750/420/450mm
1.Three axis line rail:
X / Y-axis ball rail line, Z-axis roller rail line, less friction, shortening the movement time, improving the efficiency; meanwhile, high precision processing can be completed by the excellent repeating positioning accuracy.
2.Z-axis drive without counterweight:
Z-axis with brake type servo motors, non-counterweight design, for batch processing of high-speed drilling and tapping parts.
3.Three-axis direct-type drive design:
Three-axis motor and screw with direct-type drive design, no noise from the belt or gear without backlash and vibration problems, three-axes rapid movement up to 48m / min, greatly saving the non-processing time.
Application:
Suitable for: telecommunications,medical equipment,automobile parts,molds,3C products processing
