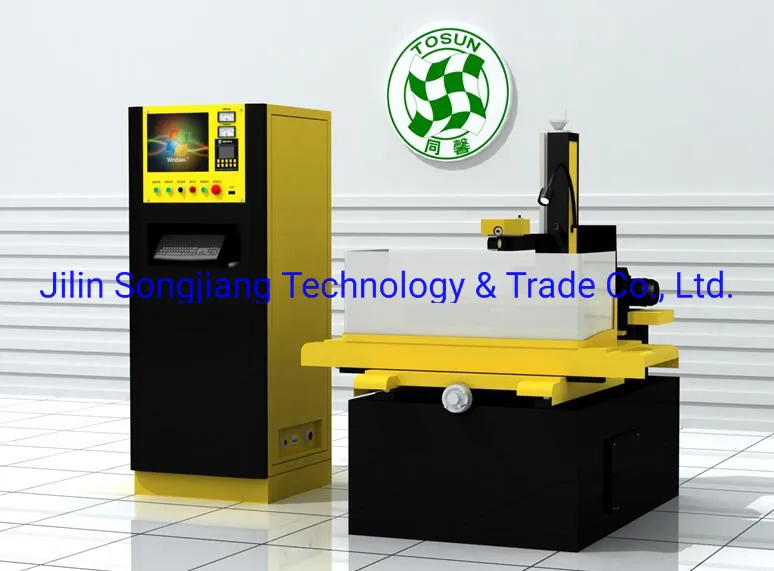

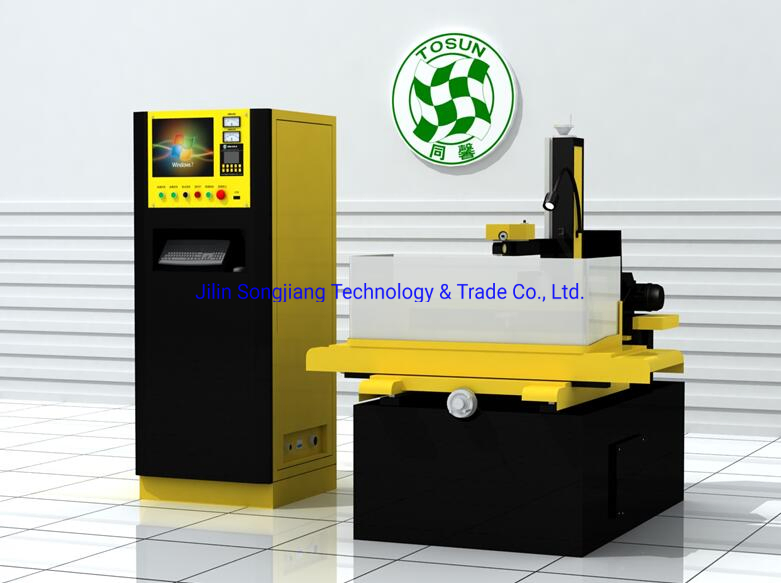

super economical wire cutting machine SE800

Product Description

Equipment Features
Super type CNC Wire Cutting Discharge Machine is a special machine designed for mass and high efficiency processing.The machine has high efficiency,high processing accuracy,good relative smoothness of multiple cutting,simple operations,and high accuracy of machine tool and high consistency of machine tool processing.The machine is suitable for cutting work pieces in large quantities.Its processing effiency is about 5%-10% higher than that of other similar machines.

Equipment Specification

No.	Description	Unit	Specification
1	Model		SE800
2	Worktable Size (L×W)	mm	870x1200
3	Worktable Travel (X×Y)	mm	800x1000
4	Max. Workpiece Height	mm	800
5	Max. Workpiece Weight	kg	2000
6	Machine Dimensions (L×W×H)	mm	2900x2500x2150
7	Machine Weight	kg	4000

Electrical Parameters

No.	Description	Unit	Specification
1	Max. Cutting Speed	mm²/min	180
2	Wire Electrode Diameter	mm	Φ0.18~Φ0.25
3	Machining Precision (Cutting the octagon in 10mm)	mm	≤0.012/10mm
4	Taper/Workpiece Height		6°/100mm
5	Power Consumption	kw	3
6	Surface roughness	um	Single cut Ra<2.5 *Multi cut Ra<1.0
7	High pressure water tank		Multi-stage filter system
8	Plastic water jet plate; Bronze spout
9	Control method of Z-axis manual, transport wire tube, cooling system		Controlled by the program and the NC panel
10	Repeating position precision of X, Y-axis	μm	±1
11	Guide rail type of U,V-axis		railroad rail

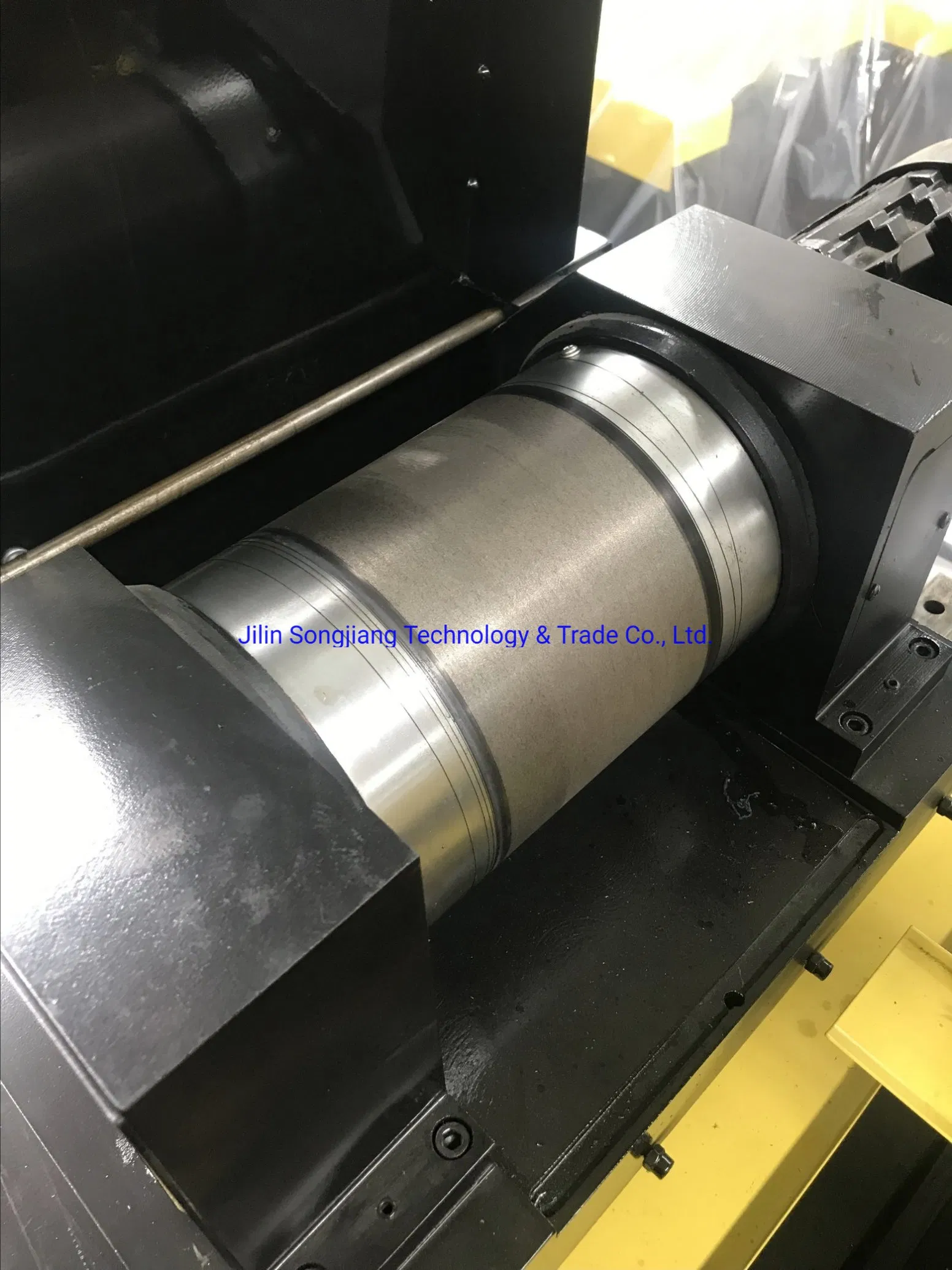

12	Speed regulation of transport wire tube		Integrated frequency inverter
13	Number of control axes		5
14	Power Supply		AC380V, 50Hz
