Tc4558 CNC Lathe Machine

Product Description

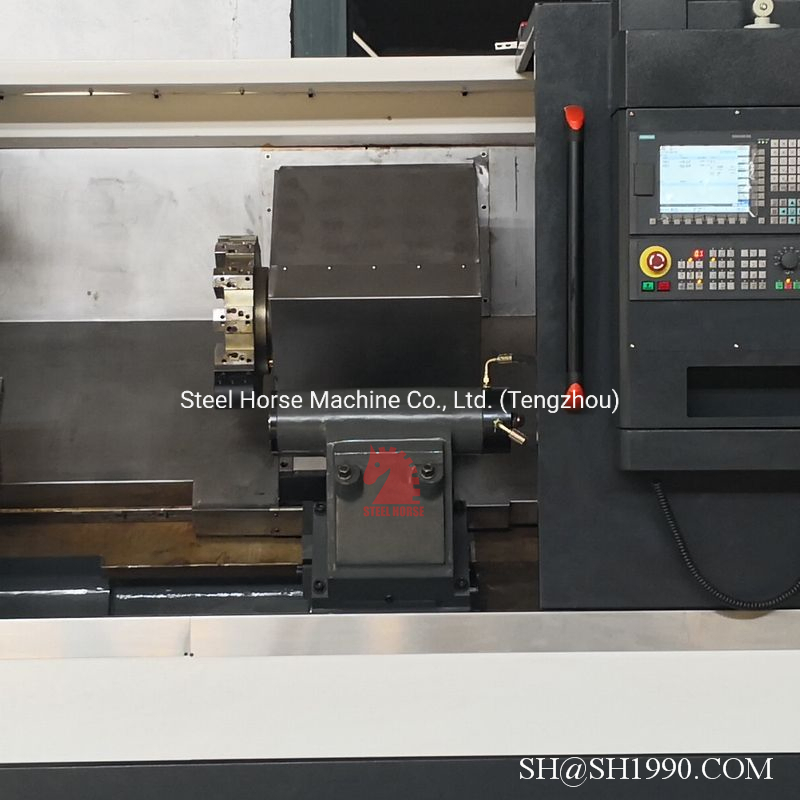

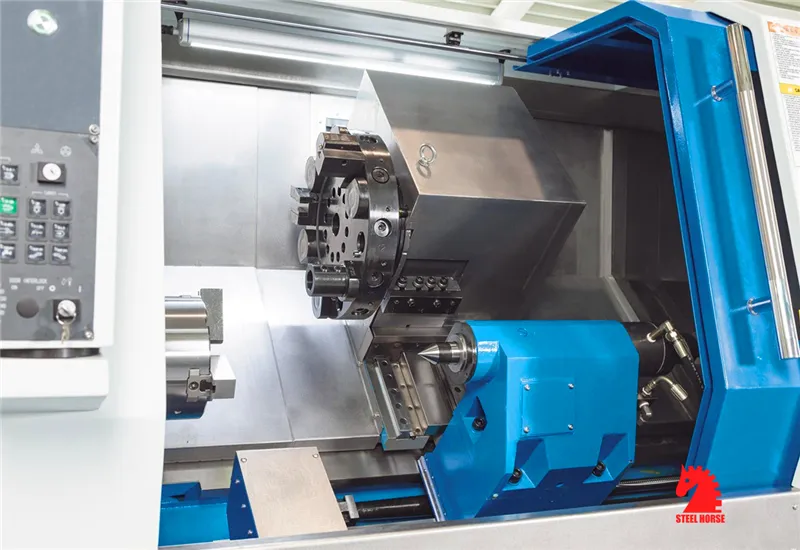

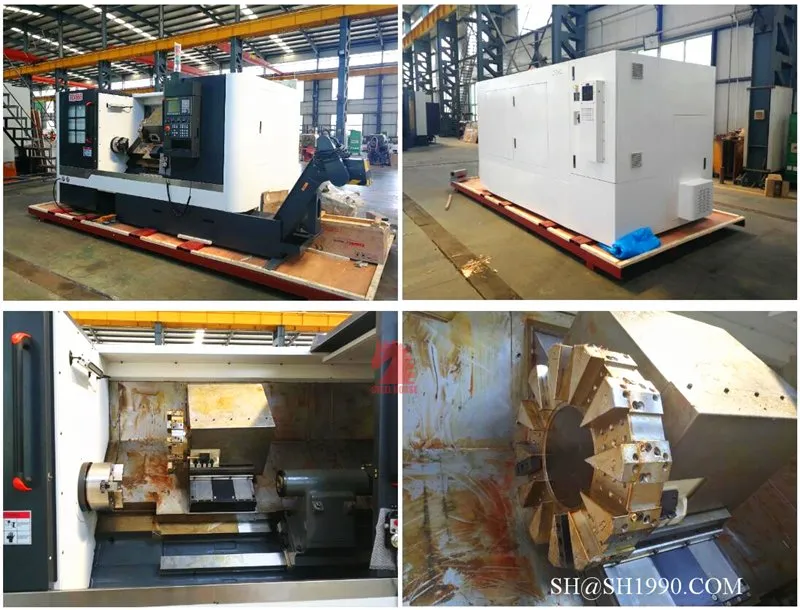

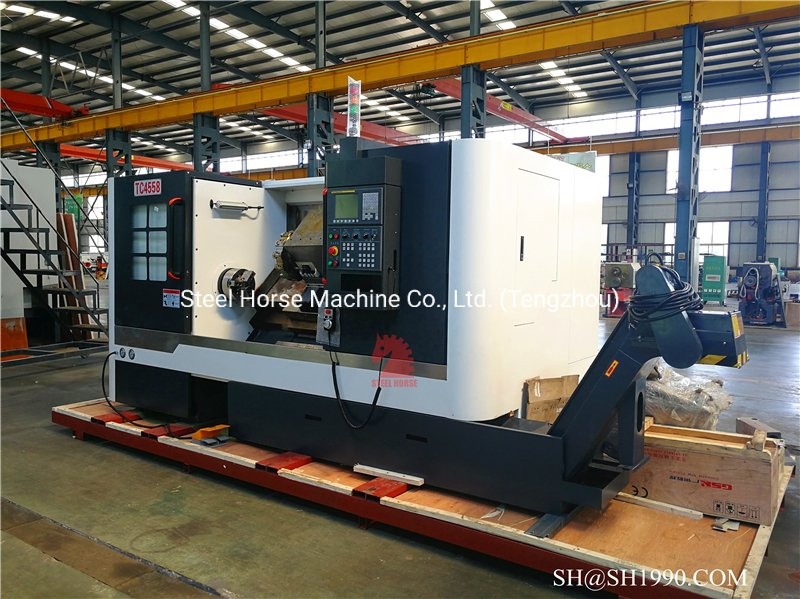

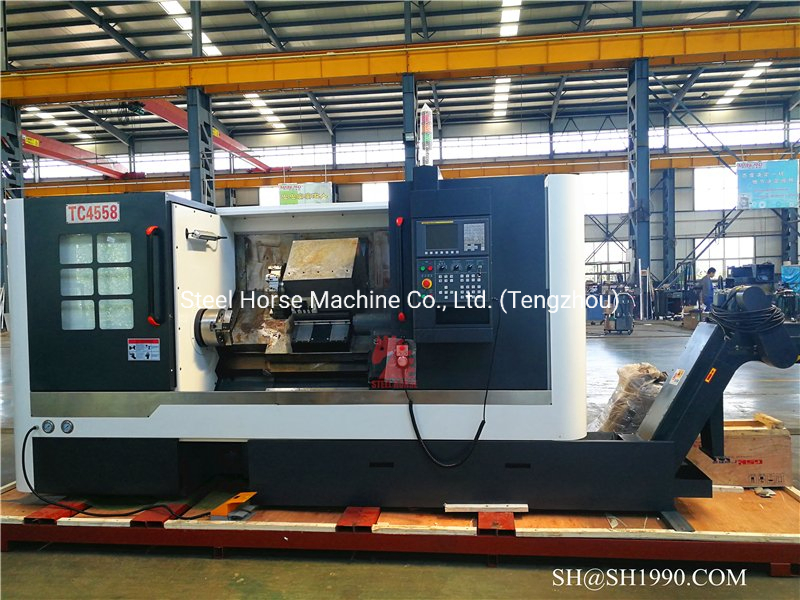

Tc4558 CNC Lathe Machine

The main performance characteristics:

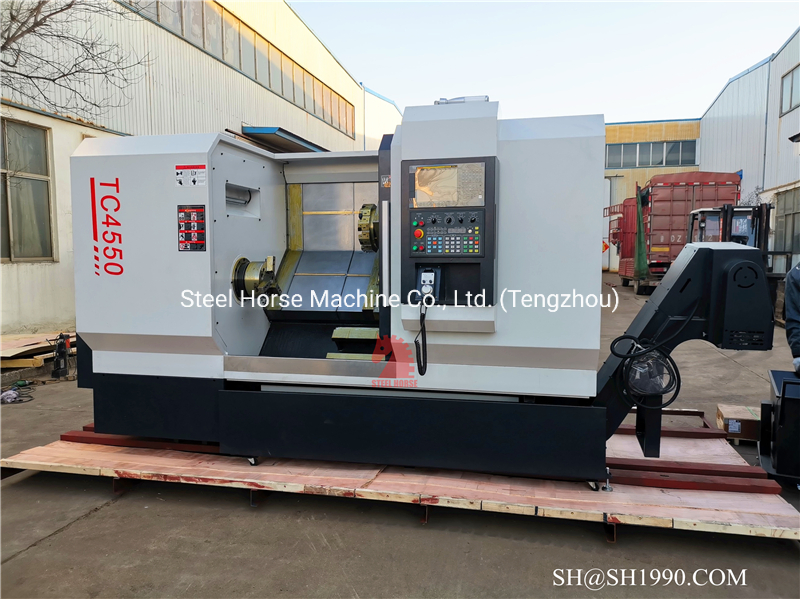

TC4540,TC4545,TC4550,TC4558,TC4563 are horizontal CNC lathe with two axes (X-axis, Z-axis) continuous servo control and 45 degree inclined bed. It is based on "steel horse" 30 years experience for CNC Lathe machine!!!!!!
The CNC system can control X and Z axis movement at the same time. It can automatically cutting the inner and outer cylindrical surface, conical surface, arc surface, end surface, groove and various threads for various shaft and disc parts (metric thread, taper thread, reducing thread, end thread), drilling, reaming, boring, chamfering, etc.
This machine can be equipped with various control systems such as FUNUC, SINUMERIK, MITSUBISHI, LNC, KND, GSK, etc. The centralized machine operator panel makes the machine operation simple and accurate. The CNC Turning Center lathe has wide usage, high efficiency, good precision and stability, good dimensionality of parts and easy operation. Capable of meeting the high precision machining requirements of single or mass products.

Product main technical Specifications:

Specifications	TC4540	TC4545	TC4550	TC4558	TC4563
Bed incline	45°	45°	45°	45°	45°
Cutting capacity over bed	Φ400mm	Φ450mm	Φ500mm	Φ580mm	630mm
Cutting capacity over support	Φ250mm	Φ300mm	Φ320mm	Φ360mm	400mm
Cutting length	300mm	400mm	580mm	960mm	1000mm
Distance between center	440mm	750mm	970mm	1320mm	1320mm
Chuck size	A2-5 6"	A2-5 6"	A2-8 10"	A2-8 10"	A2-8 10"
Spindle power	7.5-11kw	11-15kw	15-22kw	15-30kw	15-30kw
Spindle speeds	4500rpm	4500rpm	2600rmp	2600rpm	2600rpm
Spindle bore	Φ49mm	Φ49mm	Φ87mm	Φ87mm	Φ87mm
Through-spindle draw tube bore	Φ39mm	Φ39mm	Φ72mm	Φ72mm	Φ72mm
X axis servo motor	2.9kw	2.9kw	4.4kw	4.4kw	4.4kw
X travel	165mm	165mm	250mm	350mm	350mm
Z axis servo motor	2.9kw	2.9kw	4.4kw	4.4kw	4.4kw
Z travel	500mm	500mm	620mm	1120mm	1120mm
Turret capacity	8pcs	8pcs	10pcs	12pcs	12pcs
Standard handle size	20×20mm	20×20mm	20×20mm	25×25mm	25×25mm
Max. boring bar diameter	Φ25mm	Φ25mm	Φ25mm	Φ40mm	Φ40mm
Tailstock sleeve diameter	Φ65mm	Φ65mm	Φ100mm	Φ100mm	Φ100mm
Tailstock sleeve travel	80mm	80mm	120mm	120mm	120mm
Tailstock travel	300mm	710mm	970mm	1250mm	1250mm
Tailstock taper	MT4	MT4	MT5	MT5	MT5
Positioning accuracy	0.01mm	0.01mm	0.01mm	0.01mm	0.01mm
Repeatability accuracy	0.008mm	0.008mm	0.008mm	0.008mm	0.008mm
Overall dimensions	3.2×1.6×2.1m	3.5×2.0×2.1m	3.5×2.1×2.1m	3.6×2.2×2.2m	3.6×2.2×2.2m
Weight	3000kg	4000kg	5600kg	7100kg	7400kg

Standard configuration	Optional configuration

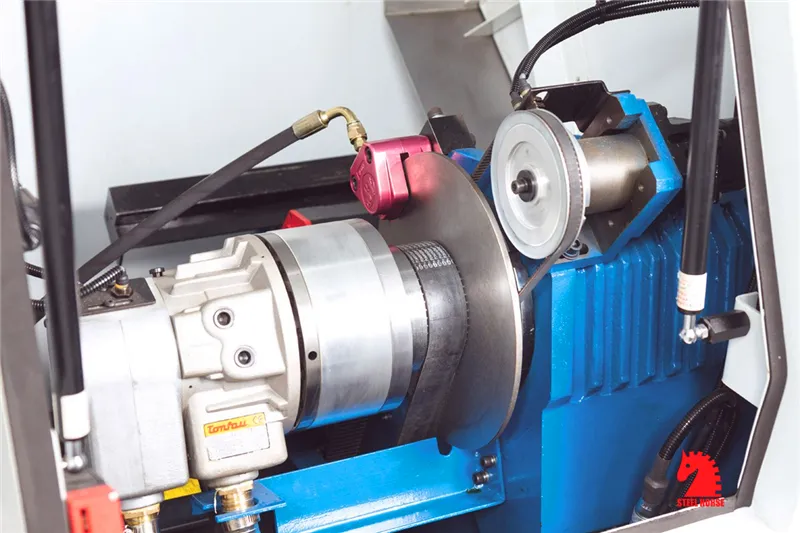

Servo main motor spindle units Taiwan linear Railway or hard way Ball screw Gang type Hydraulic collet 8/10/12 Electric turret	Taiwan spindle units Taiwan ball screw 6/8 Electric turret 8/10/12/16 Hydraulic turret Hydraulic chuck Chip conveyor

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

7: What's your machine Brand?
A: Steel Horse
