The CNC Machine to Engrave The Patterns on Gold
1. 2 Cutting Positions-Vertical & Horizontal2. Changeable cutters for different designs3. Minimum thickness up to 0.1mm4. Maximum material loss recovery5. Low maintenance and long life time6. Easy programming7. Quick loading work table systemProduct Specifications: Working Area : Vertical Cutt......
Send Inquiry
Product Description
1. 2 Cutting Positions-Vertical & Horizontal
2. Changeable cutters for different designs
3. Minimum thickness up to 0.1mm
4. Maximum material loss recovery
5. Low maintenance and long life time
6. Easy programming
7. Quick loading work table system
Product Specifications:
| Working Area : | Vertical Cutting: 100mm × 150mm Horizontal Cutting: 60mm × 160mm |
| Work Piece Thickness : | 0.1-5mm |
| Axis : | 3 Axis |
| Control System : | CNC System |
| Language: | English/Chinese |
| Accuracy : | 0.02mm |
| Spindle Motor Max. Speed : | 60,000 rpm |
| Power Supply : | 220V / 1P(Standard) 110V/1P (Optional) |
| Max Power Consumption : | 1Kw |
| Machine Dimensions : | 620mm × 790mm × 1690mm |
| Machine Weight : | 145Kg (Net)/200kg(Gross) |
*Our products undergo continuous improvements. This information is based on current
knowledge. We reserve the right to make changes without prior notice. Errors excepted.
Why Cosmo?
Specialized on laser equipment for jewelry field since the year 2004
1. Know-how
2. Strong service team
3. Quality guarantee

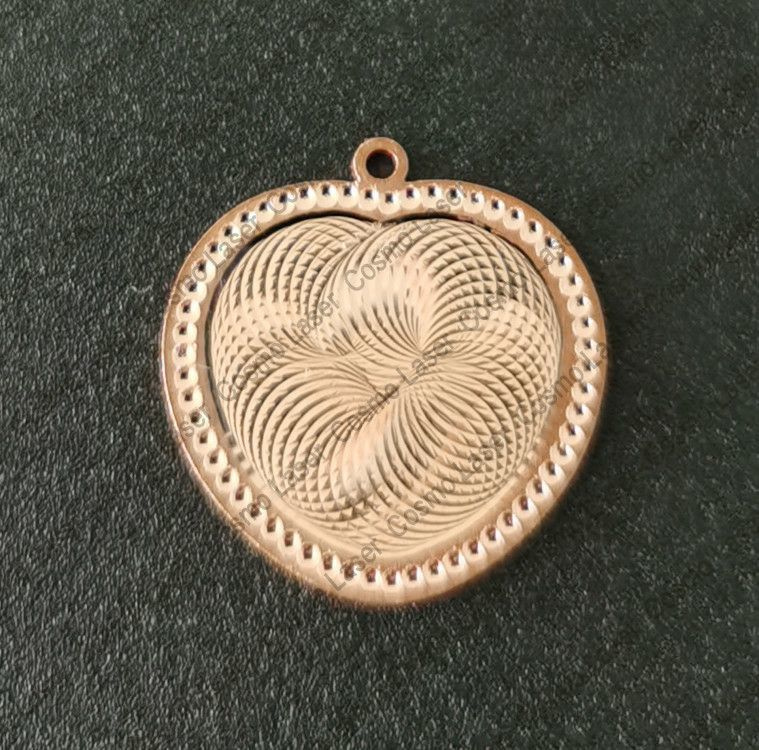

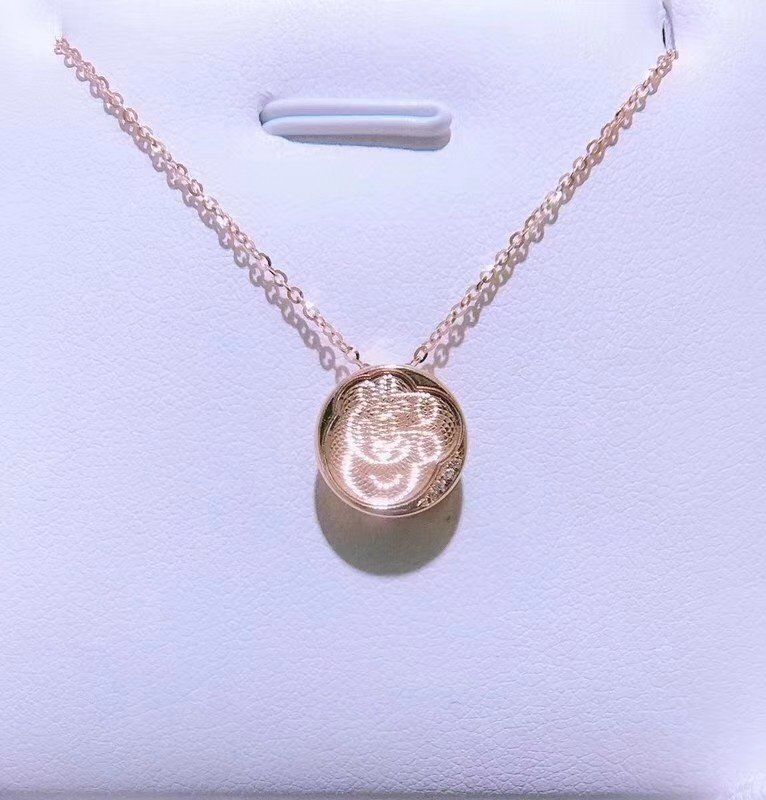

Sample Show:

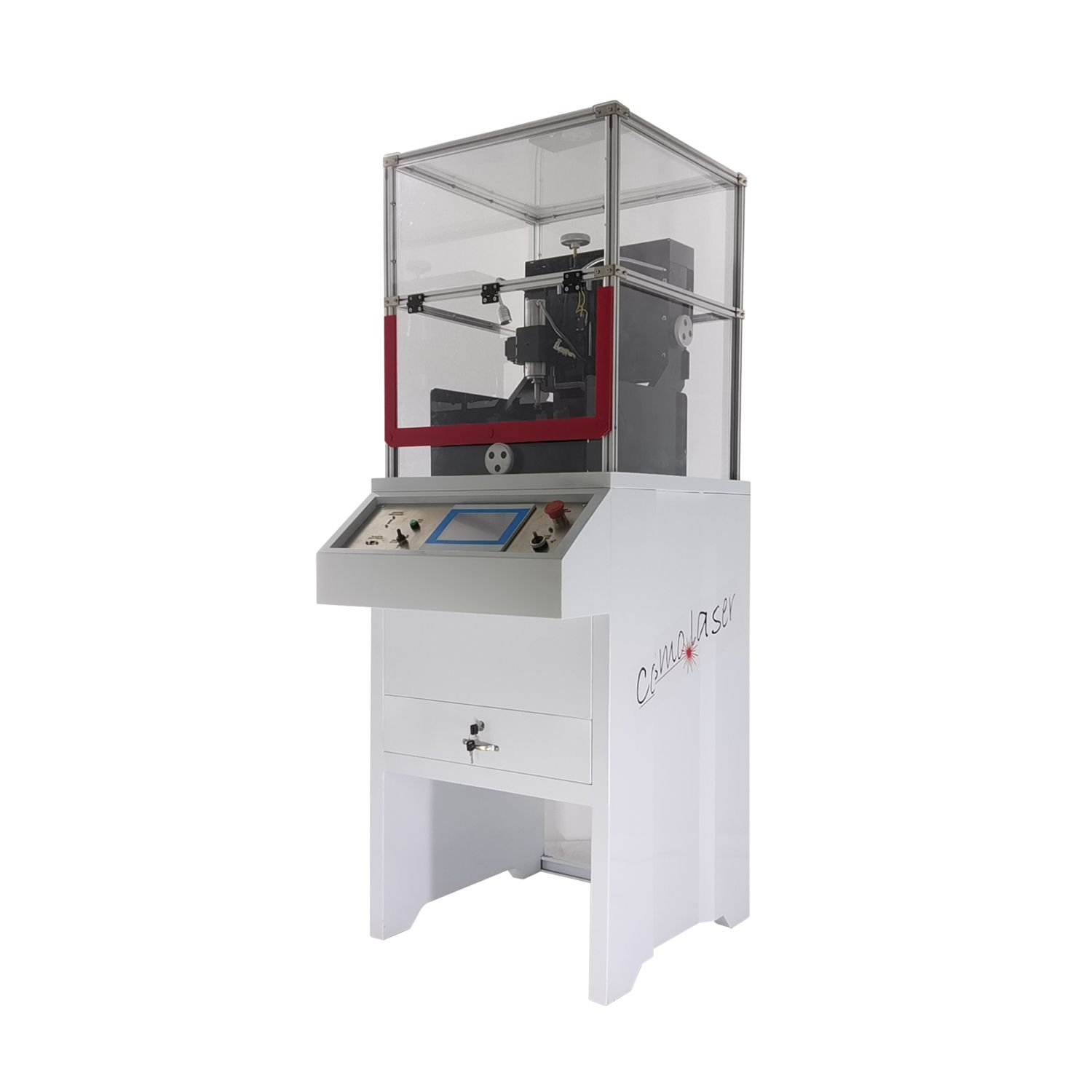

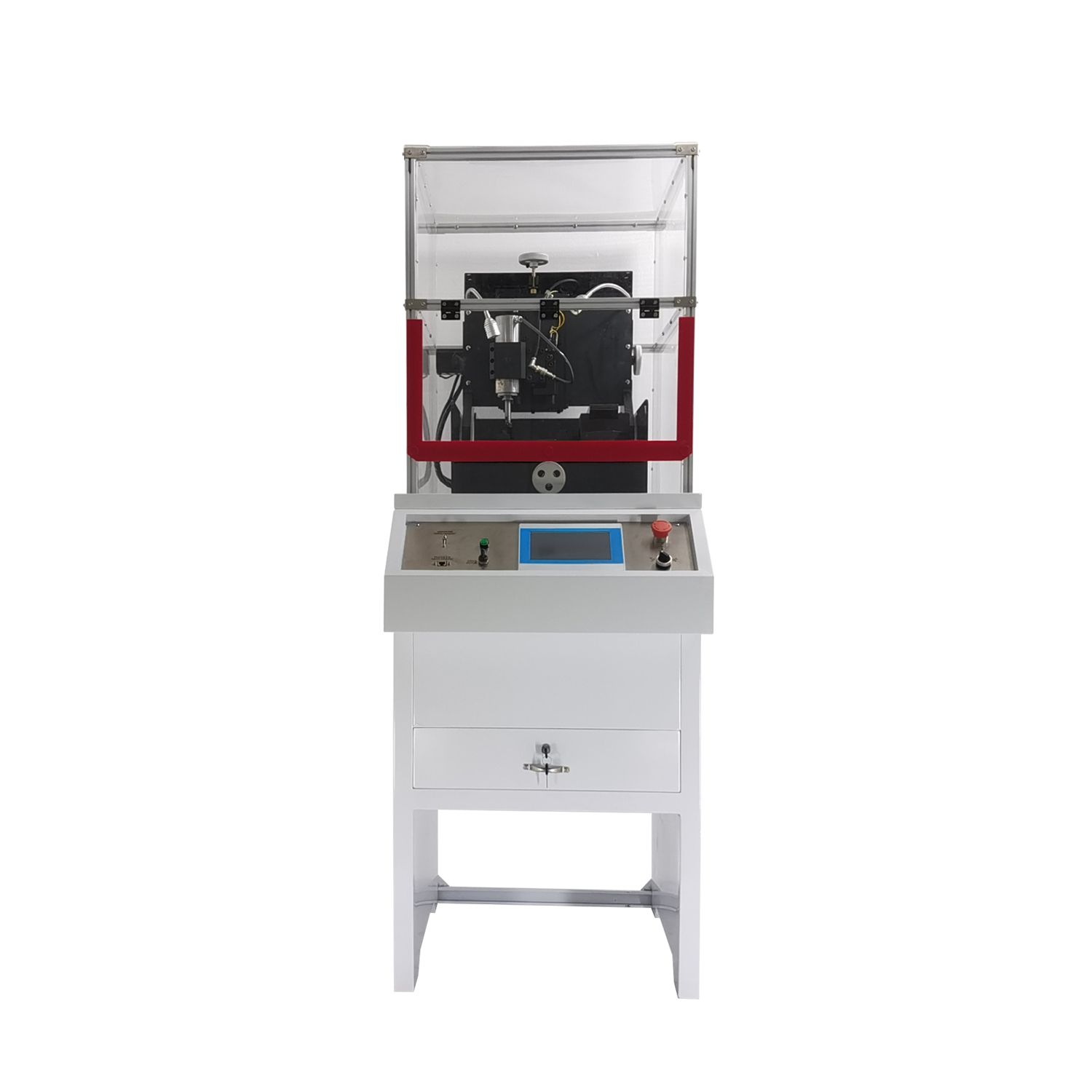

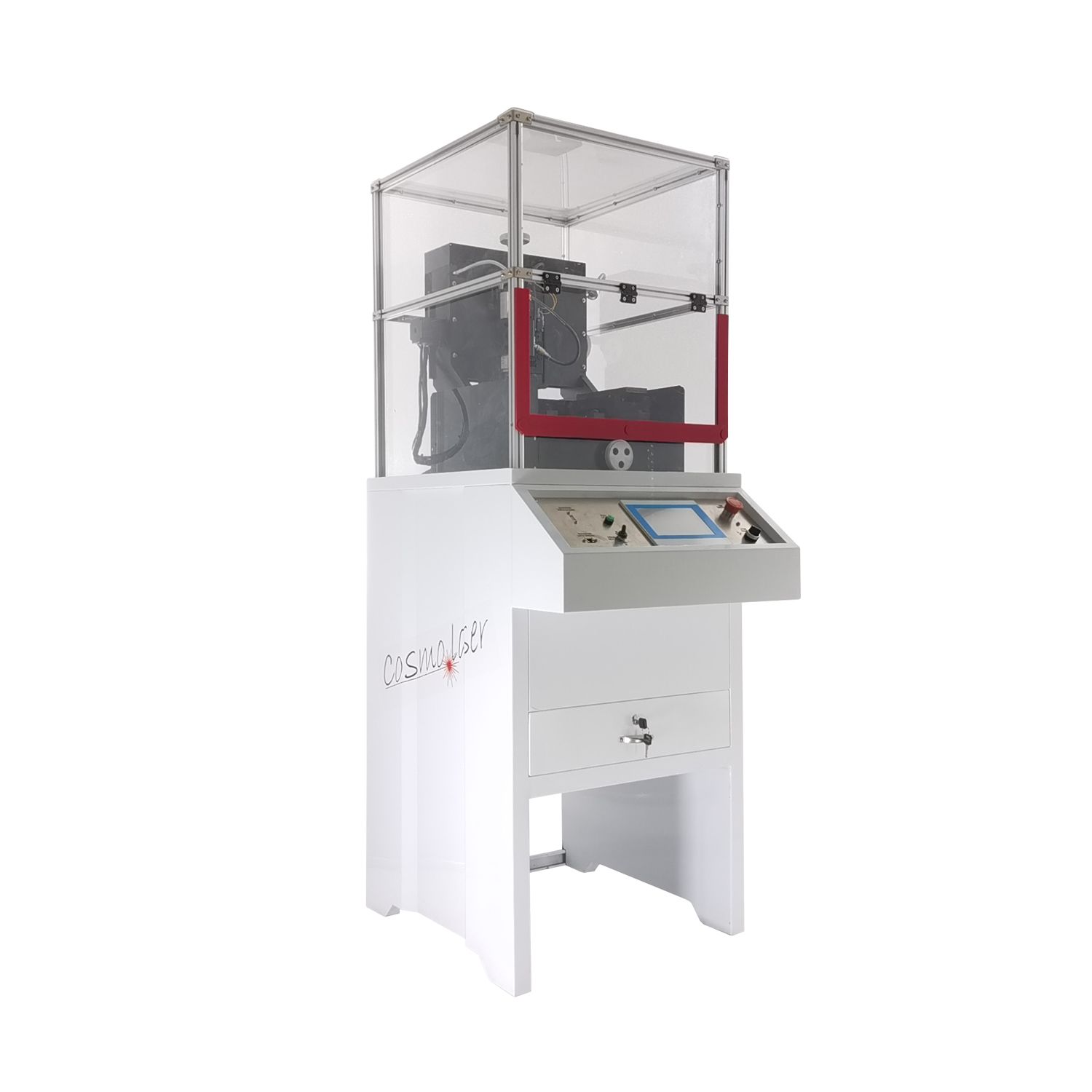

Machine show:
