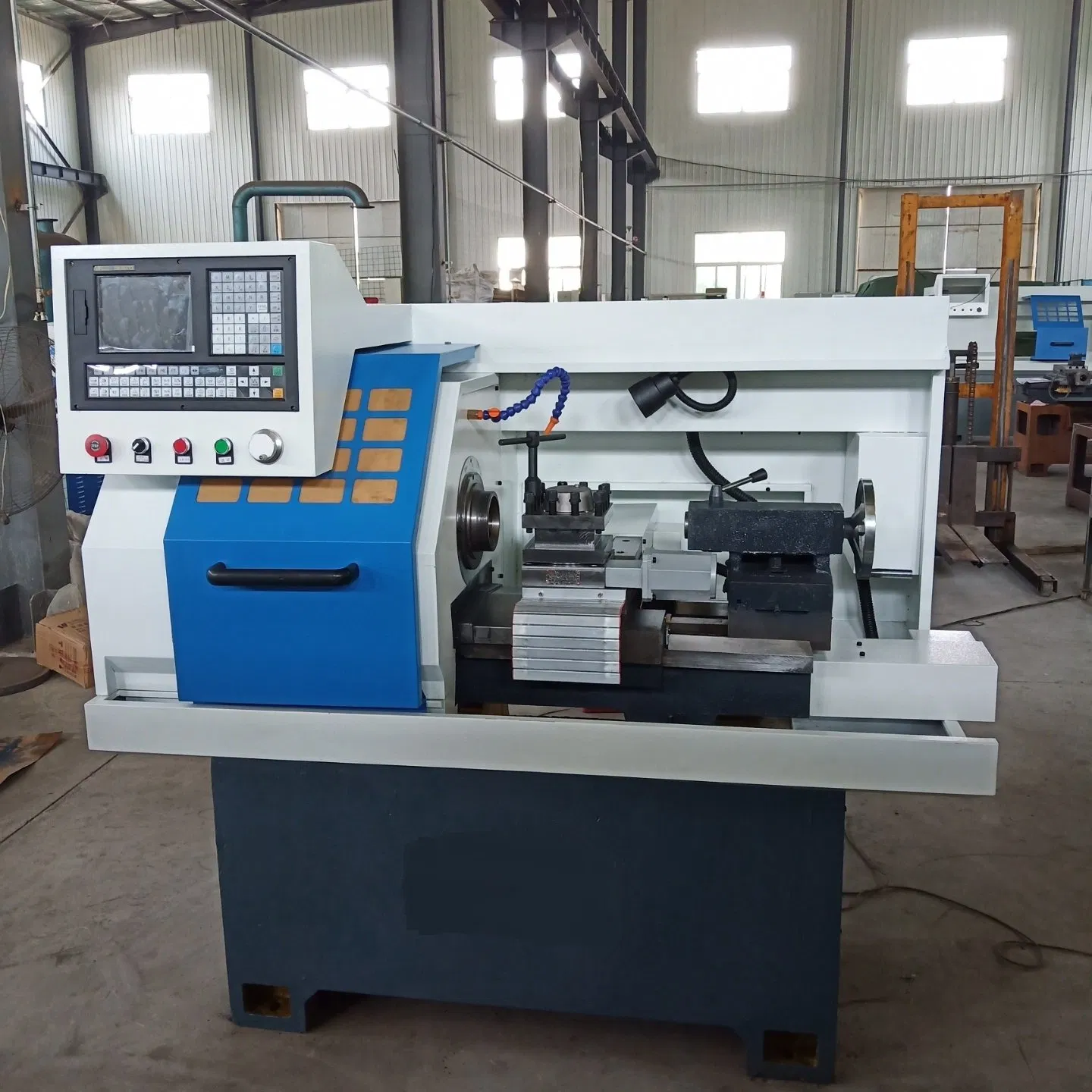

The High Quality Ck6140 Hard Guide Way CNC Lathe

Product Description

HARD GUIDE WAY CNC LATHE

SPECIFICATIONS	UNIT	CK6140	CK6132	CK6150	CK6160
Max swingoverbed	mm	Φ400	Φ300	Φ500	Φ600
Max swingover cross slide	mm	Φ180	Φ130	Φ280	Φ395
Max processing length	mm	750/1000/1500	Chuck180/Spring CLIP280	750/1000/1500	750/1000/1500
X/Zaxis;tra-I	mm	X:240 Z:750/1000/1500	X:300 Z:280	X:300 Z:750/1000/1500	X:300 Z:750/1000/1500
Spindle speed	rpm	L:70-560. H:200-1600	20-2500	L:70-560. H:200-1600	L:70-560. H:200-1600
Spindle nose	**	C6	C5	C6	C8
Spindel bore	mm	Φ52	Φ48	Φ52/82	Φ82/130
Spindle taper	**	MT6	MT6	MT6	MT6
Spindel motor	kw	5.5	4	7.5	11
Chuck size	mm	Φ200	Φ160	Φ250	Φ250
Ball screw dia and pitch	**	2505/4006	2505/3206	2506/4008	2506/4008
X/Zaxisfeedmotortorque	N.m	6/7.7	4/6	6/10	6/10
X/Zaxis rapid traverse	m/min	X:6 Z:8	X:8 Z:8	X:6 Z:8	X:6 Z:8
X/Zaxis repeatabilty	mm	±0.005	±0.005	±0.005	±0.005
Processing accuracy	**	IT6-IT7	IT6-IT7	IT6-IT7	IT6-IT7
Workpiece surface roughness	**	Ral.6	Ral.6	Ral.6	Ral.6
Tailstock sleeve dia	mm	Φ65	Φ65	Φ75	Φ75
Quill traverse	mm	140	120	140	140
Quill taper	#	MT4	MT4	MT5	MT5

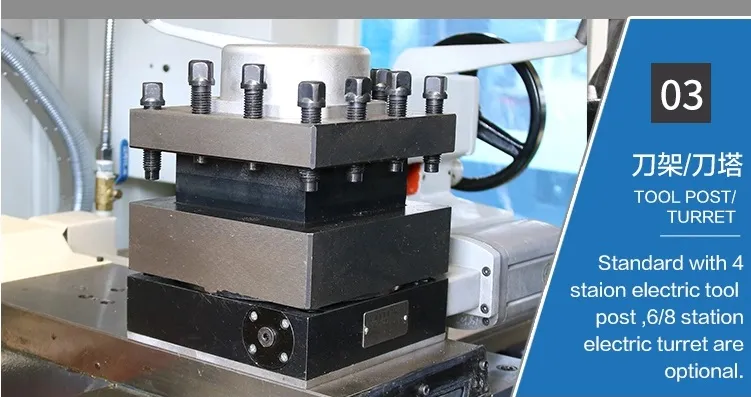

Tool postform	**	Electric four station	Electric four station	Electric four station	Electric four station
Cuttingtool shape size	mm	20*20	20*20	20*20	25*25

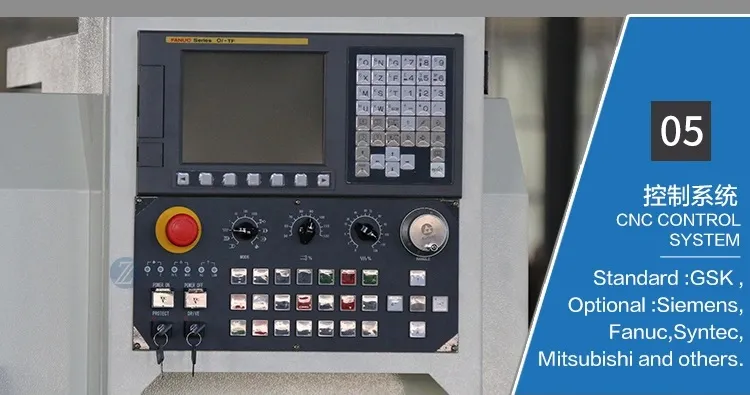

Control System	**	GSK	GSK	GSK	GSK
Voltage	V	3 PHASE 380V 50HZ	3 PHASE 380V 50HZ	3 PHASE 380V 50HZ	3 PHASE 380V 50HZ
Machine dimension(LWH)	mm	250015001650	250015001650	250015001690	295036101820
Net weight	kg	1800	1100	2000	3150

CHC LATHE USE
This machine is widely used in processing and manufacturing the electrical appliance ,instrumentation industy automobile,motorcycle,fastener bearings,photographic and film machinery,hardware toole,watches,glasses,stationery,motors,valves and gas pipe and other high precise and complesx.It is the ideal high effcient equipment in the hardware machining industy.
CHC Lathe Features

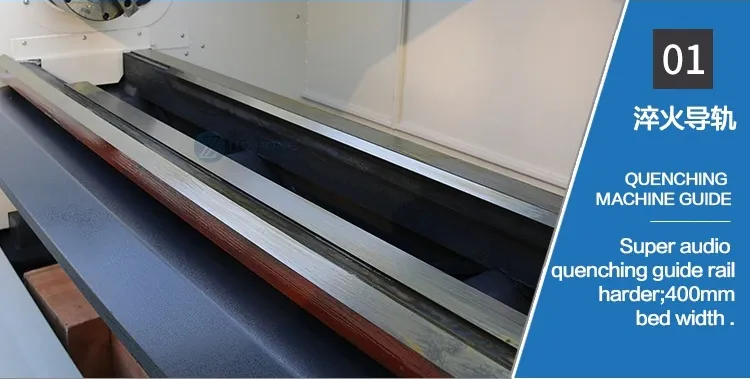

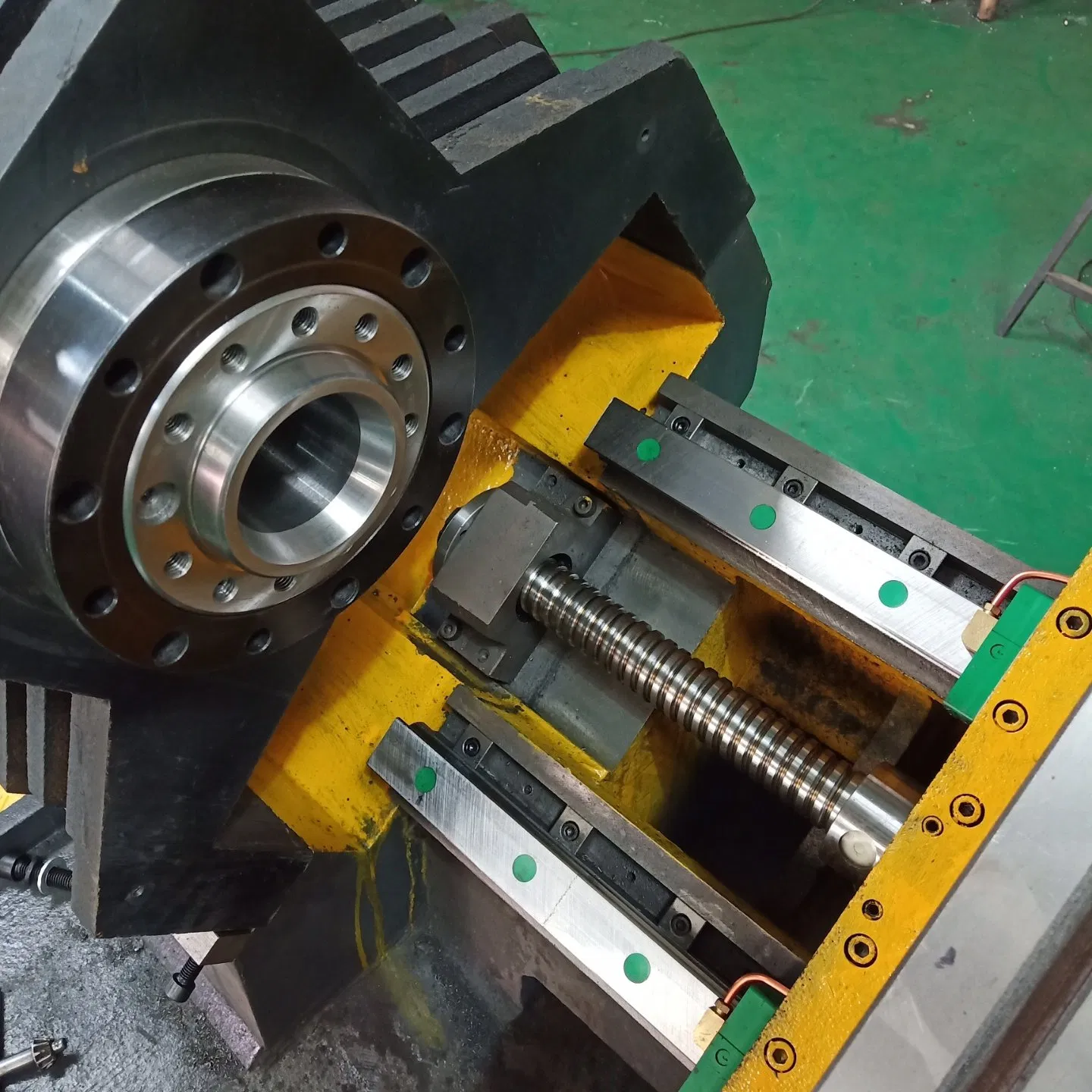

High frequency quenching rail,hardness and high wear resistance

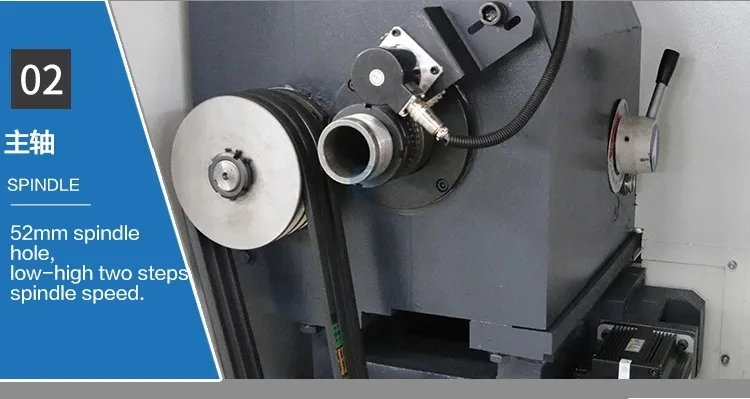

Spindle with angular contact ball bearing,high speed and high rigidity
Is the meter lathe upgrade products,has a very high price performance.
Standard configuration:pneumatic spring collet,line cutter.

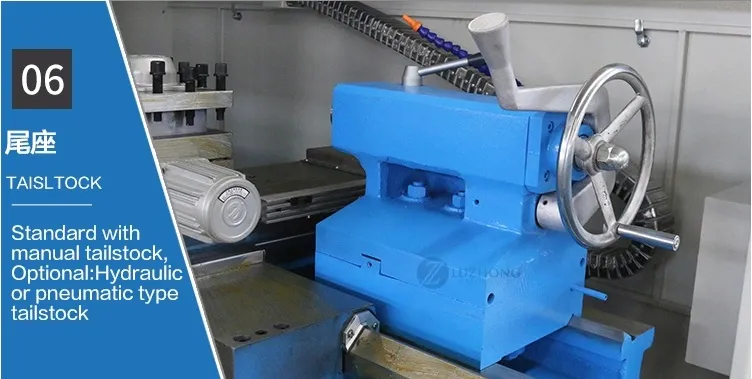

Optional configuration :electric tool post, automatic feeding device,tailstock.

The High Quality Ck6140 Hard Guide Way CNC Lathe

The High Quality Ck6140 Hard Guide Way CNC Lathe

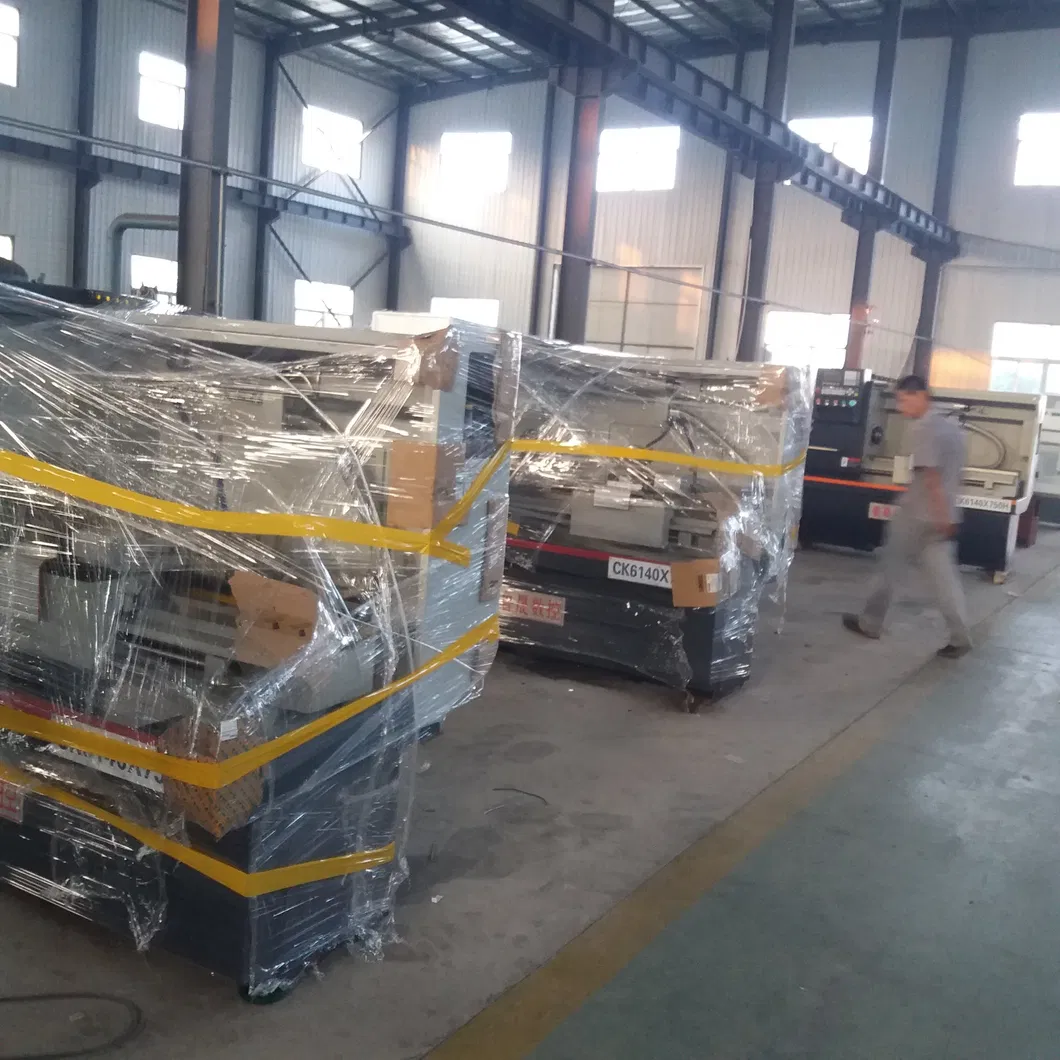

OUR FACTORY
The High Quality Ck6140 Hard Guide Way CNC Lathe

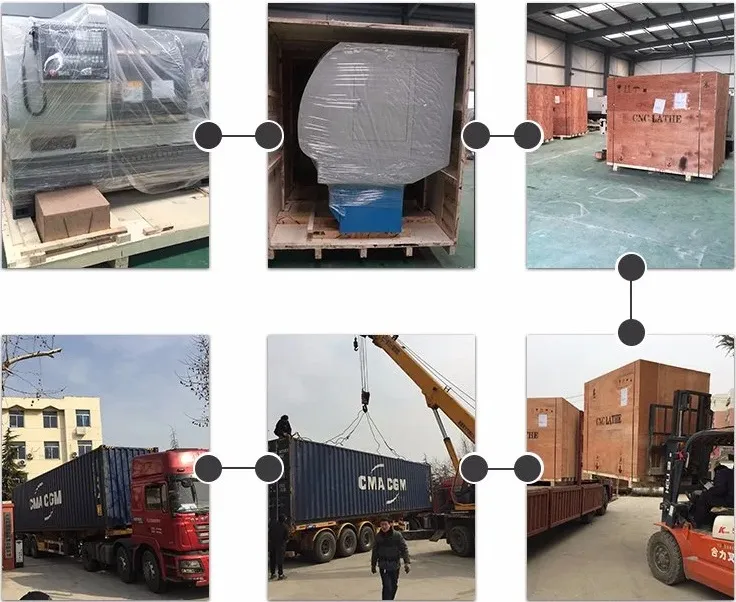

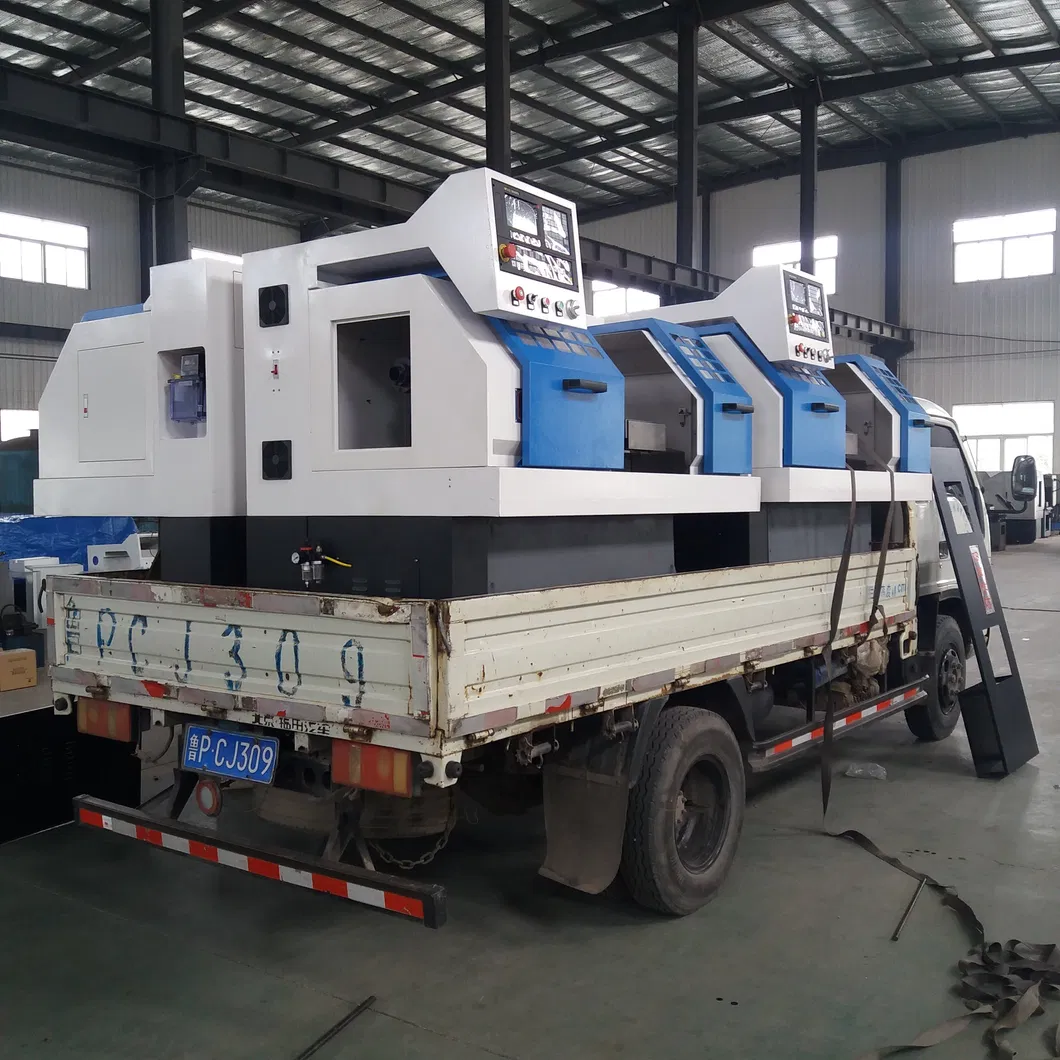

OUR PACKING
Packing Details : International Heat Treatment Standard Export Wooden Package.
workbench and the guide surface rust-proof oil daub, and oil film paper cover. The High Quality Ck6140 Hard Guide Way CNC Lathe

Delivery

The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

Payment

We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)

Warranty

The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. And also parts caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)
