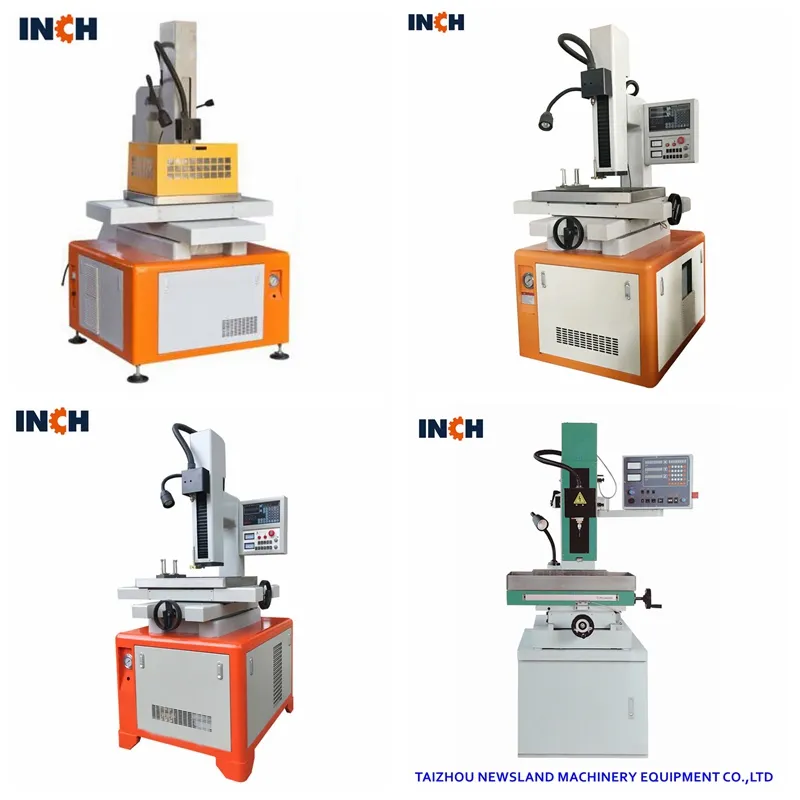

Top Sponsor Listing EDM Machine Drilling New Scales EDM Hole Drill Machine Xz8-F EDM Drilling Machine
Top Sponsor Listing edm Machine Drilling New Scales EDM Hole Drill Machine EDM Drilling MachineTechnique parameters unitD703D704D705Worktable size mm320x440320x440460x690Worktable travel mm200×300300×400400x500Z-axis travel Z mm280300300Max.load on table mm200200200Main spindle s......
Send Inquiry
Product Description

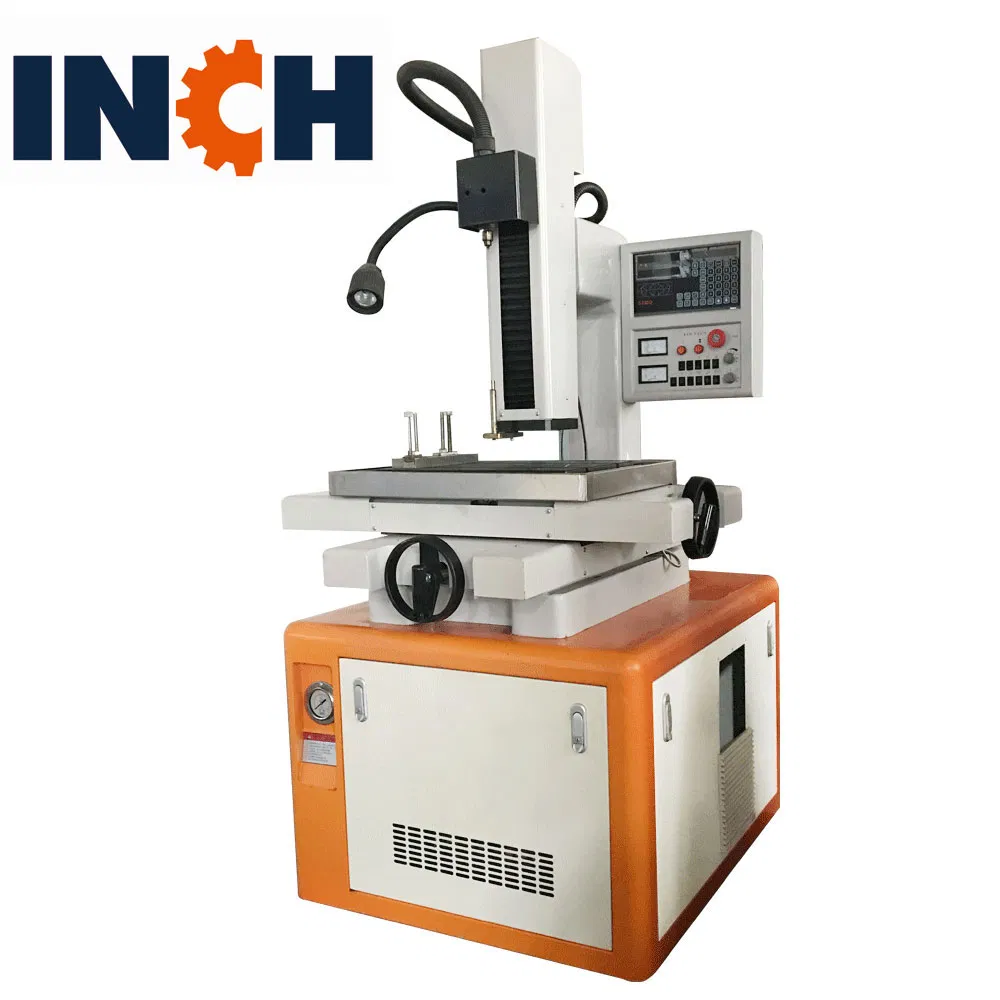

Top Sponsor Listing edm Machine Drilling New Scales EDM Hole Drill Machine EDM Drilling Machine
Introductions :
The machine is used for machine deep and small holes in many kind of conducting materials sucha as stainless steel ,hardened steel ,hard metal alloy ,copper and aluminum . the holes can be holes for pass through wire in CNC WIRE-CUT electrical discharge machine ,spray chemical fiber wire holes ,spray wire holes in spray wire board ,group holes filter board and soft board ,heat emmisson holes in vane and cylinder body of engine,oil circuit holes and gas circuit holes of valve body of hydraulic pressure system and air pressure systemetc.X-axis and Y axis adopt optical grade ruler.
The working fluid is pure water or tap water . It can prcess from slat facr or curved surface of workpiece The largest ratio between depten and diameter of hole can be over 300:1
The machine can also be used for getting rid of aiguiles and screw tap breaking off in workpiece and damaging the original hole or screw holes .
Packing photos :
| Technique parameters | unit | D703 | D704 | D705 |
| Worktable size | mm | 320x440 | 320x440 | 460x690 |
| Worktable travel | mm | 200×300 | 300×400 | 400x500 |
| Z-axis travel Z | mm | 280 | 300 | 300 |
| Max.load on table | mm | 200 | 200 | 200 |
| Main spindle speed | rpm | 60 | ||
| Diameter of electrode | mm | φ0.3-φ3 | ||
| Max.distance from guider to worktable | mm | 240 | 300 | 500 |
| water tank | L | 25 | ||
| Filtering model | Shallow-gap filter | |||
| Working medium | water | |||
| MAX.working pressure | Mpa | 7 | ||
| Power supply | 380V,3Ph,50Hz | |||
| Max.woking current | A | 30 | ||
| Power consumption | Kw | 3 | ||
| Machine weight | kg | 700 | 850 | 1700 |
| Machine demensions | mm | 1060×750×1700 | 1060×750×1760 | 1800x1380x1800 |
| Advantages : 1) It can drill small holes on the materials. Such as stainless steel, quenched steel, carbide,copper, aluminium,etc. 2) It can drill the deep holes with diameters 0.3-3mm and depth-diameter ratio 200:1 or more. 3)Working speed is 30-60mm depth per minute it can directly drill on oblique curved surfaces 4) It can water as workingfluid. 5) It can become a machine with multi-axis numerical control or numerical display for the user requirement. | ||||
Introductions :
The machine is used for machine deep and small holes in many kind of conducting materials sucha as stainless steel ,hardened steel ,hard metal alloy ,copper and aluminum . the holes can be holes for pass through wire in CNC WIRE-CUT electrical discharge machine ,spray chemical fiber wire holes ,spray wire holes in spray wire board ,group holes filter board and soft board ,heat emmisson holes in vane and cylinder body of engine,oil circuit holes and gas circuit holes of valve body of hydraulic pressure system and air pressure systemetc.X-axis and Y axis adopt optical grade ruler.
The working fluid is pure water or tap water . It can prcess from slat facr or curved surface of workpiece The largest ratio between depten and diameter of hole can be over 300:1
The machine can also be used for getting rid of aiguiles and screw tap breaking off in workpiece and damaging the original hole or screw holes .

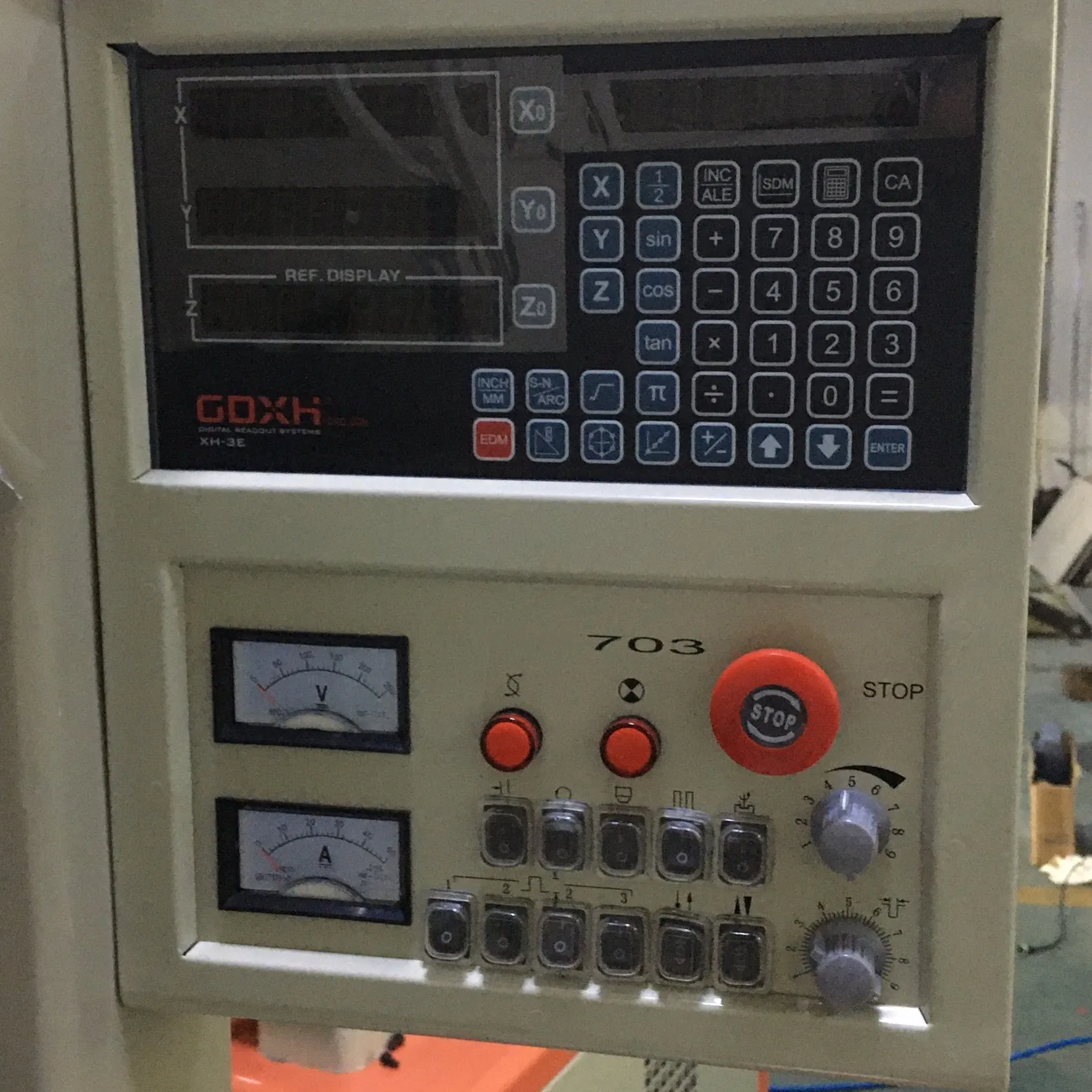

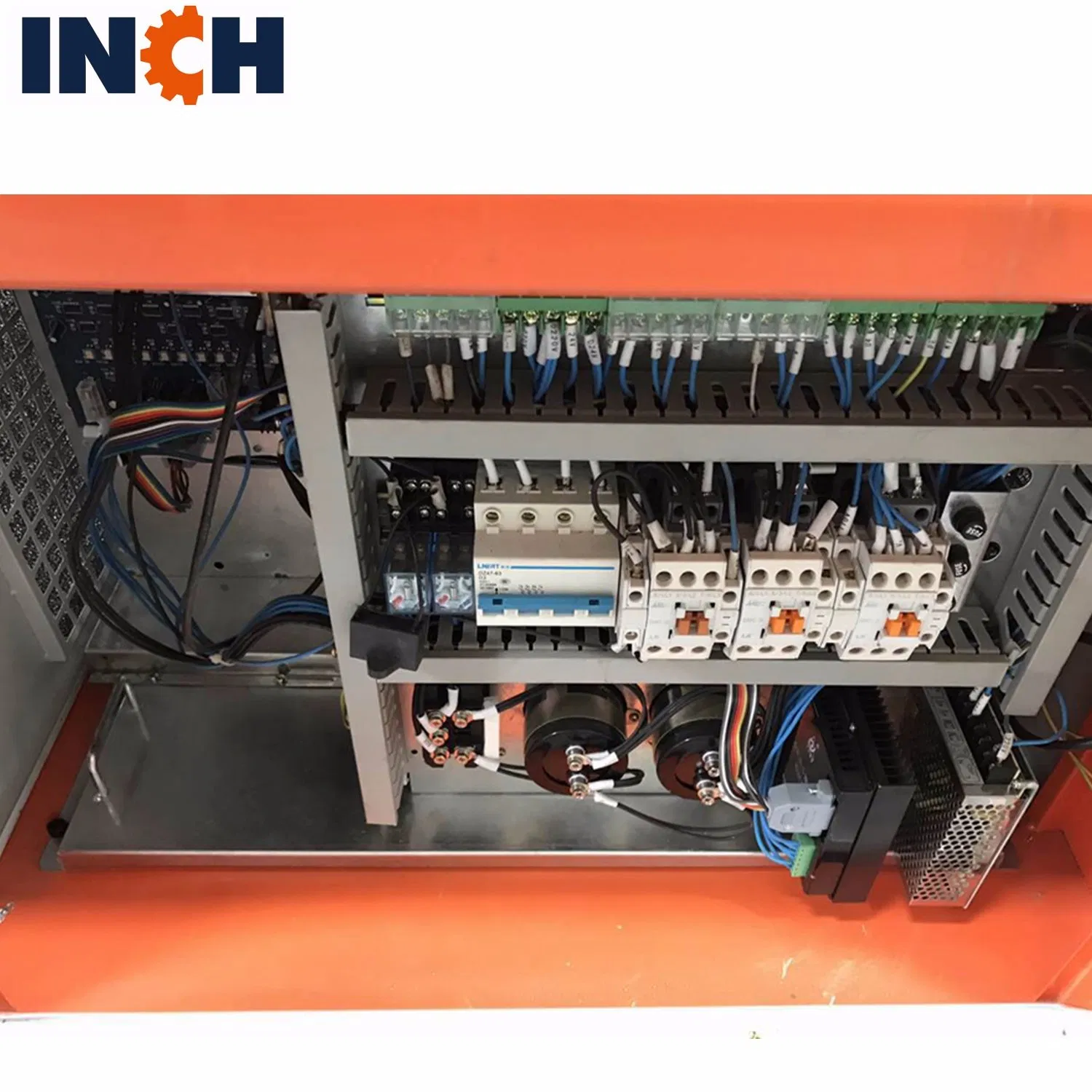

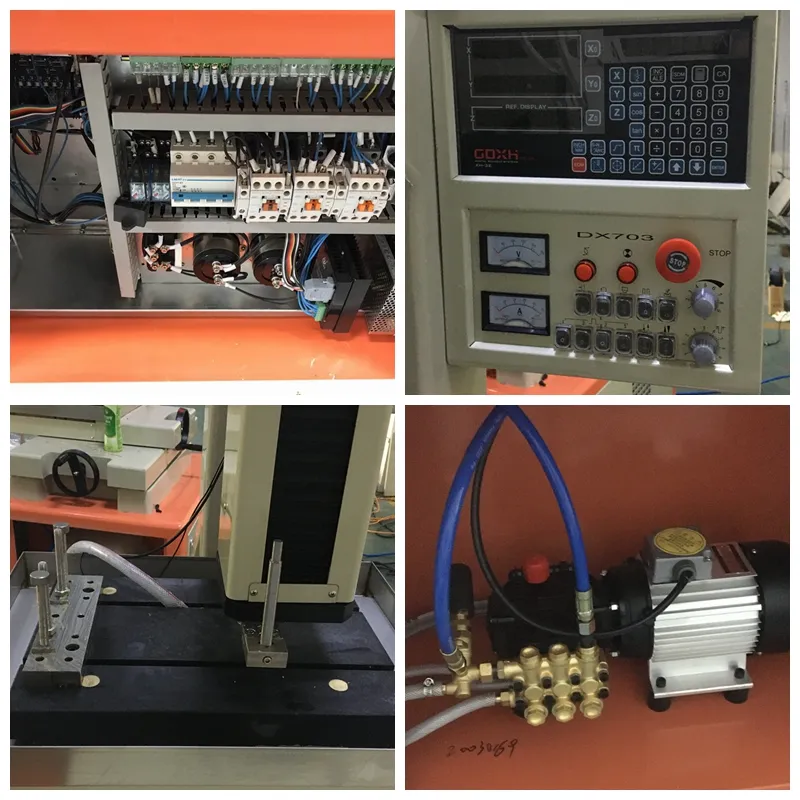

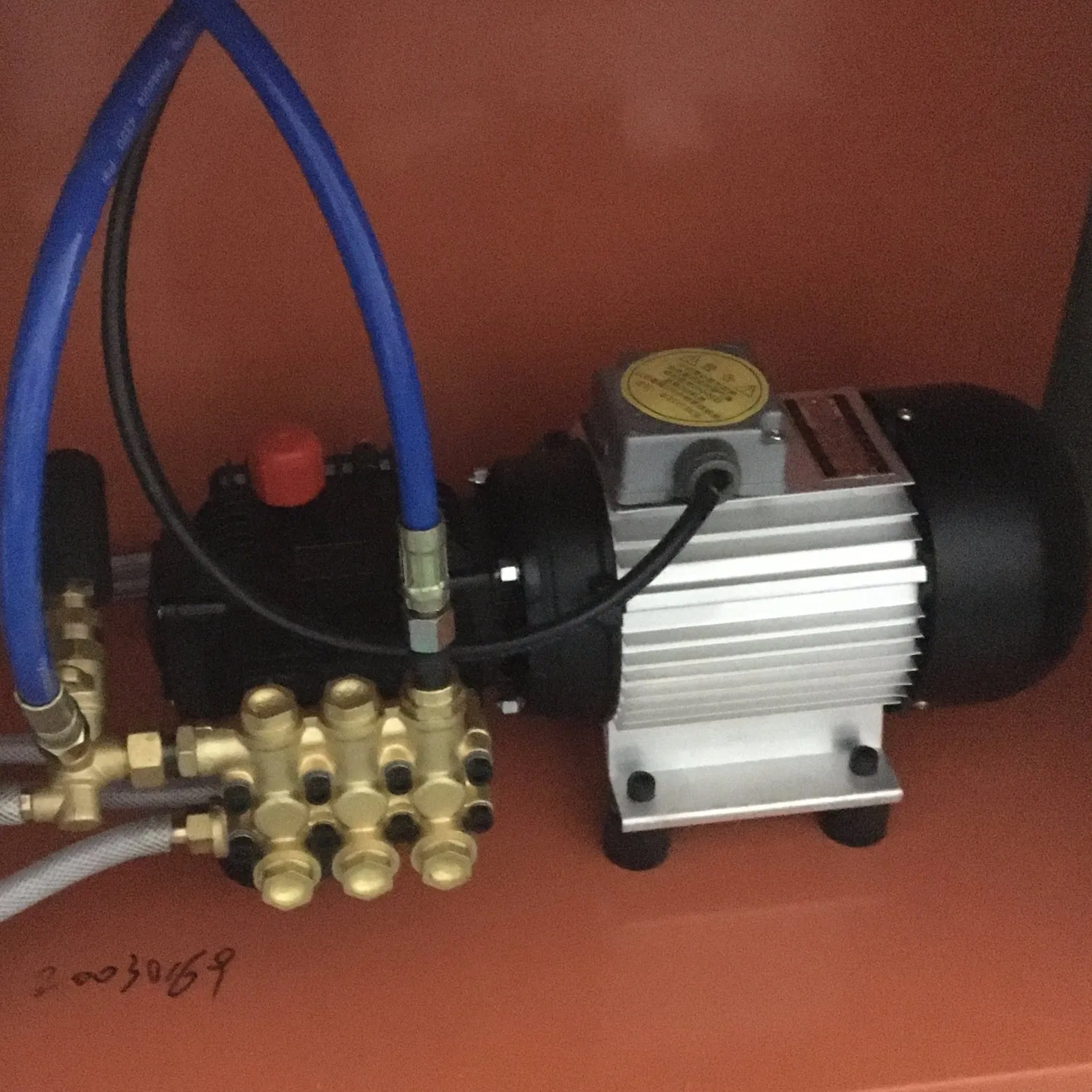

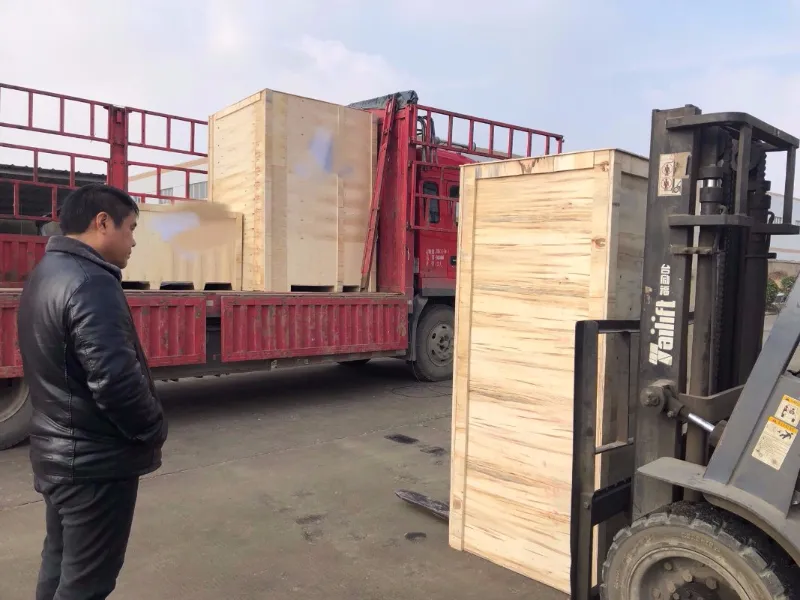

Packing photos :
