Product Description

Products Description

1.Tungsten Carbide 3 Flutes 10mm HRC55 Aluminium Processing CNC End Mills
2. HRC: 50-55
3. Helix degree 45/55
4.1mm-25mm
5.1/2/3 Flute
6 High polishing

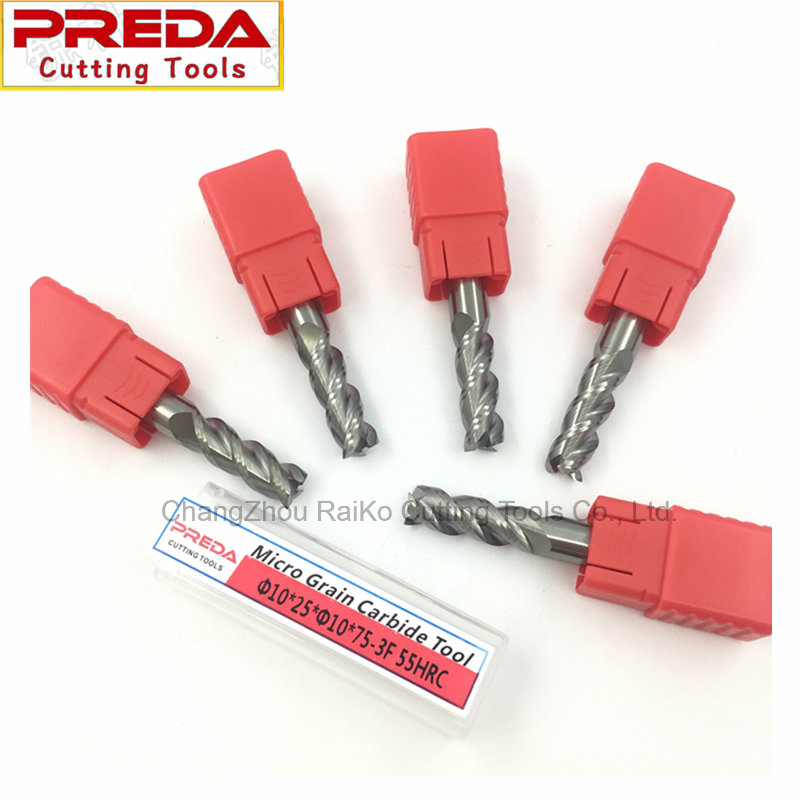

Tungsten Carbide 3 Flutes 10mm HRC55 Aluminium Processing End Mills

Products specification

SurfaceTiCN/TiN/TiAlN/Uncoated
Flexural Strength2500-4000N/mm2
Controling ModeCNC
UsageMetal
Chemical Composition6%-12%Co-WC
Density14.45-14.90g/cm3

Coating Classifying and Advantage
Item	Coating Type	AlTin	Tialn	TiSin	Naco
Characteristic	Hardness(HV)	3200	2800	3600	42(GPA)
	Thickness(UM)	2.5-3	2.5-3	3	3
	Oxidation Temp.(ºC)	900	800	1000	1200
	Friction Coefficient	0.3	0.3	0.45	0.4
	Color	Black	Violet	Copper	Blue

1, Chemical Composition: 10%Co-Wc
2, Raw Material: Super Micro grain with Diameter less than 0.2UM
3, International Industrial Standard: K10, K05-K15, K20-K30, K20-K40
4, Application areas: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steel, plastic materials, fiberglass, carbon fiber and other non-metallic.
5, Served industries: Aerospace, Transportation, Medical Equipment, Military Manufacturing, Mold Development, etc.
Tungsten Carbide 3 Flutes 10mm HRC55 Aluminium Processing End Mills

Advantage

1: Different Hardness based on client's requirement
2: sutiable for various steel process , tooling process , Alloy Aluminium process and cast iron process.
3: Talented and well-trained employees.
4: we also accept client's requirement of non-standard size.
If you want to know more about our products, you can contact us on line.

Specifications:

Outside Dia/Dc	Shank Dia/D	Flute Length/LC	Overall Length/L	Flute
(mm)	(mm)	(mm)	(mm)	(mm)
1	4	3	50	2& 3
1.5	4	4	50	2& 3
2	4	6	50	2& 3
2.5	4	8	50	2& 3
3	4	9	50	2& 3
4	4	12	50	2& 3
5	6	15	50	2& 3
6	6	18	50	2& 3
8	8	20	60	2& 3
10	10	25	75	2& 3
12	12	30	75	2& 3
16	16	50	100	2& 3
20	20	55	100	2& 3

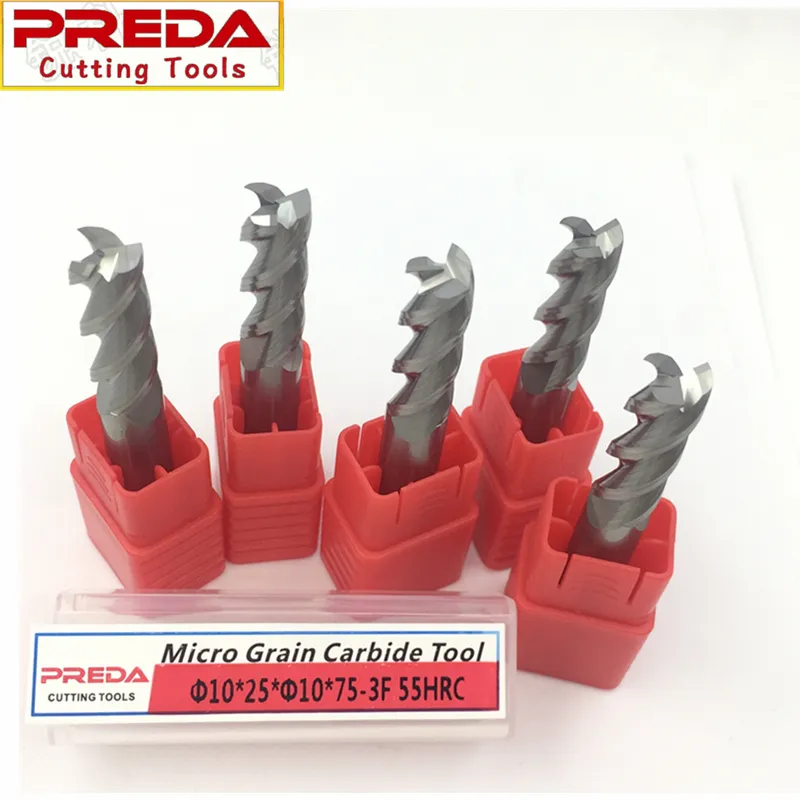

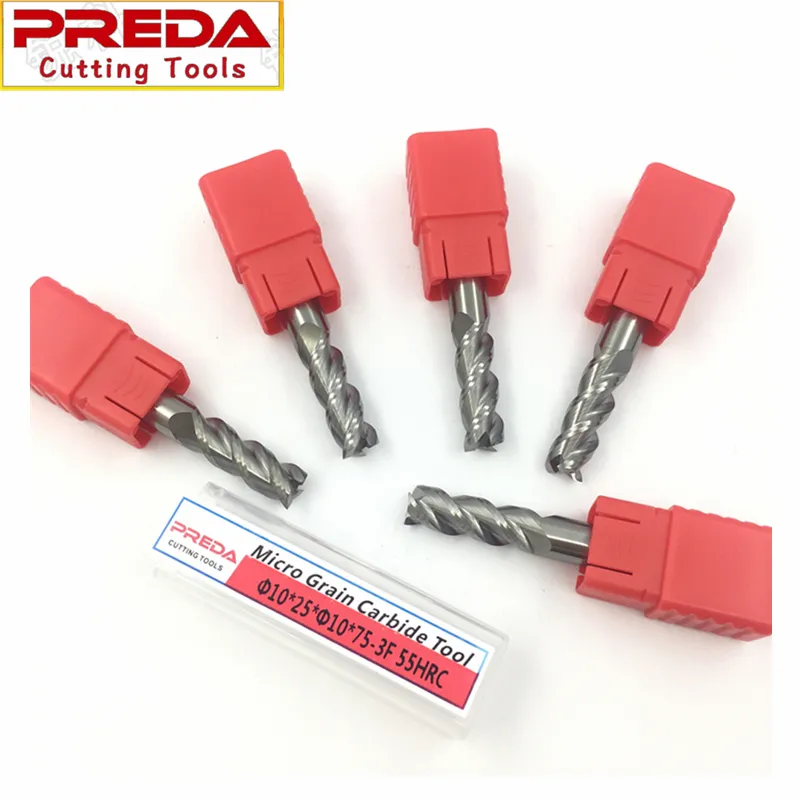

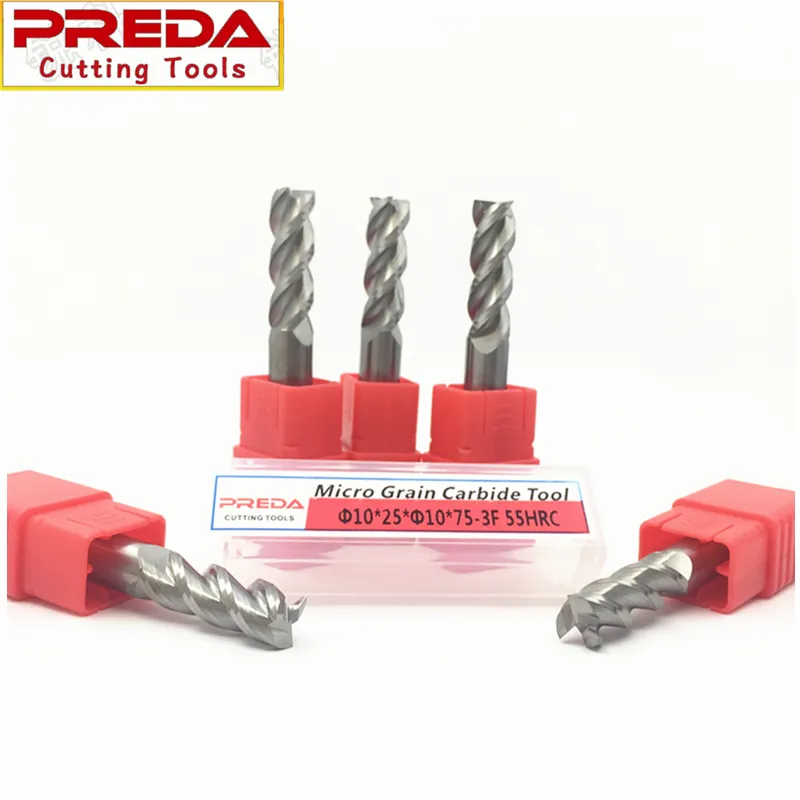

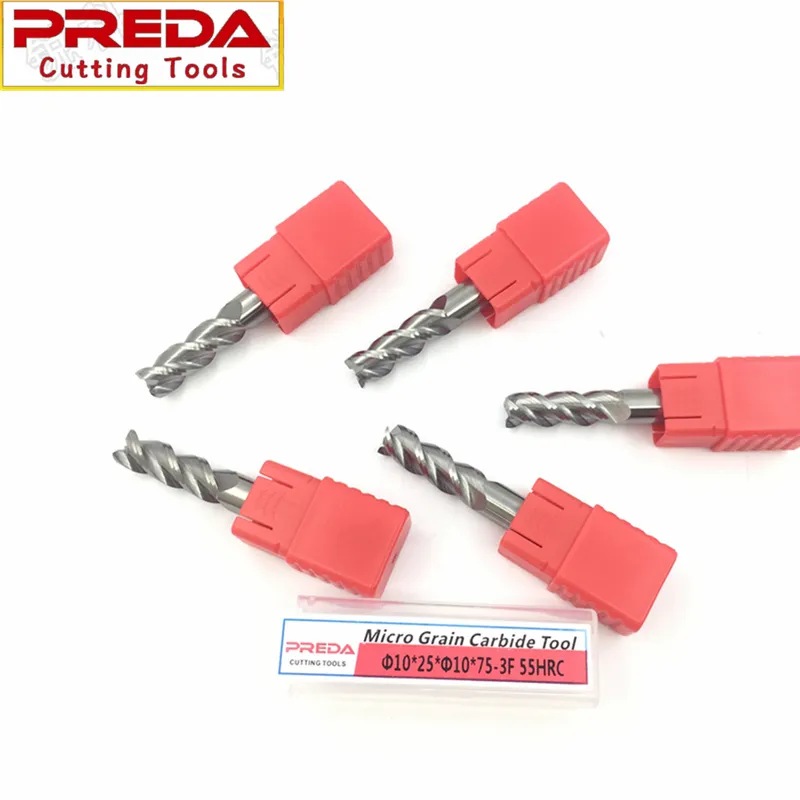

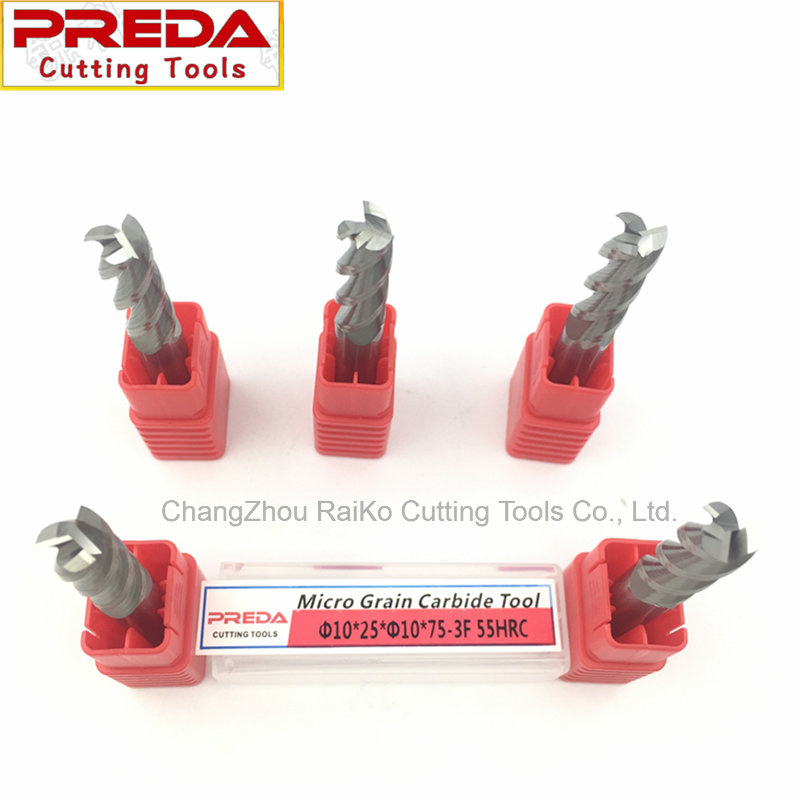

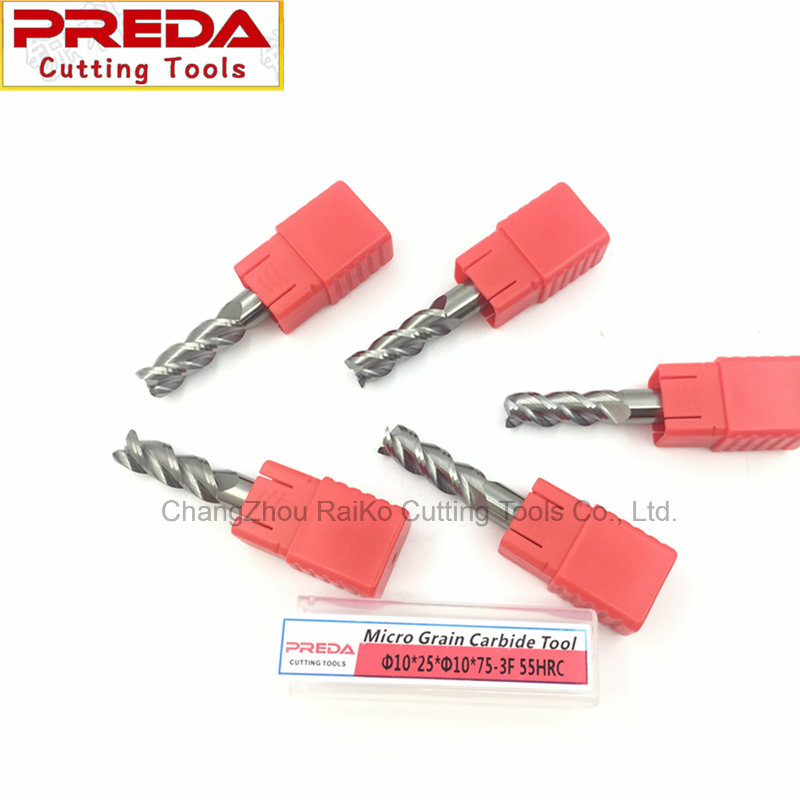

Products Show

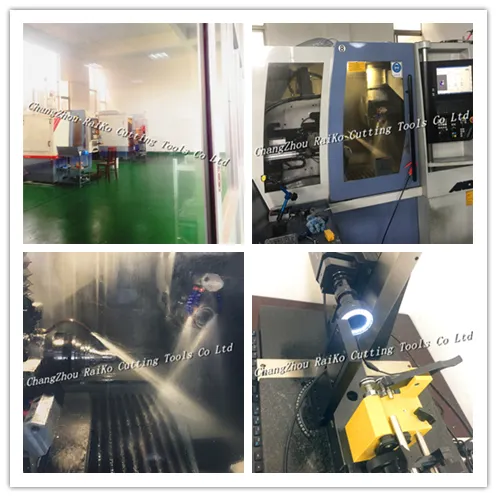

Company Images
Tungsten Carbide 3 Flutes 10mm HRC55 Aluminium Processing End Mills

Package Images
Tungsten Carbide 3 Flutes 10mm HRC55 Aluminium Processing End Mills

FAQ

1.  Are you manufacturer? Do you have factory?
---We are Professional manufacturer ,we have more than 15 years experience in this field.

2.  Does free shipping is possible?
----We don't offer free shipping service, but we will give you some discount if you buy large quantity products.

3.  Can you send products to our Forwarder in China?
----Yes, if you have forwarder in China, i will glad to send products to him/her.

4.  Do you make OEM?
----Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.

5.  How about the delivery time?
----According to the sizes and quantity, delivery time is different. Usually be 5~10 days. We can tell you exact inventory state if you need.

6. Can you produce carbide Special Tool ?
--- Yes We can. From 2013 year. Our factory main market is from standard end mills to special tools. Special tool according your drawing and sample
