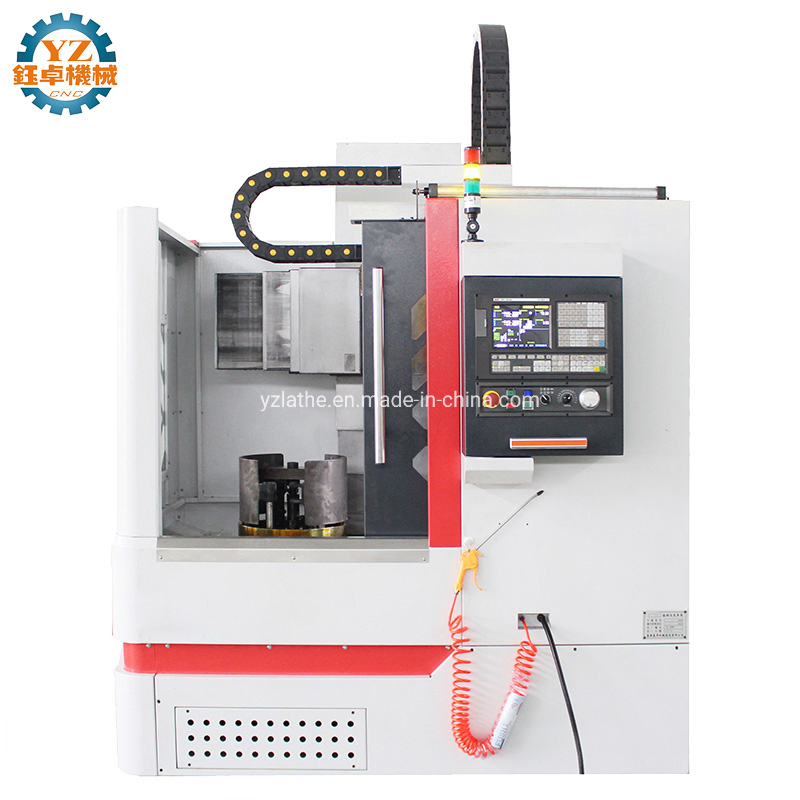

Vck600 CNC Vertical Machine Tool Widely Used Vertical Lathe Machine

Product Description

VCK600 Best Price China CNC Vertical Lathe Machine Vertical CNC Turning Lathe Machine For Sale

Specifications

Model	VCK600
Max. turning diameter	600mm
Max. cutting diameter	500mm
Number of spindle speeds	50-1000 Stepless
Cutting Feedrate	0.1-1000mm/min
Turret vertical moving distance	400mm
Turret horizontal moving distance	300mm
Longitudinal fast shift speed	8000mm/min
Vertical fast shift speed	5000mm/min
Turret in the form	Four station electric turret
Chuck size	400mm
Tool bar section	32x32mm
Positioning repeatability	0.012mm
Positioning accuracy	X/Z 0.012/0.02mm
Power of main motor	5.5/7.5kw
Overall dimensions of machine	2250x1960x2300mm
Machine weight	3200kg

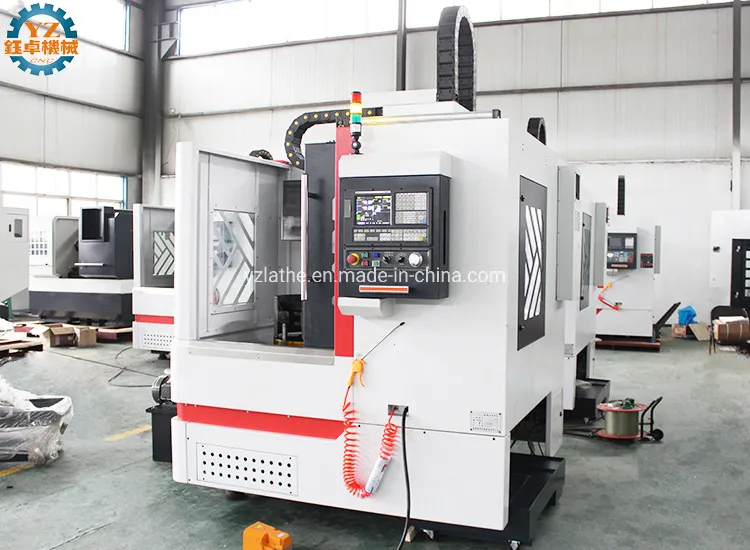

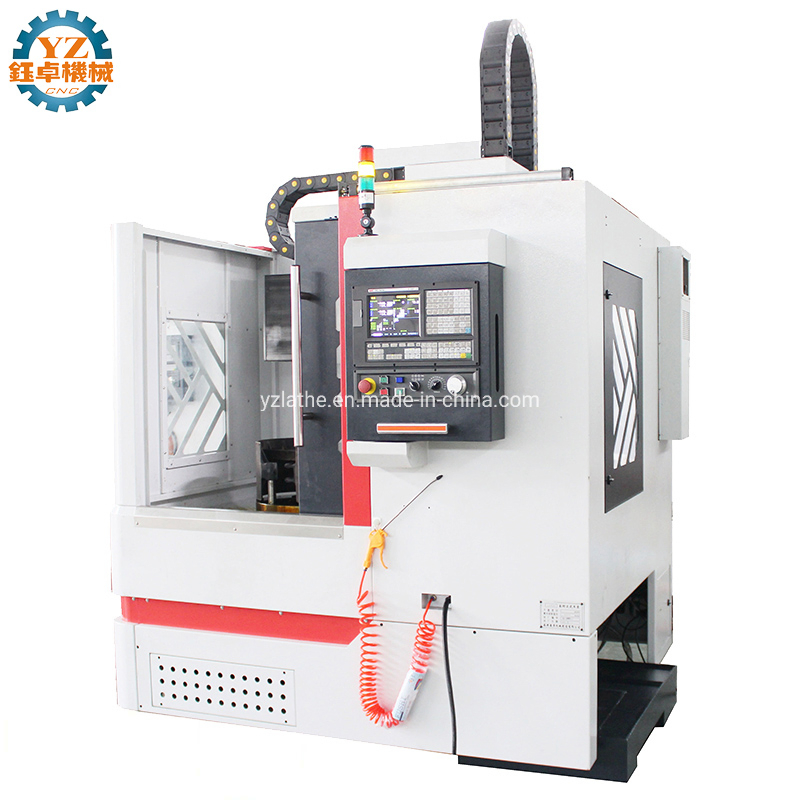

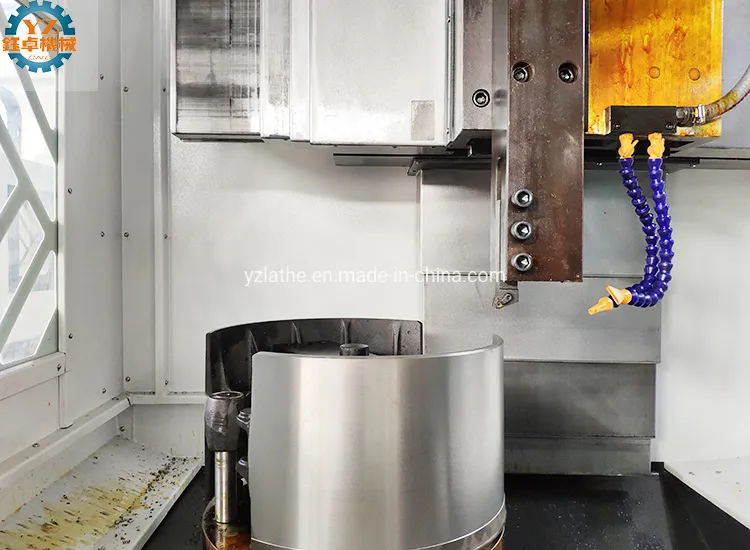

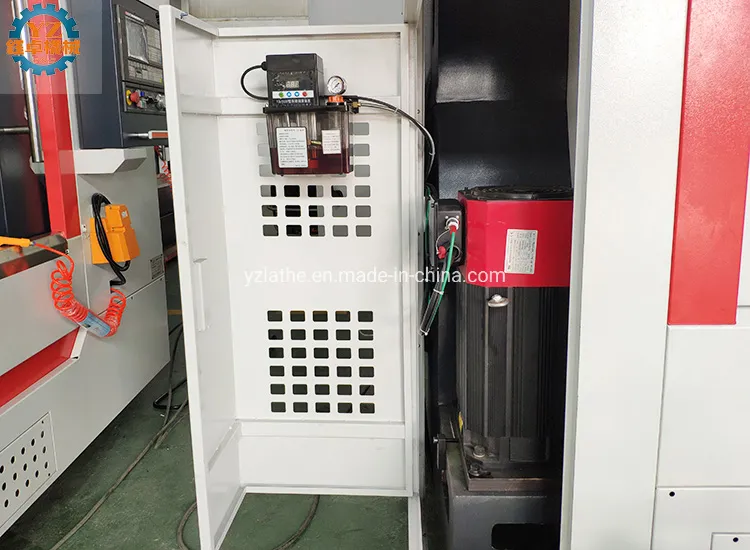

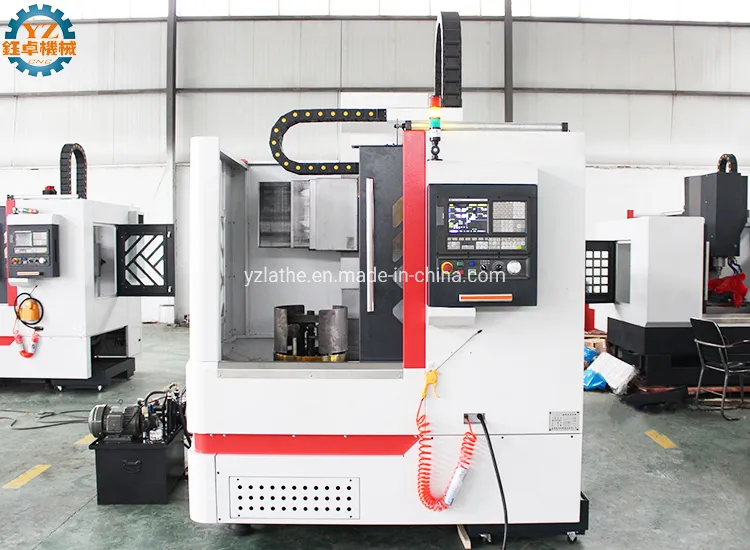

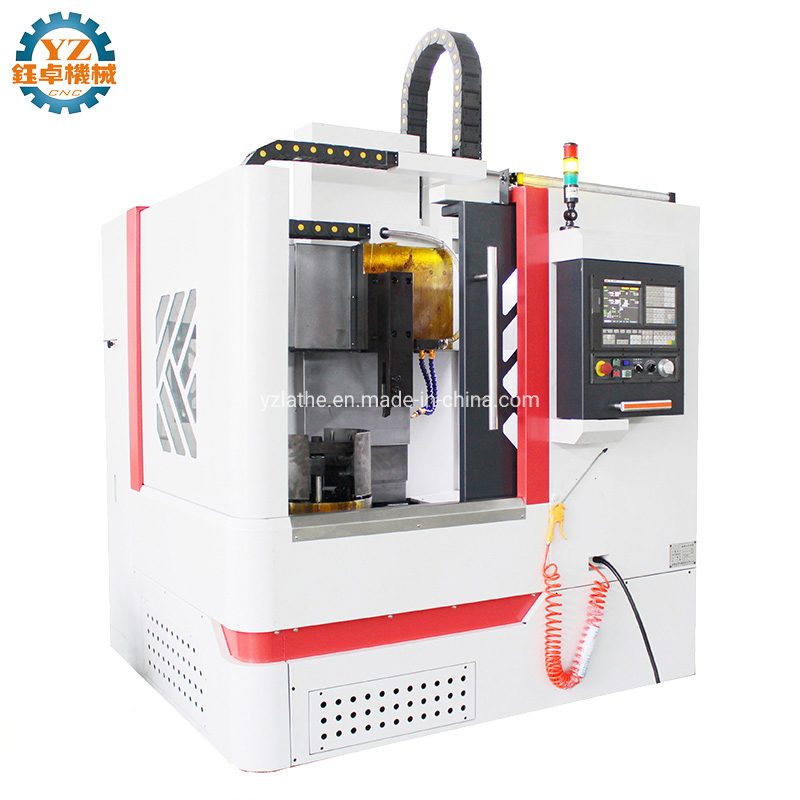

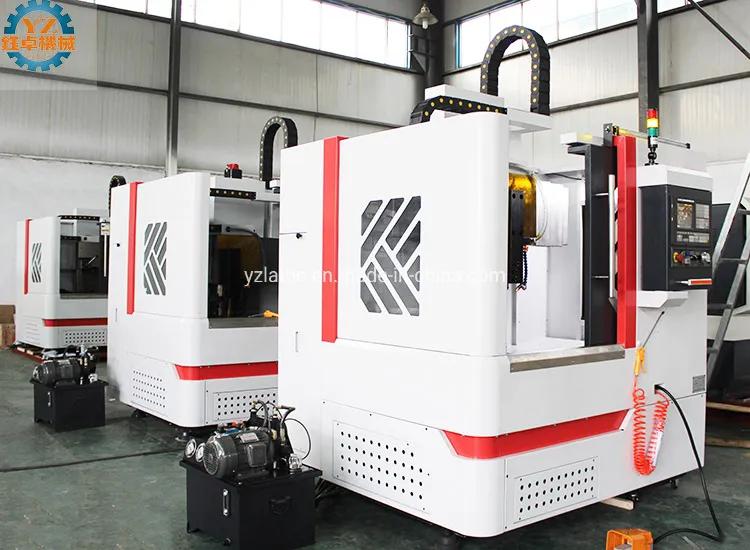

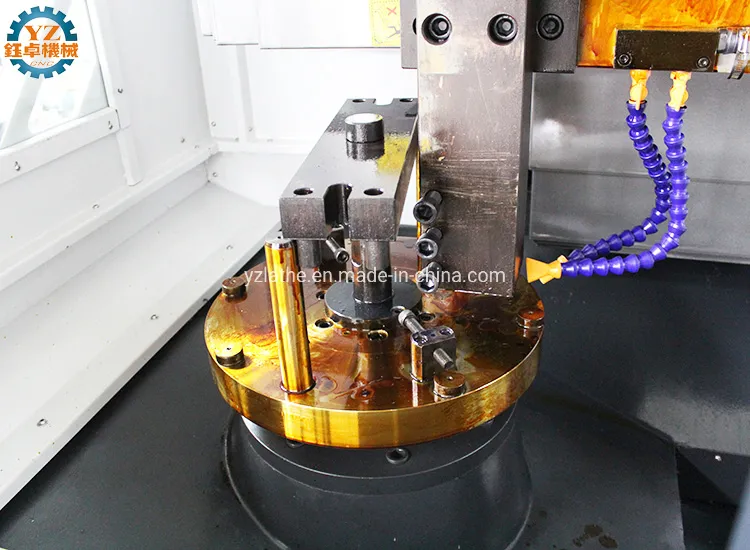

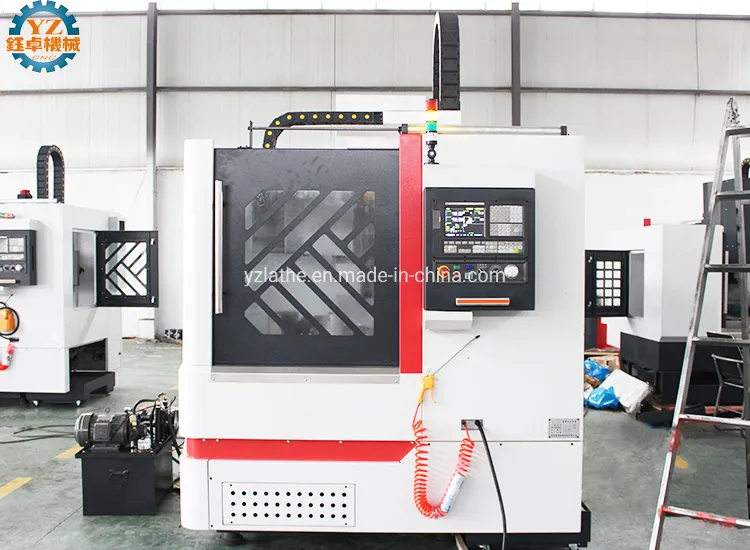

Machine Detailed Photos
Vck600 CNC Vertical Machine Tool Widely Used Vertical Lathe Machine

Standard Configuration:

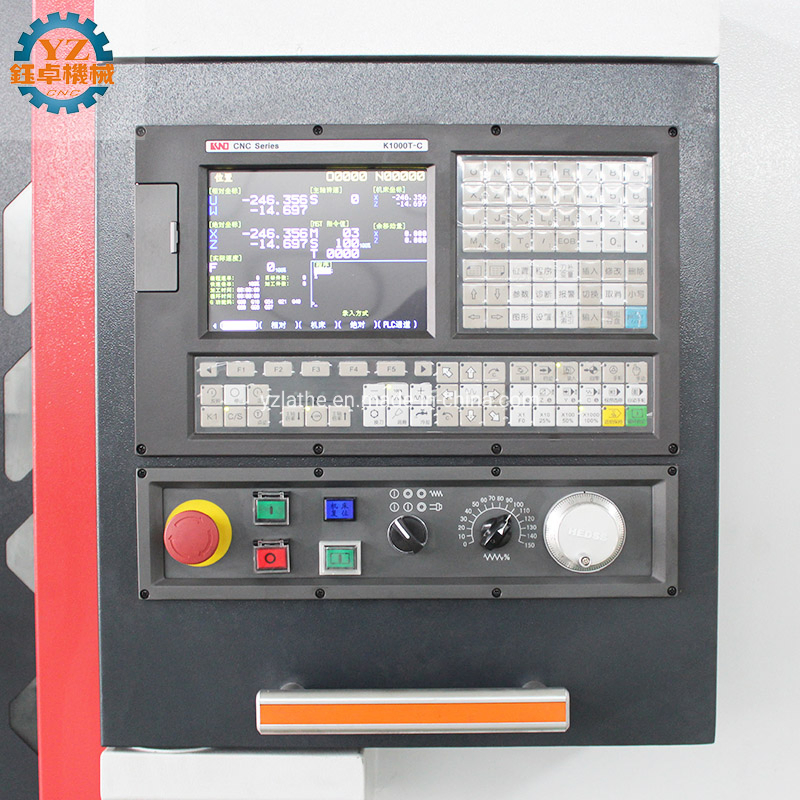

1. CNC system: SYNTEC6TA-E.
2. A2-6 spindle unit.
3. Taiwan Hiwin roller linear guideways.
4. Taiwan Hiwin ball screw.
5. Eight station hydraulic turret.
6. Hydraulic chuck with hydraulic station.
7. Servo motor.
8. Chain chip conveyor.
9. Water gun system and air gun system.
10. Automatic lubrication system.
11. Full guard.
12. Large flow cooling.
13. Warning light.

After-sale Services:
Warranty is one year. We would offer the parts (quality problem) free of charge during this period.

Note: GSK ,Servo driven, motor and transformer, Warranty is 3 years.

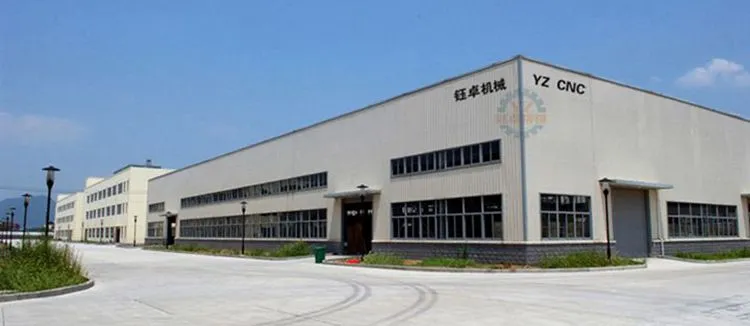

Company Information:
Vck600 CNC Vertical Machine Tool Widely Used Vertical Lathe Machine

Taian Yuzhuo Machinery Co., Ltd. ( or "YZ CNC" for short) is a professional manufacturing enterprise engaged in the
research, development, production, sale and service of CNC machines.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available
to discuss your requirements and ensure full customer satisfaction.

Our main products are as below:
* Wheel Repair CNC Lathe Machine
* Vertical CNC Lathe Machine
* Horizontal CNC Lathe Machine
* Slant Bed CNC Lathe Machine
* Universal Lathe Machine
* Pipe Threading CNC Lathe Machine
* CNC Milling Machine
* CNC Vertical Machining center
All the above products have passed CE, SGS certificates.

Our Strength
* Over 18 years manufacturing experience in CNC lathe machine.
* Quality is the life of our company, and we offer you the best high value added machines.
* Export CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries.
* Customer service is the power that drives our company forward.

CE Certifications
Vck600 CNC Vertical Machine Tool Widely Used Vertical Lathe Machine

Foreign Customers
Vck600 CNC Vertical Machine Tool Widely Used Vertical Lathe Machine

Contact Us
If any interest about our cnc lathe machine, cnc milling machine or cnc vertical machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.
