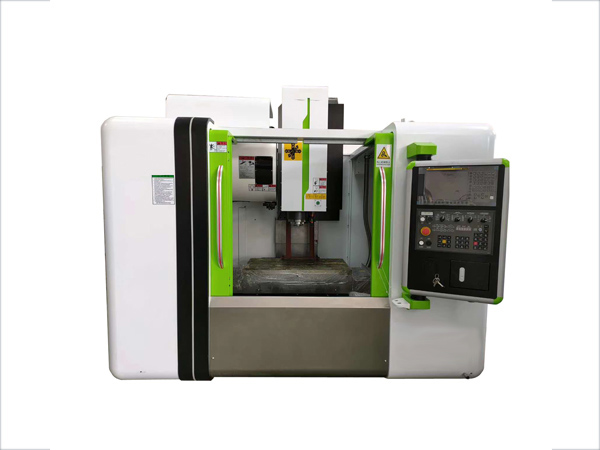

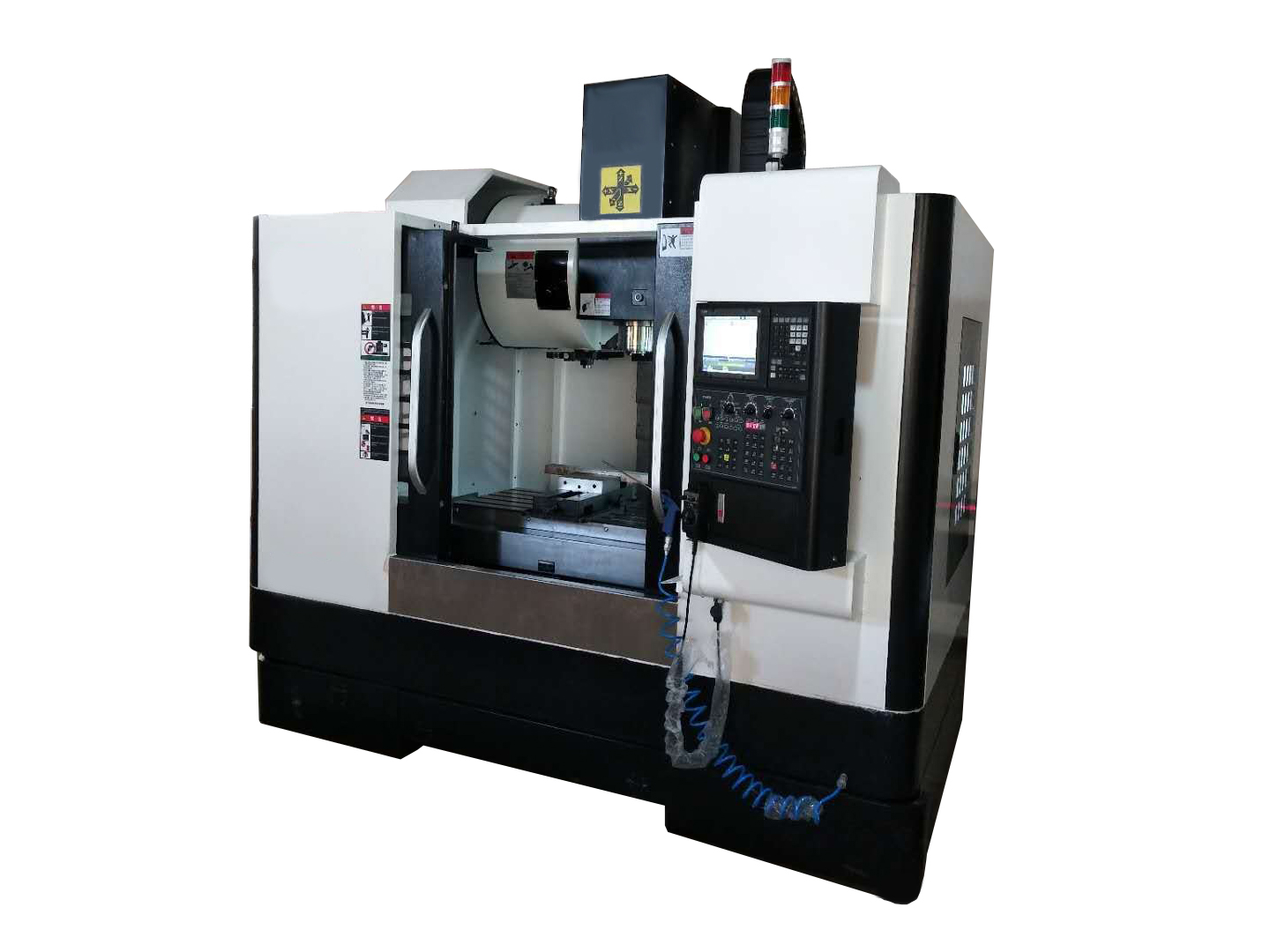

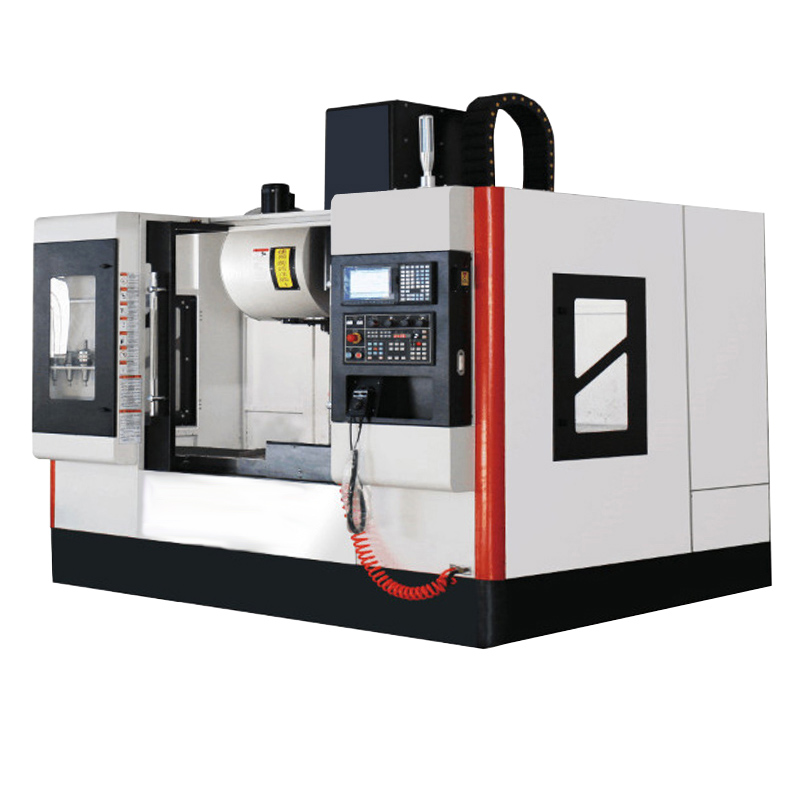

Vertical Horizontal Machine Center CNC Milling Machine CE Certificate Vmc1060

Product Description

Structural performance of machine tool
1. Fuselage design
The fuselage and saddle are reinforced by mountain shaped ribs, with the shortest force streamline, ensuring the best rigidity of the fuselage.
Based on the excellent engineering design, the stiffeners of the base and column of the machining center can resist the torsion and damping, and transfer the cutting vibration to non
Cutting area. The column is designed with torque tube, which can provide excellent rigidity, bending and torsion resistance Ultra wide base design,
At the same time, lower the center of gravity of the base and adjust the center of gravity of the machine tool to the best stable height. The span at the bottom of the column is widened to improve the stability of the machine tool.
2. spindle head
The contact length ratio between the main shaft and the column is appropriate to provide stable support for the main shaft. Independent cooling system is built in the spindle head to stabilize the spindle continuously
The head heat is in a reasonable range, which reduces the thermal extension of the spindle and ensures the machining accuracy.

3. counterweight
In response to the processing requirements of different models, the following counterweight methods are adopted:
Counterweight: low failure rate and long service life;
Nitrogen counterweight: rapid action, no noise, greatly improved processing accuracy, increased machine life;
No counterweight: in order to meet the requirements of high speed and high sensitivity processing, the machine tool adopts the method of no counterweight, and enhances the requirements of servo motor and screw,
Z-axis with brake, to ensure the accuracy of the machine tool is stable and lasting, and increase the service life.
4. screw rod
It adopts imported grinding level pre drawn double nut screw rod to eliminate reverse clearance. After heat treatment, it has high rigidity, wear resistance, torsion resistance and long service life, which guarantees high machining accuracy of the machine.
5. AC servo motor
Adopt original imported from Japan, super high performance servo motor, provide stronger power when heavy cutting.
In the case of low feed, high torque can still be maintained.
Higher than 10000 (pixel) resolution and closed-loop position feedback ensure high accuracy.
High quality coupling ensures that the screw rod moves with the axis of the motor.
6. Lubrication system
The whole machine adopts a positive displacement lubrication system and a de pressurized oil pump, with stable pressure and flow, which effectively transports the oil to each lubrication point and provides uniform forced lubrication for each slide surface, so as to ensure the accuracy and service life of the machine tool.
7.Chip remover system

Vertical Horizontal Machine Center CNC Milling Machine CE Certificate Vmc1060

Item	unit	TAT-650
operating range
X-axis travel (left and right)	mm	600
Y-axis travel (front and rear)	mm	500
Z-axis travel (up and down)	mm	500
Distance from worktable to spindle end face	mm	110-610
Distance from the front end of column to the center of main shaft	mm	600
Workbench
Table area (L * W)	mm	500*800
maximum load	kg	600
T-groove (width * spacing * number of grooves)	mm	318144
X / Y / Z axis rapid feed	m/min	10m/min
Spindle specification
Spindle speed	rpm	10000
Taper hole form and installation size	kg	BT40∮140(external diameter)
Transmission mode (1:1)	mm	Belt
Recommended motor parameters for spindle	kW	7.5
Accuracy (x / Y / z)
positioning accuracy	mm	±0.003/300
Repeated positioning accuracy	mm	±0.003/300
Other information
Three axis power	kw	222
system		FANUC OI-MF
Tool magazine	T	60
