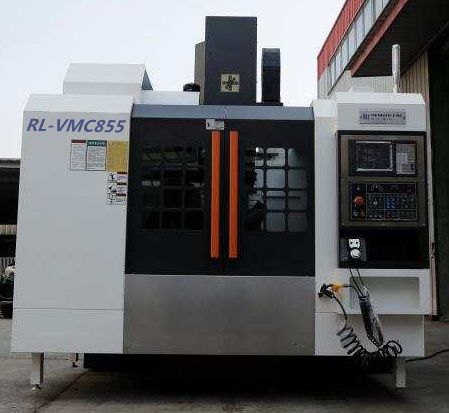

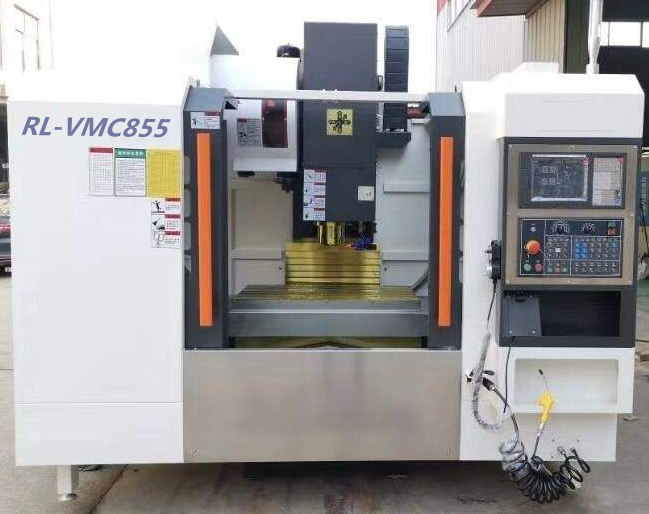

Vertical Machining Center Vmc 855 # with Mitsubishi System
VMC 855#/ Vertical Machining Center 855#high-speed moving linear heavy-duty rollerguideway pairstability of machine tool controlThe large diameter C3 grade ball screw PRODUCT SPECIFICATIONS Machine model unit VMC855 X/Y/Z travel mm 850/550/550 distance from spindle nose to table surface mm 120-670 d......
Send Inquiry
Product Description
guideway pair
stability of machine tool control
Machine model | unit | VMC855 | |
X/Y/Z travel | mm | 850/550/550 | |
distance from spindle nose to table surface | mm | 120-670 | |
distance from spindle center to column surface | mm | 595 | |
spindle power | kw | 7.5/11 | |
spindle speed | rpm | 10,000 | |
spindle taper | BT40(Φ150) | ||
positioning accuracy | mm | ±0.003 | |
repeat positioning accuracy | mm | ±0.001.5 | |
table size | mm | 1000×550 | |
Max. Table loading | kg | 650 | |
T Slot | 5-18-90 | ||
X/Y/Z rapid speed | M/min | 48/48/48 | |
cutting speed | Mm/min | 1-10000 | |
X,Y,Z axes ball screw diameter | Φ40 | ||
X/Y/Z axes servo motor power | kw | 2.0/2.0/3.0 | |
Linear width/type /guideway no./slider no. | X | 35mm/roller/2/4 | |
Y | 45mm/roller/2/4 | ||
Z | 45mm/roller/2/6 | ||
Control | Depends customer | ||
Max.power consumption | 20.0 | ||
air | Mpa | 0.5-0.7 | |
power | 380V/220V/415V/50(60)Hz/3PH | ||
ambient temperature | 0ºC-42ºC | ||
relative humidity | ≤ 80% | ||
machine Net weight | Ton | 5.5 T | |
Weifang Runlian Economic and Trade Co., Ltd. was established in 2005. It has 15 years of experience in R&D and sales of lubricants series and engraving milling machine. It has a mature operating team and a professional technical R&D team. It has cooperated with more than 40 well-known enterprises in China. Fully trusted by our customers. In order of market demand and specific technical requirements, we are professional our lubricants series and CNC ,VMC,engraving milling machine, and directly provide high quality products and professional after-sales services for the manufacturing industry.
Company vision: become the first-class industrial service provider
