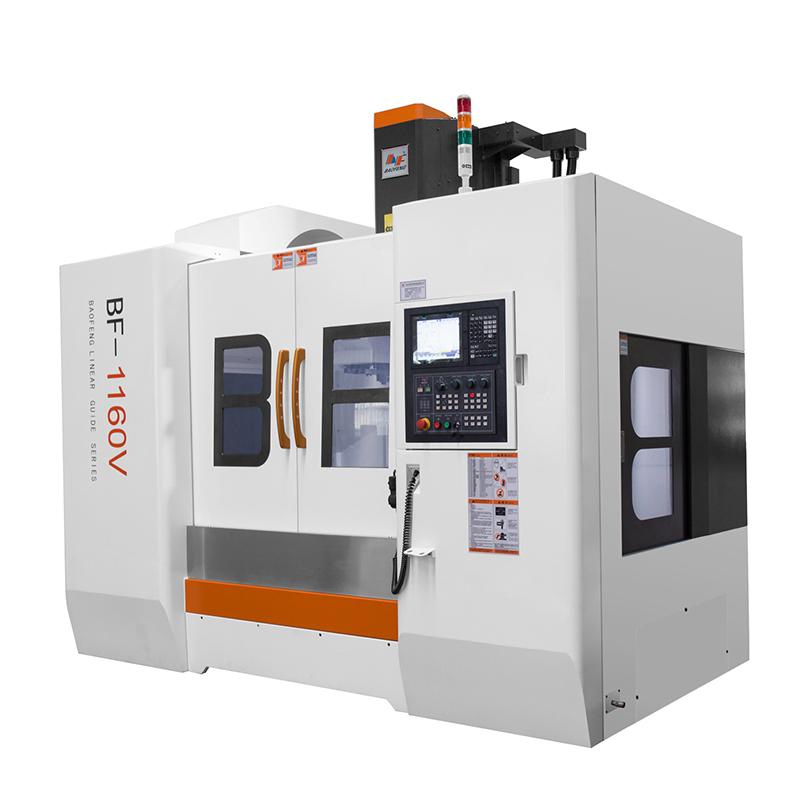

Vmc 1160 Quantity Production CNC Vertical Milling Machine Machining Center Milling
Specification TRAVELX/Y/Z axis travel1100x600x600mmSpindle nose to table130-780mmSpindle center to column658mmPositioning accuracy±0.003/300mmRepeated positioning±0.002/300mmSpindleSpindle taperBBT40Spindle transmissionDirect driveSpindle speed12000 rpm/minControllerCNC contro......
Send Inquiry
Product Description
Specification
Main parts list:
Optional configuration:
- SIEMENS/FANUC/Mitsubishi CNC Controller
- 4th/5th axes rotary table
- Chip conveyor
- Tool setter
- Oil mist collector
| TRAVEL | |
| X/Y/Z axis travel | 1100x600x600mm |
| Spindle nose to table | 130-780mm |
| Spindle center to column | 658mm |
| Positioning accuracy | ±0.003/300mm |
| Repeated positioning | ±0.002/300mm |
| Spindle | |
| Spindle taper | BBT40 |
| Spindle transmission | Direct drive |
| Spindle speed | 12000 rpm/min |
| Controller | |
| CNC control | Fanuc 0i-MF |
| Spindle motor | 11/15 kw 12000 rpm/min |
| X/Y/Z motor | 3.0/3.0/3.0kw |
| Table | |
| Table size ( W x L ) | 1200x600mm |
| T slot | 5-18x100mm |
| Table load | 800kg |
| Feed | |
| X/Y/Z rapid feed rate | 36/36/36m/min |
| X/Y/Z linear guideway | Roller type 45/45/45 |
| X/Y/Z ball screw | 12mm-ball |
| MACHINE DIMENSION | |
| Dimension | 3200*2900*3000mm |
| Weight | 7500kg |
Main parts list:
| Item | Brand |
| Spindle | Taiwan-Spintrue |
| Spindle bearing | Japan-NSK |
| Ball screw | Taiwan-PMI-C3 |
| Linear guideway | Taiwan-PMI |
| Pneumatic parts | Taiwan-Mindman |
| Electric parts | Japan-Mitsubishi/Omron |
Optional configuration:
- SIEMENS/FANUC/Mitsubishi CNC Controller
- 4th/5th axes rotary table
- Chip conveyor
- Tool setter
- Oil mist collector
