Vmc CNC Vertical Machining Center for Precision Metal Processing
Features:High quality resin sandTaiwan spindleTaiwan ball screw and locking nutTaiwan pressure cylinderJapanese NSK bearing germany R+W couplingAutomatic lubrication systemChip conveyor at optionalApplication:This VMC is suitable for mechanical processing and mold making .And it can asapt to the pro......
Send Inquiry
Product Description
Features:

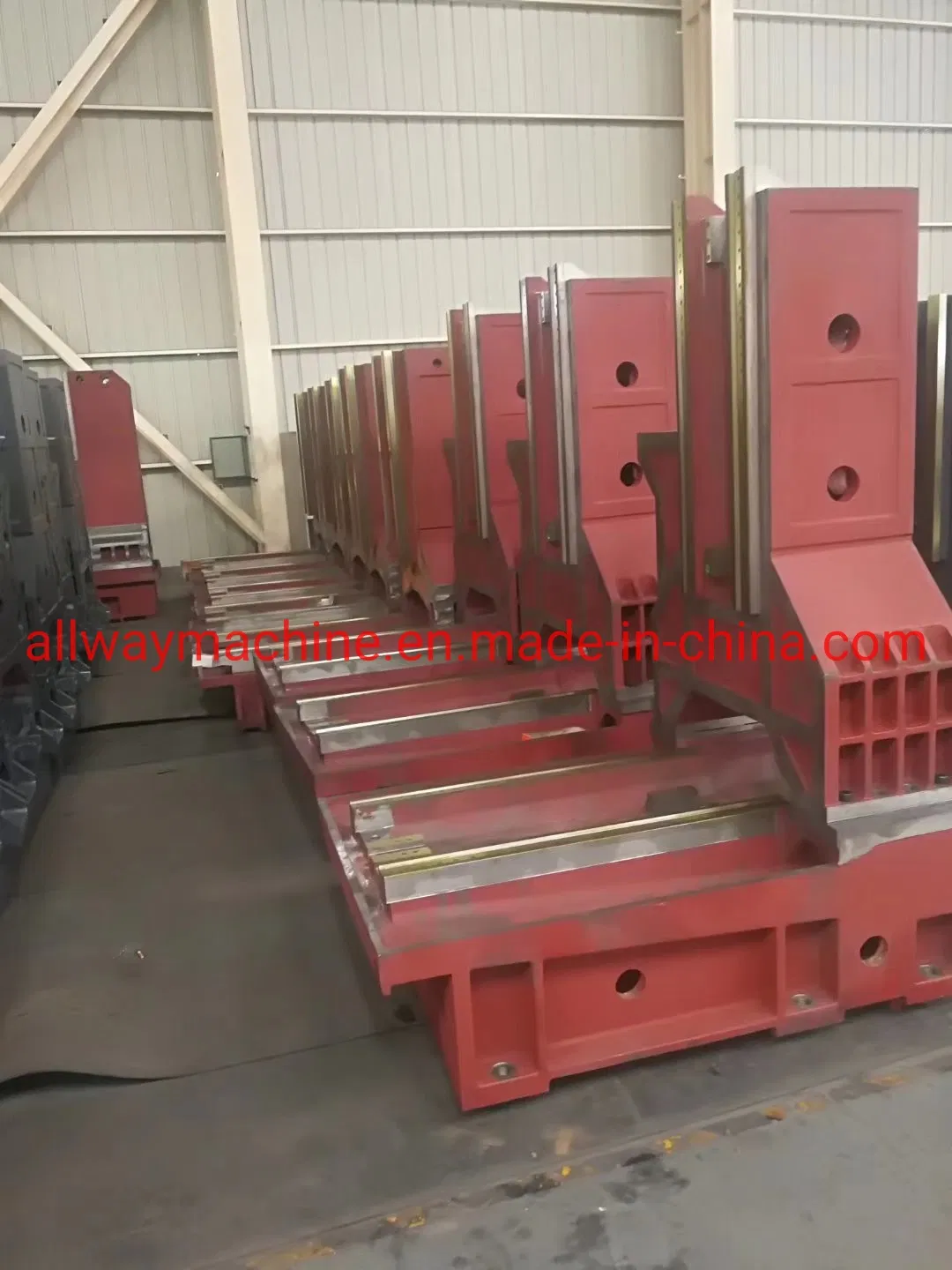

High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product main technical parameters:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product main technical parameters:

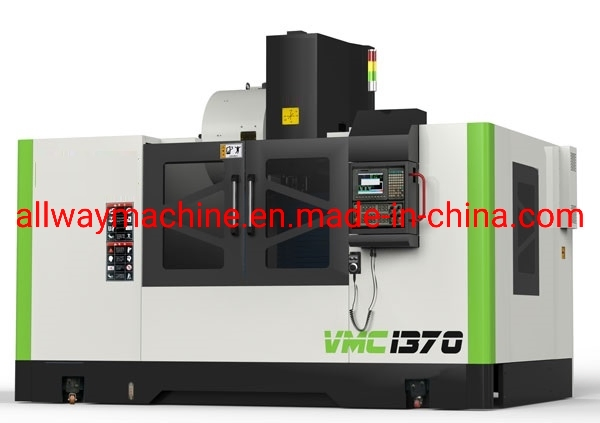

| specifications | unit | VMC1270 | VMC1370 | VMC1580 | VMC1680 |
| Table size | mm | 1400x710 | 1400x710 | 1700*800 | 1700*800 |
| Table maximum load | kg | 1000 | 1000 | 1500 | 1500 |
| X/Y/Z axis travel | mm | 1200x700x650 | 1300x700x650 | 1500*800*700 | 1600*800*700 |
| Distance between spindle center and column surface | mm | 785 | 785 | 810 | 810 |
| Distance between spindle end face and worktable surface | mm | 150-800 | 150-800 | 170-870 | 170-870 |
| X/Y/Z max. feed speed | mm/min | 10000 | 10000 | 10000 | 10000 |
| X/Y/Z max.rapid traverse | m/min | 15/15/15 | 15/15/15 | 15/15/15 | 15/15/15 |
| Max. spindle speed | r/min | 8000 | 8000 | 8000 | 8000 |
| Spindle taper | BT50 | BT50 | BT50 | BT50 | |
| Spindle motor | kw | 11/15 | 11/15 | 15/18.5 | 15/18.5 |
| X/Y/Z axis servo motor | kw | 4/4/4 | 4/4/4 | 4/7.5/4 | 4/7.5/4 |
| X/Y/Z motor connection | direct | direct | direct | direct | |

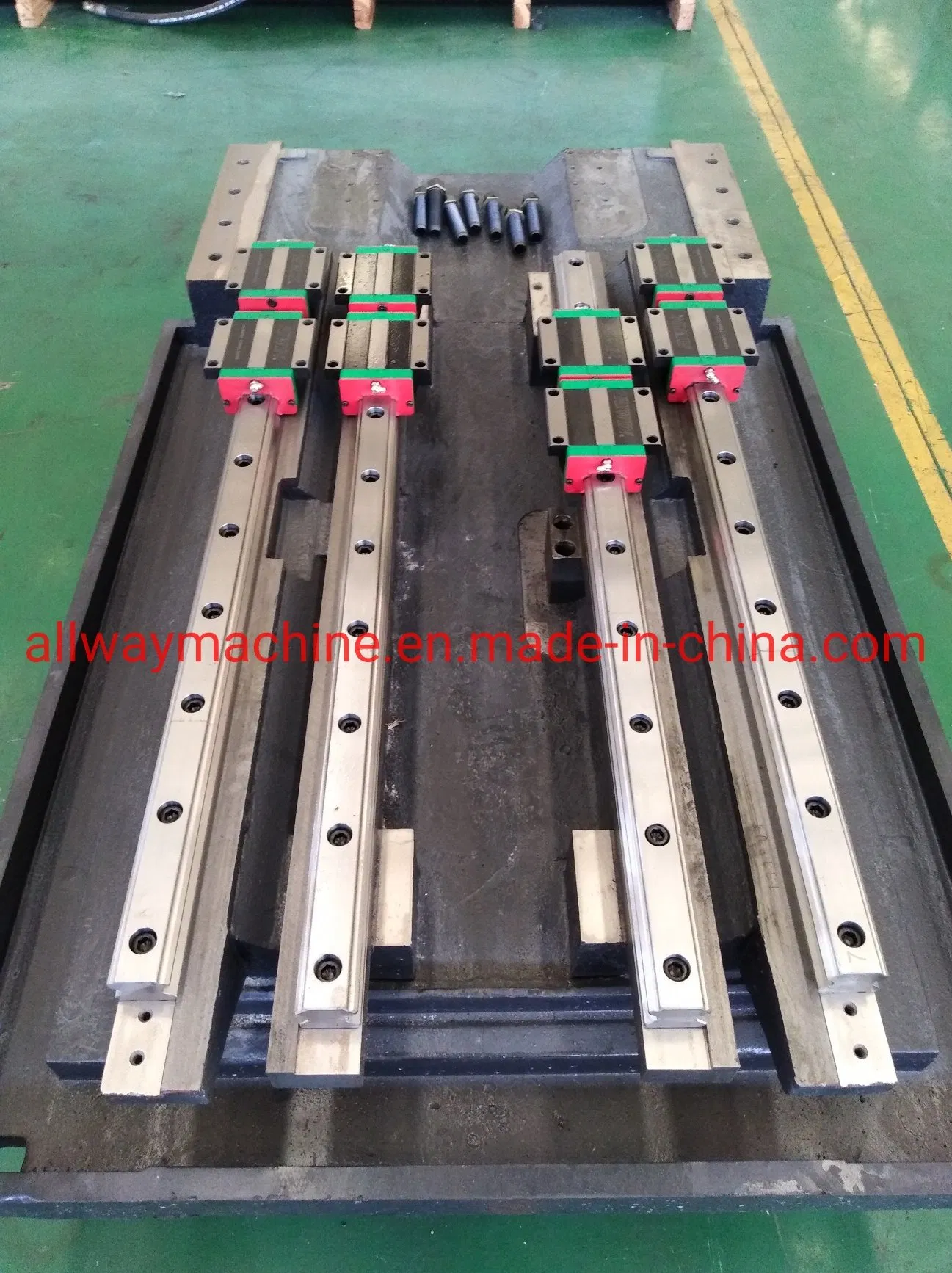

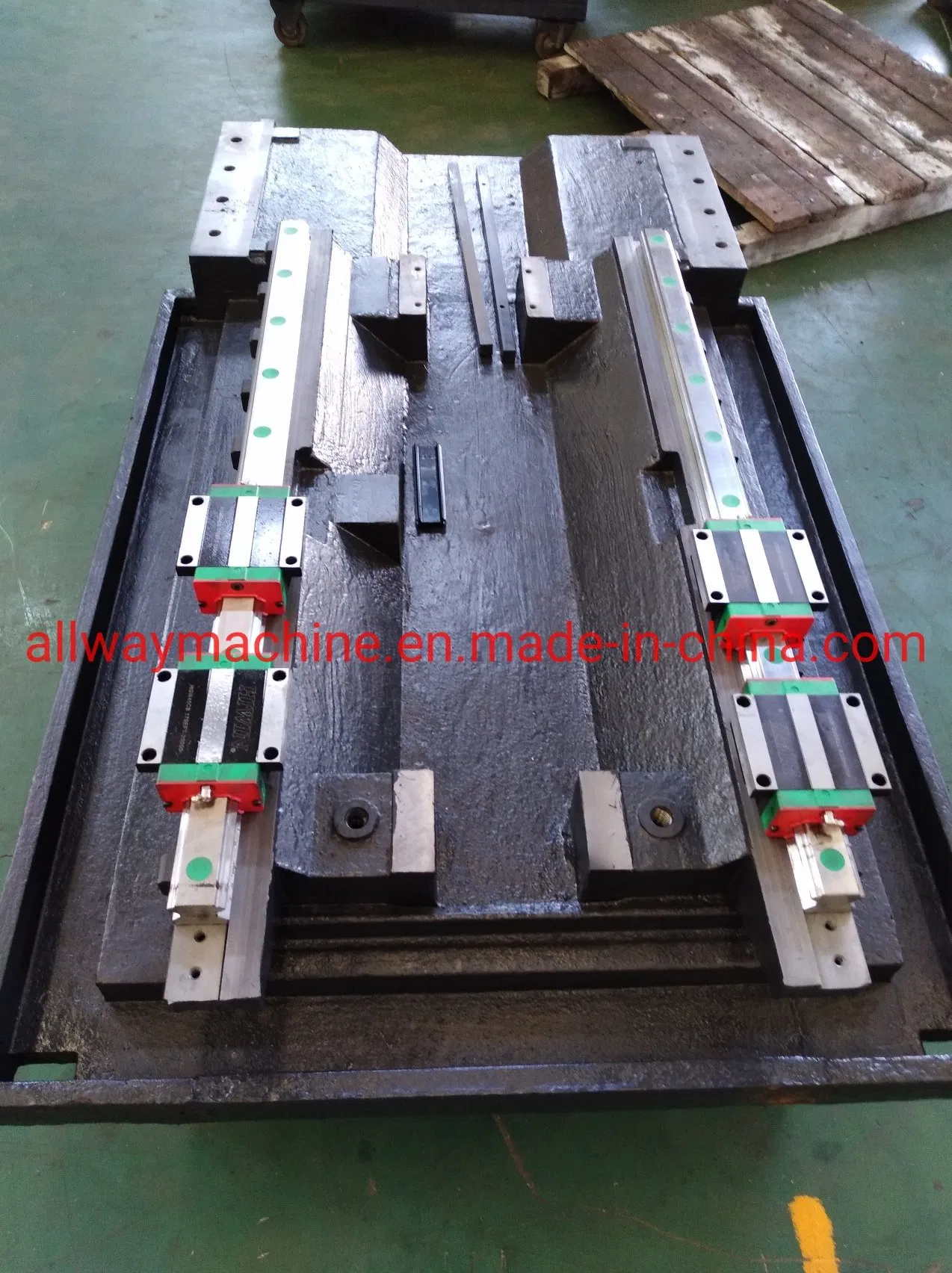

| X/Y/Z guide rail form | hard rail | hard rail | hard rail | hard rail | |
| T slot(number-width-pitch) | 5-18-152.5 | 5-18-152.5 | 5-22-135 | 5-22-135 | |
| Repeat positioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 | ±0.004 |
| Tools type | arm | arm | arm | arm | |
| Tool magazine capacity | arm:24 | arm:24 | arm:24 | arm:24 | |
| Max.tool weight | kg | 15 | 15 | 15 | 15 |
| Max. tool length | mm | 350 | 350 | 350 | 350 |
| Electric capacity | KVA | 22 | 22 | 30 | 30 |
| Machine dimension | mm | 3600*3000*2700 | 3600*3000*2700 | 4260*3545*3200 | 4260*3545*3200 |
| Machine weight | kg | 10000 | 11000 | 12000 | 13000 |
