Vmc1060 for Metal Machining Center Automatic Machinery Manufacturer
VMC1060 VMC1160 CNC VMC Machine Center Vertical CNC Milling Machine CNC Machining CenterSpecificationsModelVMC1060TravelX/Y/Z axis1000/600/500mmSpindle nose to table150-750mmSpindle nose to column600mmFeedMax. X/Y/Z rapid feed24/24/18m/minCutting feed1-10000mm/minTorque15/15/15N. mTableTable size130......
Send Inquiry
Product Description
VMC1060 VMC1160 CNC VMC Machine Center Vertical CNC Milling Machine CNC Machining Center
Specifications
Standard Configurations:
1. GSK25i CNC controller.
2. Taiwan BT40-150-8000 spindle.

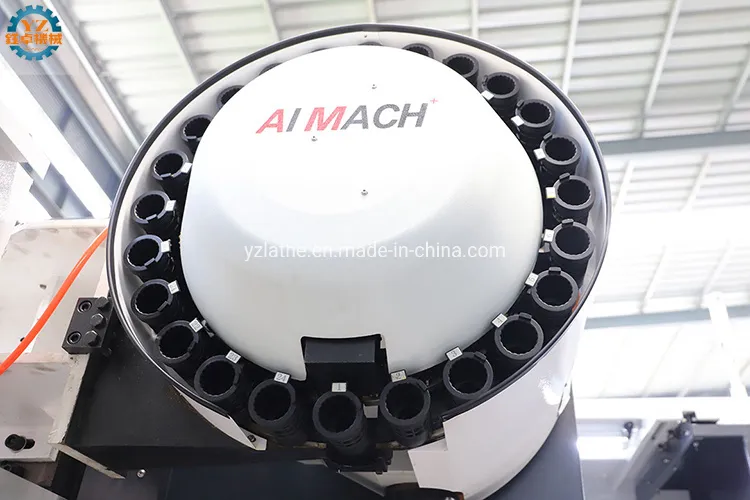

3. Taiwan 24T Funnel Type Tool Changer.

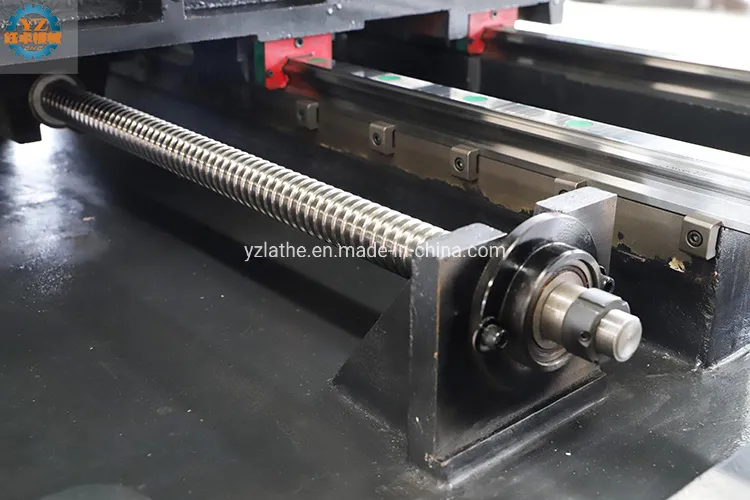

4. Taiwan Hiwin Guideway.
5. Auto Lubrication System.
6. Cooling System.
7. Work Lamp.
8. Full Enclosure Machine Guard
Optional Configurations:
1. KND Siemens Fanuc Mitusbishi GUNT.
2. Arm type ATC.
3. Automatic chip conveyor.
4.4th axis and 5th axis.
5. Spindle oil coolant, Center to water.
6. Renishaw probe for workpiece and tool.

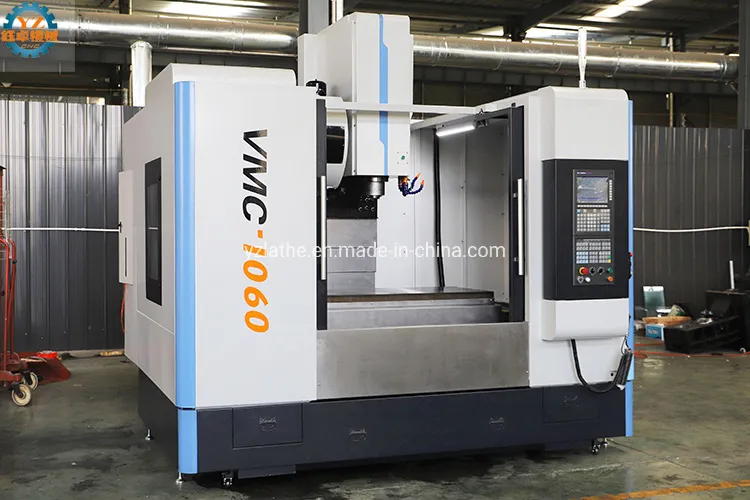

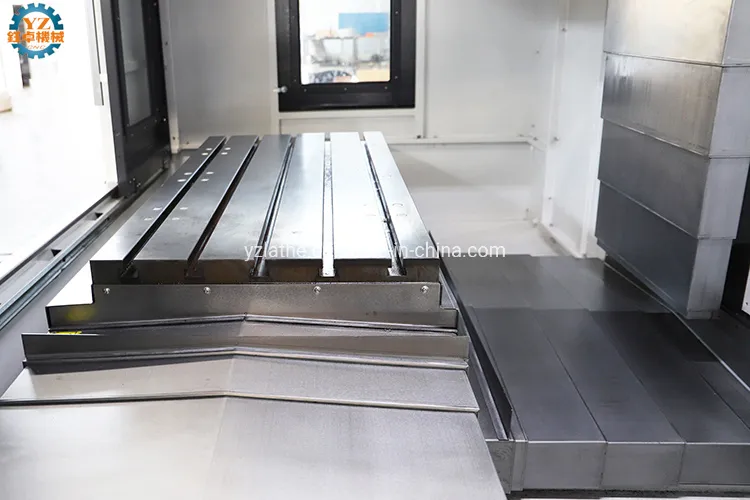

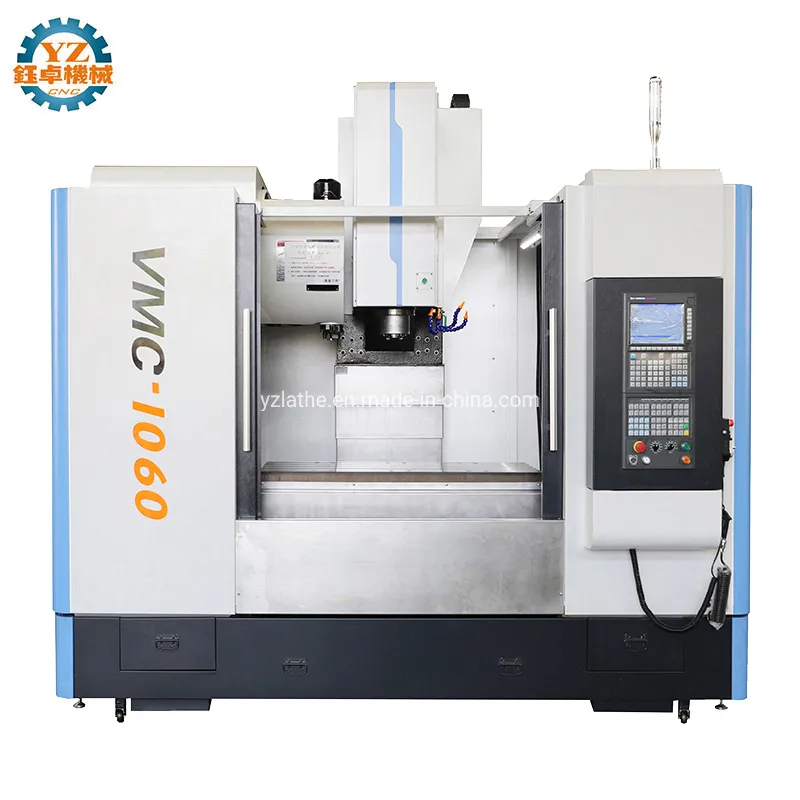

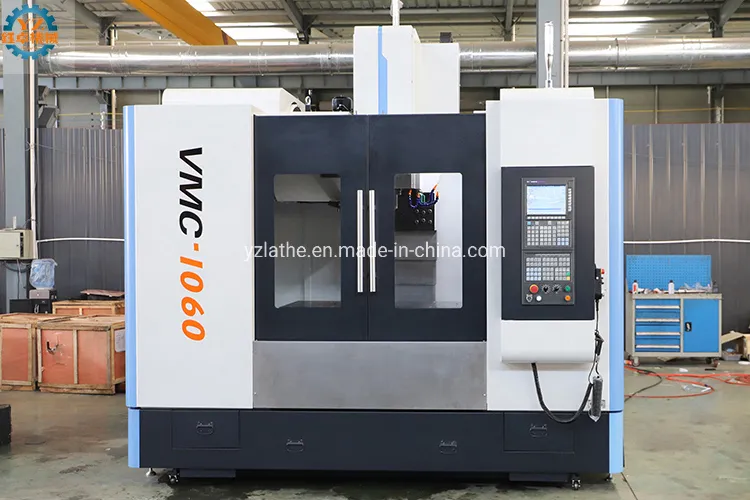

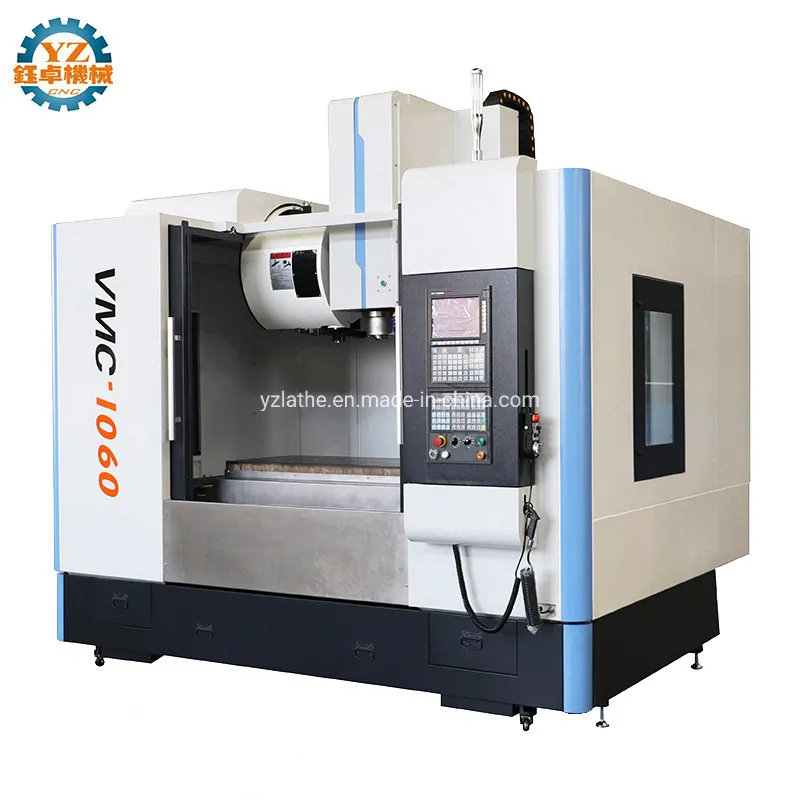

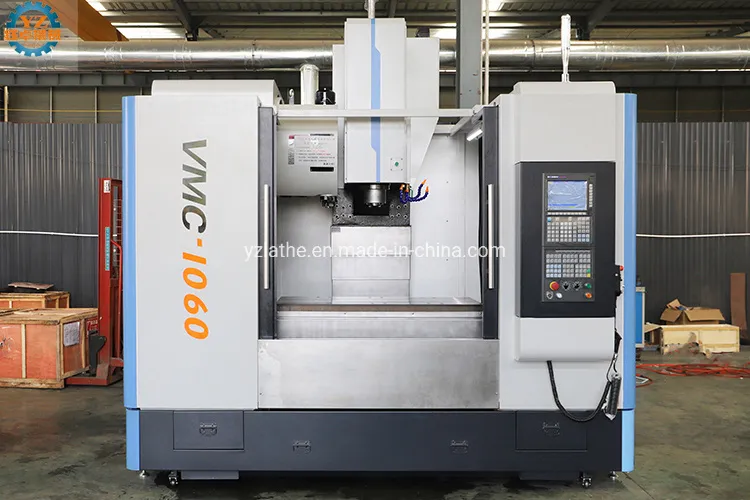

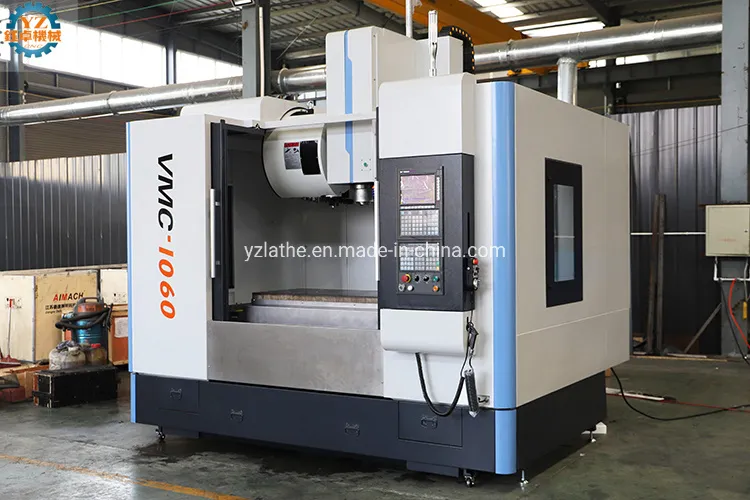

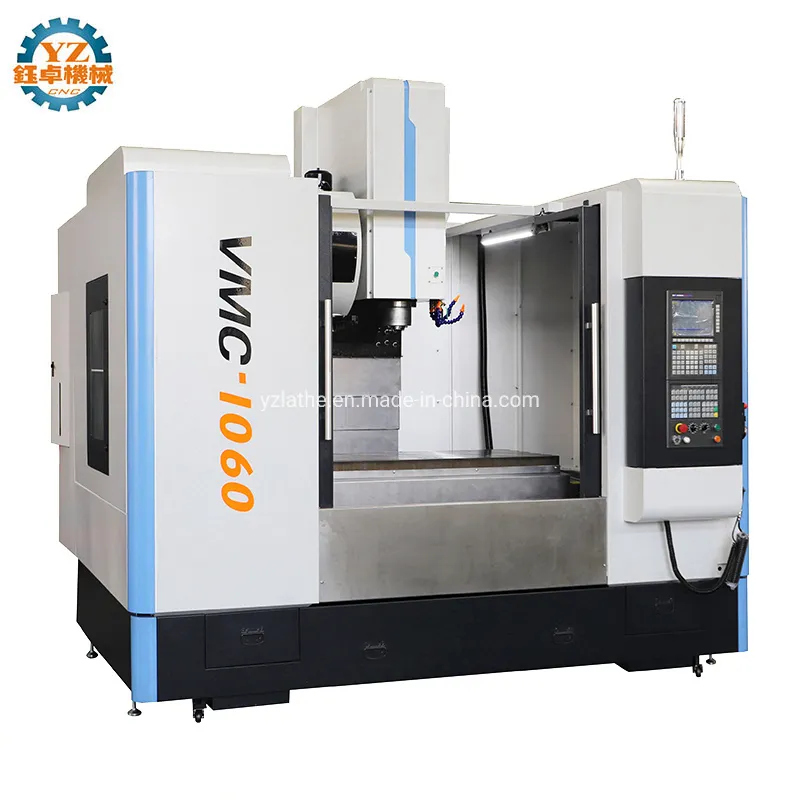

Machine Images

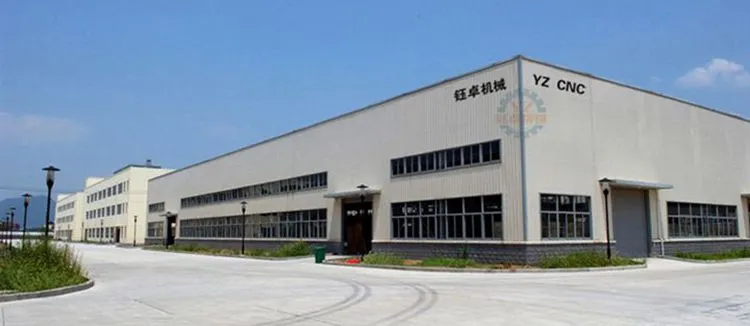

Company Information
Taian Yuzhuo Machinery Co., Ltd. ( or "YZ CNC" for short) is a professional manufacturing enterprise engaged in the
research, development, production, sale and service of CNC machines.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available
to discuss your requirements and ensure full customer satisfaction.
Our main products are as below:
* Wheel Repair CNC Lathe Machine
* Vertical CNC Lathe Machine
* Horizontal CNC Lathe Machine
* Slant Bed CNC Lathe Machine
* Universal Lathe Machine
* Pipe Threading CNC Lathe Machine
* CNC Milling Machine
* CNC Vertical Machining center
All the above products have passed CE, SGS certificates.
Our Strength
* Over 18 years manufacturing experience in CNC lathe machine.
* Quality is the life of our company, and we offer you the best high value added machines.
* Export CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries.
* Customer service is the power that drives our company forward.
CE Certifications
Foreign Customers
Contact Us
If any interest about our cnc milling machine or cnc vertical machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.
Specifications
| Model | VMC1060 | |
| Travel | X/Y/Z axis | 1000/600/500mm |
| Spindle nose to table | 150-750mm | |
| Spindle nose to column | 600mm | |
| Feed | Max. X/Y/Z rapid feed | 24/24/18m/min |
| Cutting feed | 1-10000mm/min | |
| Torque | 15/15/15N. m | |
| Table | Table size | 1300x600mm |
| Max. load | 650kg | |
| T slot | 5-18-100mm | |
| Spindle | Type | Belt |
| Speed | 50-8000rpm | |
| Spindle bore | 150mm | |
| Spindle taper | BT40 | |
| Pull stud | MAS403-40BT-1 | |
| Spindle motor synchronizing wheel | Taiwan | |
| Spindle belt | Taiwan | |
| Main motor | 11/15kw | |
| Accuracy | Positioning Accuracy (JIS) | ±0.015/300mm |
| Repeatability (JIS) | ±0.0075mm | |
| Machine | Size | 3000×2500×2650mm |
| Weight | 6000kg | |
Standard Configurations:
1. GSK25i CNC controller.
2. Taiwan BT40-150-8000 spindle.
3. Taiwan 24T Funnel Type Tool Changer.
4. Taiwan Hiwin Guideway.
5. Auto Lubrication System.
6. Cooling System.
7. Work Lamp.
8. Full Enclosure Machine Guard
Optional Configurations:
1. KND Siemens Fanuc Mitusbishi GUNT.
2. Arm type ATC.
3. Automatic chip conveyor.
4.4th axis and 5th axis.
5. Spindle oil coolant, Center to water.
6. Renishaw probe for workpiece and tool.
Machine Images
Company Information
Taian Yuzhuo Machinery Co., Ltd. ( or "YZ CNC" for short) is a professional manufacturing enterprise engaged in the
research, development, production, sale and service of CNC machines.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available
to discuss your requirements and ensure full customer satisfaction.
Our main products are as below:
* Wheel Repair CNC Lathe Machine
* Vertical CNC Lathe Machine
* Horizontal CNC Lathe Machine
* Slant Bed CNC Lathe Machine
* Universal Lathe Machine
* Pipe Threading CNC Lathe Machine
* CNC Milling Machine
* CNC Vertical Machining center
All the above products have passed CE, SGS certificates.
Our Strength
* Over 18 years manufacturing experience in CNC lathe machine.
* Quality is the life of our company, and we offer you the best high value added machines.
* Export CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries.
* Customer service is the power that drives our company forward.
CE Certifications
Foreign Customers
Contact Us
If any interest about our cnc milling machine or cnc vertical machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.
