Product Description

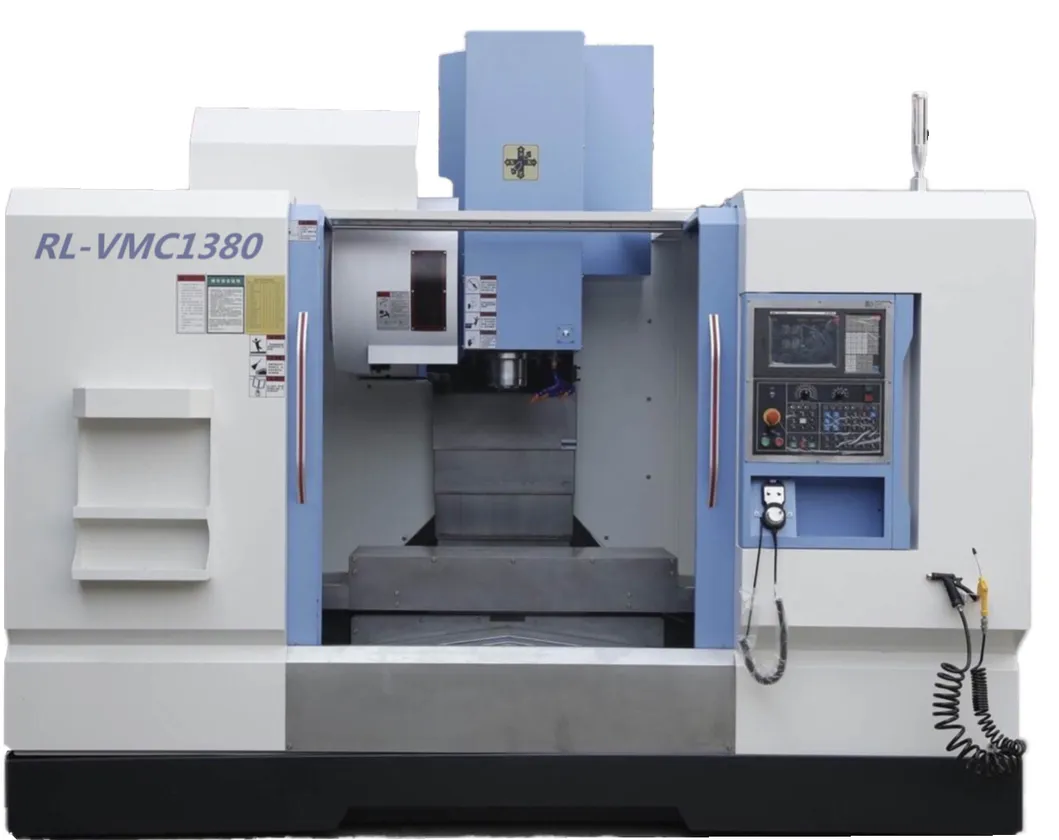

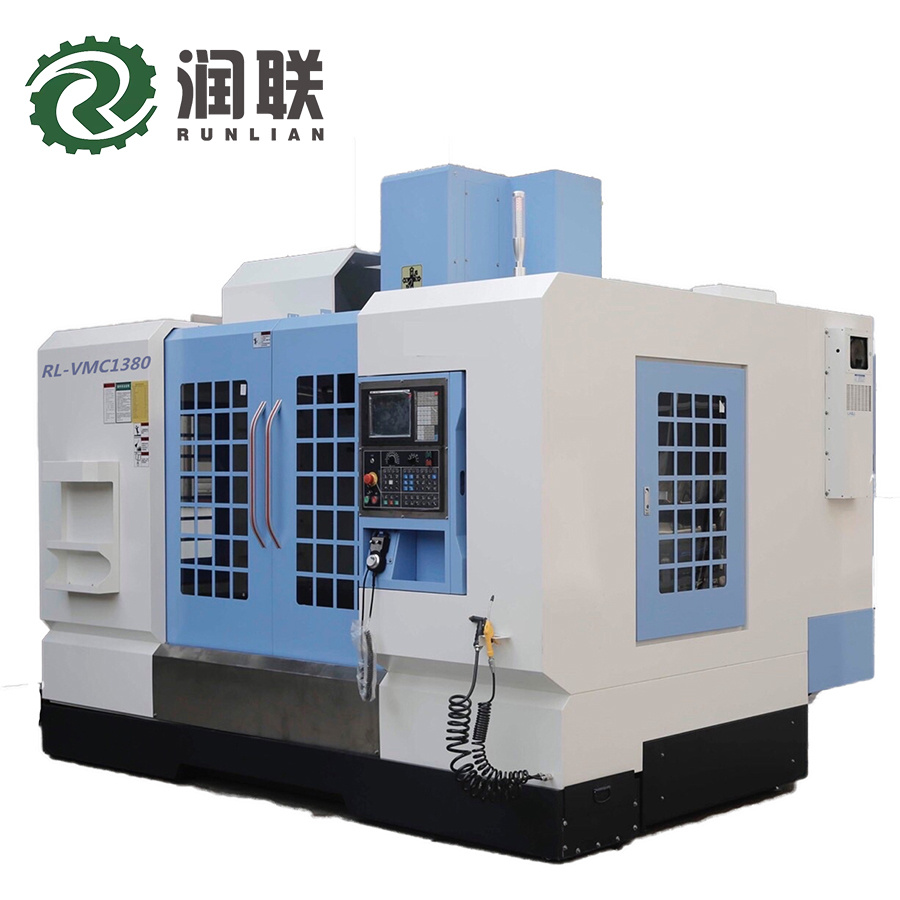

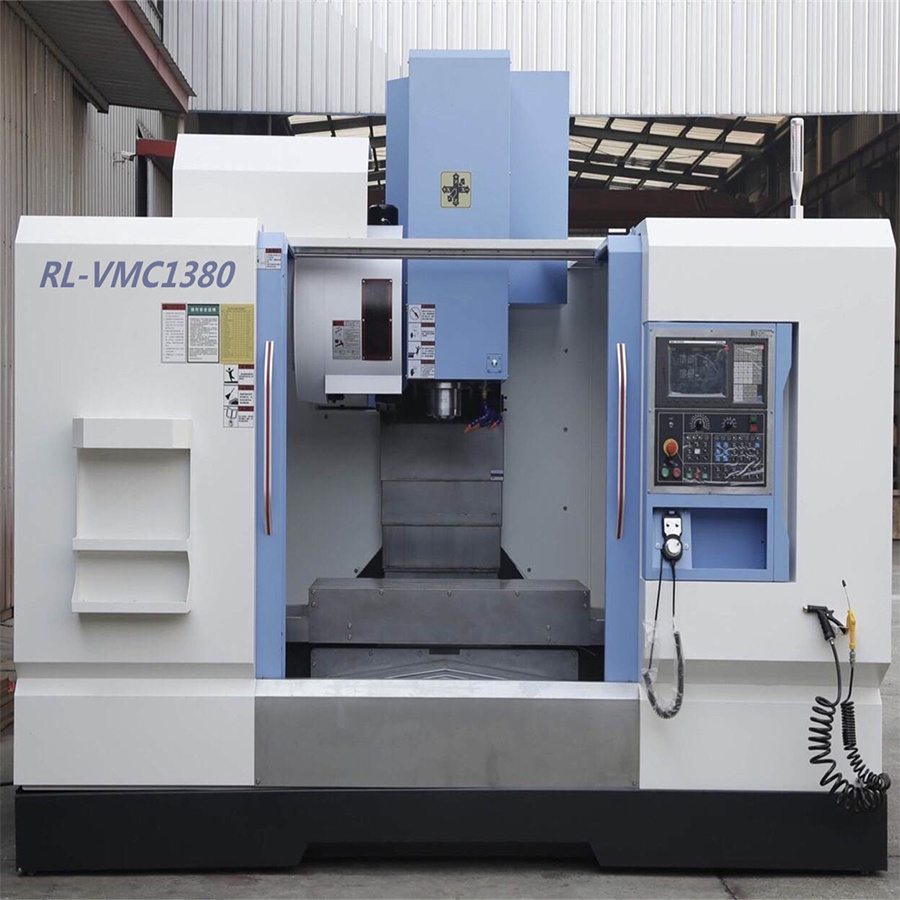

VMC1380 Fanuc CNC Milling Machine Tool VMC Vertical Machining Center with 24 Tools

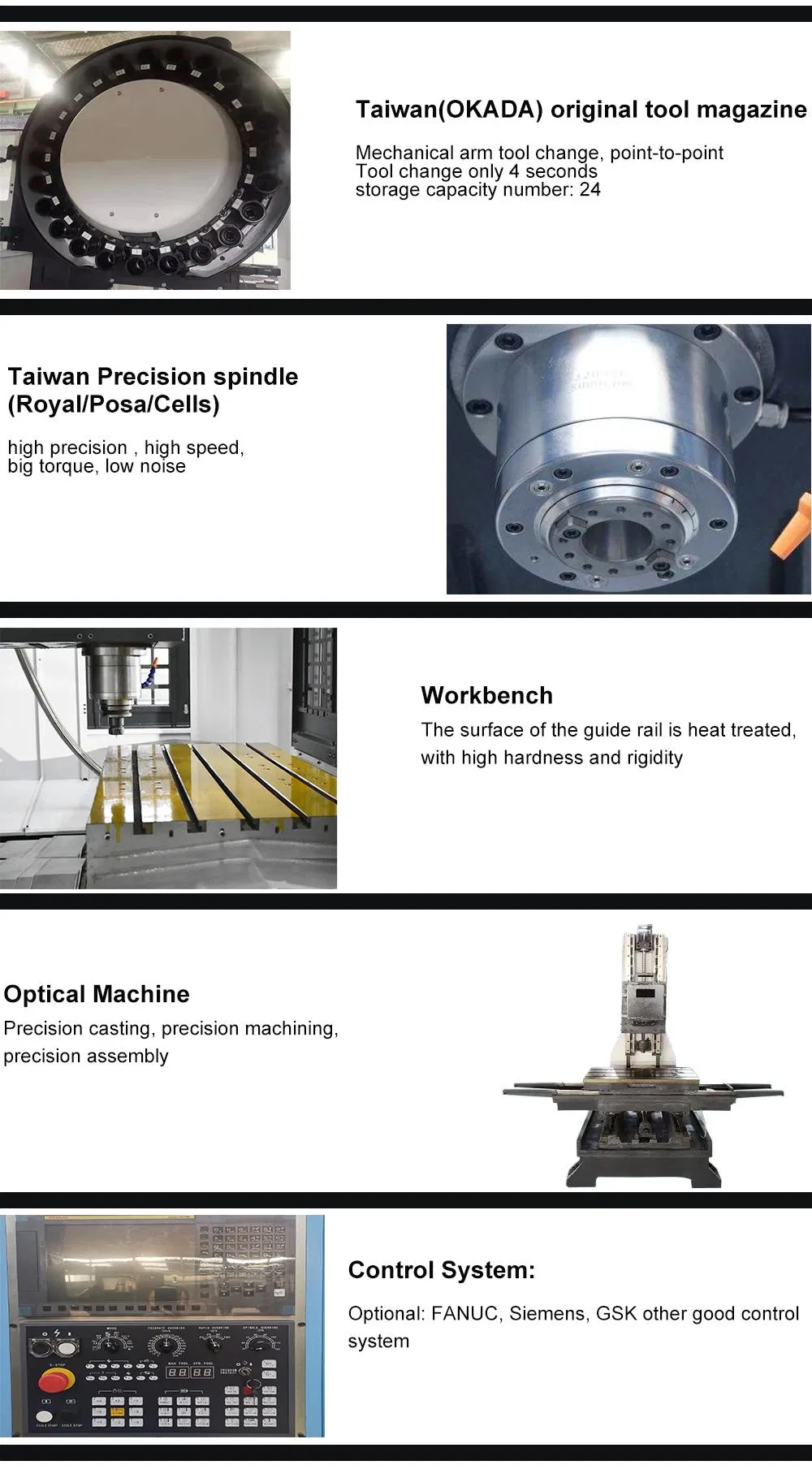

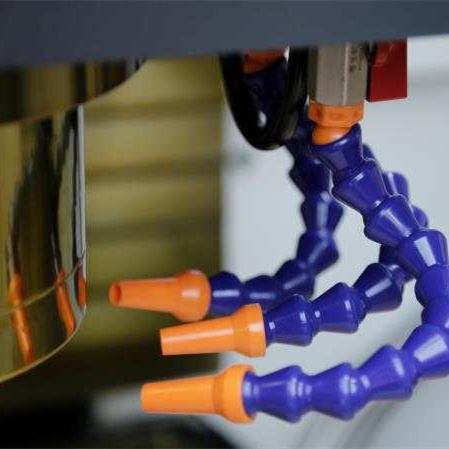

vmc 1380 vertical milling machine is composed of base, column, middle sliding saddle, table, headstock, operation panel, tool magazine, pneumatic system, lubricant system, cooling, lighting, protection system, CNC system, electrical system.

Specifications	Unit	VMC1380
X/Y/Z travel	mm	1300/800/700
Distance from spindle nose to table surface	mm	150-850
Distance from spindle center to column surface	mm	855
Spindle Power	kw	15/18.5
Spindle speed	rpm	10000
Spindle Taper		BT50

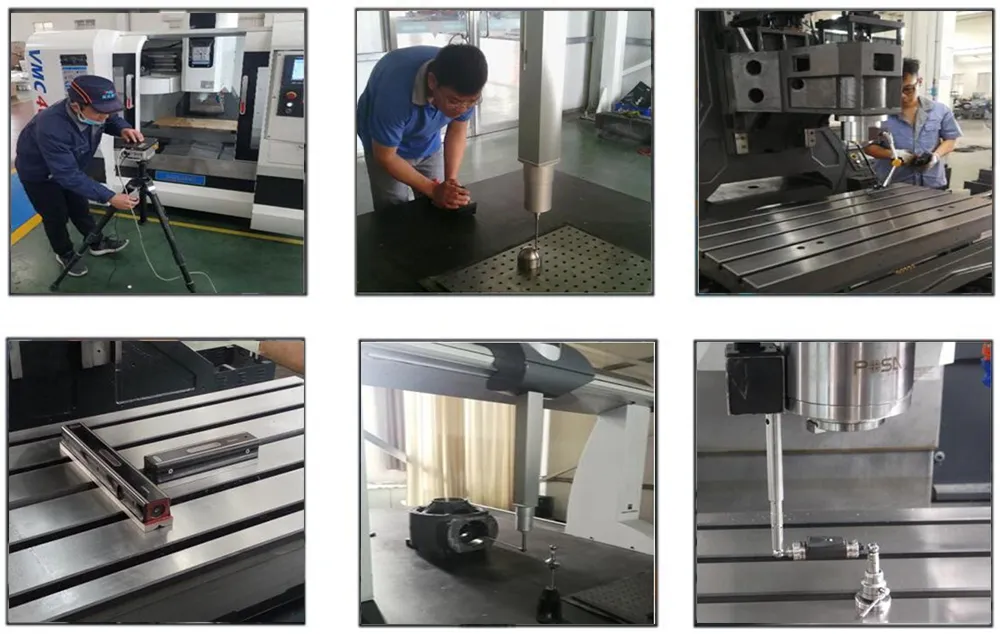

Positioning Accuracy	mm	±0.003
Repeat Positioning Accuracy	mm	±0.0015
Table Size	mm	1400x800
Max.Table loading	kg	1000
T-Slot		7-18-110
X/Y/Z rapid speed	M/min	24/24/24
Cutting Speed	mm/min	1-10000
X/Y/Z axes ball screw diameter		Φ50
X/Y/Z axes servo motor power	kw	3.0/3.0/4.5
Linear width X/Y/Z	mm	45/45/45
Guideway No. X/Y/Z		2/4/2
Slider No. X/Y/Z		6/8/6
Max.power consumption	kw	50
Air	Mpa	0.5-0.7
Power		380V/220V/415V/50(60)Hz/3ph
Ambient Temperature		0ºC-42ºC
Relative humidity		≤80%
Machine Net Weight	T	12

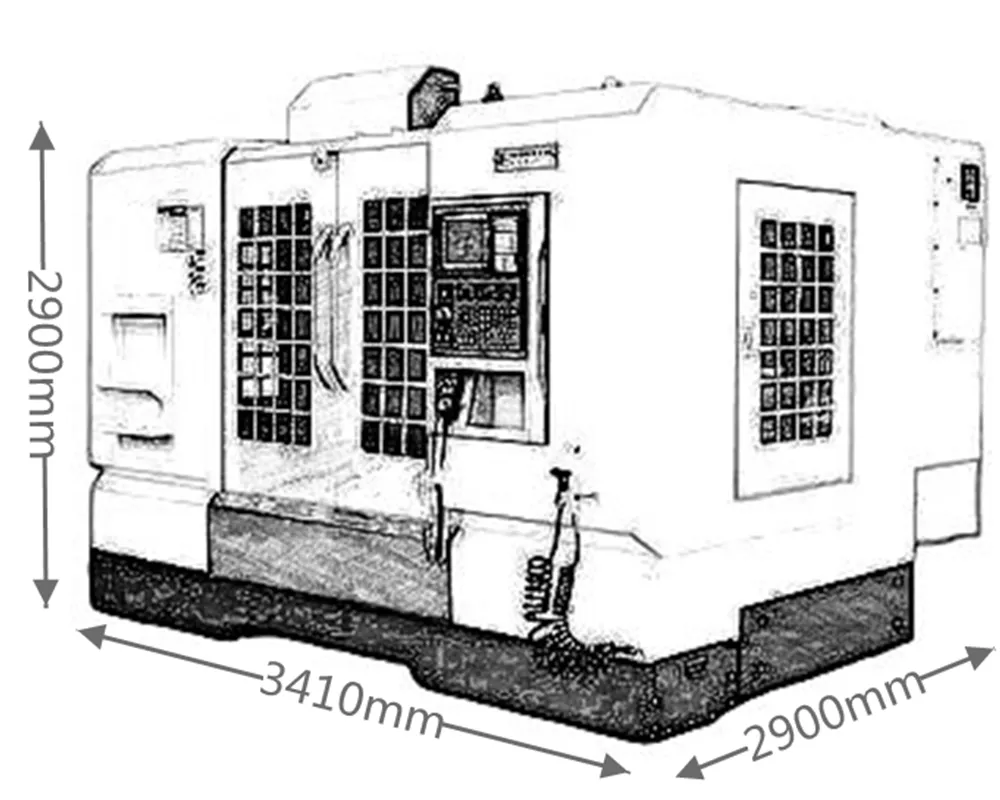

Overall Dimension	mm	3410x2900x2300

Vmc1380 Fanuc CNC Milling Machine Tool Vmc Vertical Machining Center with 24 Tools

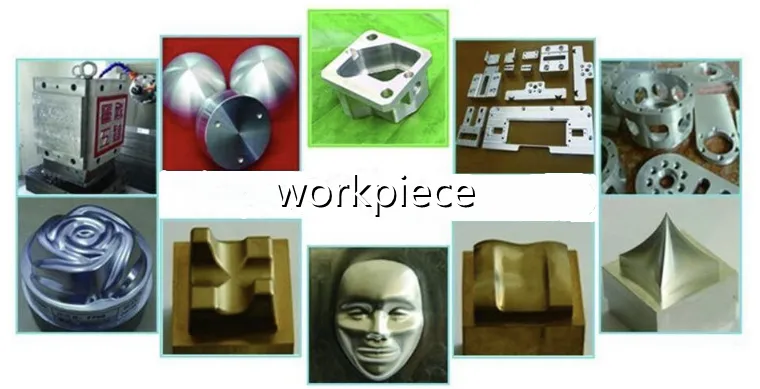

Mainly used for a variety of complex plane, surface and shell parts processing, for example, all kinds of cams, molds, connecting rods, blades, propellers and boxes and other parts of the milling process, but also can drill, , Etc., for the processing of the box, cavity, mold and other parts, with the specifications of the CNC milling machine and machining center can meet the basic processing requirements.

Q1. What is the payment Terms ?
A1 : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .

Q2. What is your trade terms?
A2 : FOB, CFR and CIF all acceptable.

Q3.When is the delivery time?
A3: If the machine you will order is standard machine, we can ready the machine within 60days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.

Q4. What is your trade terms?
A4 : FOB, CFR,CIF or others terms are all acceptable.

Q5. What is your minimum order quantity?
A5: MOQ is one set,

Q6.What kind of packaging?
A6: We use plywood boxes to ensure the packaging quality durable, fully protect the safety of the cabinet, the appearance of bright and clean, smooth and beautiful, durable, low cost, heavy load, fear of the sun and rain without moths and so on.

Q7: what is your warranty for the machine?
A7: The warranty for the machine is 12 month. Warranty claim for parts that are replaced free of charge in the warranty term owning to failure or damage will be honored. However, artificial damage or damage due to force majeure is not covered under warranty.
