Vmc300 Low Price Vertical Milling Machine Vmc 550L From China Factory

VMC300 Small CNC Milling Machine Mini Small VMC Machine Vertical CNC Machining CenterSpecificationsTravelX axis300mmY axis200mmZ axis300mmDistance from spindle nose to worktable80-380mmDistance from spindle center to column guide slot205mmFeedRapid feed in X axis12m/minRapid feed in Y axis12m/minRap......

Send Inquiry

Product Description

VMC300 Small CNC Milling Machine Mini Small VMC Machine Vertical CNC Machining Center

Specifications
Travel
X axis300mm
Y axis200mm
Z axis300mm
Distance from spindle nose to worktable80-380mm
Distance from spindle center to column guide slot205mm
Feed
Rapid feed in X axis12m/min
Rapid feed in Y axis12m/min
Rapid feed in Z axis10m/min
Cutting feed1-3000mm/min
Worktable
Area of worktable600X200mm
Max. bearing capability100kg
Height from worktable surface to bottom of bed720mm
T-slot3-16-80mm
Spindle
Rotating speed100-4000rpm
Spindle taperBT30
Pin boltMAS-P30T-I
Coolant pump180w
Spindle beltHTD520-8M
Cutter force580kg
Main motor power1.5/2.2kw
Miscellaneous
Size1525x1520x1811mm
Weight600kg
Capacity of water tank100L


Standard Configurations:
1. Funnel type tool changer
2. Spindle blowing system
3. Cooling system
4. Air conditioning
5. Automatic lubrication system
6. Full enclosure machine guard
7. Lighting system
8. Three-color alarm light

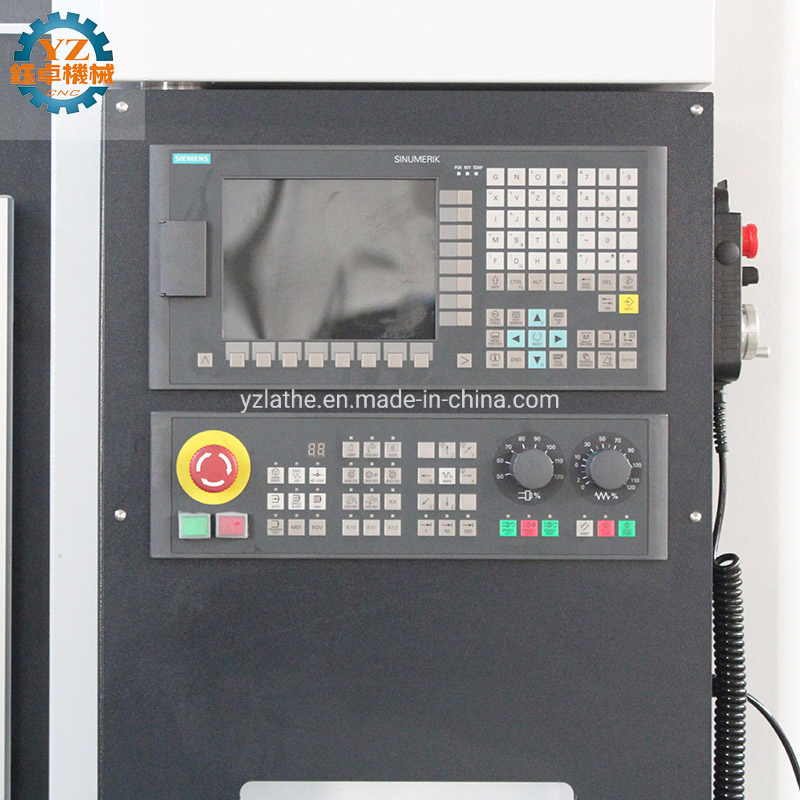

9. KND or GSK cnc controller
10. Leveling pads & bolts
11. Air gun

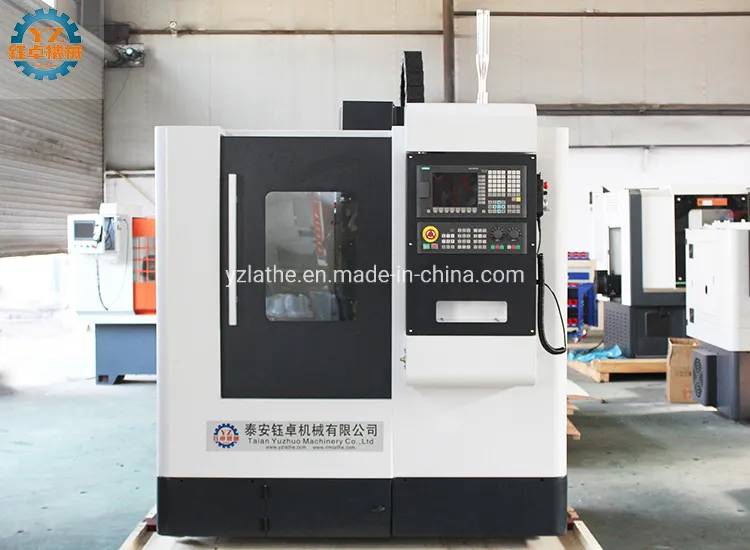

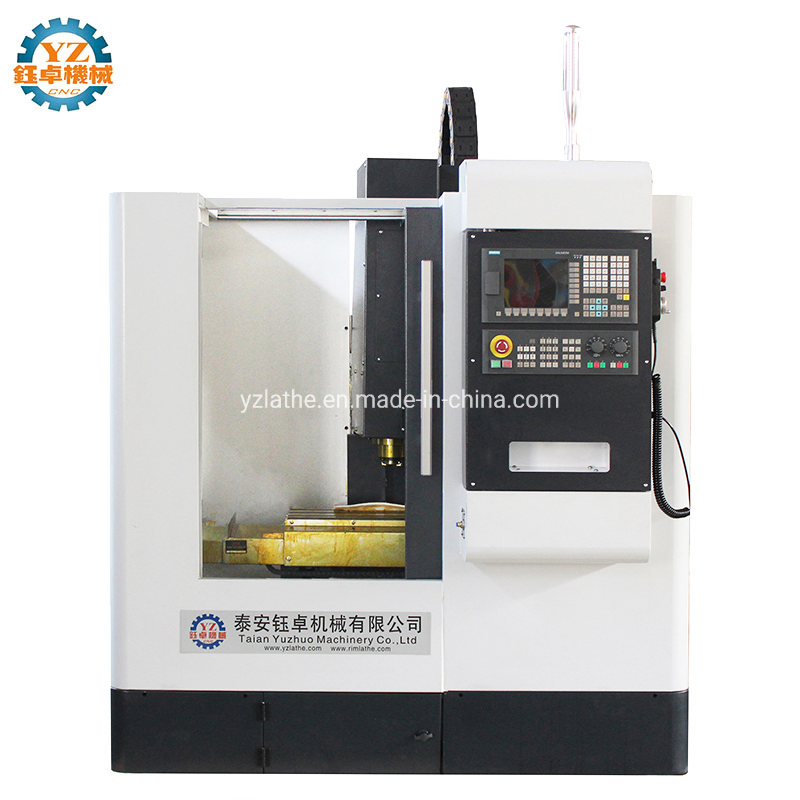

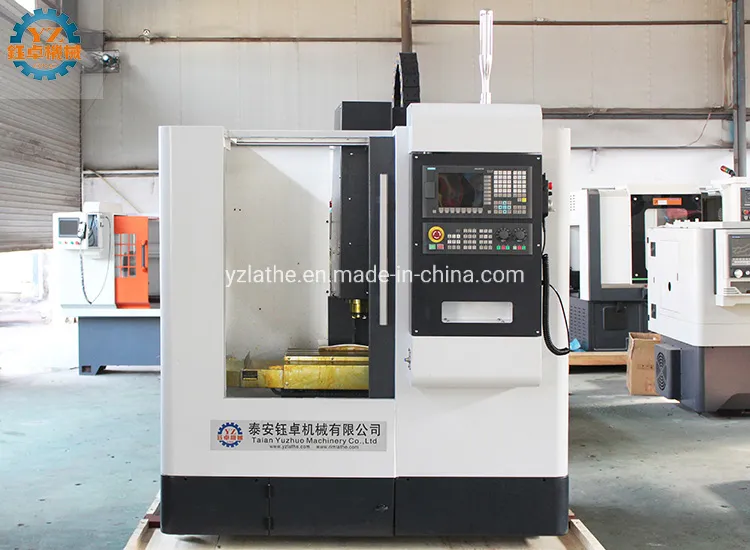

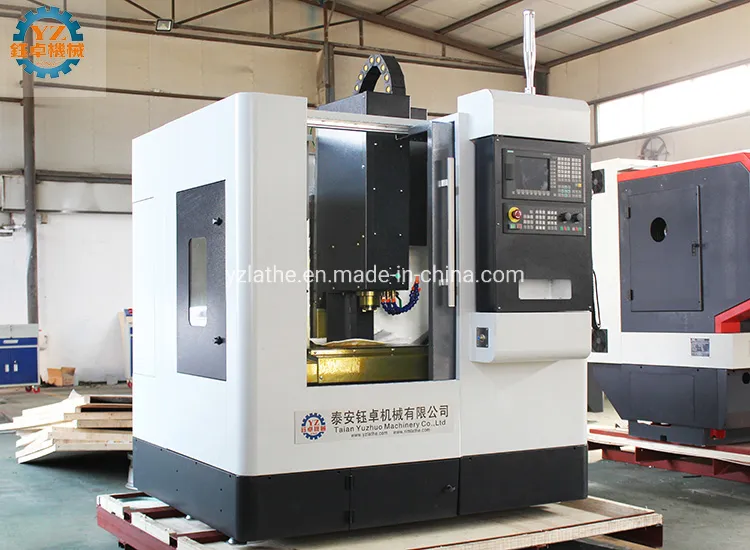

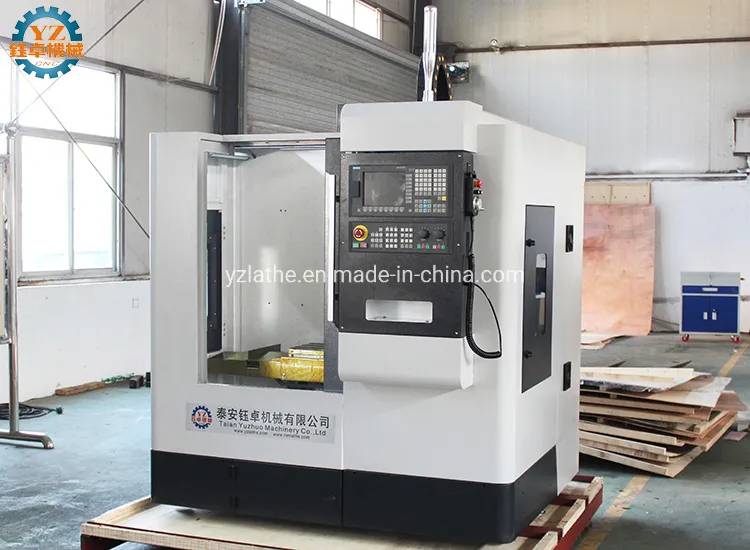

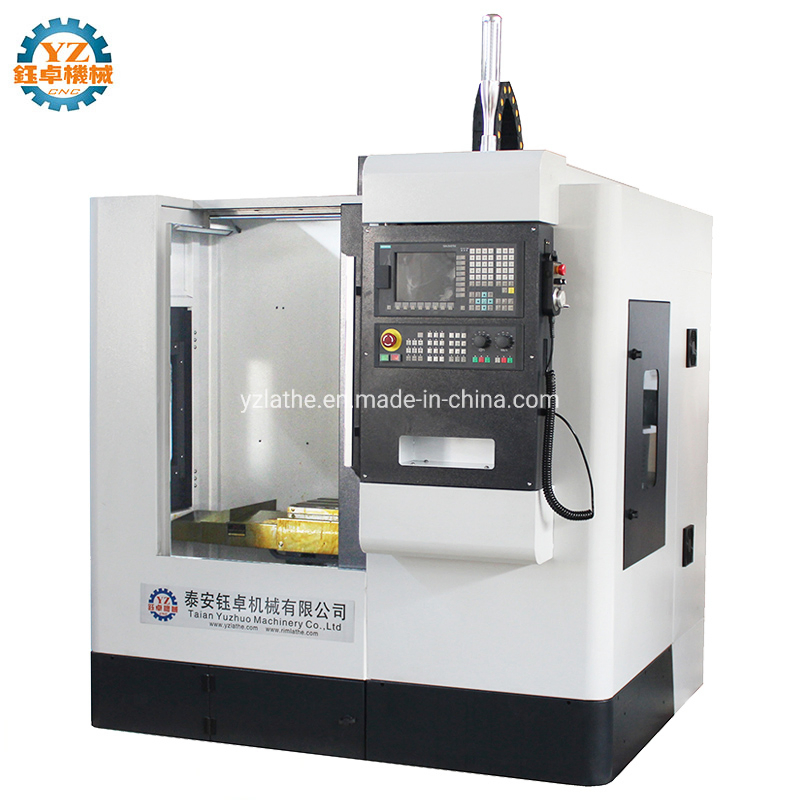

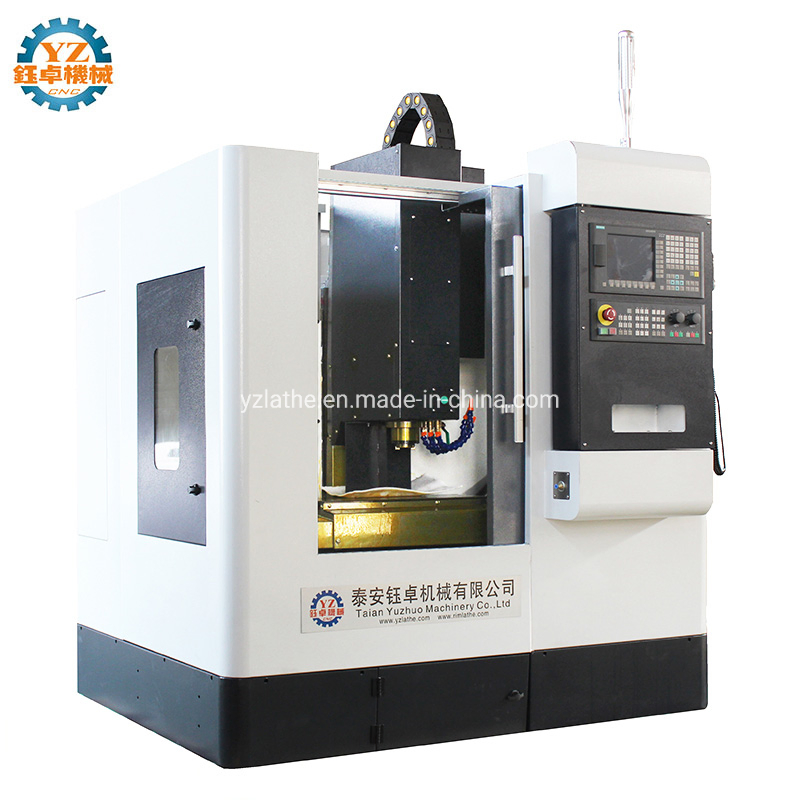

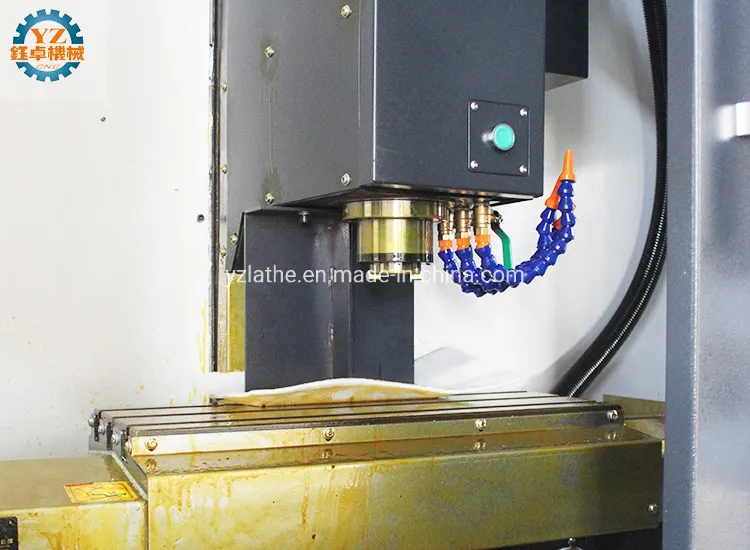

Machine Images
Vmc300 Low Price Vertical Milling Machine Vmc 550L From China Factory
Vmc300 Low Price Vertical Milling Machine Vmc 550L From China Factory
Vmc300 Low Price Vertical Milling Machine Vmc 550L From China Factory
Vmc300 Low Price Vertical Milling Machine Vmc 550L From China Factory
Vmc300 Low Price Vertical Milling Machine Vmc 550L From China Factory


Company Infomation
Vmc300 Low Price Vertical Milling Machine Vmc 550L From China Factory
Taian Yuzhuo Machinery Co., Ltd. ( or "YZ CNC" for short) is a professional manufacturing enterprise engaged in the
research, development, production, sale and service of CNC machines.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available
to discuss your requirements and ensure full customer satisfaction.


Our main products are as below:
* Wheel Repair CNC Lathe Machine
* Vertical CNC Lathe Machine
* Horizontal CNC Lathe Machine
* Slant Bed CNC Lathe Machine
* Universal Lathe Machine
* Pipe Threading CNC Lathe Machine
* CNC Milling Machine
* CNC Vertical Machining center
All the above products have passed CE, SGS certificates.


Our Strength
* Over 18 years manufacturing experience in CNC lathe machine.
* Quality is the life of our company, and we offer you the best high value added machines.
* Export CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries.
* Customer service is the power that drives our company forward.


CE Certifications
Vmc300 Low Price Vertical Milling Machine Vmc 550L From China Factory


Foreign Customers
Vmc300 Low Price Vertical Milling Machine Vmc 550L From China Factory


Contact Us
If any interest about our cnc lathe, cnc milling machine or cnc vertical machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.
