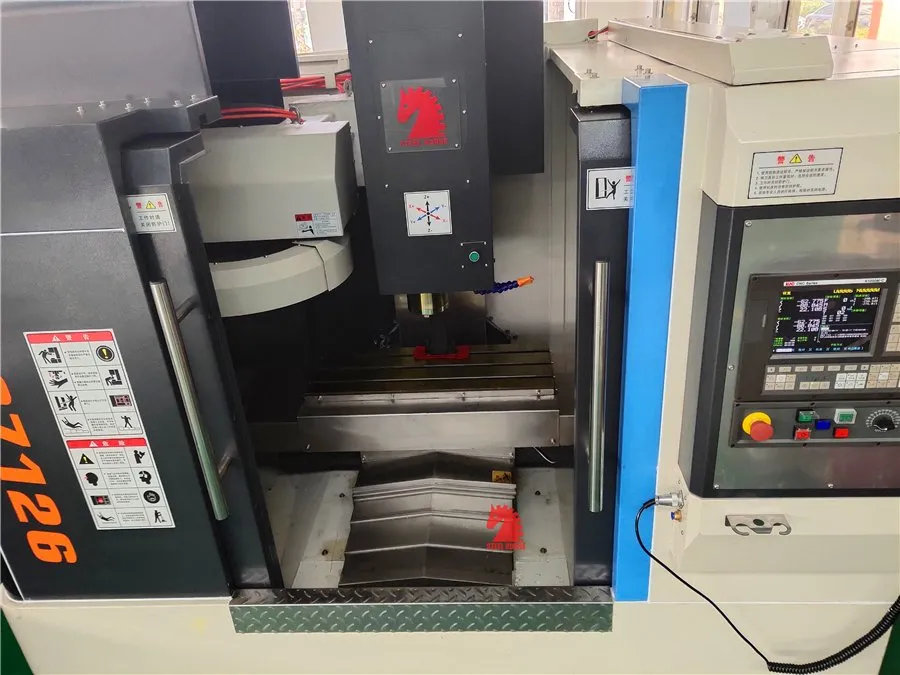

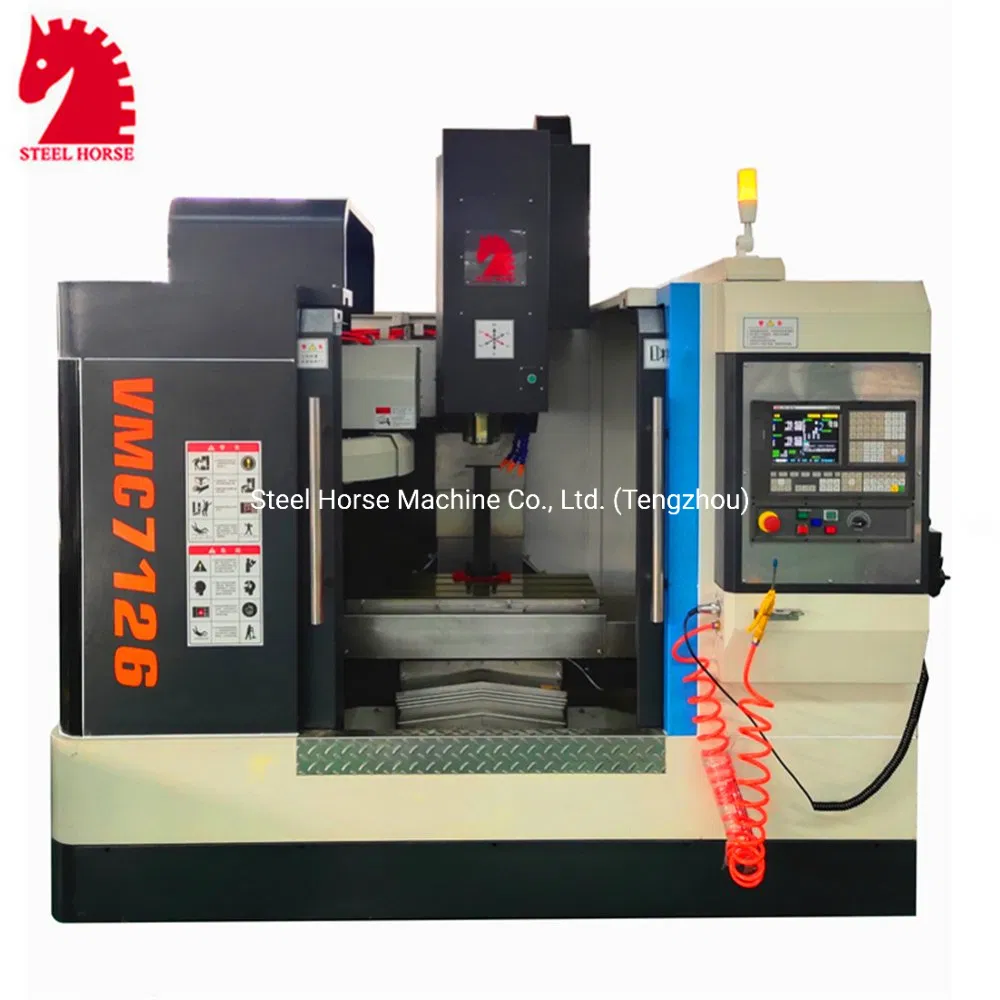

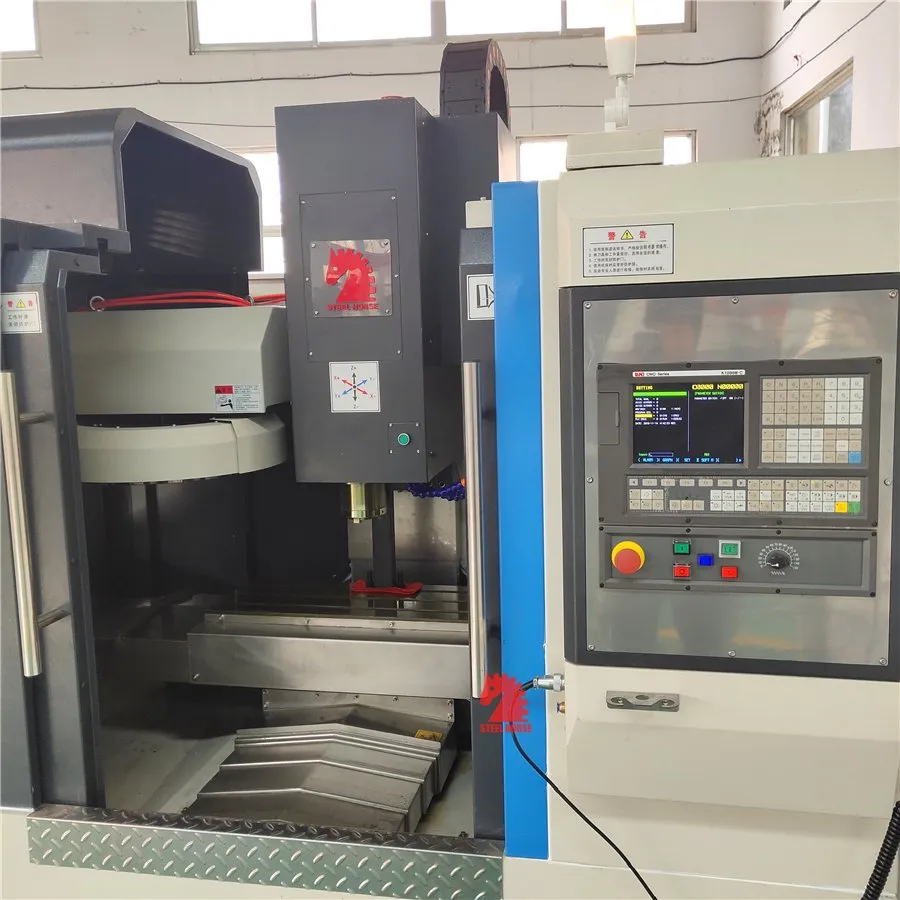

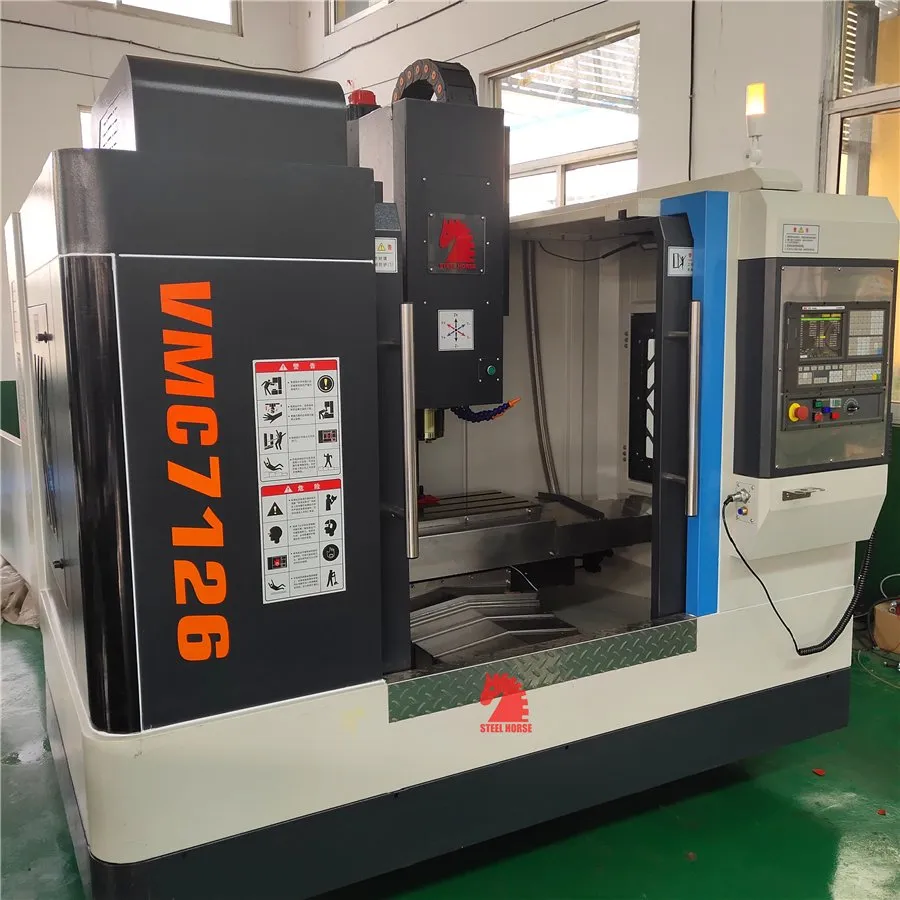

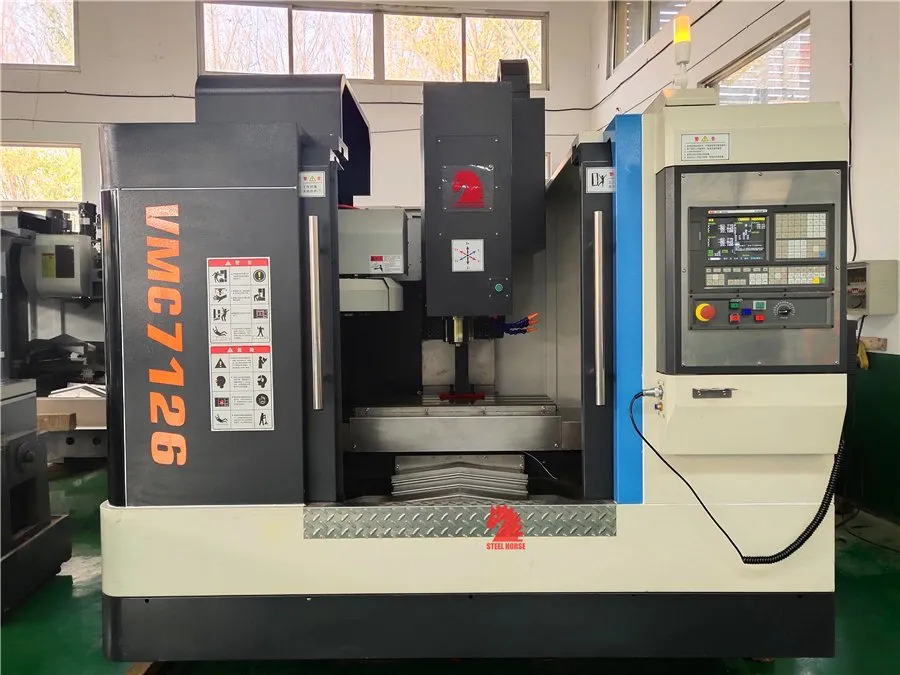

Vmc420L 3 4 Axis Metal Small Bench Vertical CNC Milling Machine with Good Precision

Product Description

Vmc420L 3 4 Axis Metal Small Bench Vertical CNC Milling Machine with good Precision

The main performance characteristics:

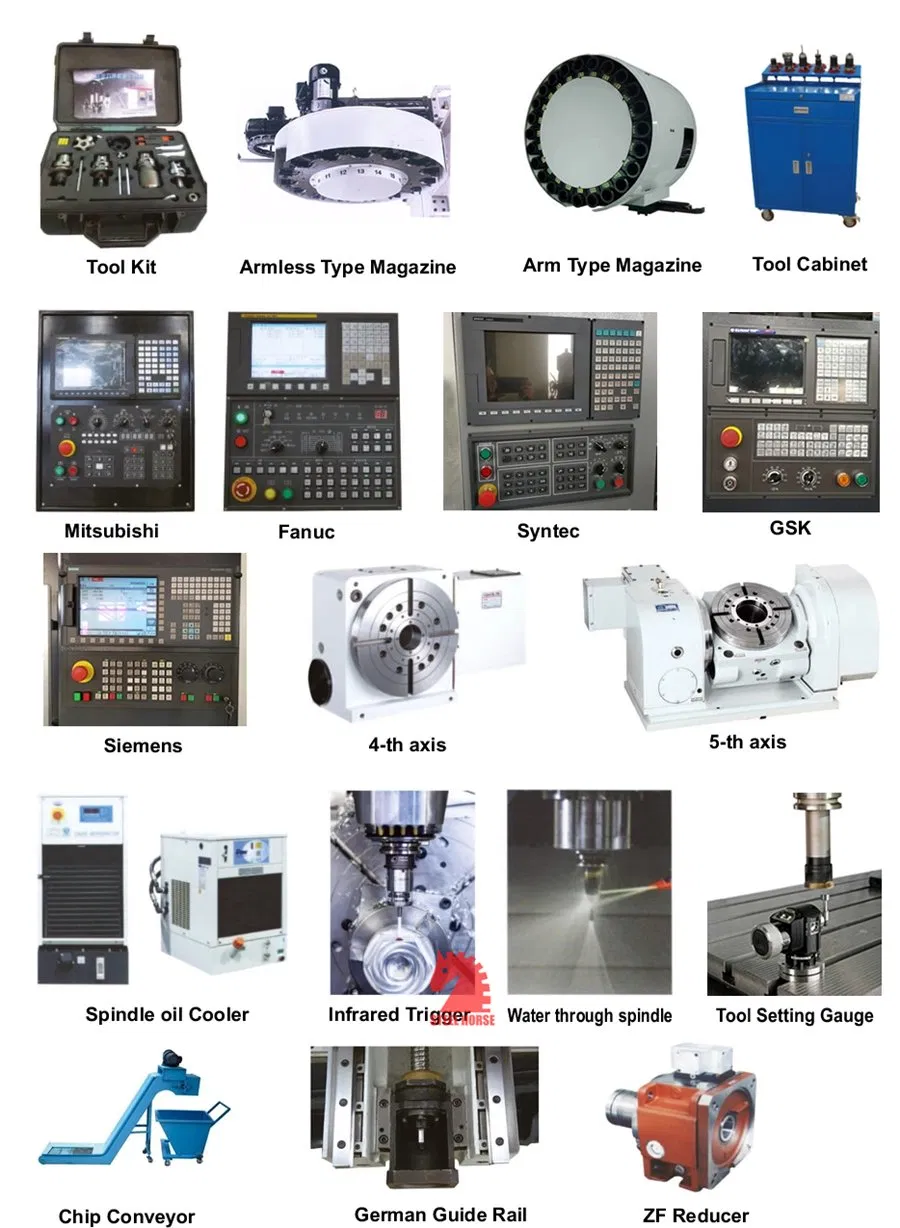

1. Auto Tool Changer :Our ATC all come from Taiwan famous brand;Hat ATC Brand is HDW (Taiwan hand wheel), Disc type brand is OKADA.
2. CNC controller system: You can choose the cnc system brand: KND,GSK,SYNTEC, SIEMENS,FANUC
3.Modular panel and electronic controller system ensure the system with high reliability.
4.Ball screw pre-tightening and protection: Both of the ball screw adopt imported bearing and lock nut,that could ensure the feeder precision. The bumper block at the end of the ball screw could protect the machine parts when have impact.
5.4 Axis and 5 Axis support : if you have special request for the 4 axis or 5 axis, we also could supply as your request.Application of our cnc milling machine:

Configuration:

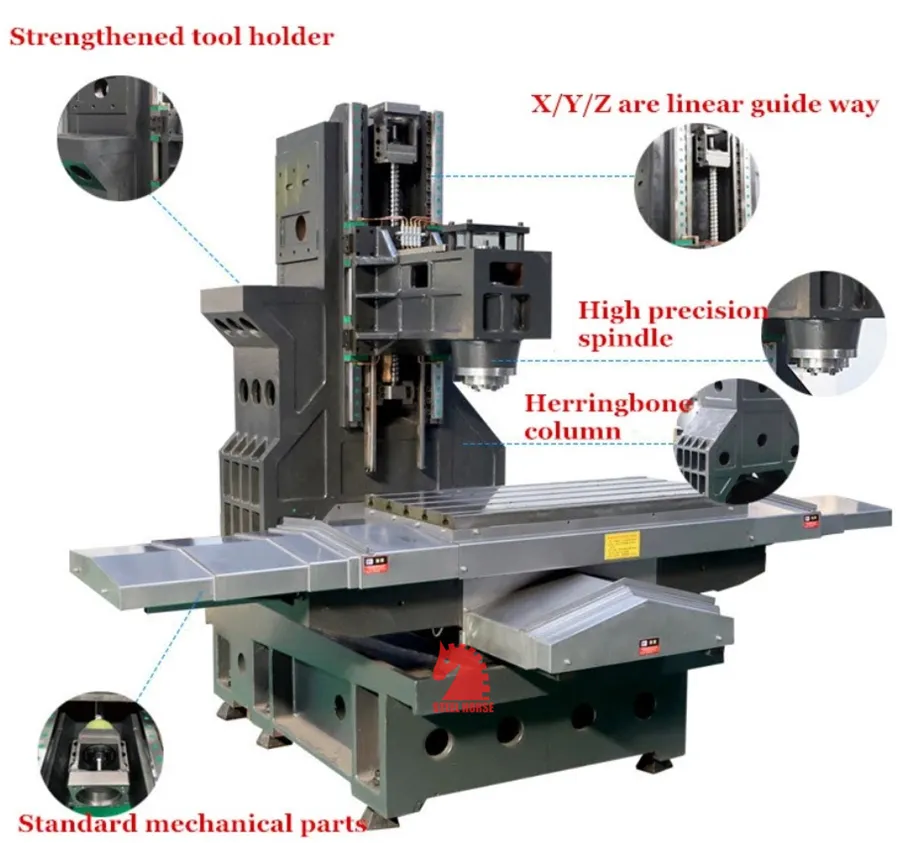

1. High strength resin sand casting
2. 3 axis hardened or Taiwan hiwin linear guide way
3. Siemens/Fanuc/KND/GSK controller system
4.16 type Auto changer tools
5. BT40 Taiwan high speed spindle unit 8000 rpm
6. Separate the hand wheel
7. Pneumatic broach system
8. Full guard
9. Automatic intermittent lubrication
Product main technical Specifications:

Item	XK7124	VMC420L (VMC7126)	VMC550L	VMC650	VMC850	VMC1060
Size of worktable(length×width) mm	800×240	800×260	800×320	900×400	1000×500	1300×600
T slot (mm)	3-16-60	5-16-50	3-14-100	3-18-120	3-18-150	5-18-120
Max loading weight on worktable(Kg)	100	200	300	500	600	1000
X-Axis travel(mm)	450	450	550	650	800	1000
Y-Axis travel(mm)	300	320	330	400	500	600
Z-Axis travel(mm)	380	450	450	500	500	650
Distance between spindle nose and table(mm)	50-450	90-470	100 -550	120-670	150-650	130-780
Distance between spindle center and column(mm)	297	360	370	460	550	650
Spindle taper	BT30	BT40
Max. spindle speed( rpm)	6000	8000
Spindle motor power(Kw)	3.7	3.7	5.5	5.5/7.5	7.5	11/15
Rapid feeding speed: X,Y,Z axis	10/10/8m/min	15m/min	15m/min	24/24/18m/min	36/36/24m/min	36/36/24m/min
Min. set unit	0.001mm	0.001mm	0.001mm	0.001mm	0.001mm	0.001mm
N.W (include machine stand)	1500KG	2900KG	3260 KG	3800KG	5100KG	7800KG
Overall sizse(mm)	1220×1380 ×1650	1900×1600 ×2100	1900×1860 ×2100	2350×2150 ×2250	2700×2250 ×2700	3300×2500 ×2700
