Xk7130 Mini CNC Milling Machine 4 Axis CNC Milling Aluminium
CNC VMC Machine CNC Vertical Machining Center VMC650 VMC650TravelX axis650mmY axis400mmZ axis500mmSpindle nose to table90-590mmSpindle nose to column460mmFeedMax. X rapid feed20m/minMax. Y rapid feed20m/minMax. Z rapid feed20m/minCutting feed1-600m/minTorqueX:10 N.m Y:10 N.m Z:10 N.mTableTable siz......
Send Inquiry
Product Description

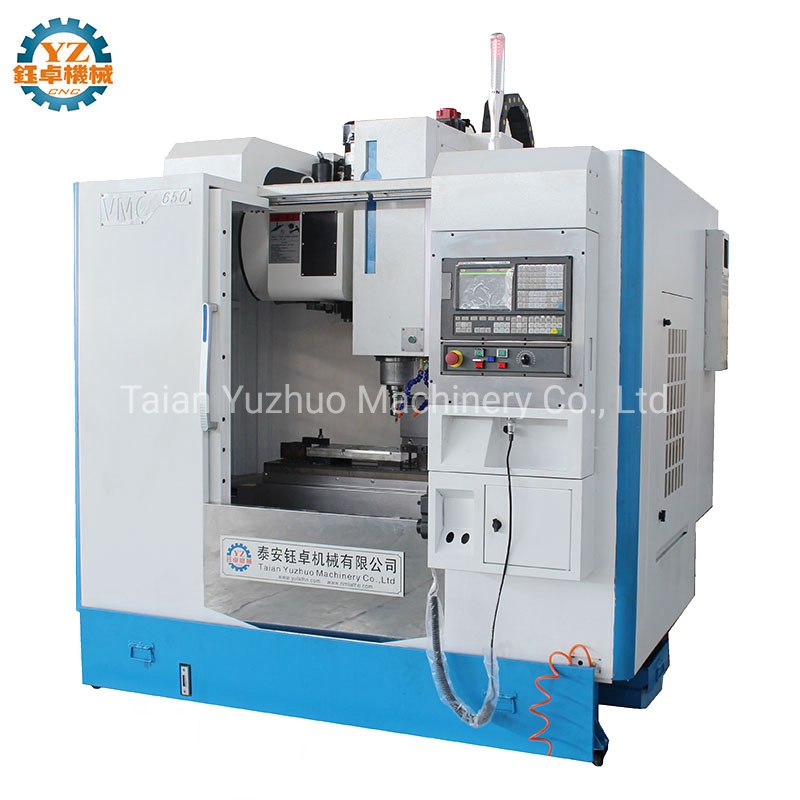

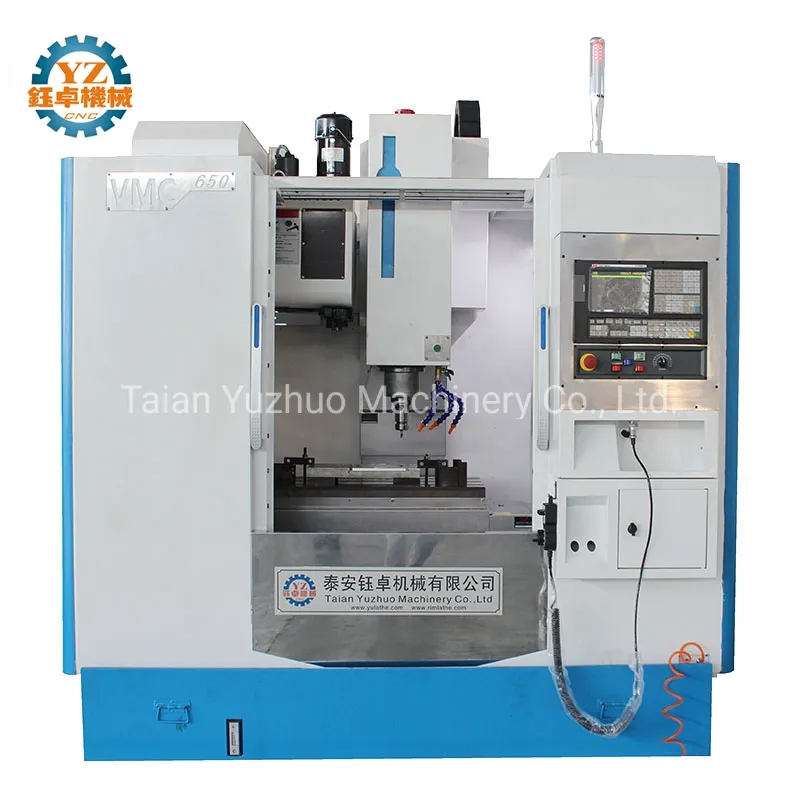

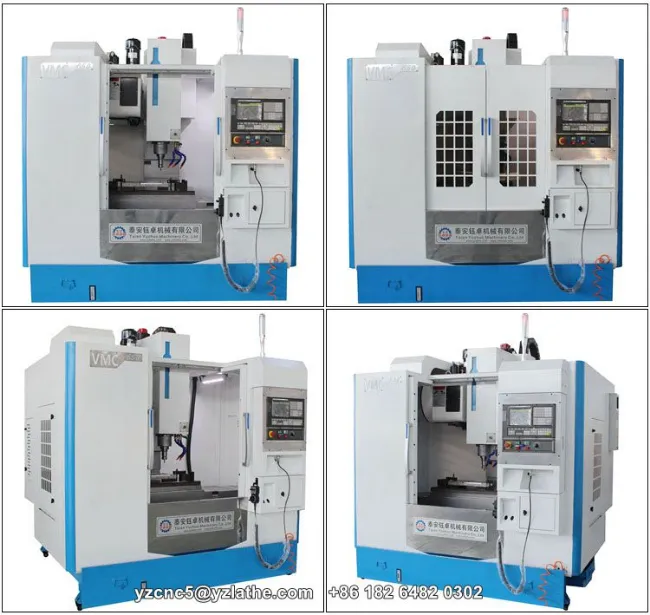

CNC VMC Machine CNC Vertical Machining Center VMC650
| VMC650 | ||
| Travel | X axis | 650mm |
| Y axis | 400mm | |
| Z axis | 500mm | |
| Spindle nose to table | 90-590mm | |
| Spindle nose to column | 460mm | |
| Feed | Max. X rapid feed | 20m/min |
| Max. Y rapid feed | 20m/min | |
| Max. Z rapid feed | 20m/min | |
| Cutting feed | 1-600m/min | |
| Torque | X:10 N.m Y:10 N.m Z:10 N.m | |
| Table | Table size | 800×400mm |
| Max load | 500Kg | |
| T slot | 3×14×90mm | |
| Spindle | Type | Belt |
| Speed | 8000 rpm | |
| Spindle taper | BT40 | |
| Main motor | 5.5KW | |
| Accuracy | Accuracy (JIS) | ±0.015/300mm |
| Repeatability (JIS) | ±0.0075mm | |
| Other | Weight | 2900 Kgs |
| Size | 1800×1700×2100mm | |
| Standard accessory | Optional accessory |
| KND10000 | Mitsubishi M70/Fanuc-0i-mate-MD |

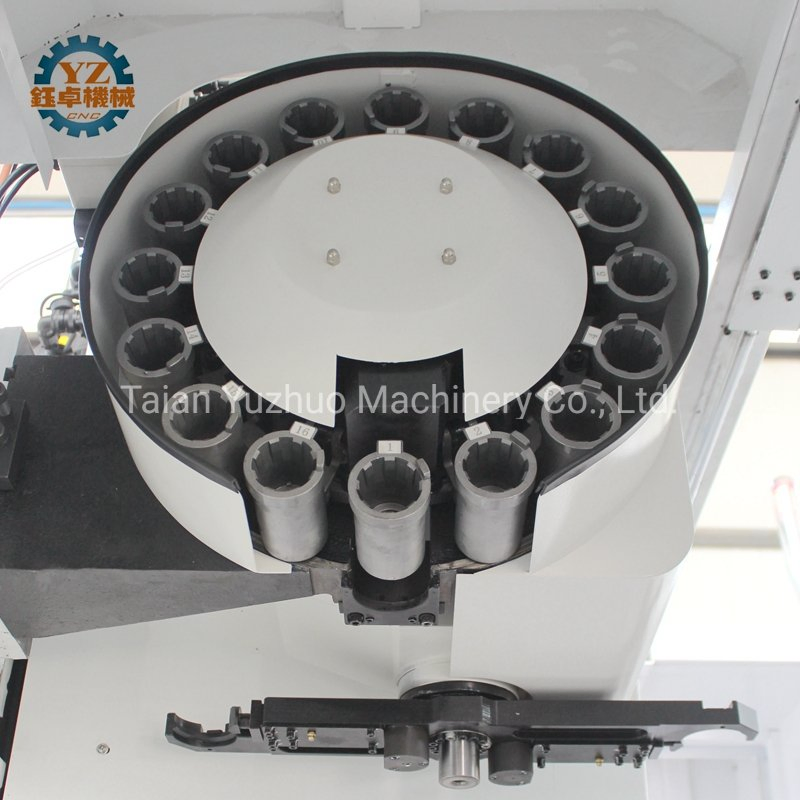

| Taiwan BT40-120-8000 spindle | Arm type ATC |
| Funnel type tool changer | chip cart |
| Automatic central lubrication system with alarm | 4th axis |
| Z axis counter-balance weight | Metrol tool setters |
| Spindle cooling unit | transformer to suit local power supply |
| Spindle side air blow nozzle & coolant nozzle | screw type chip conveyor |
| Machine window with safety glasses | |
| Full enclosure machine guard | |
| Auto power off | |
| 3 colours warning lamp | |
| Work lamp | |
| Leveling pads&bolts | |
| Operation manuals | |
| Tool holder and pull stud |

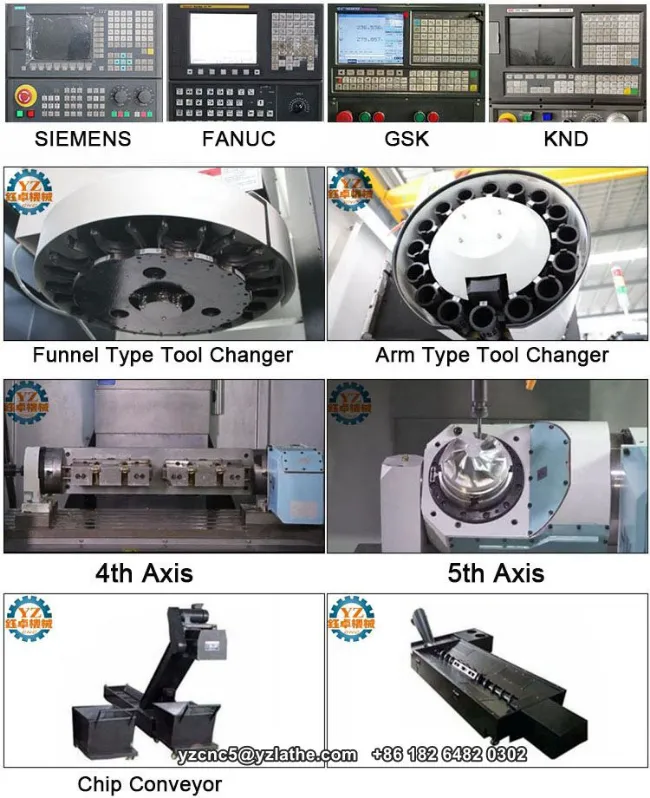

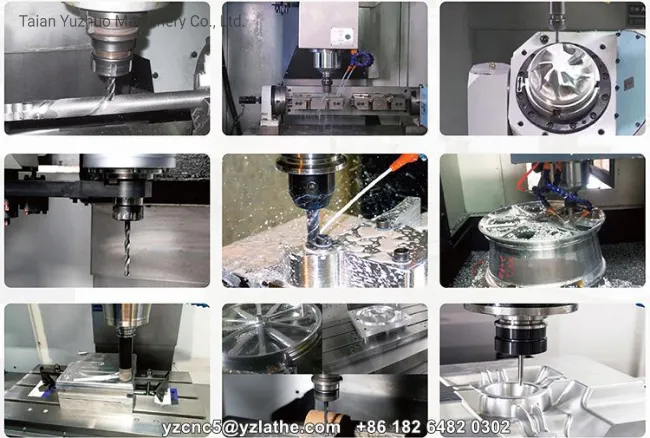

Optional Configuration Photos:
Company Information
Taian Yuzhuo Machinery Co., Ltd. ( or "YZ CNC" for short) is a professional manufacturing enterprise
engaged in the research, development, production, sale and service of CNC machines.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are
always available to discuss your requirements and ensure full customer satisfaction.
Our main products are as below:
* Wheel Repair CNC Lathe Machine
* Vertical CNC Lathe Machine
* Horizontal CNC Lathe Machine
* Slant Bed CNC Lathe Machine
* Universal Lathe Machine
* Pipe Threading CNC Lathe Machine
* CNC Milling Machine
* CNC Vertical Machining center
All the above products have passed CE, SGS certificates.
Our Strength
* Over 18 years manufacturing experience in CNC lathe machine.
* Quality is the life of our company, and we offer you the best high value added machines.
* Export CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries.
* Customer service is the power that drives our company forward.
Contact Us
If any interest about our cnc milling machine or cnc vertical machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.
