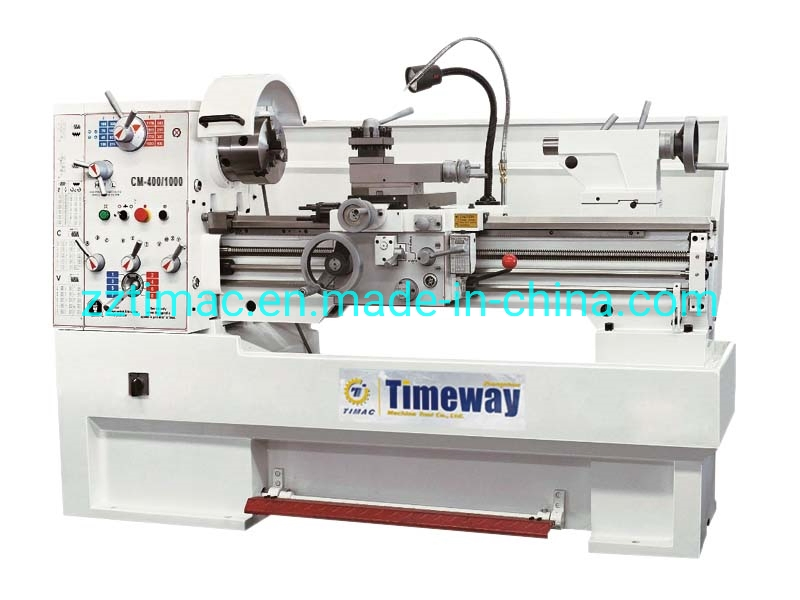

China "410mm Swing" Universal Gap-Bed Lathe Machine

Product Description

Precision Gap-Bed Lathe Machine

"410mm Swing"Universal Gap-Bed Lathe Machine

Features:
1. Powerful precision gearhead lathes with cost effective;
2. Need not change any gears you can turn all the metric and inch thread indicating in chart;
3. Three points support for spindle;
4. Clutch in apron for safety and for changing apron feed direction without changing spindle running direction.

Standard accessories:
3 jaw chuck, 4 jaw chuck, face plate, steady rest, follow rest, dead center, reduction sleeve, oil gun, coolant system, foot brake system, working light, chasing dial indicator, changing gears, operation manual(English edition).

Optional accessories:
2 axes DRO, Quick change tool post&holders, Taper turning attach

Specifications	Unit	CM-400	CM-400V
Swing over bed	mm	410	410
Swing over cross slide	mm	255	255
Swing in gap diameter x width	mm	580	580
Height of center	mm	205	205
Distance between centers	mm	1000/ 1500	1000/ 1500
Width of bed	mm	250	250
Cutting tool max section	mm	20x20	20x20
Total travel of cross slide	mm	210	210
Total travel of top slide	mm	140	140
Spindle bore	mm	52	52
Spindle morse taper in bore	-	D1-6	D1-6
Lead screw thread	TPI	4	4
Spindle speeds range (steps)	rpm	45-1800 (16)	30-550 or 550-3000 (stepless)
Threads imperial pitches	TPI	2-72 (45)	2-72 (45)
Threads metric pitches	mm	0.1-14 (39)	0.1-14 (39)
Longitudinal feeds	mm/rev	0.05-1.7	0.05-1.7
Cross feeds	mm/rev	0.025-0.85	0.025-0.85
Range of module pitches	MP	0.3-3.5 (18)	0.3-3.5 (18)
Range of diametral pitches	DP	8-44 (21)	8-44 (21)
Tailstock quill diameter	mm	50	50
Total travel of tailstock quill	mm	120	120
Taper in tailstock quill	-	MT4	MT4
Spindle drive motor	kw	3.3/2.2	3.3/2.2
Coolant pump motor	w	90	90
Packing size (LxWxH)	mm	2060/2560x900x1640	2060/2560x900x1640
Net weight	kg	1300 / 1550	1350 / 1600
Gross weight	kg	1500 / 1750	1555 / 1755
