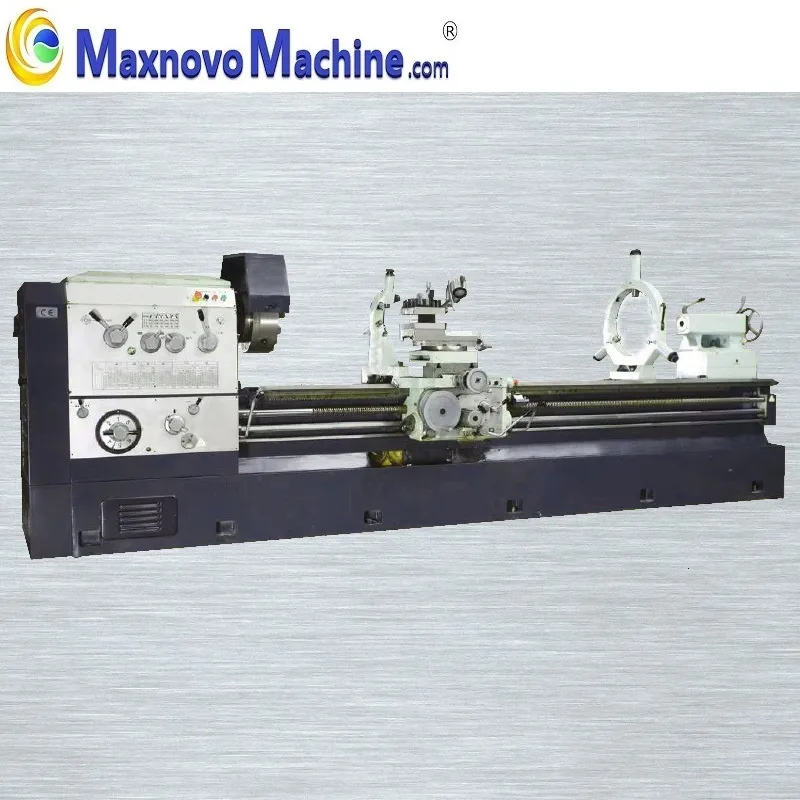

Heavy Duty Universal Metal Centre Lathe (mm-DLS315, MAXNOVO Machine)
MM-DLS315 / Heavy-Duty Lathe / Engine Lathe / MAXNOVO MACHINE / High Precision Machine For Demanding Users / Metal Lathe / Gap-bed Lathe / Horizontal Lathes / Lathe Machine / Conventional Lathe / Universal Lathe / Precision Lathe / Turning Lathe / Manual Lathe / Floor Lathe Universal Horizontal Hea......
Send Inquiry
Product Description
MM-DLS315 / Heavy-Duty Lathe / Engine Lathe / MAXNOVO MACHINE / High Precision Machine For Demanding Users / Metal Lathe / Gap-bed Lathe / Horizontal Lathes / Lathe Machine / Conventional Lathe / Universal Lathe / Precision Lathe / Turning Lathe / Manual Lathe / Floor Lathe Universal Horizontal Heavy Duty Gap Bed Lathe (MM-DLS315)
This kind of MM-DLS315 series is high precision Universal Heavy-duty Metal Engine Lathe which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. Such heavy-duty lathe machine features extra solid One-Piece Complete Machine Bed width 550 mm, big spindle bore 105 mm diameter, max. Load Weight of work-pieces 3000 KGS, and center widths up to 6000 mm. Universal heavy-duty lathe with constant machining power for easy handing of heavy work-pieces.
Universal Heavy-duty Lathe Machine with Extra Wide Machine Bed, Constant Machining Power for Easy Handing of Heavy Work-pieces
Main Feature :
Convincing Arguments: Quality, Efficiency and Price
Technical Data:
We are Recognized OEM / ODM manufacturer cooperation with world Famous Germany Machinery Companies for more than 25 years, As a result, Our Team has Prodessional Experience and Innovation Technology to support customers in worldwide. If you want to buy Machine Tools, Welcome to visit our company website to send your enquiry to us, Our team is willing to cooperate with you together.
FAQ :
1.Question:Are you a factory or trading company ?
Answer:We are an SGS recognized OEM/ODM manufacturer factory with export license.We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2.Question:Why choose cooperate with us ?
Answer: Right people, Right product, Right price;
--Company-wide customer awareness;
--Reliable Quality and All components from world leading suppliers;
--Cost-effective export infrastructure and total supply chain management;
3.Question:Where is your factory located ? How can I visit there ?
Answer:With an ISO90001 certified factory located in Yangzhou city, Jiangsu Province, P.R.China.It takes about 2 hours from Shanghai by train.It is very pleasure for clients to visit us .
4.Question:Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5.Question:How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control, Environment Control, Product Traceability System, Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc .
This kind of MM-DLS315 series is high precision Universal Heavy-duty Metal Engine Lathe which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. Such heavy-duty lathe machine features extra solid One-Piece Complete Machine Bed width 550 mm, big spindle bore 105 mm diameter, max. Load Weight of work-pieces 3000 KGS, and center widths up to 6000 mm. Universal heavy-duty lathe with constant machining power for easy handing of heavy work-pieces.
Universal Heavy-duty Lathe Machine with Extra Wide Machine Bed, Constant Machining Power for Easy Handing of Heavy Work-pieces
Main Feature :
Convincing Arguments: Quality, Efficiency and Price
--Max. Load Weight of work-piece 3000 KGS
--Larger Rigid Machine Bed Width 550 mm
--Max. Swing over bed Ø 630 mm
--Solid One-Piece Complete Machine Bed
--Extra heavy, wide machine bed with ribbing and one-piece mono-block construction
--Induction-hardened ground guide slots ensure long-term accuracy and minimum wear
--Auxiliary gearbox features wide spectrum of diametric, inch, module and metric threads
--Powerful 11KW driving motor ensures high cutting power
--Induction hardened and ground guide-ways
--The auxiliary gearbox features a wide spectrum of diametric, inch, module threads
--Sturdy multi-disk clutch for headstock drive
--More accuracy and Lower error rate
--Overload clutch enclosed in apron
---Large spindle bore (Ø 105 mm diameter)
--Very quiet operating at maximum spindle speed
--Large spindle bearings
--Heavy-duty cast-iron body with ribbed bed reduces vibrations to a minimum
--3-axis digital position indicator is optional
--Certificate of Original (CO, FORM A, FORM E, FORM F)
Technical Data:
| Product Name : | Universal Heavy Duty Engine Lathe Machine |
| Product Item : | MM-DLS 315 |
| Max. Weight of Work-piece : | 3000 KGS |
| Max Swing over Bed : | Ø 630 mm |
| Max. Swing over Gap Bridge : | Ø 830 mm |
| Max. Swing over Cross Slide : | Ø 350 mm |
| Bed Width : | 550 mm |
| Distance Between Centers : | 1500 / 2000 / 3000 / 4000 / 5000 / 6000 mm |
| Swing range of Top Slide : | ± 90 degree |
| Headstock | |
| Spindle Bore : | Ø 105 mm |
| Spindle Taper : | Ø 120 mm (1:20) |
| Spindle Speed Range : | 14 - 750 RPM (18 kinds) |
| Tapping Capacity | |
| Pitch-Metric in range of : | 1 - 240 mm (54 kinds) |
| P itch-Inch in range of : | 1 - 28 TPI (36 kinds) |
| Module Threads in range of : | 0.5-60 mm (27 kinds) |
| Diameter Threads in range of : | 1 - 30 DP (27 kinds) |
| Longitudinal feed in range of : | 0.048-24.3 mm/rev (72 kinds) |
| Transverse feed in range of : | 0.024-12.15 mm/rev (72 kinds) |
| Rapid Feed X-axis : | 2000 mm / min |
| Rapid Feed Z-axis : | 4000 mm / min |
| Tailstock | |
| Tailstock Taper : | MT 6 |
| Tailstock Quill Diameter : | Ø 100 mm |
| Tailstock Sleeve Travel : | 240 mm |
| Travel of Top slide : | 200 mm |
| Travel of Cross slide : | 420 mm |
| Drive Capacity | |
| Main Motor : | 11 KW |
| Rapid Feed Motor : | 1.1 KW |
| Coolant Motor : | 90 W |
| Tool Shank Dimensions : | 32 X 32 mm |
| Packing Type : | Export Type Pallet Packing |
| Gross Weight : | 5680 KGS (for MM-DLS 315 X 3000) |
| Packing Size : | 5380 X 1600 X 1760 mm (for MM-DLS 315 X 3000) |
| Standard Accessory : | 4-Jaw Chuck, 3-Jaw Chuck, Steady Rest, Follow Rest, Coolant System, Tailstock Centre, Main Spindle Center, Tools and Tool box |
We are Recognized OEM / ODM manufacturer cooperation with world Famous Germany Machinery Companies for more than 25 years, As a result, Our Team has Prodessional Experience and Innovation Technology to support customers in worldwide. If you want to buy Machine Tools, Welcome to visit our company website to send your enquiry to us, Our team is willing to cooperate with you together.
FAQ :
1.Question:Are you a factory or trading company ?
Answer:We are an SGS recognized OEM/ODM manufacturer factory with export license.We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2.Question:Why choose cooperate with us ?
Answer: Right people, Right product, Right price;
--Company-wide customer awareness;
--Reliable Quality and All components from world leading suppliers;
--Cost-effective export infrastructure and total supply chain management;
3.Question:Where is your factory located ? How can I visit there ?
Answer:With an ISO90001 certified factory located in Yangzhou city, Jiangsu Province, P.R.China.It takes about 2 hours from Shanghai by train.It is very pleasure for clients to visit us .
4.Question:Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5.Question:How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control, Environment Control, Product Traceability System, Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc .
