China Universal Heavy Duty Horizontal Lathe (mm-DLS400X3000, MAXNOVO Machine)

Product Description

#MM-DLS400X3000 / Lathe / Torno/ Universal Heavy Duty Horizontal Lathe / Heavy Duty Lathe / Lathe Machine / Engine Lathe / Metal Lathe / Gap-bed Lathe / Horizontal Lathes / Floor Lathe / Conventional Lathe / Universal Lathe / Precision Lathe / Turning Lathe / Manual Lathe

This kind of MM-DLS400 X 300 series is high precision Universal Heavy-duty Metal Engine Lathe which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. Such heavy-duty lathe machine features extra solid One-Piece Complete Machine Bed width 550 mm, big spindle bore 105 mm diameter, max. Load Weight of work-pieces 3000 KGS, and center widths up to 6000 mm. Universal heavy-duty lathe with constant machining power for easy handing of heavy work-pieces.

Universal Heavy duty Floor Type Metal Turning Engine Lathe Machine with Extra Wide Machine Bed, Constant Machining Power for Easy Handing of Heavy Work-pieces

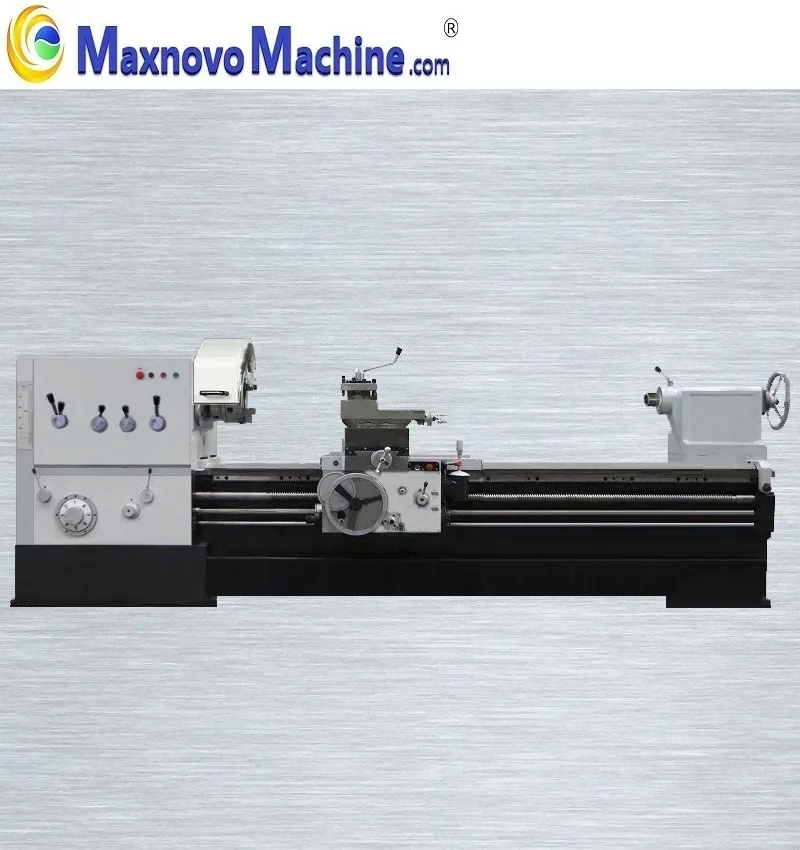

Universal Heavy Duty Horizontal Lathe (mm-DLS400X3000, MAXNOVO Machine)

Universal Heavy Duty Horizontal Lathe (mm-DLS400X3000, MAXNOVO Machine)

Main Feature :
Convincing Arguments: Quality, Efficiency and Price

--Max. Load Weight of work-piece 3000 KGS

--Larger Rigid Machine Bed Width 550 mm

--Max. Swing over bed Ø 800 mm

--Solid One-Piece Complete Machine Bed

--Extra heavy, wide machine bed with ribbing and one-piece mono-block construction

--Induction-hardened ground guide slots ensure long-term accuracy and minimum wear

--Auxiliary gearbox features wide spectrum of diametric, inch, module and metric threads

--Powerful 11KW driving motor ensures high cutting power

--Induction hardened and ground guide-ways

--The auxiliary gearbox features a wide spectrum of diametric, inch, module threads

--Sturdy multi-disk clutch for headstock drive

--More accuracy and Lower error rate

--Overload clutch enclosed in apron

---Large spindle bore (Ø 105 mm diameter)

--Very quiet operating at maximum spindle speed

--Large spindle bearings

--Heavy-duty cast-iron body with ribbed bed reduces vibrations to a minimum

--3-axis digital position indicator is optional

--Certificate of Original (CO, FORM A, FORM E, FORM F)

Technical Data:

Product Name :	Universal Heavy Duty Engine Lathe Machine
Product Item :	MM-DLS 400
Max. Weight of Work-piece :	3000 KGS
Max Swing over Bed :	Ø 800 mm
Max. Swing over Gap Bridge :	Ø 1000 mm
Max. Swing over Cross Slide :	Ø 485 mm
Bed Width :	550 mm
Distance Between Centers :	1500 / 2000 / 3000 / 4000 / 5000 / 6000 mm
Swing range of Top Slide :	± 90 degree
Headstock
Spindle Bore :	Ø 105 mm
Spindle Taper :	Ø 120 mm (1:20)
Spindle Speed Range :	14 - 750 RPM (18 kinds)
Tapping Capacity
Pitch-Metric in range of :	1 - 240 mm (54 kinds)
P itch-Inch in range of :	1 - 28 TPI (36 kinds)
Module Threads in range of :	0.5-60 mm (27 kinds)
Diameter Threads in range of :	1 - 30 DP (27 kinds)
Longitudinal feed in range of :	0.048-24.3 mm/rev (72 kinds)
Transverse feed in range of :	0.024-12.15 mm/rev (72 kinds)
Rapid Feed X-axis :	2000 mm / min
Rapid Feed Z-axis :	4000 mm / min
Tailstock
Tailstock Taper :	MT 6
Tailstock Quill Diameter :	Ø 100 mm
Tailstock Sleeve Travel :	240 mm
Travel of Top slide :	200 mm
Travel of Cross slide :	420 mm
Drive Capacity
Main Motor :	11 KW
Rapid Feed Motor :	1.1 KW
Coolant Motor :	90 W
Tool Shank Dimensions :	32 X 32 mm
Packing Type :	Export Type Pallet Packing
Gross Weight :	5780 KGS (for MM-DLS 400 X 3000)
Packing Size :	5400 X 1650 X 1760 mm (for MM-DLS 400 X 3000)
Standard Accessory :	4-Jaw Chuck, 3-Jaw Chuck, Steady Rest, Follow Rest, Coolant System, Tailstock Centre, Main Spindle Center, Tools and Tool box
