Product Description

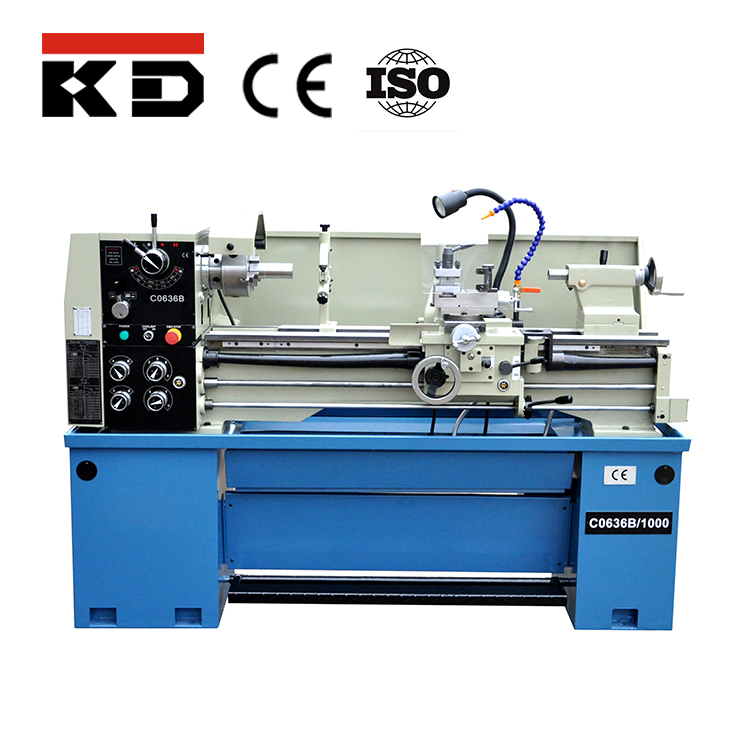

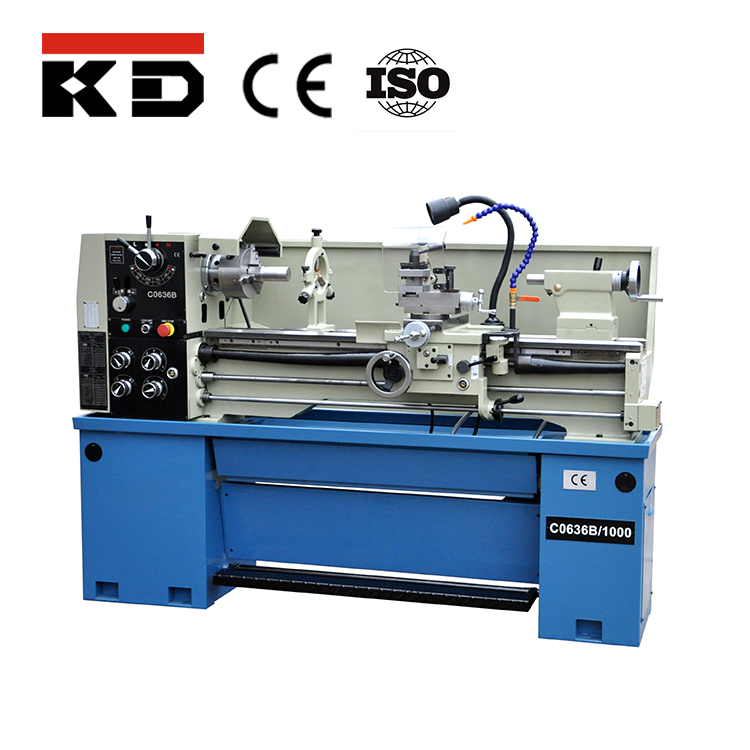

4-Way Tool Station Horizontal China Machine Engine Lathe 360mm with Good Price
MODELS | C0632B | C0636B | |
CAPACITY | |||
Max. swing over bed | 330mm | 360mm | |
Max. swing over gap | 476mm | 508mm | |
Max. swing over slide | 185mm | 215mm | |
Width of bed | 186mm | ||
Max. length of workpiece (two centers) | 750/1000mm | ||
SPINDLE | |||
Spindle nose | D4 | ||
Spindle bore | Ф38mm | ||
Taper bore of spindle | M.T.NO.5 | ||
Steps of spindle speed | 8 | ||
Range of spindle speed | 70~2000rpm | ||
FEED | |||
Range of longitudinal feeds | 0.0013-0.0173in/r (0.026~0.348mm/r) | ||
Range of cross feeds | 0.0005-0.00598in/r (0.007~0.094mm/r) | ||
THREADING | |||
Inch threads | 40~2 1/4 T.P.I/20 kinds | ||
Metric threads | 0.45-10mm/ 28kinds | ||
TAILSTOCK | |||
Travel of tailstock quill | 95mm | ||
Taper bore of tailstock quill | M.T.NO.3 | ||
OTHERS | |||
Main motor | 2HP(1.5KW) | ||
Net weight/Gross weight(1000mm) | 495/595kg | 510/610kg | |
