Product Description

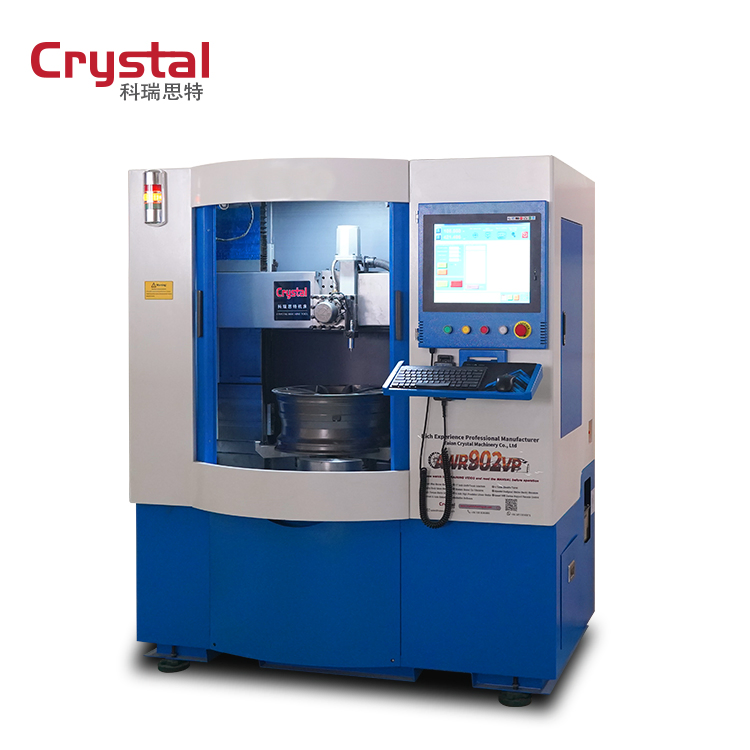

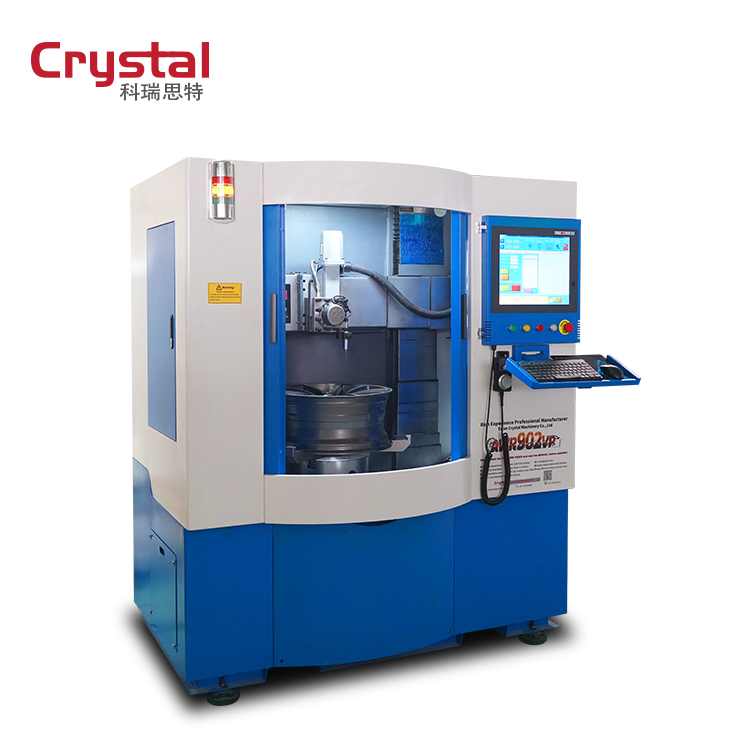

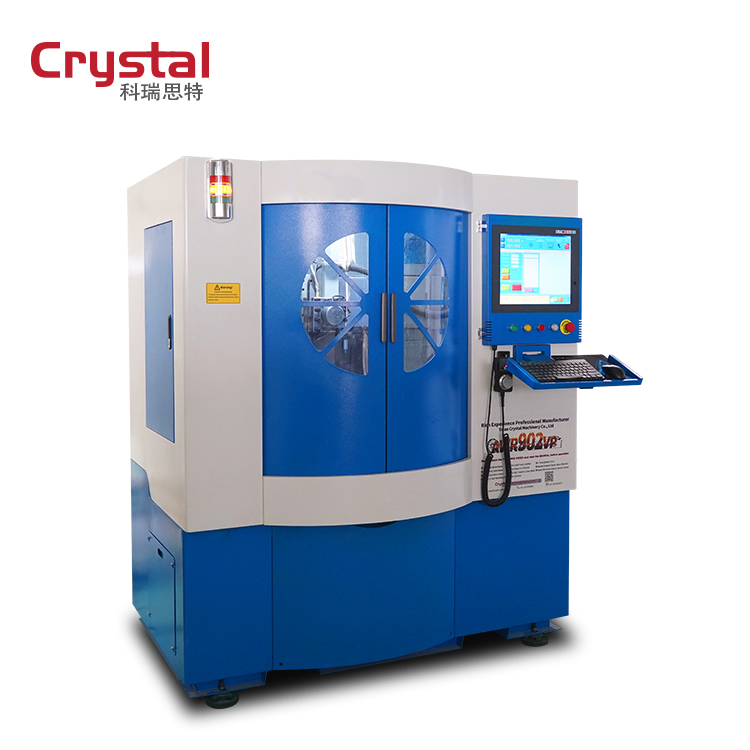

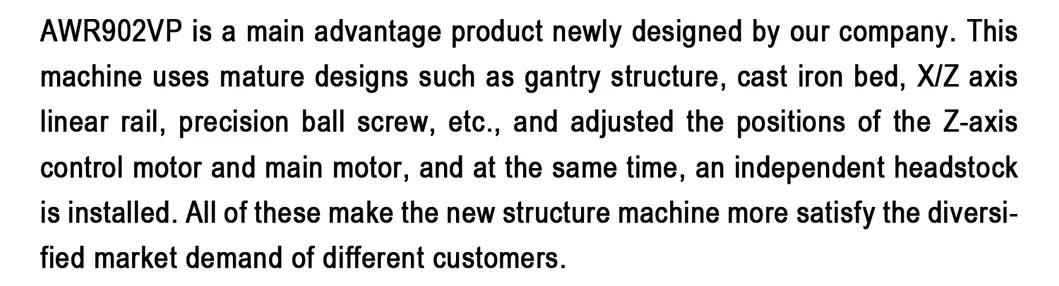

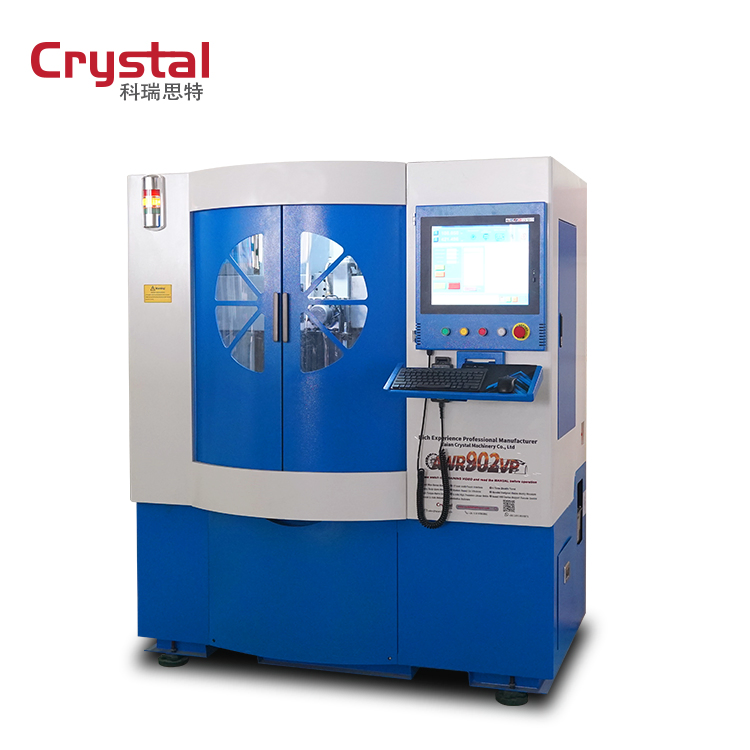

AWR902VP Alloy Wheel Rim Diamond Cutting Repair CNC Lathe Machine
ITEMS | Specifications |
Control system | 17 inch Multi-touch industrial PC system |
Optimization software | Crystal CNC-WheelCurve Software V2.0 |
Max. turning diameter | 860mm |
Max. size of alloy wheel | 34" |
Max. depth of wheels | 550mm |
Chuck | 13'' 3 jaw chuck (6 jaw optional) |
X/Z axis accuracy | 0.001mm |
X/Z axis control mode | Servo control |
X axis travel | 455mm |
Distance from tool post to end face of chuck | 630mm |
Range of spindle speed | 50-1500rpm |
Tool post | 4 position automatic tool holder(Manual tool holder optional) |
Max. size of tool holder | 25×25mm |
Detection method | Ruby probe (Laser detection optional) |
Machine base | Whole cast iron base |
Spindle control mode/ Power | Servo motor/ 5.5kw |
Voltage | 3 phase 380V (Other voltage optional) |
Color | Customizable |

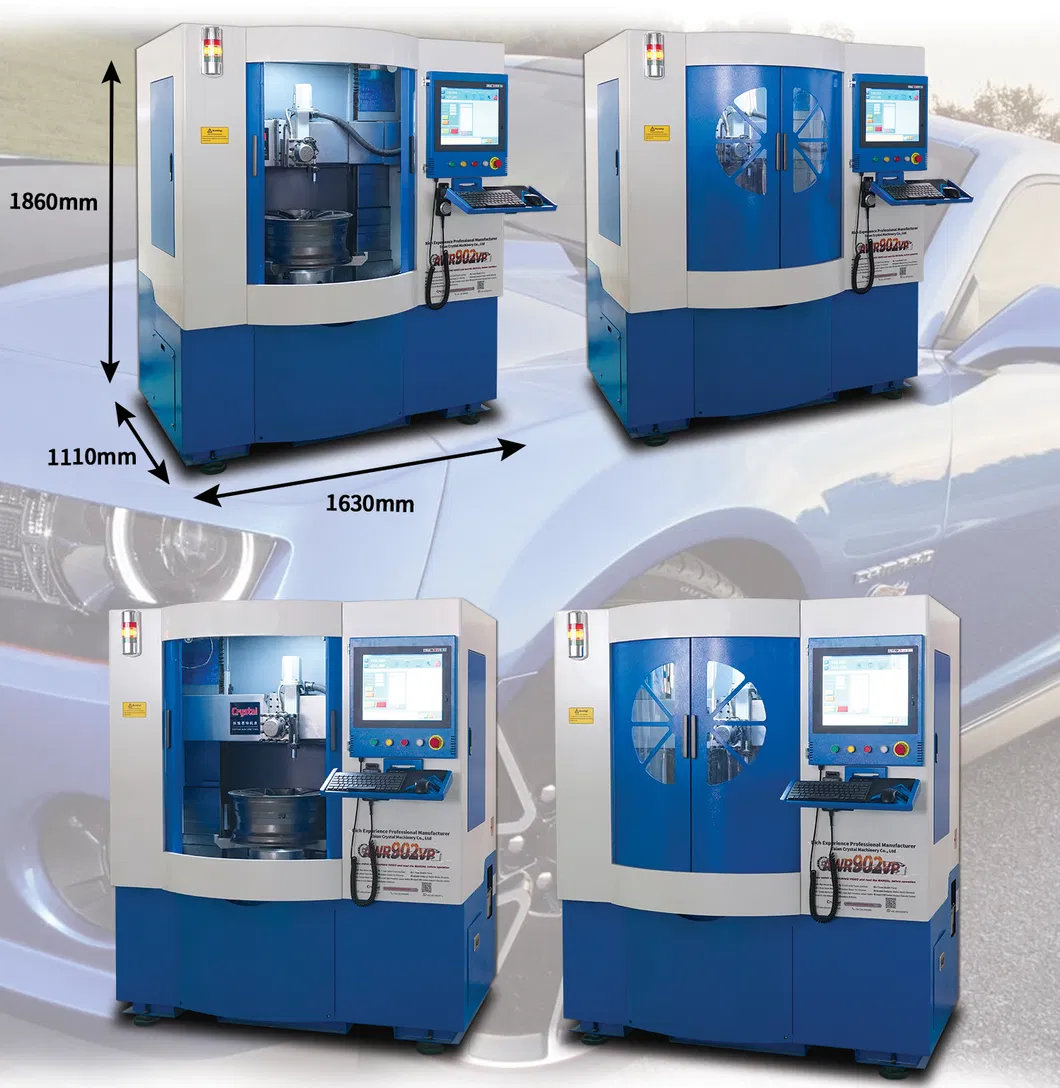

Machine size | 1630*1110*1860mm |
Net weight | 1530kg |
