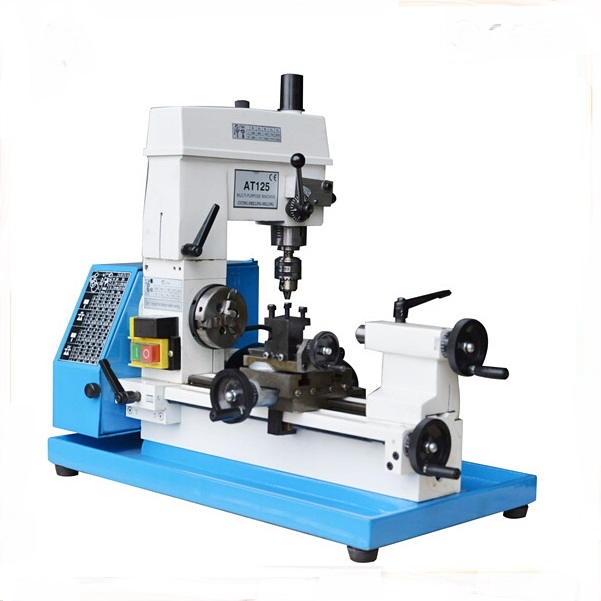

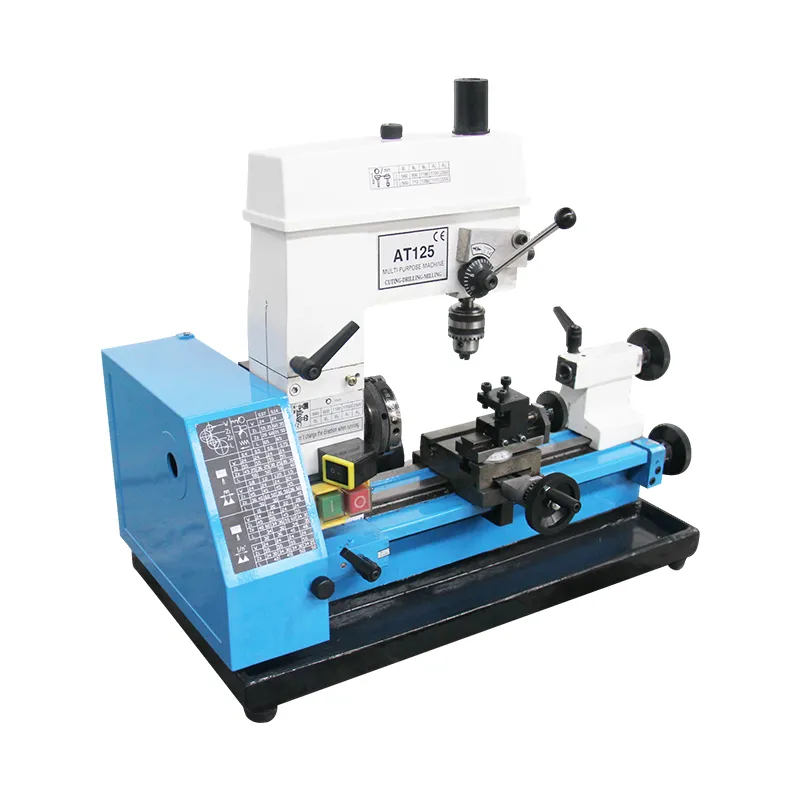

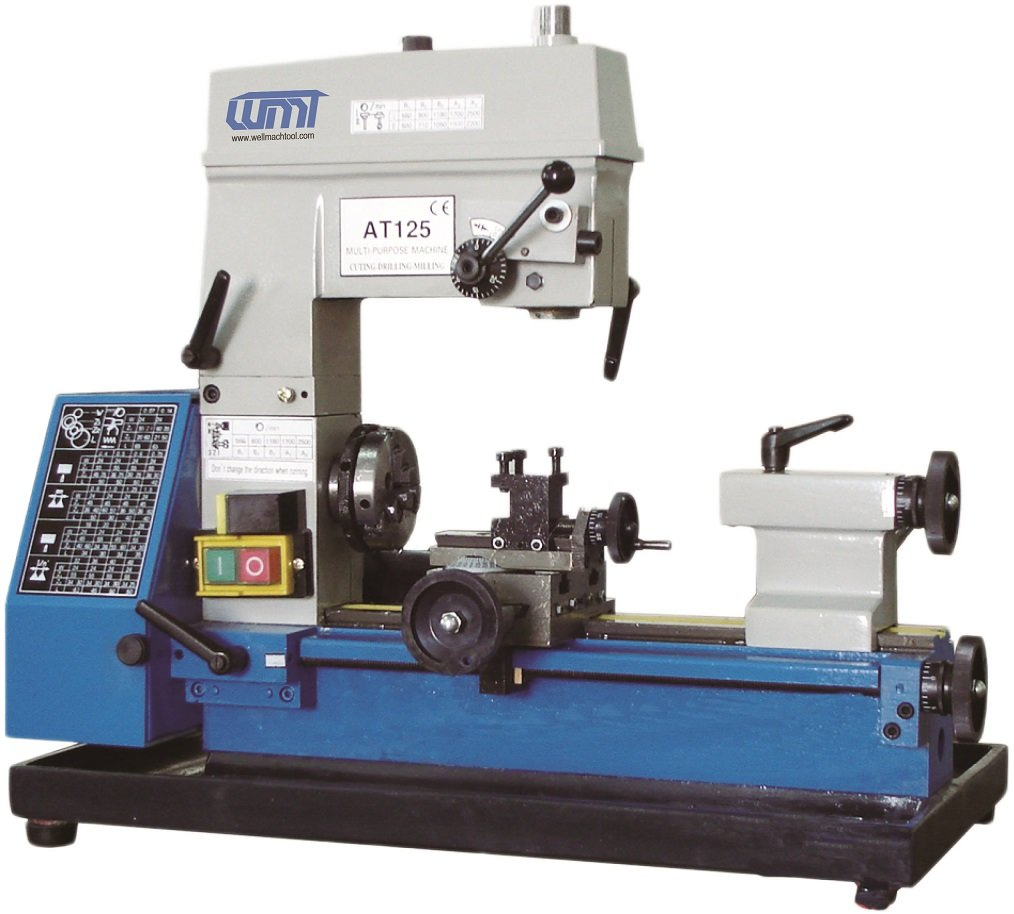

AT125 3 in 1 Combo Hobby Lathe machine for Metal-Cutting in China

Feature:
1.Compact,versatile combination machine
2.Adjustable height dril/mill head increase capacity
3.Fine feed handle and clutch for precision milling
4.Head stock provindes two steps of feeds
5.Spindle is supported by high precision bearing
6.T-slot cross slide
7. Adjustable gribs for the slideway
8.power longitudinal feed allows threading.
9.High precision chuck

Main specifications:

Multi-purpose lathe mill drill machine:

Specifications: AT125

Max swing diameter over bed: φ125mm(5")

Max length of workpiece: 180mm(7")

Max swing diameter over tool carrier: φ60mm(2-2/5")

Spindle bore: 9mm(2-5")

Taper of hole in spindle Morse: No. 1

Metric thread kinds on processing: 8

Metric thread pitch on processing: 0.8-1.5mm

Inch thread kinds on processing: 8

Inch thread pitch on processing: 16-481/n"

Longitudinal feed on spindle tool carrier: 0.07-0.14mm

Max stroke on taper hole: 18mm

Taper of hole in tailstock: No.1

Spindle speed step: 5

Spindle speed range: 560-2500r/min

Drilling and milling:

Max drilling capacity: φ6mm(1-5")

Distance from bench to spindle nose: 120-180mm

Distance from spindle center and column: 125mm(5")

Swivel-angle of headstock around the column: 360°

Spindle speed step: 10

Spindle speed range: 500-2500rpm

Worktable dimension: 85×60mm

Taper of hole in milling spindle Morse: No.1

Stroke on spindle hole: 40mm(12-3/5")

Electric motor: 0.18kw

Net weight: 22kg

Overall size: 520×300×110mm

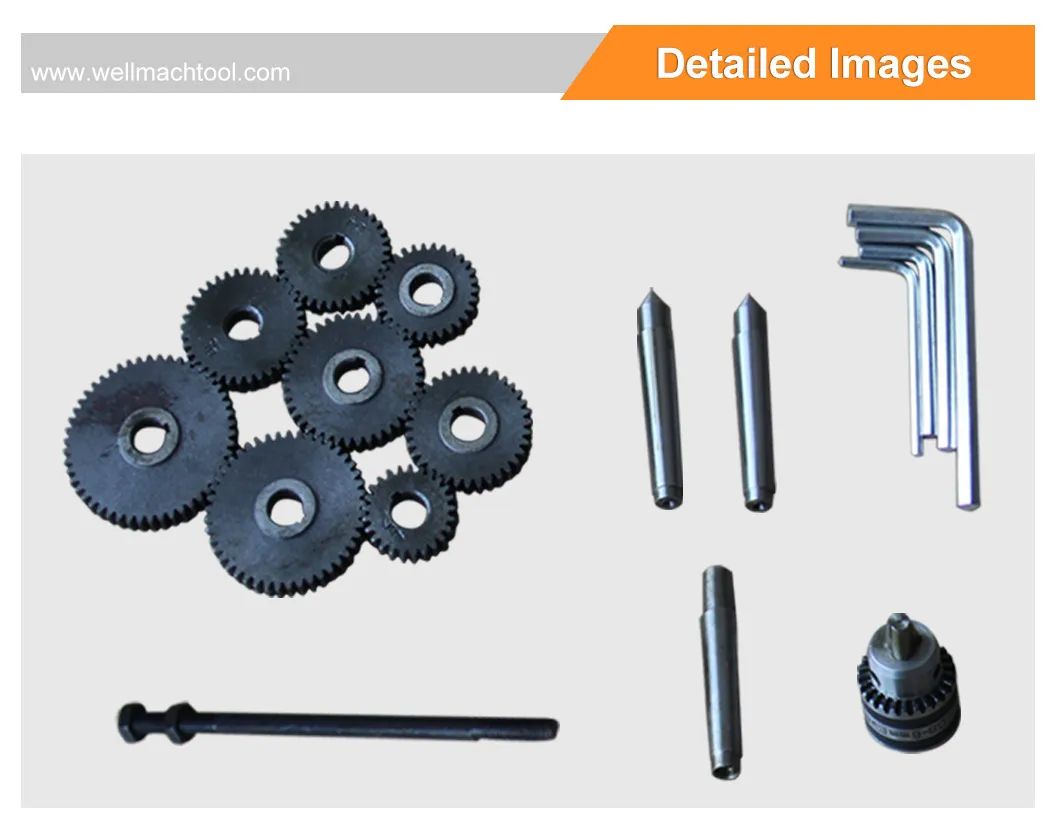

Standard accessories:
3-jaw chuck
Wrenches
Dead centers
Drill chuck and arbor
Change gears
