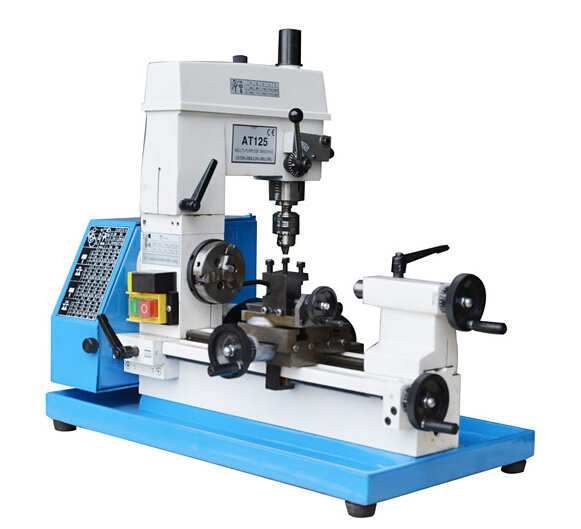

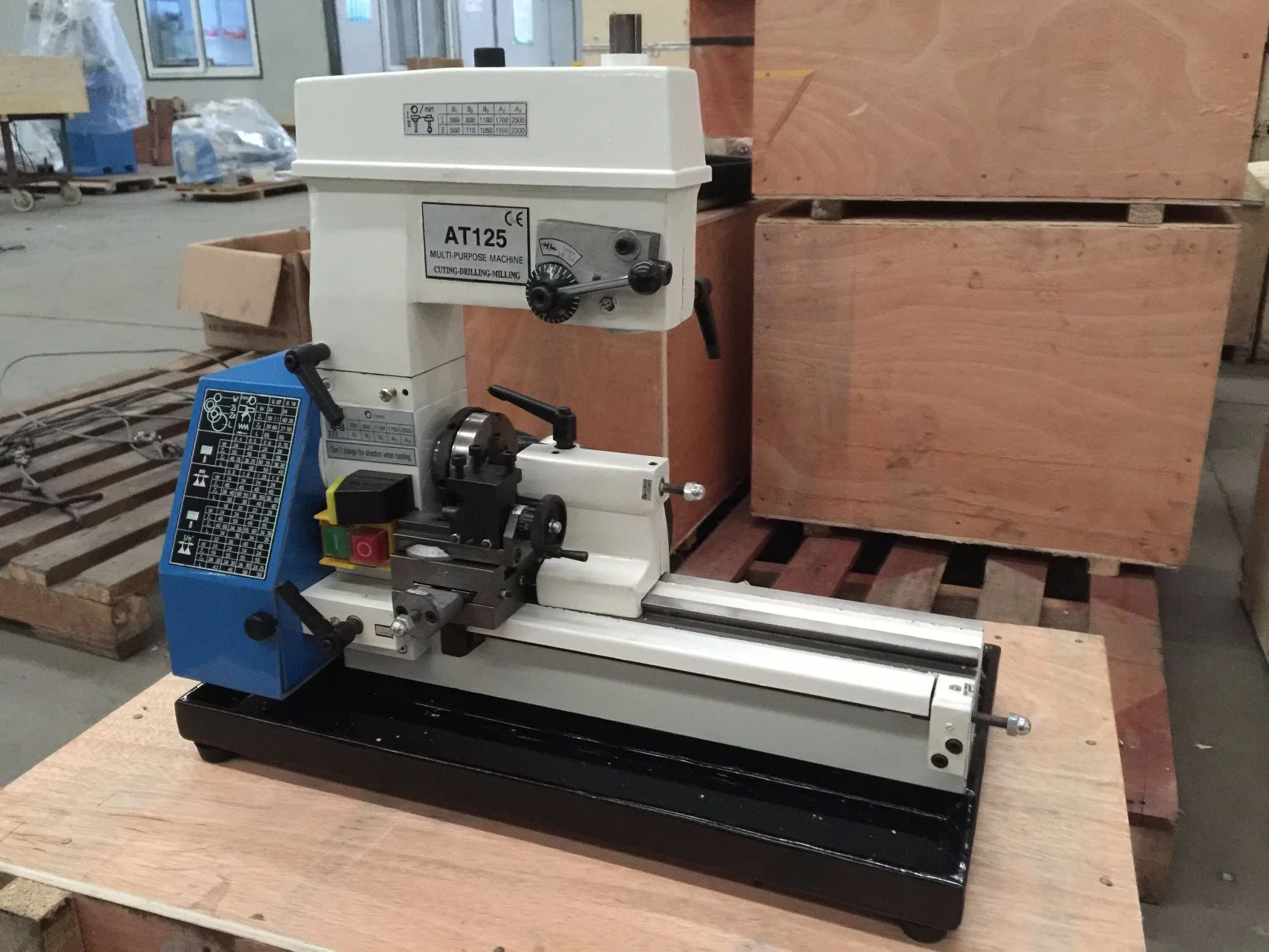

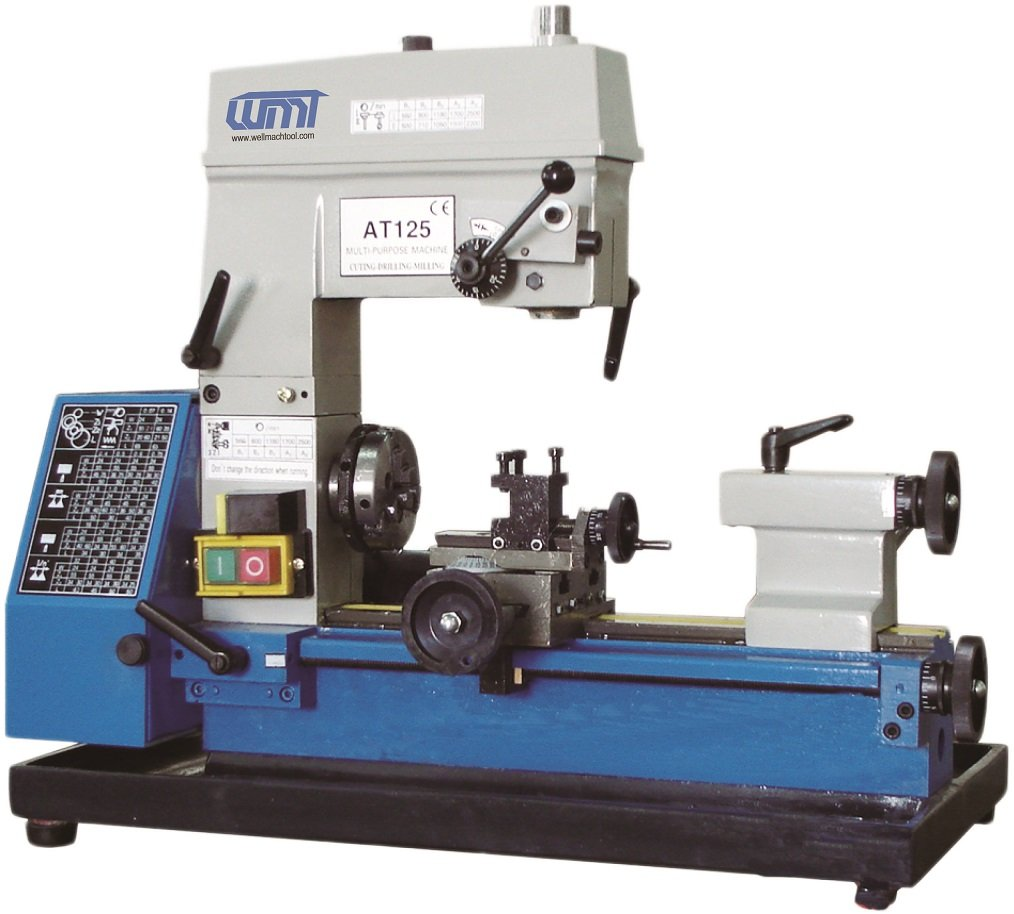

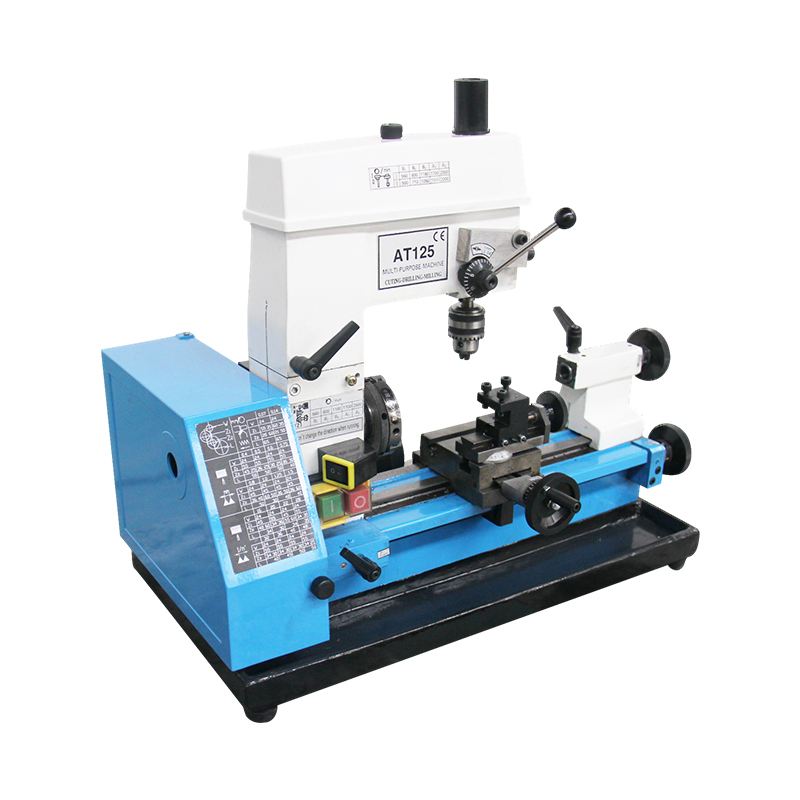

China AT125 mini metal Lathe for DIY User With CE Standard

Product Description

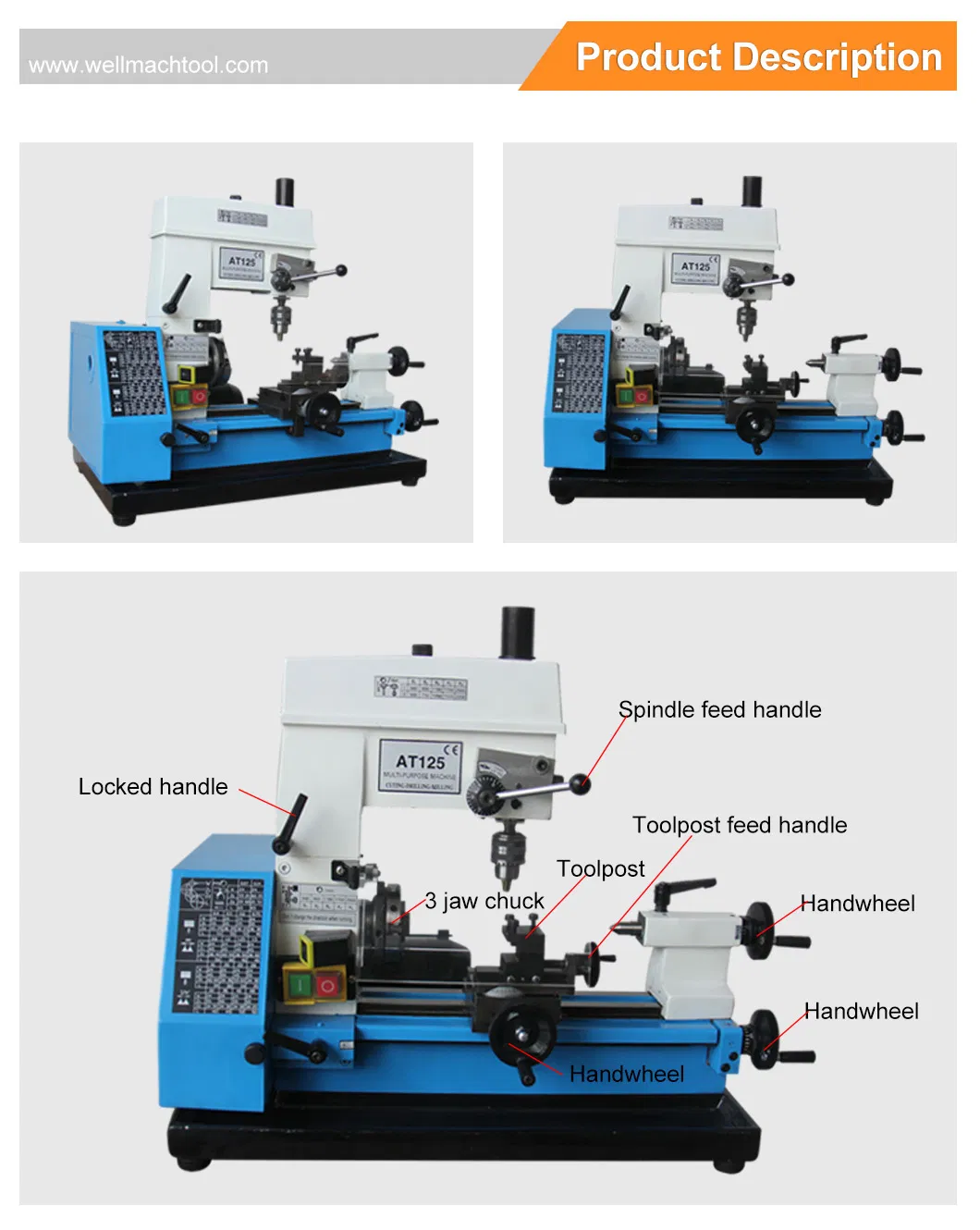

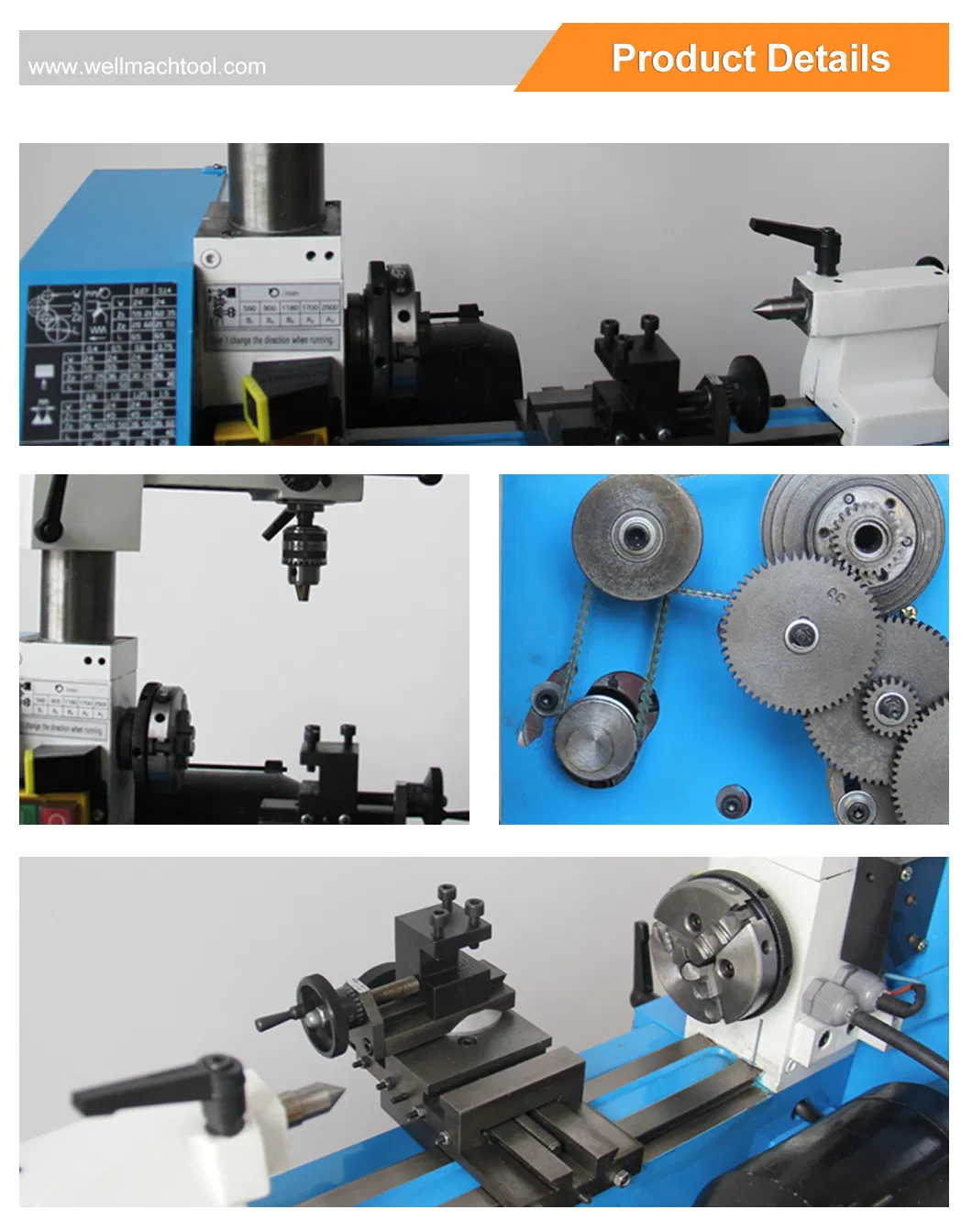

Features:
compact ,versatile combination machine
1.Adjustable height drill /mill head increase caacity
2.Fine feed handle and clutch for precision milling
3.T-slot cross slide
4.Adjustable gibs for the silde way

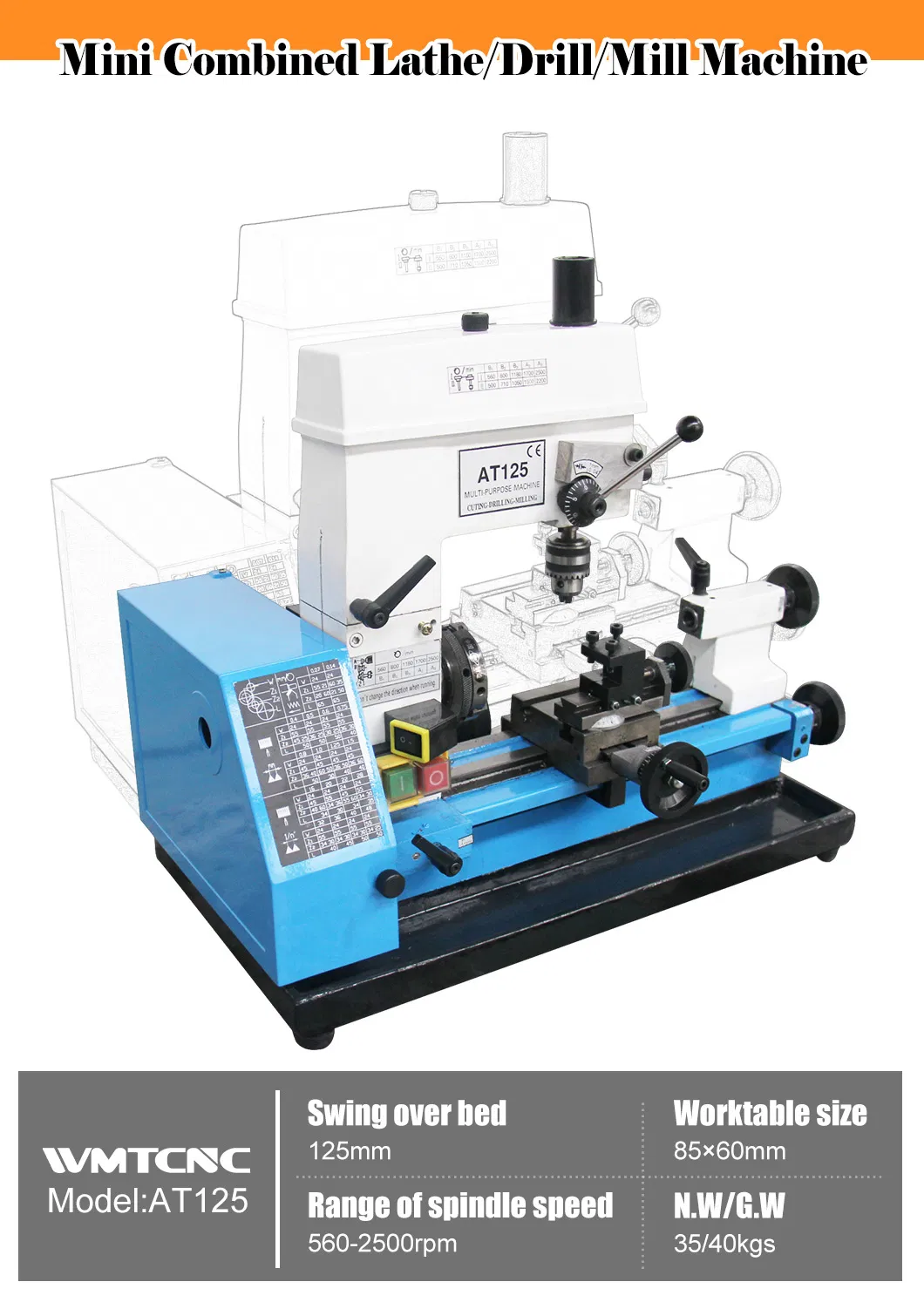

Main specification:
Multi-purpose lathe mill drill machine:
Specifications: AT125
Max swing diameter over bed: φ125mm(5")
Max length of workpiece: 180mm(7")
Max swing diameter over tool carrier: φ60mm(2-2/5")
Spindle bore: 9mm(2-5")
Taper of hole in spindle Morse: No. 1
Metric thread kinds on processing: 8
Metric thread pitch on processing: 0.8-1.5mm
Inch thread kinds on processing: 8
Inch thread pitch on processing: 16-481/n"
Longitudinal feed on spindle tool carrier: 0.07-0.14mm
Max stroke on taper hole: 18mm
Taper of hole in tailstock: No.1
Spindle speed step: 5
Spindle speed range: 560-2500r/min
Drilling and milling:
Max drilling capacity: φ6mm(1-5")
Distance from bench to spindle nose: 120-180mm
Distance from spindle center and column: 125mm(5")
Swivel-angle of headstock around the column: 360°
Spindle speed step: 10
Spindle speed range: 500-2500rpm
Worktable dimension: 85×60mm
Taper of hole in milling spindle Morse: No.1
Stroke on spindle hole: 40mm(12-3/5")
Electric motor: 0.18kw
Net weight: 22kg
Overall size: 520×300×110mm
