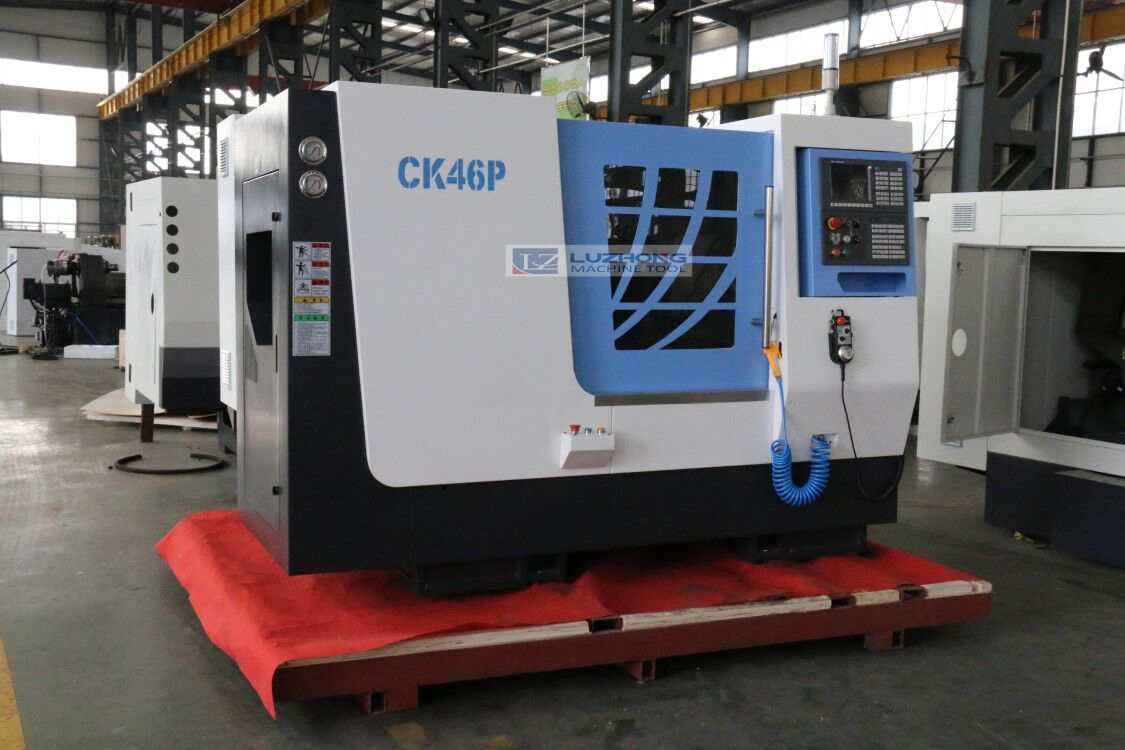

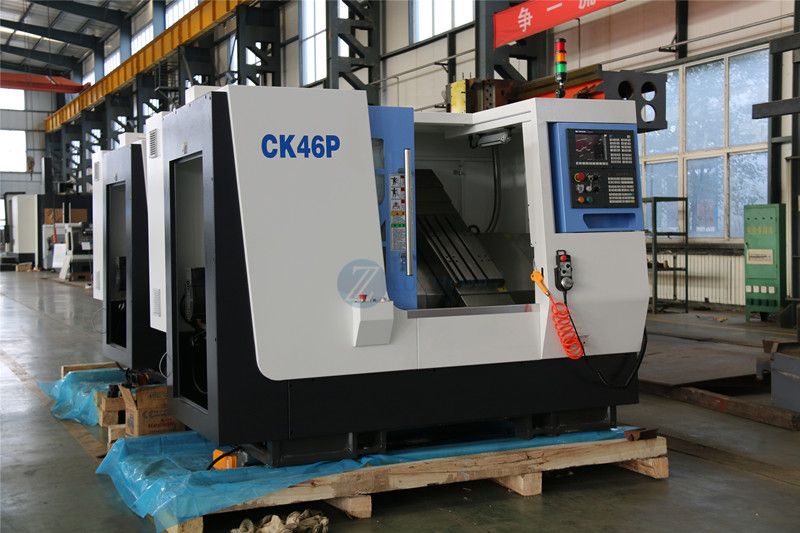

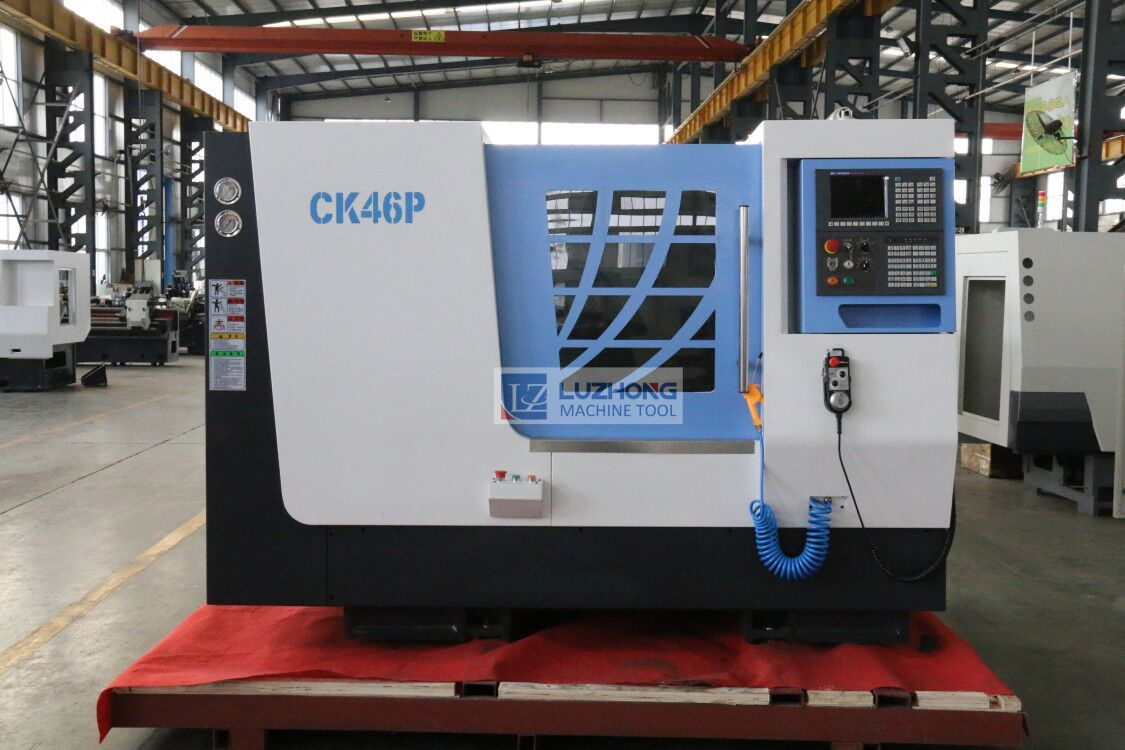

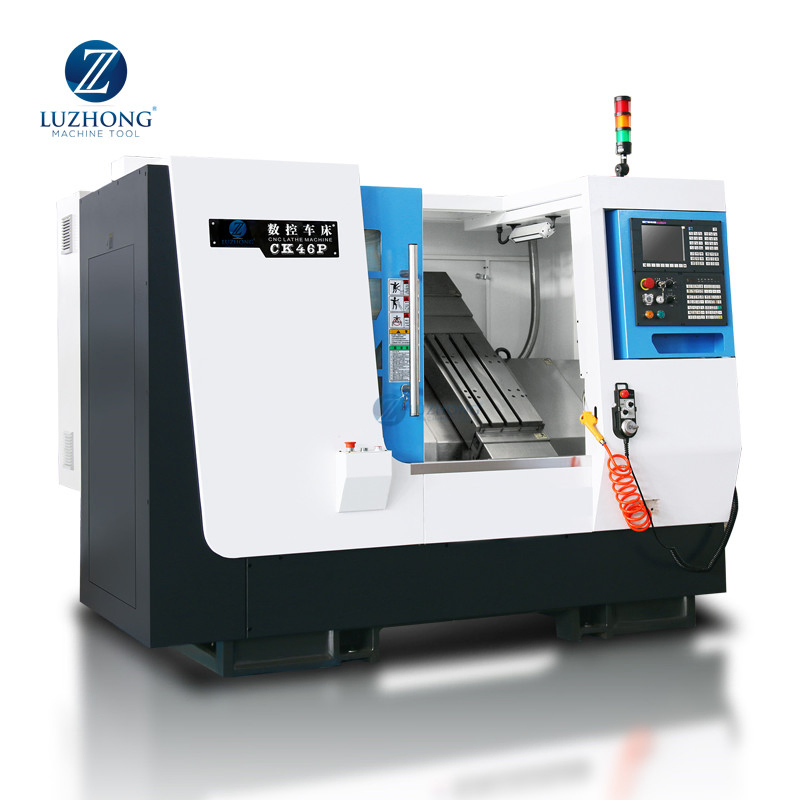

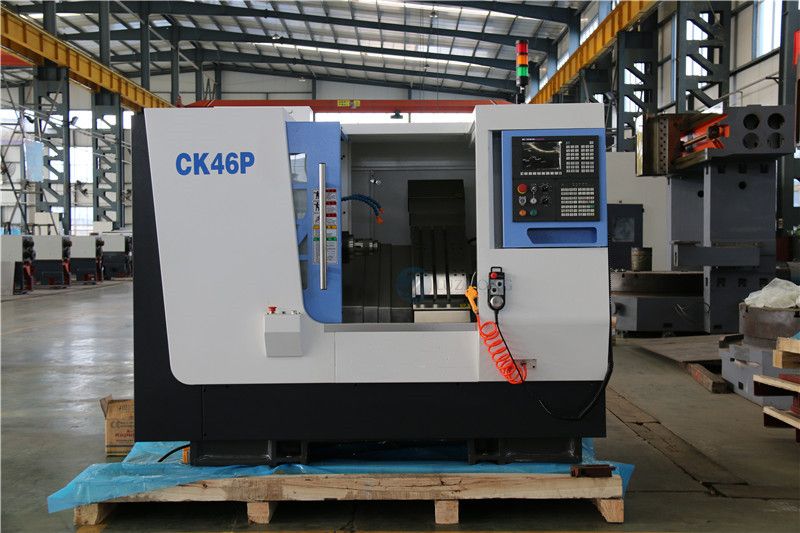

Automatic Metal CK46P Slant Bed CNC Lathe Machine price

Product Description

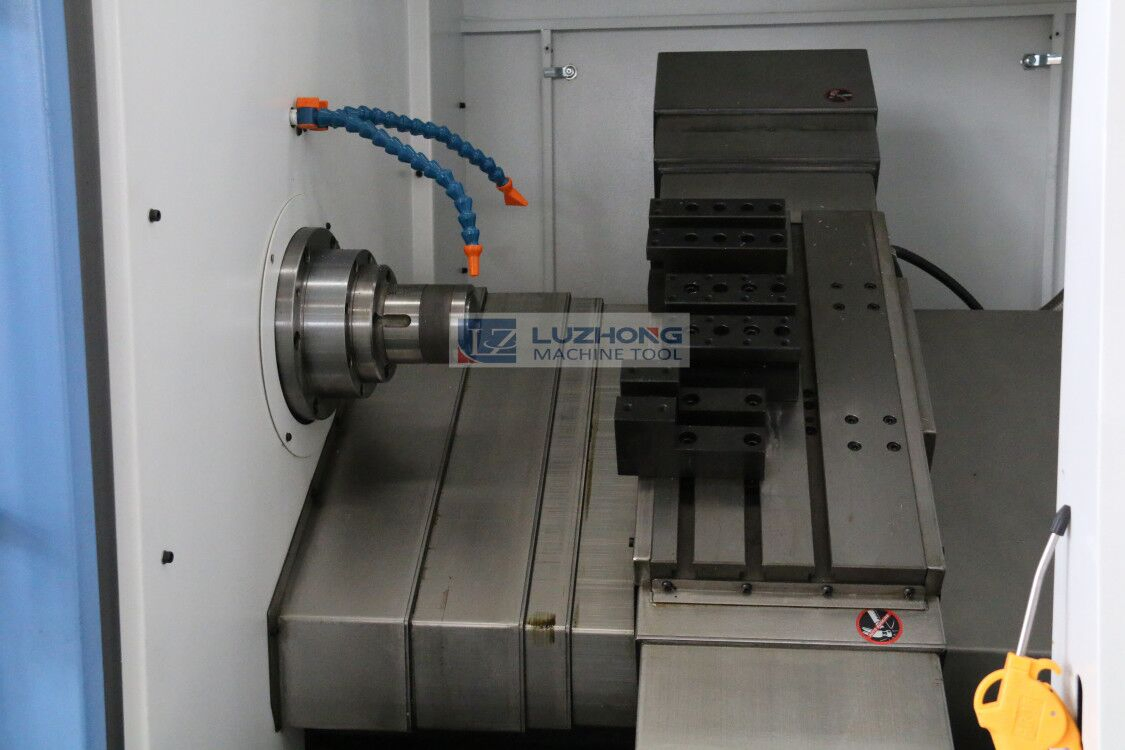

Automatic Metal CK46P Slant Bed CNC Lathe Machine price

Automatic Metal CK46P Slant Bed CNC Lathe Machine price

Specifications	Units	CK46P
Max.swing over bed	mm	360
Max. Swing over cross slide	mm	110
Max. Processing length	mm	330
Cross slide length	mm	600
Distance between cross slide and spindle axis	mm	55
Spindle nose		A2-5
Spindle speed range	R/min	50-5000
Spindle bore	mm	56
Bar capacity	mm	45
Spindle motor power	kw	7.5
X/Z axis travel	mm	410/330

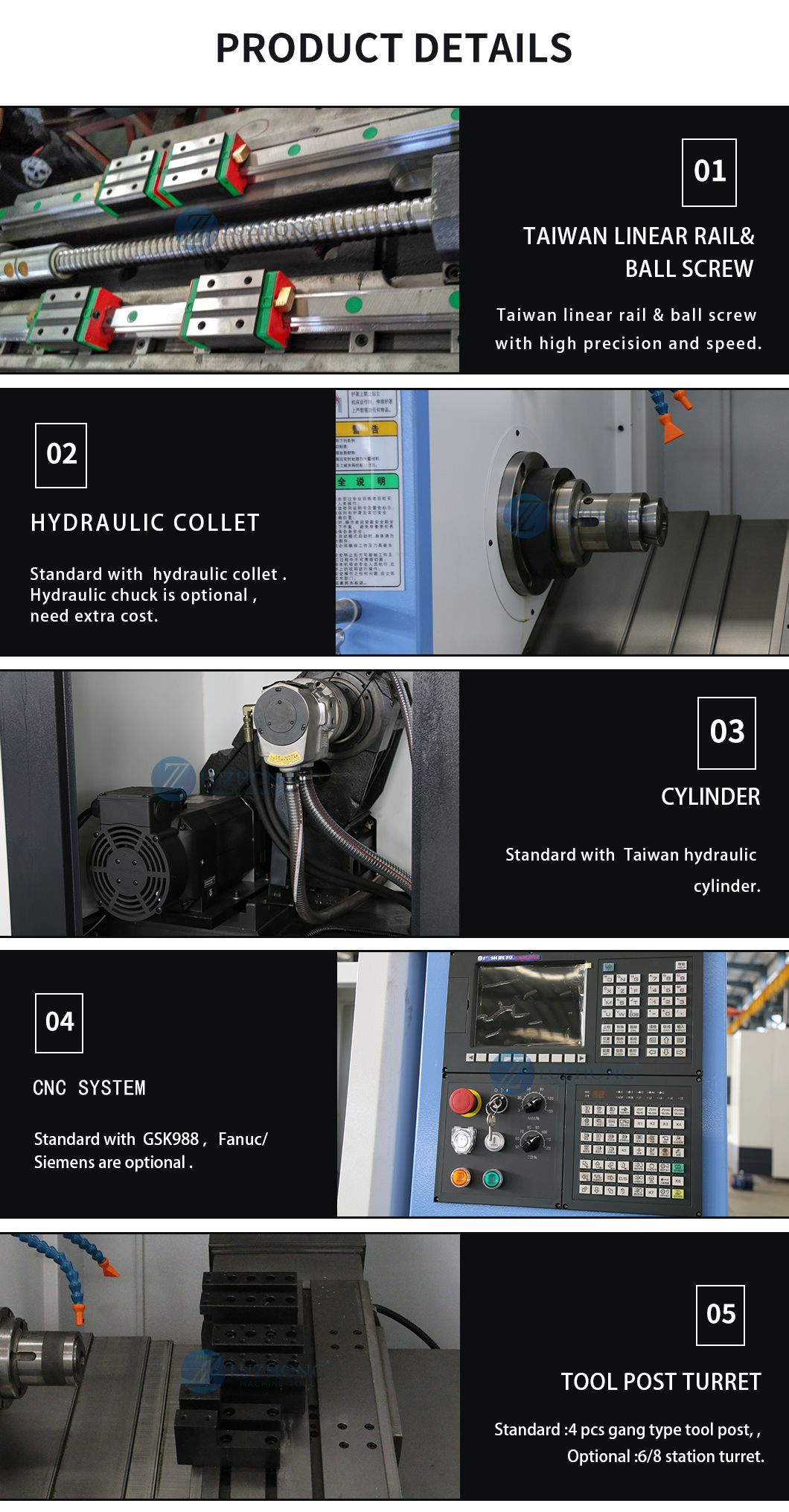

Tool post type		Gang type tool post
X/Z axis positioning accuracy	mm	0.006
X/Z axis repositioning accuracy	mm	0.003
X/Z rapid traverse	Mm/min	24000

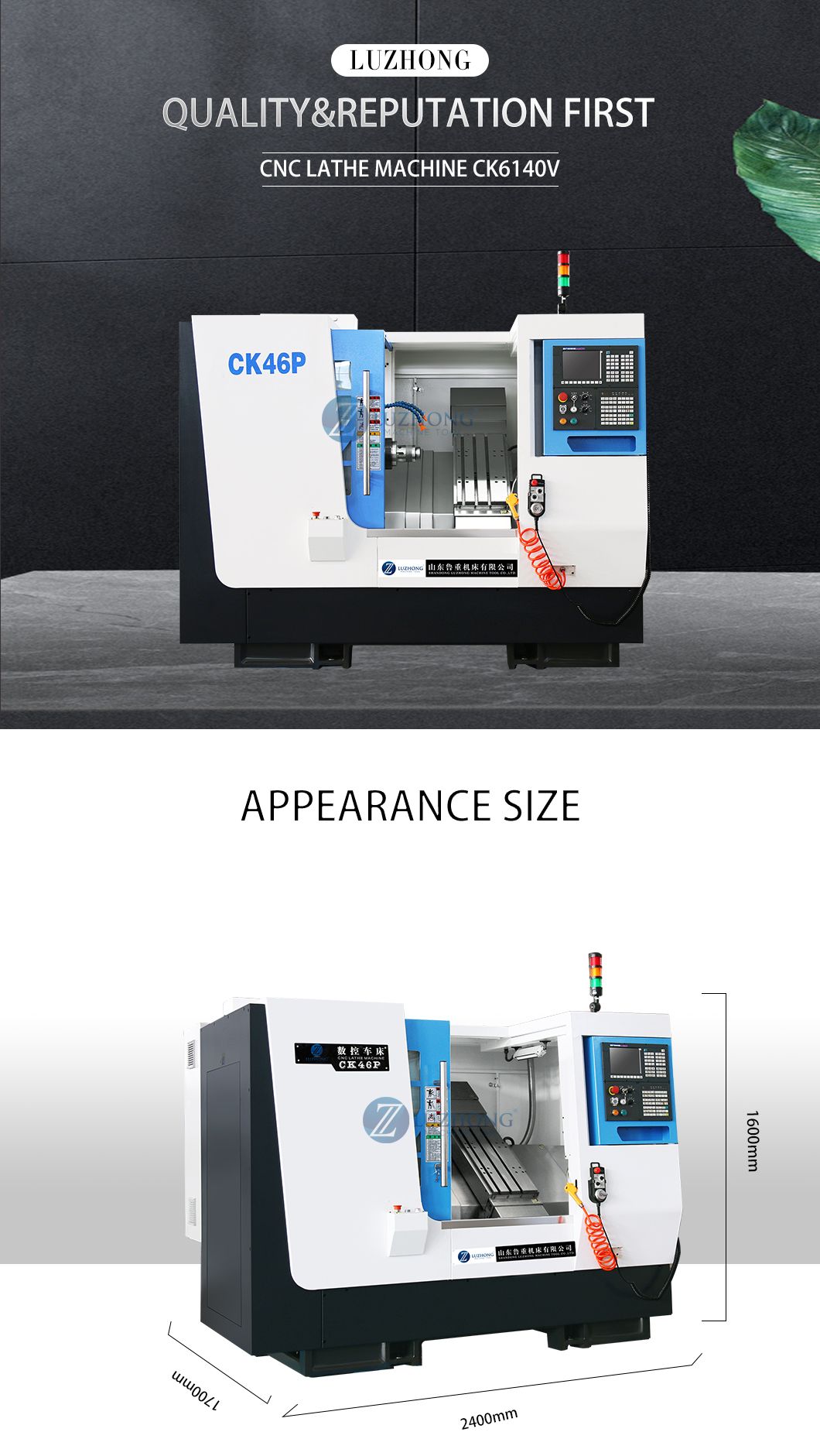

Machine dimension(LxWxH)	mm	2400x1700x1600
Net weight	Kg	2800

Automatic Metal CK46P Slant Bed CNC Lathe Machine price

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
