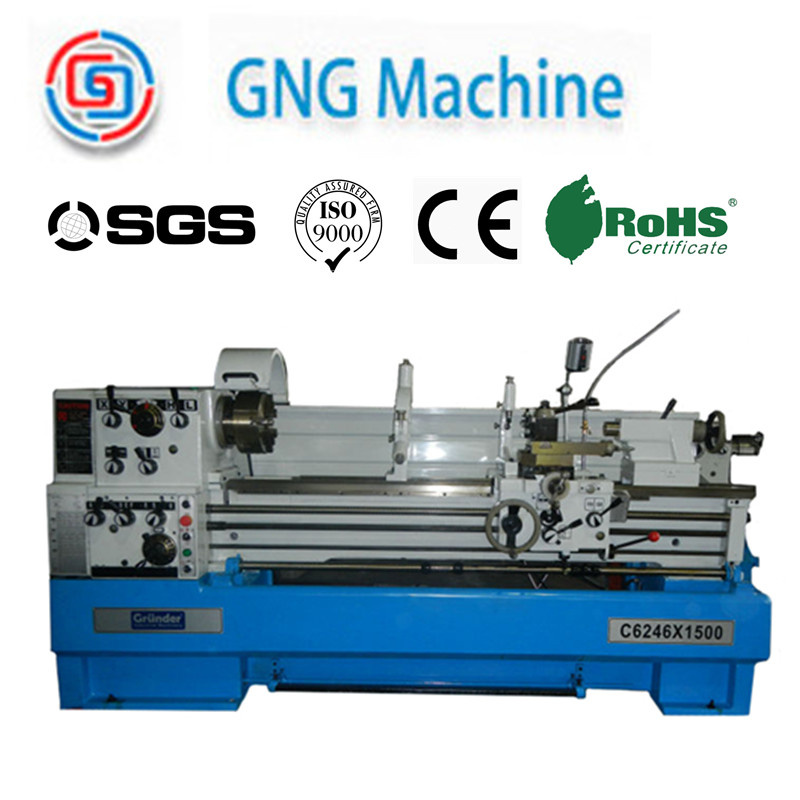

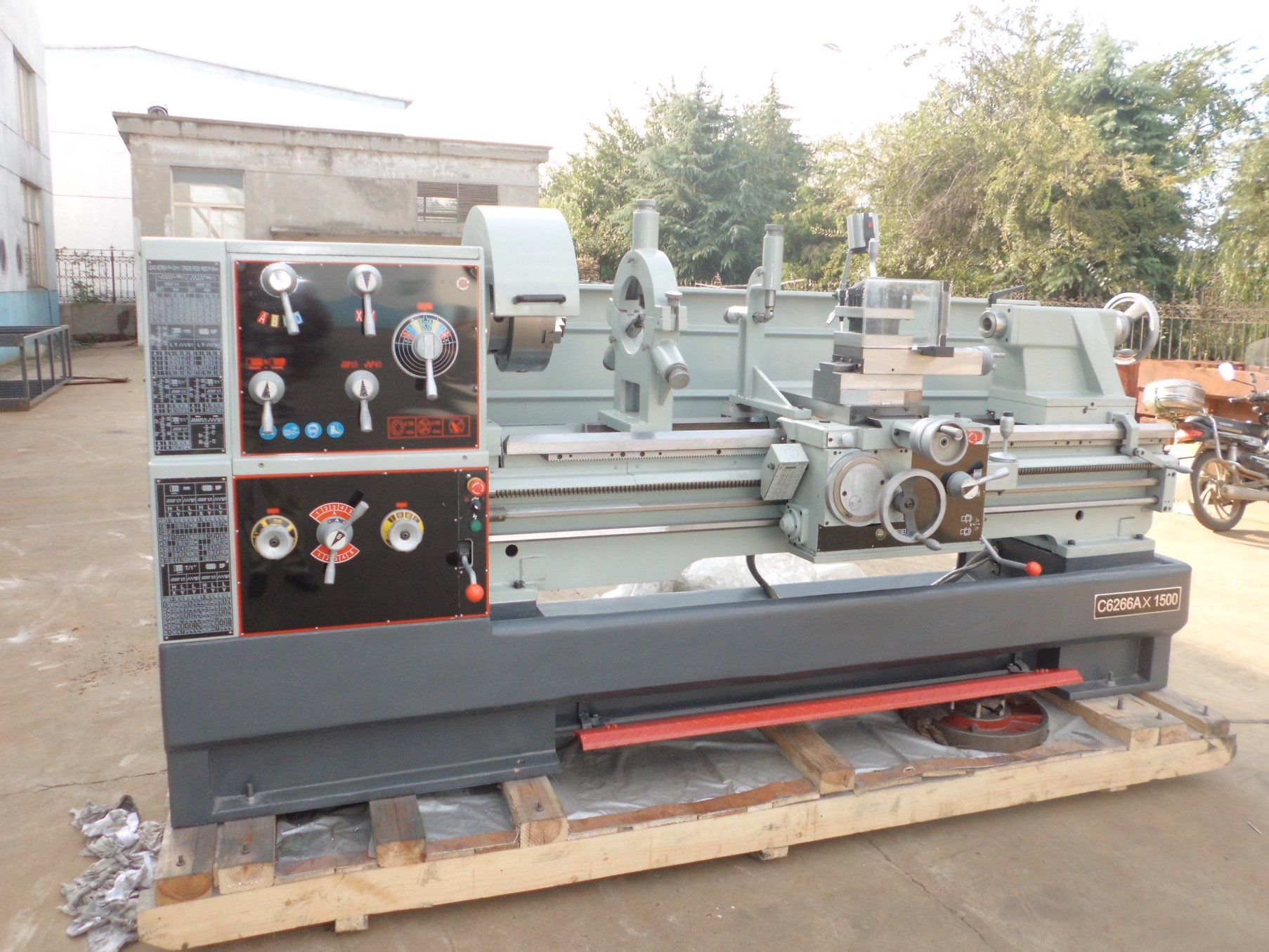

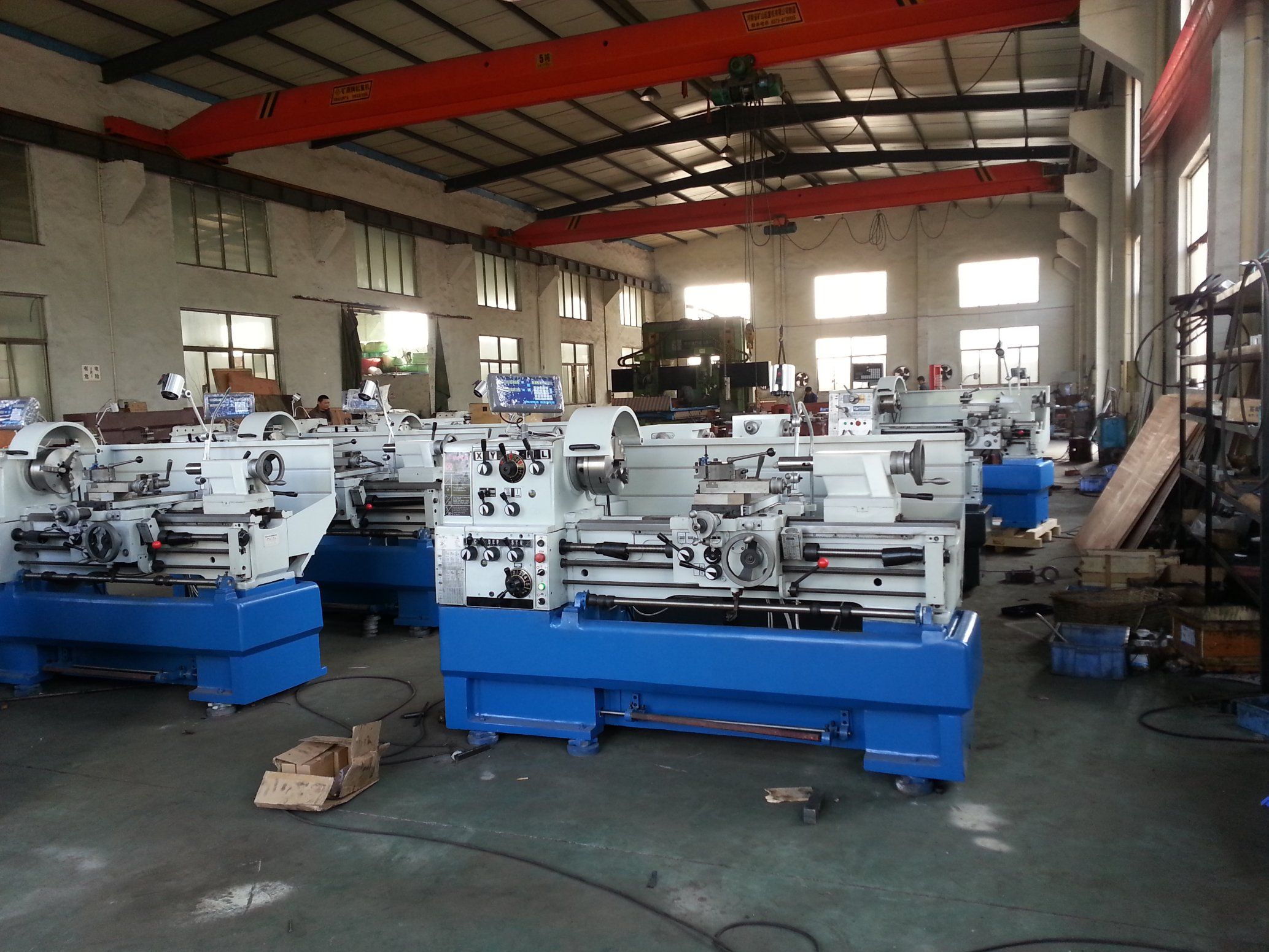

C6266 Metal High Speed Precision Heavy Duty Lathe
Min. Order Quantity: 1 Set/SetsSupply Ability: 300 Set/Sets per MonthPort: ShanghaiPayment Terms: L/C, T/TQuick DetailsCondition: NewType: HorizontalCNC or Not: NormalAutomatic Grade: ManualMax. Swing Diameter: 660mmPlace of Origin: Shandong, China (Mainland)Brand Name: GNGModel Number: C6266Voltage......
Send Inquiry
Product Description
Min. Order Quantity: 1 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Shanghai
Payment Terms: L/C, T/T
Quick Details
Condition: New
Type: Horizontal
CNC or Not: Normal
Automatic Grade: Manual
Max. Swing Diameter: 660mm
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: C6266
Voltage: 380V Power(W): 7500W
Dimension(L*W*H): 321X123X160mm
Weight: 3060kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
Supply Ability: 300 Set/Sets per Month
Port: Shanghai
Payment Terms: L/C, T/T
Quick Details
Condition: New
Type: Horizontal
CNC or Not: Normal
Automatic Grade: Manual
Max. Swing Diameter: 660mm
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: C6266
Voltage: 380V Power(W): 7500W
Dimension(L*W*H): 321X123X160mm
Weight: 3060kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
| Specifications |
| Swing over bed 660mm |
| Swing over cross slide 440mm |
| Swing over gap 900mm |
| High speed precision heavy duty lathe C6266X3000 |
| Swing over bed 660mm |
| Swing over cross slide 440mm |
| Swing gap 900mm |
| Length of gap 250mm |
| Center height 330mm |
| Distance between centers 1500/2000/3000mm |
| Width of bed 400mm |
| Max section of tool 25mmx25mm |
| Max travel of cross slide 368mm |
| Max travel of compound rest 230mm |
| Headstock |
| Spindle bore 105mm |
| Spindle nose D1-8 |
| Taper of spindle bore 113mm MT5 |
| Spindle speed number 16 |
| Range of spindle speed 25-1600rpm |
| Leadscrew pitch 40mmx2TPI or 40mmx12mm |
| Inch threads range 7/16 - 80TPI (54kinds) |
| Metric threads range 0.45-120mm(54kinds) |
| Diametrical pitches range 7/8-16DP(42kinds) |
| Module pitches range 0.25-60MP(42kinds) |
| Longitudinal feeds range in metric leeadscrew 0.044-1.48mm/rev(25kinds) |
| Longitudinal feeds range in inch leadscrew 0.00165"-0.05497"rev(25kinds) |
| Cross feeds range in metric leadscrew 0.022-0.74mm/rev(25kinds) |
| Cross feeds range in inch leadscrew 0.00083"-0.02774"/rev(25kinds) |
| Quill travel 235mm |
| Quill diameter 90mm |
| Quill taper MT5 |
| Main motor power 7.5kw |
| Coolant pump motor 0.09kw |
| Overal dimension 321/371/471X123X160cm |
| Packing size 324/374/474X114X184cm |
| Net weight 3060/3345/3710kgs |
| Gross weight 3535/3835/4310kgs |
