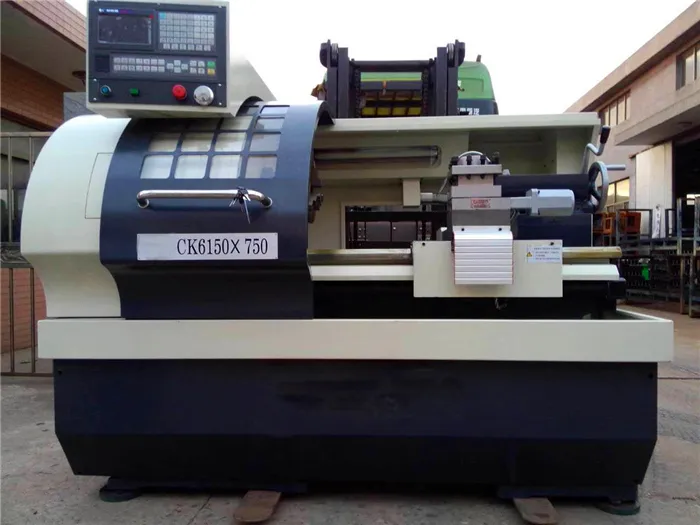

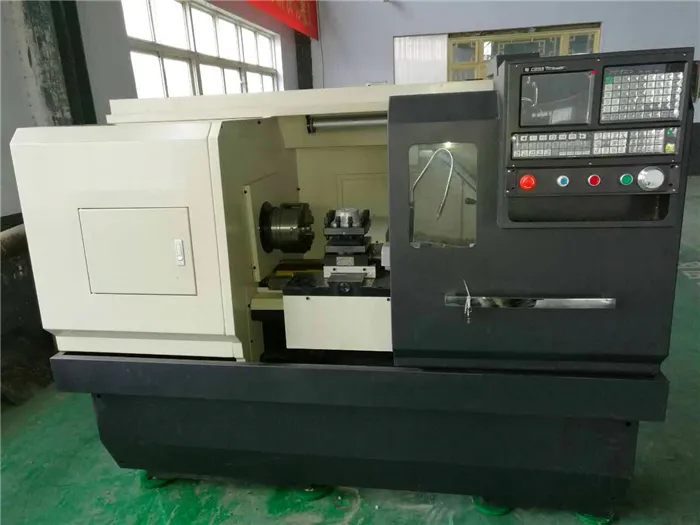

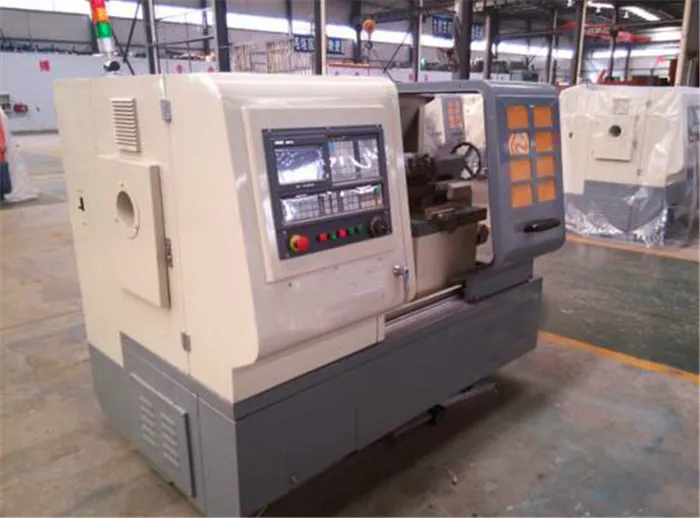

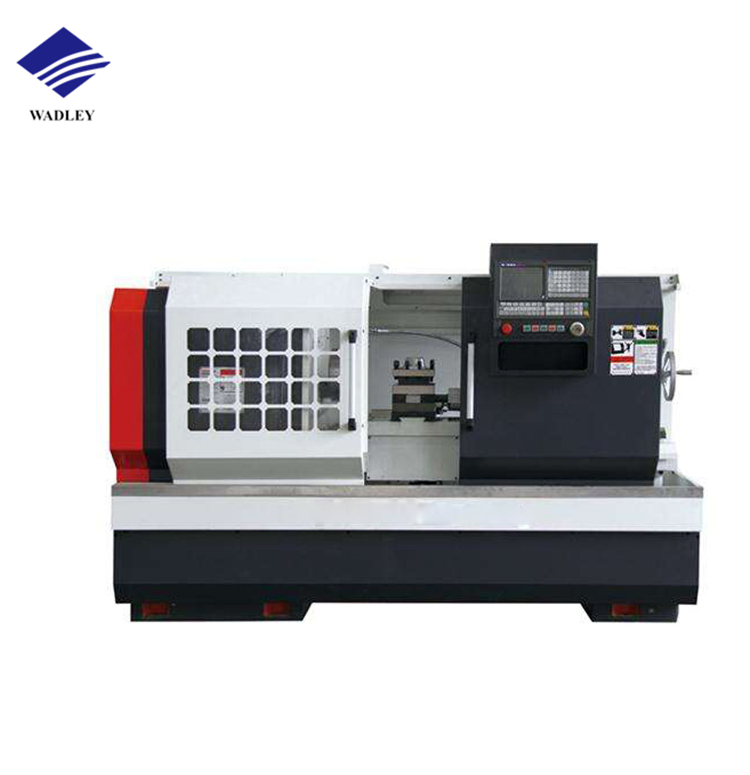

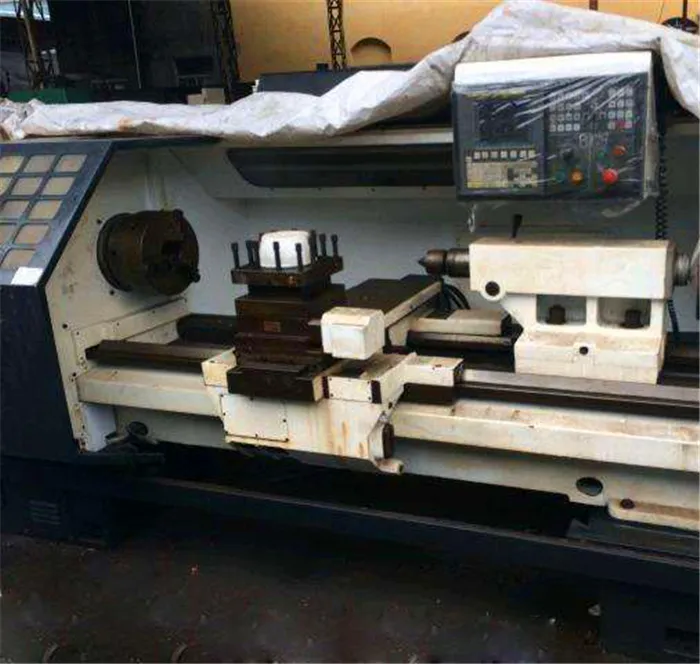

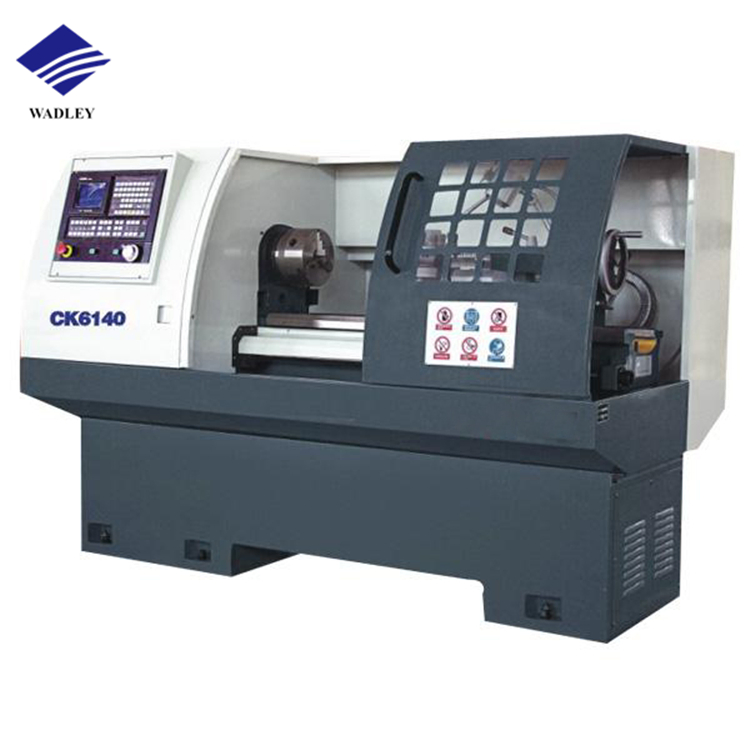

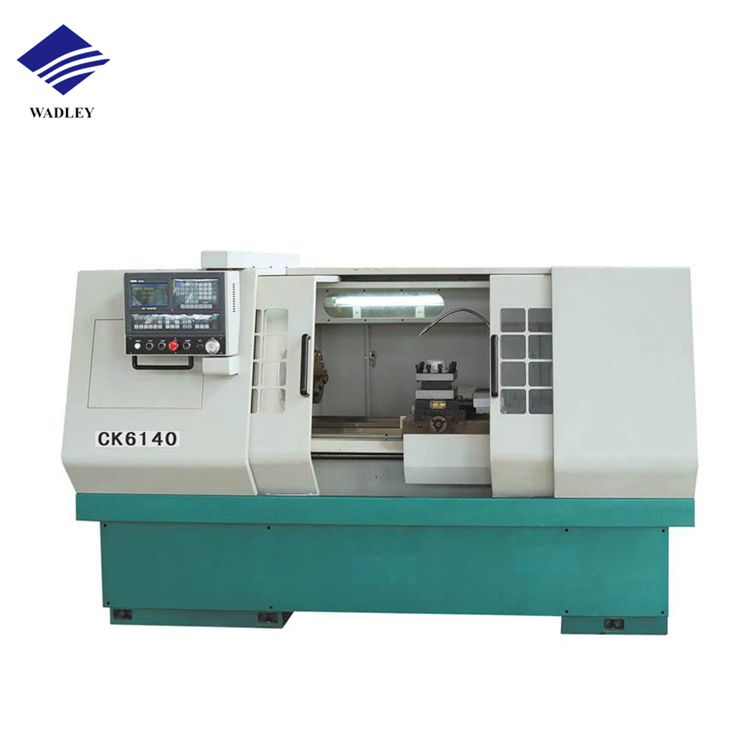

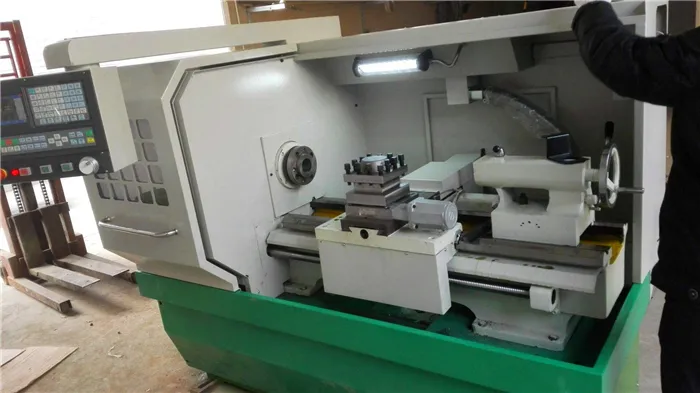

Cak6140/6150/ 6161 /6166/6180 Horizontal CNC Lathe Machine
1. Product descriptionCNC lathes are one of the most widely used CNC machine tools. It is mainly used for the inner and outer cylindrical surfaces of shaft parts or disc parts, the inner and outer conical surfaces of any taper angle, the complex inner and outer curved surfaces, the cylindrical and c......
Send Inquiry
Product Description
CNC lathes are one of the most widely used CNC machine tools. It is mainly used for the inner and outer cylindrical surfaces of shaft parts or disc parts, the inner and outer conical surfaces of any taper angle, the complex inner and outer curved surfaces, the cylindrical and conical threads, etc., and can be used for grooving, drilling, reaming and reaming. Holes and borings, etc.
2. Machine details
Specifications | Units | CAK6140 CAK6140B CAK6140C | CAK6150 CAK6150B CAK6150C | CAK6161 CAK6161B CAK6161C | CAK6166 CAK6166B CAK6166C | CAK6180 CAK6180B CAK6180C | ||
Max.swing over bed | mm | 400 | 500 | 610 | 660 | 800 | ||
Max.processing length | mm | 750/1000/1500/2000/3000 | ||||||
Spindle taper |
| MT6(Ø90 1:20 for B)[Ø113 1:20 for C] | ||||||
Chuck size | mm | C6(D8)[D8] | ||||||
Spindle bore | mm | 52(80 for B)[105 for C] | ||||||
Spindle speed 3 steps (auto change gear) | rpm | Independent spindle:100-1600 21-1500(162-1500,66-500,21-150) | ||||||
Tailstock sleeve travel | mm | 150 | ||||||
Tailstock sleeve taper |
| MT5 | ||||||
Position accuracy | mm | ±0.015 | ||||||
Repositioning accuracy | mm | ±0.006 | ||||||
X/Z axis rapid traverse | m/min | 4/6 | ||||||
Spindle motor | kw | 7.5 | 11 | |||||
Machine dimension for 750 | mm | 2550x1550x1700 | 2550x1550x1900 | |||||
Machine dimension for 1000 | mm | 2750x1550x1700 | 2750x1550x1900 | |||||
Machine dimension for 1500 | mm | 3250x1550x1700 | 3250x1550x1900 | |||||
Machine dimension for 2000 | mm | 3700x1550x1700 | 3700x1550x1900 | |||||
Machine dimension for 3000 | mm | 4710x1550x1700 | 4710x1550x1900 | |||||
Machine weight for 750 | kg | 2100/2800 | 2120/2900 | 2250/2850 | 2300/2900 | 2400/3000 | ||
Machine weight for 1000 | kg | 2200/2900 | 2240/3000 | 2400/3000 | 2450/3050 | 2550/3150 | ||
Machine weight for 1500 | kg | 2300/3150 | 2350/3200 | 2600/3200 | 2650/3250 | 2750/3350 | ||
Machine weight for 2000 | kg | 2700/3350 | 2740/3400 | 2830/3400 | 2880/3450 | 2980/3550 | ||
Machine weight for 3000 | kg | 3500/4100 | 3600/4200 | 3650/4250 | 3700/4300 | 3800/4400 | ||
3. Feature
a. High processing precision and stable processing quality;
b. Multi-coordinate linkage can be performed to process parts with complex shapes;
c. When the machining parts are changed, generally only the NC program needs to be changed, which can save production preparation time;
d. The machine tool itself has high precision and rigidity, and can choose favorable processing amount and high productivity (usually 3~5 times of ordinary machine tools);
e. The degree of automation of the machine tool is high, which can reduce the labor intensity;

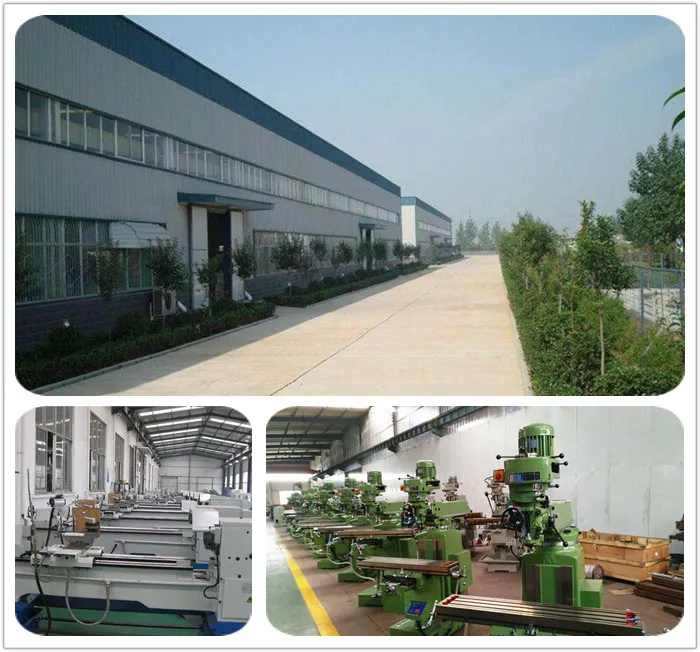

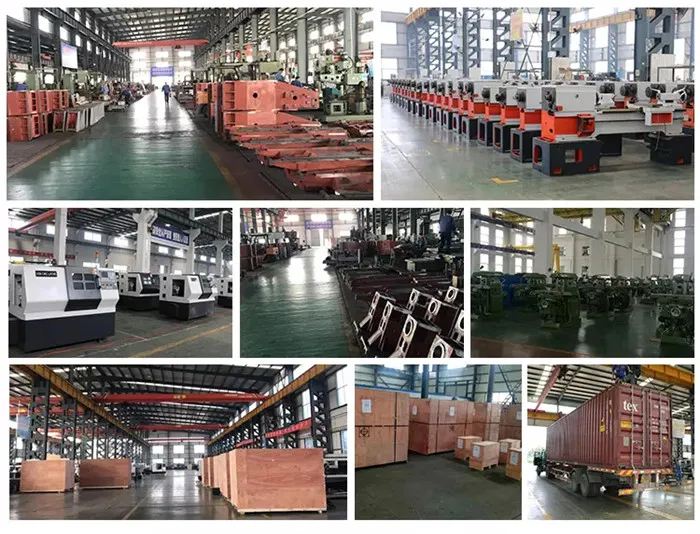

4.About us
5.FAQ
a:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
b: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
c. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
d: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
e: What's the MOQ?
A: 1 set .
We want to know:
a.What's your Industrial Voltage?
b.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
c.If need CIF Price, please kindly tell us the port of destination.
