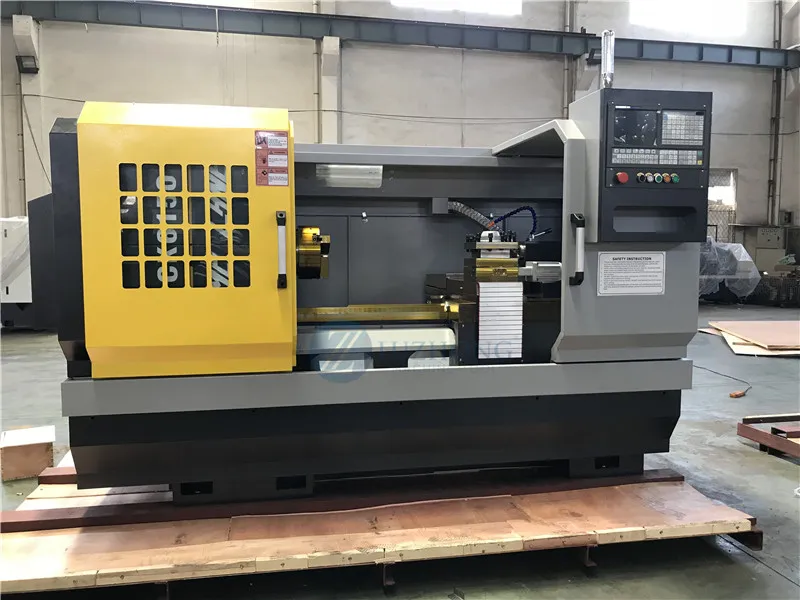

CAK6150V High speed precision cheaper CNC lathe machine manufacture direct sale
CAK6150V High speed precision cheaper CNC lathe machine manufacture direct saleProduct DescriptionProduct ParametersSPECIFICATIONSSPECIFICATIONSUnitsCAK6150VSwing over bedmm500Swing over cross slidemm280Distance between centersmm1000/1500/2000Spindle boremm82 (Optional 130)Spindle bore taper-Metric ......
Send Inquiry
Product Description
SPECIFICATIONS
| SPECIFICATIONS | Units | CAK6150V |
| Swing over bed | mm | 500 |
| Swing over cross slide | mm | 280 |
| Distance between centers | mm | 1000/1500/2000 |
| Spindle bore | mm | 82 (Optional 130) |
| Spindle bore taper | - | Metric φ90/1:20 |
| Spindle nose type | - | A2-8(A2-11) |
| Spindle speed steps | - | Stepless |
| Spindle speed range | rpm | 1800 (Optional 800) |

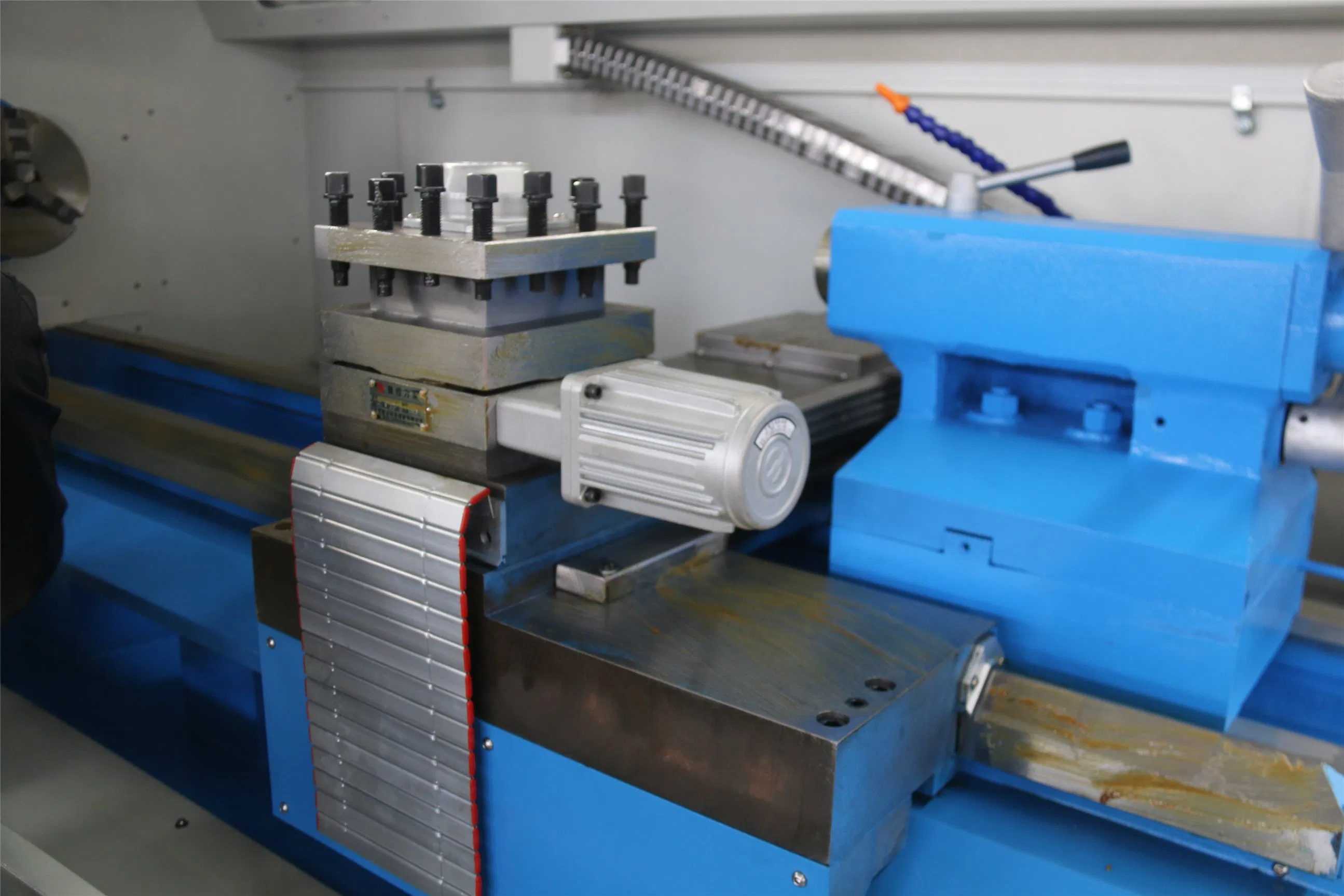

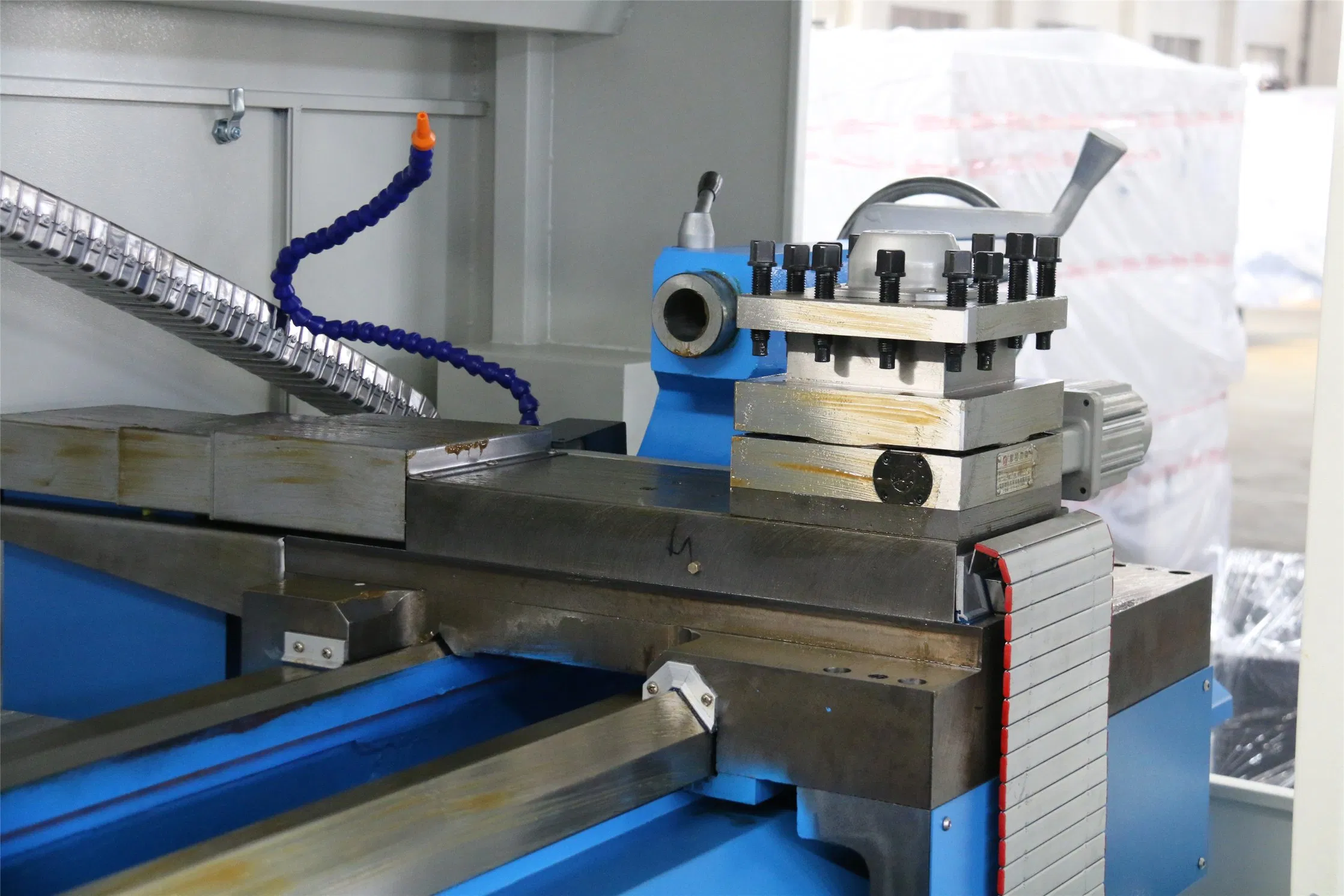

| Turret/tool post | - | Electric 4 position |
| Tool size | mm | 25 x 25 |
| X axis travel | mm | 300 |
| Z axis travel | mm | 1000/1500/2000 |
| X axis rapid traverse | mm/min | 6000 |
| Z axis rapid traverse | mm/min | 10000 |
| Tailstock quill diameter | mm | 75 |
| Tailstock quill taper | - | MT5 |
| Tailstock quill travel | mm | 200 |
| Main spindle motor | kw | 7.5 |
| Coolant pump motor | kw | 0.125 |
| Weight for 1000 | kg | 2900 |
| Weight for 1500 | kg | 3300 |
| Weight for 2000 | kg | 3700 |

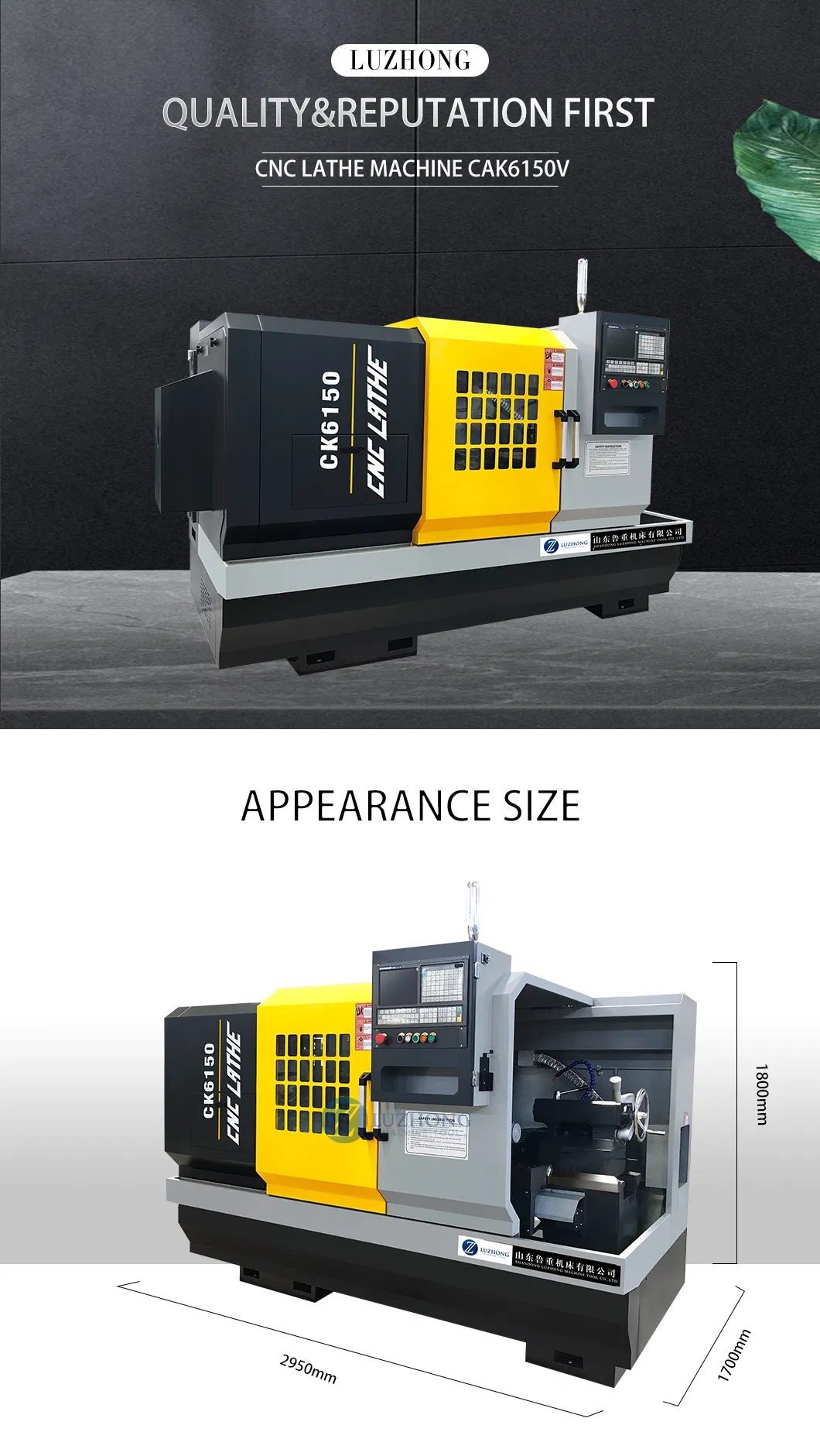

| Dimension for 1000 | mm | 2950x1700x1800 |
| Dimension for 1500 | mm | 3650x1700x1800 |
| Dimension for 2000 | mm | 4250x1700x1800 |
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
