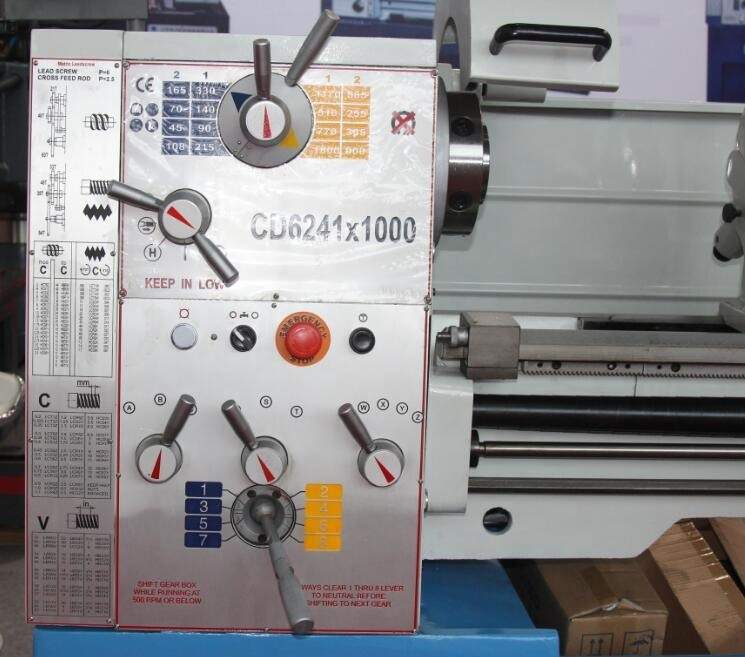

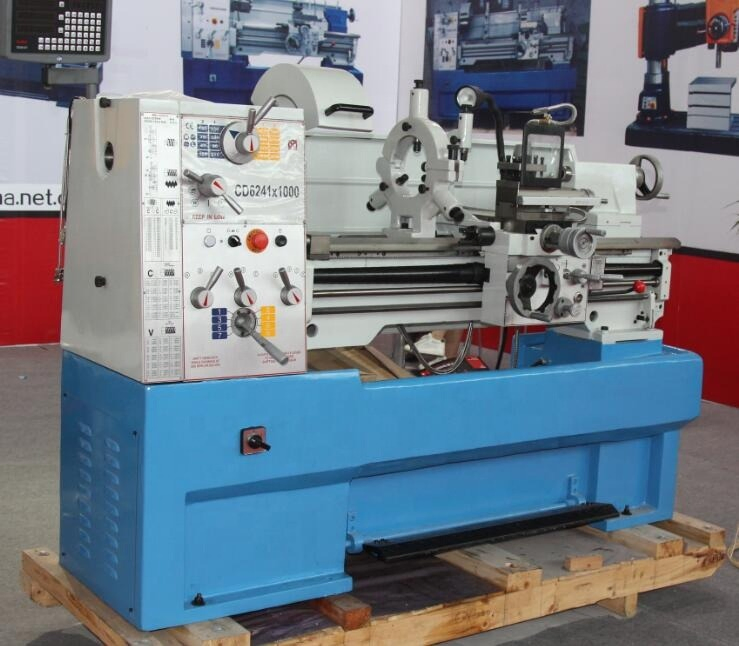

CD6241 410 mm Diameter Engine Manual Lathe Machine
Engine Lathe CD6241 Feature SpecificationsCD6241Swing over bed410mmSwing over cross slide255mmSwing over gap580mmCenter height205mmDistance between centers1000/1500mmWidth of bed250mmMax. section of tool20mmx20mmCross slide travel210mmCompound rest travel140mmSpindle bore52mmSpindle noseD1-6Taper of......
Send Inquiry
Product Description
| Engine Lathe CD6241 Feature |
| Specifications | CD6241 |
| Swing over bed | 410mm |
| Swing over cross slide | 255mm |
| Swing over gap | 580mm |
| Center height | 205mm |
| Distance between centers | 1000/1500mm |
| Width of bed | 250mm |
| Max. section of tool | 20mmx20mm |
| Cross slide travel | 210mm |
| Compound rest travel | 140mm |
| Spindle bore | 52mm |
| Spindle nose | D1-6 |
| Taper of spindle bore | MT6 |
| Spindle steps | 16 |
| Spindle speed | 45-1800rpm |
| Lead screw thread | 4TPI |
| Longitudinal feed imperial | 17 Nos. 0.002-0.067"/rev |
| Longitudinal feed metric | 17 Nos. 0.05-1.7mm/rev |
| Cross feed imperial | 17 Nos. 0.001-0.0335"/rev |
| Cross feed metric | 17 Nos. 0.025-0.85mm/rev |
| Range of inch threads | 45 Nos. 2-72TPI |
| Range of metric threads | 39 Nos. 0.2-14mm |
| Range of diametral pitches | 21 Nos. 8-44DP |
| Range of module pitches | 18 Nos. 0.3-3.5MP |
| Dia. of tailstock sleeve | 50mm |
| Tailstock travel | 120mm |
| Tailstock taper | MT4 |
| Power of main motor | 2.2/3.3KW(optional 3/4.5KW) |
| Power of coolant pump | 90W |
| N.W/G.W | 1550/1950kg(1000mm) 1760/2210kg(1500mm) |
| Packing size | 203x82x162cm 253x89x162cm |
| Standard Accessories | Optional Accessories |
| ·3 jaw chuck | ·Taper turning attachment |
| ·Change gears set | ·Live center |
| ·Chasing dial indicator | ·Working light |
| ·Reduction sleeve | ·Leadscrew guard |
| ·Dead center | ·Chuck guard |
| ·Splash guard | ·Drill chuck & drill arbor |
| ·Coolant system | ·Quick change tool post |
| ·Foot brake | ·DRO |
| ·4 jaw chuck | |
| ·Face plate | |
| ·Follow rest | |

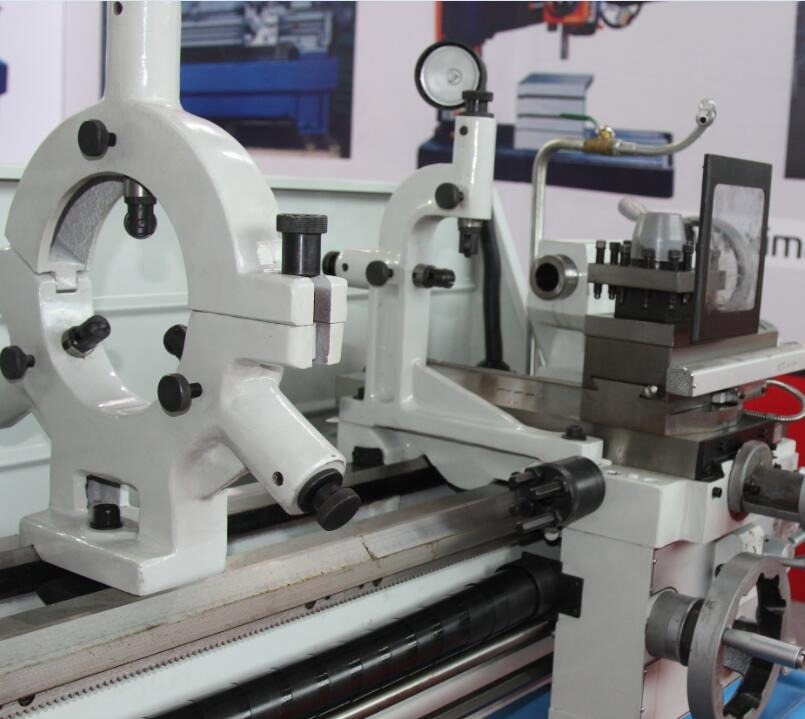

| ·Steady rest | |
| ·Toolbox & tools |
Our Services
What we can do for you?
1. Experienced staffs answer all your questions in time.
2. Customized design is available, more details to let you know our machines well.
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
