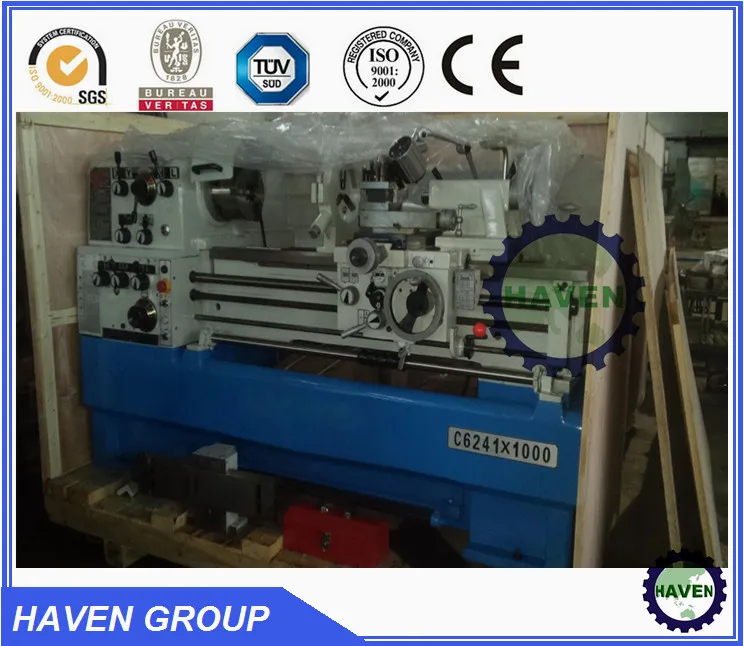

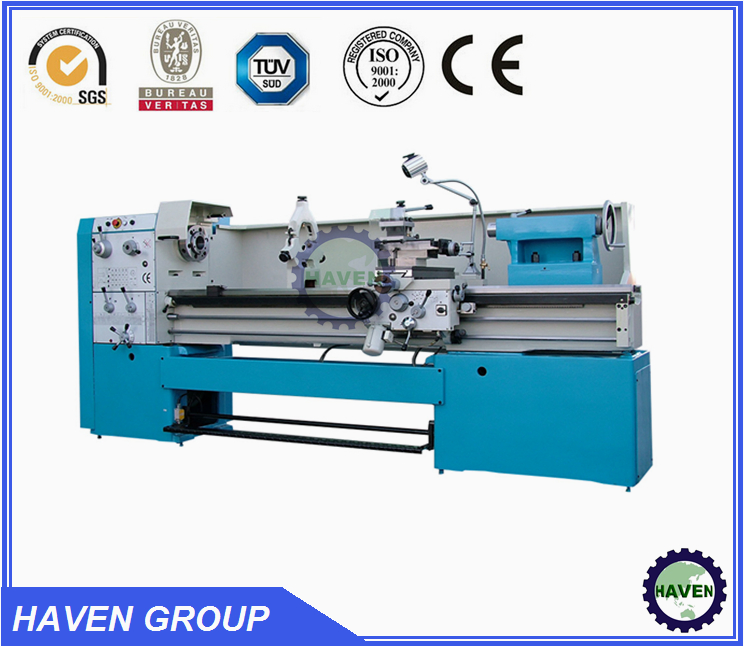

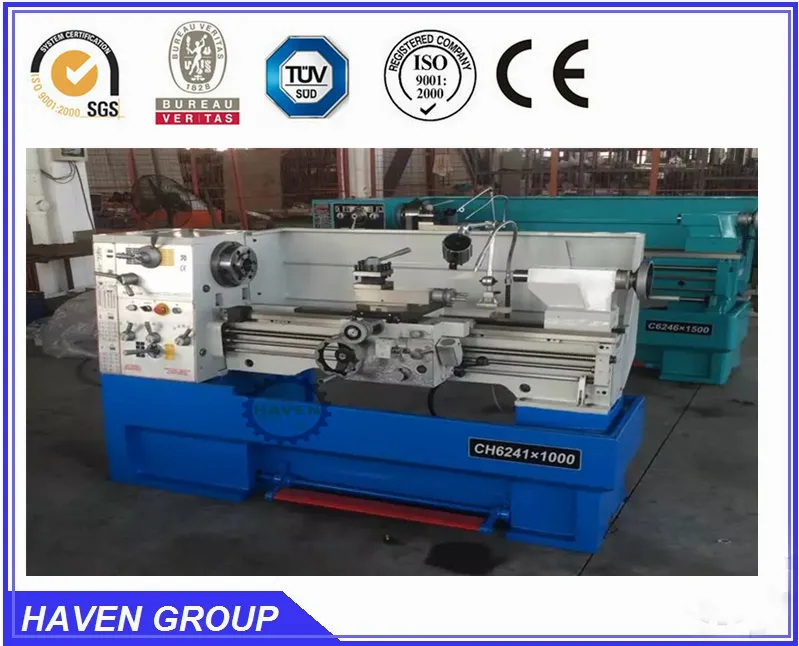

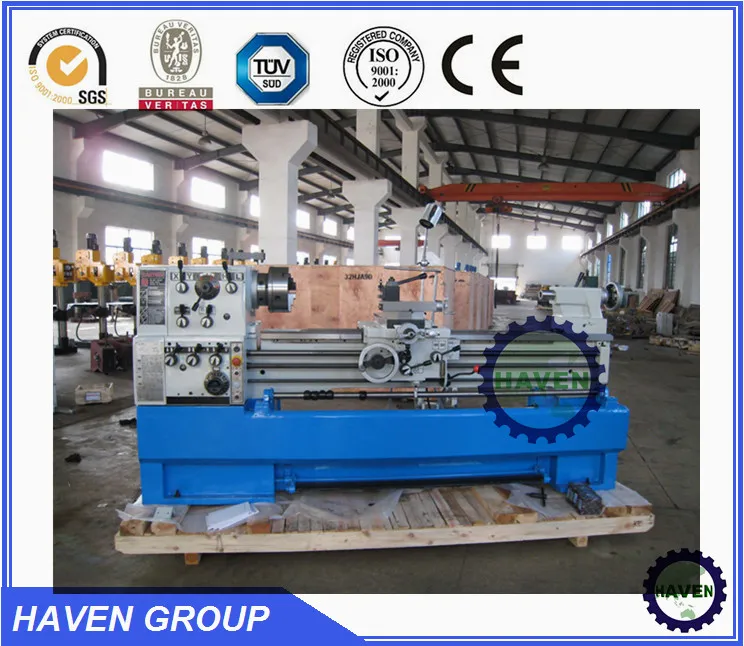

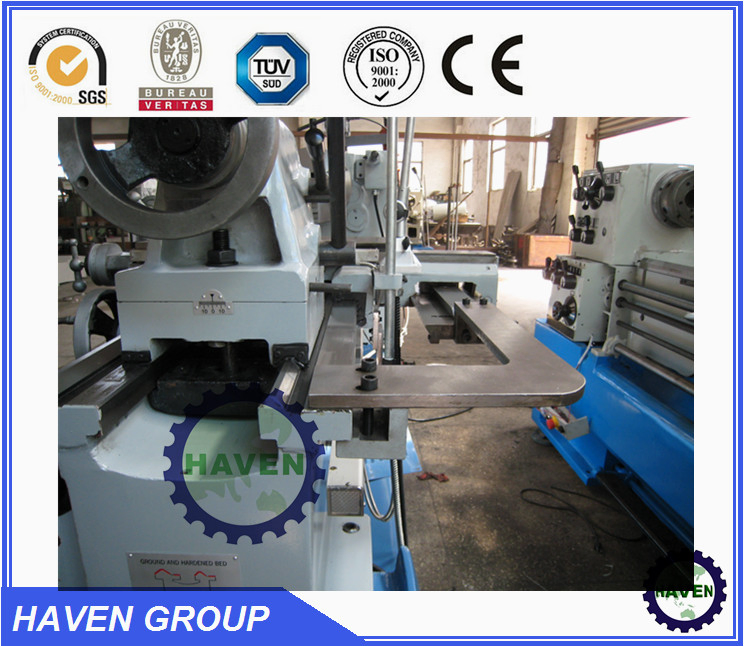

CD6241 Horizontal Gap Bed Lathe Machine
Main specification:
| Model | CD6241×1000 | CD6241×1500 |
| Max.swing over bed | Φ410mm(16") | |
| Max.swing over cross slide | Φ255mm(10") | |
| Max. swing over gap | Φ580mm(23") | |
| Center height | 205mm(8") | |
| Distance between centers | 1000mm(40")/1500mm(60") | |
| Width of bed | 250mm(10") | |
| Max.section of tool | 20mm×20mm(3/4"×3/4") | |
| Max.travel of cross slide | 210mm(8 1/2") | |
| Max.travel of compound rese | 140mm(5 1/2") | |
| Spindle bore | Φ52mm(2") | |
| Spindle nose | D1-6 | |
| Taper of spindle speed | M.T.#6 | |
| Range of spindle speed | 16changes25-1800r/min | |
| Leadscrew pitch | 4 T.P.I. | |
| Range of metric longitudinal feeds range | 0.05-1.7mm/rev(17 Nos) | |
| Range of inch longitudinal feeds | 0.002"-0.067"/rev (17 Nos) | |
| Range of metric cross feeds | 0.025-0.85mm/rev (17 Nos) | |
| Range of inch cross feeds | 0.001"-0.0335"/rev (17 Nos) | |
| Range of metric threads | 0.2-14mm(NO. 39) | |
| Range of inch threads | 2-72 T.P.I.(NO. 45) | |
| Range of Diametrical pitch | 8-44D.P.(21Nos) | |
| Range of module pitches | 0.3-3.5 M.P.(18Nos) | |
| Dia. of tailstock sleeve | 50mm(2") | |
| Travel of tailstock sleeve | 120mm(4 3/4") | |
| Morse taper of tailstock sleeve | M.T.#4 | |
| Power of main motor | 2.2/3.3kw(optional 3/5.5kw) | |
| Power of coolant pump | 4P,3PH 90W | |
| Overall diamension(L*W*H) | 1940mm×850mm×1320mm | |
| Packing size(L*W*H) | 2070mm×940mm×1600mm | |
| N.W/G.W | 1550kg/1760kg | |
