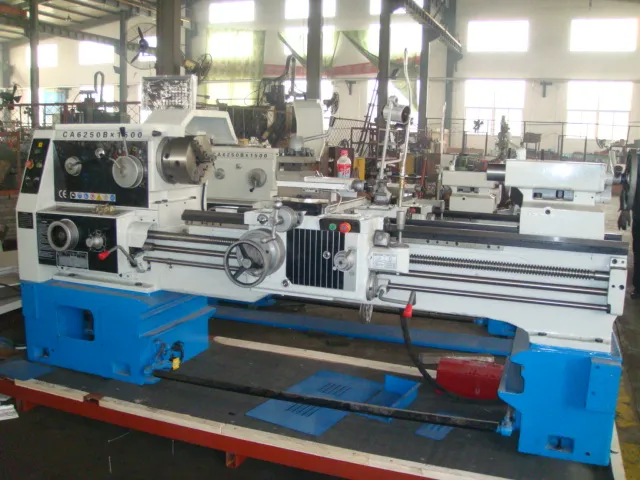

Center Machine Mechanical Lathe Ca6240X1500mm
big bore lathe machineCA6240x1500 mm Specification lathe machine CA6140 CA6240 CA6140B CA6240BMax .Swing over bed 400mmMax .Swing over carriage 210mmMax .Swing in gap ......
Send Inquiry
Product Description

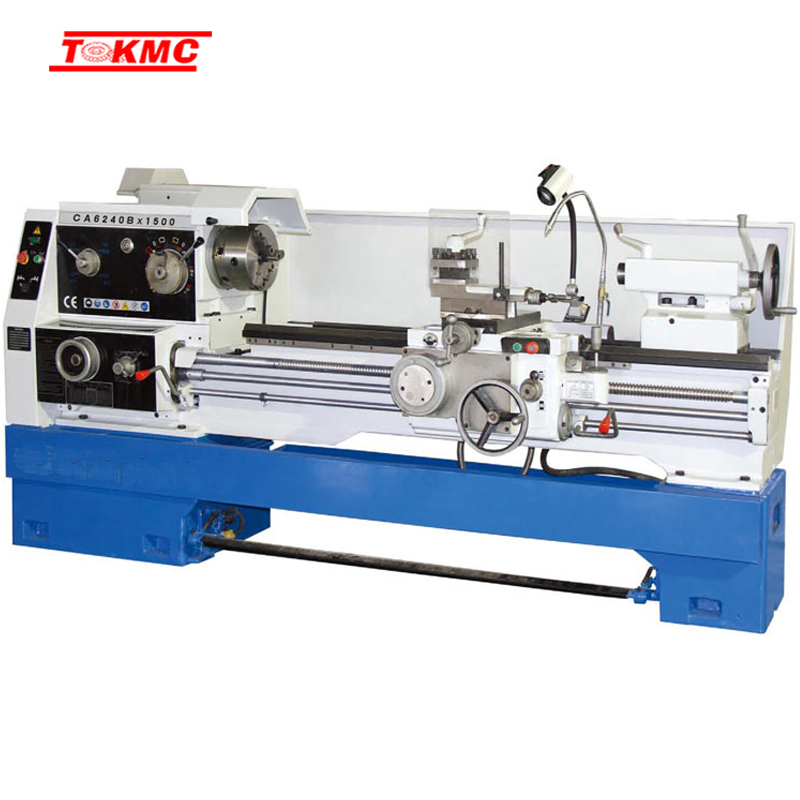

big bore lathe machineCA6240x1500 mm
| Specification lathe machine | CA6140 CA6240 | ||||
| CA6140B CA6240B | |||||
| Max .Swing over bed | 400mm | ||||
| Max .Swing over carriage | 210mm | ||||
| Max .Swing in gap | -- | 630mm | |||
| Effective gap length | -- | 210mm | |||
| Max .length of work piece | 750/1000/1500/2000/2200/3000mm | ||||
| Width of bed | 400mm | ||||
| Section of turning tool | 25×25mm | ||||
| Spindle | Spindle speed | 10-1400rpm/16-1400rpm(24steps) | |||
| Hole through spindle | 52mm ,(80mm),[105mm] | ||||
| Spindle taper | No.6(MT6)(Φ90 1:20)[Φ113:20] | ||||
| Feed | No. of feed | (64 kinds)(for each) | |||
| Range of metric threads | (1-192mm) (44 kinds) | ||||
| Range of inch threads | (1-24tpi) (21kinds) | ||||
| Range of module threads | 0.25-48 (module 39 kinds) | ||||
| Range of diametral pitc threads | 1-96DP (37 kinds) | ||||
| Tailstock | Max. tailstock spindle travel | 150mm | |||
| Tailstock spindle diameter | 75mm | ||||
| Taper of tailstock spindle center hole | NO.5 (MT5) | ||||
| Main motor | 7.5KW(10HP) | ||||
| (L×W×H mm) | Overall dimensions for 1000mm | 2650×1140×1750 | |||
| Overall dimensions for 1500mm | 3150×1140×1750 | ||||
| Overall dimensions for 2000mm | 3650×1140×1750 | ||||
| Overall dimensions for 2200mm | 4030×1140×1750 | ||||
| Overall dimensions for 3000mm | 4800×1140×1750 | ||||
| Weight(kg) | Length | G.W. N.W. | |||
| Overall dimensions for 1000mm | 2190 2070 | ||||
| Overall dimensions for 1500mm | 2350 2220 | ||||
| Overall dimensions for 2000mm | 2720 2570 | ||||
| Overall dimensions for 2200mm | 2800 2600 | ||||
| Overall dimensions for 3000mm | 3300 3200 | ||||
