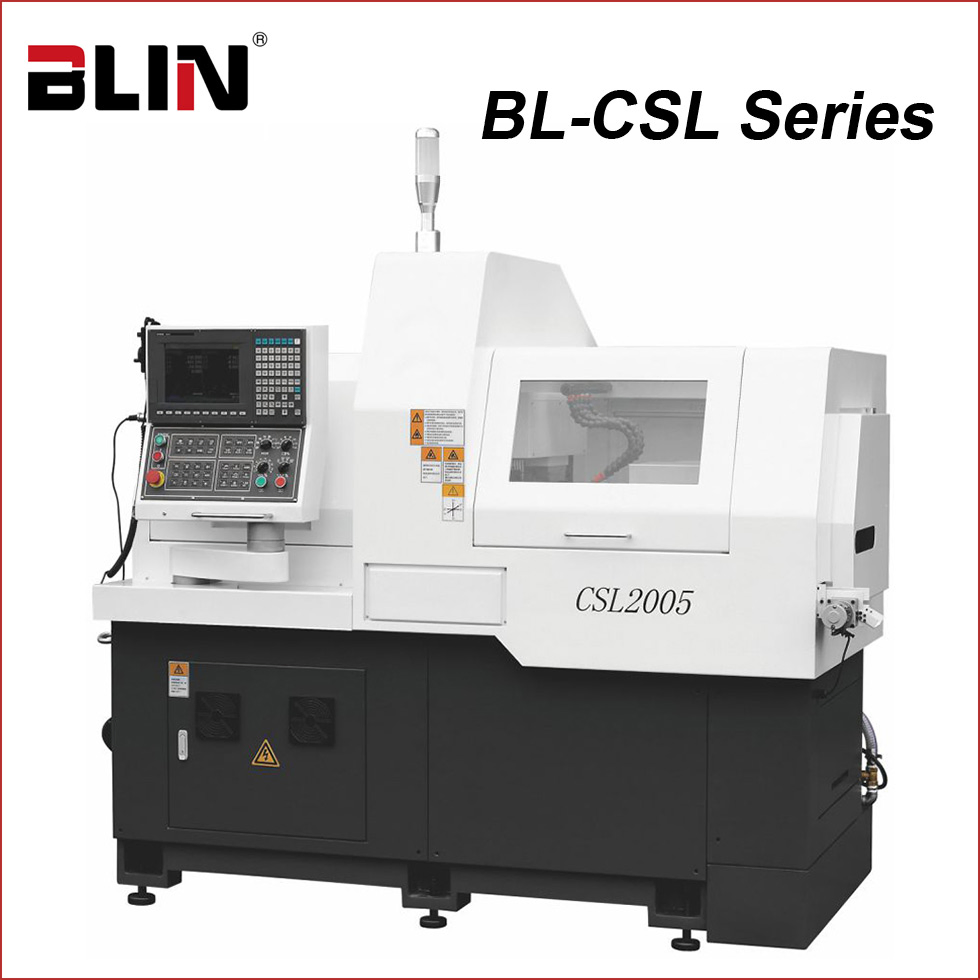

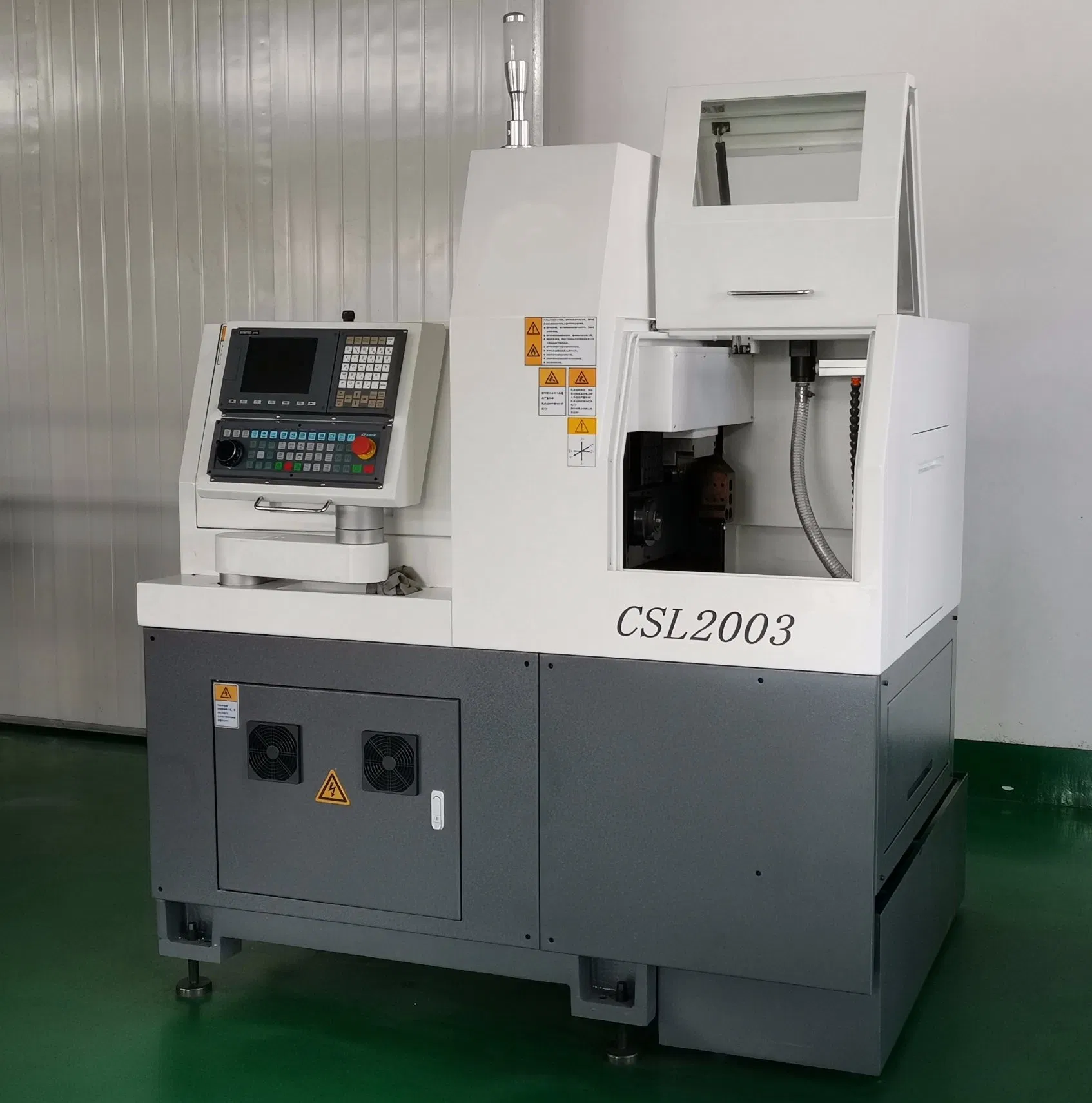

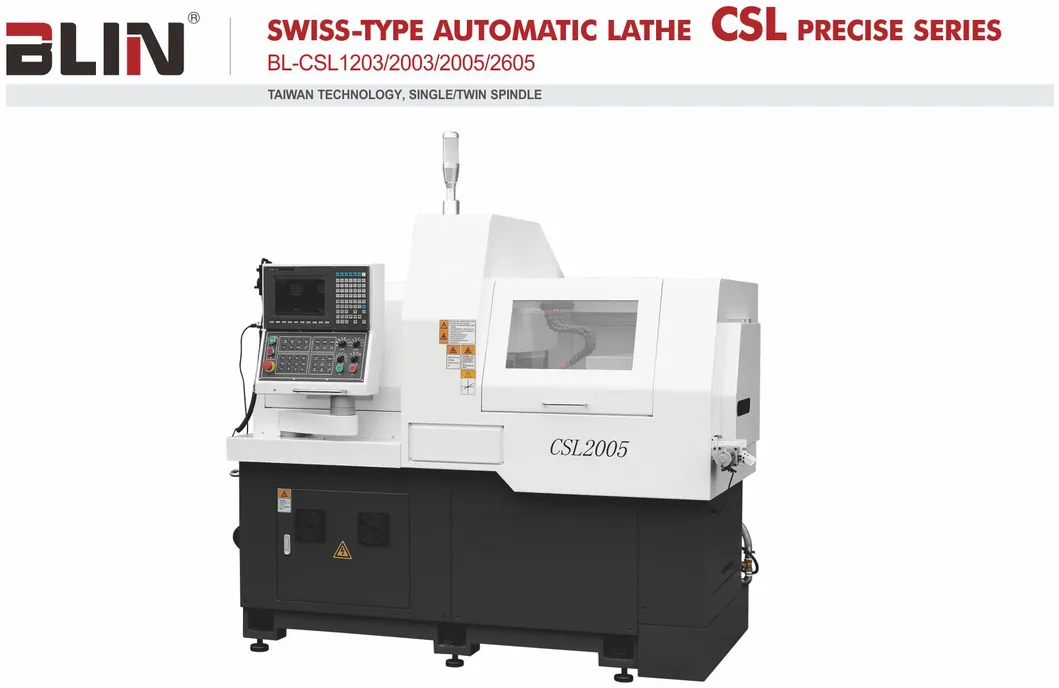

CNC Lathe Tool, Lathe Machine CNC, Horizontal Lathe (BL-CSL1203/2003/2005/2605)
-Adopt TAIWAN technology,most parts adopt GERMANY/JAPAN/TAIWAN brand-Adopt HT300 resin sand cast iron, after aging treatment, small distortion, good heat stability and high rigidity -Adopt high precision built-in electric main spindle,NSK super high precise angle contact ball bearing, achieve spi......
Send Inquiry
Product Description
-Adopt TAIWAN technology,most parts adopt GERMANY/JAPAN/TAIWAN brand
-Adopt HT300 resin sand cast iron, after aging treatment, small distortion, good heat stability and high rigidity
-Adopt high precision built-in electric main spindle,NSK super high precise angle contact ball bearing, achieve spindle's high rigidity and good precision retention,spindle flop≤2μm
-Adopt high precision ball screw and linear guideway, repeat positioning accuracy ≤3μm
-Can select guide bushless or fixed guide bushing type or rotary guide bushing type

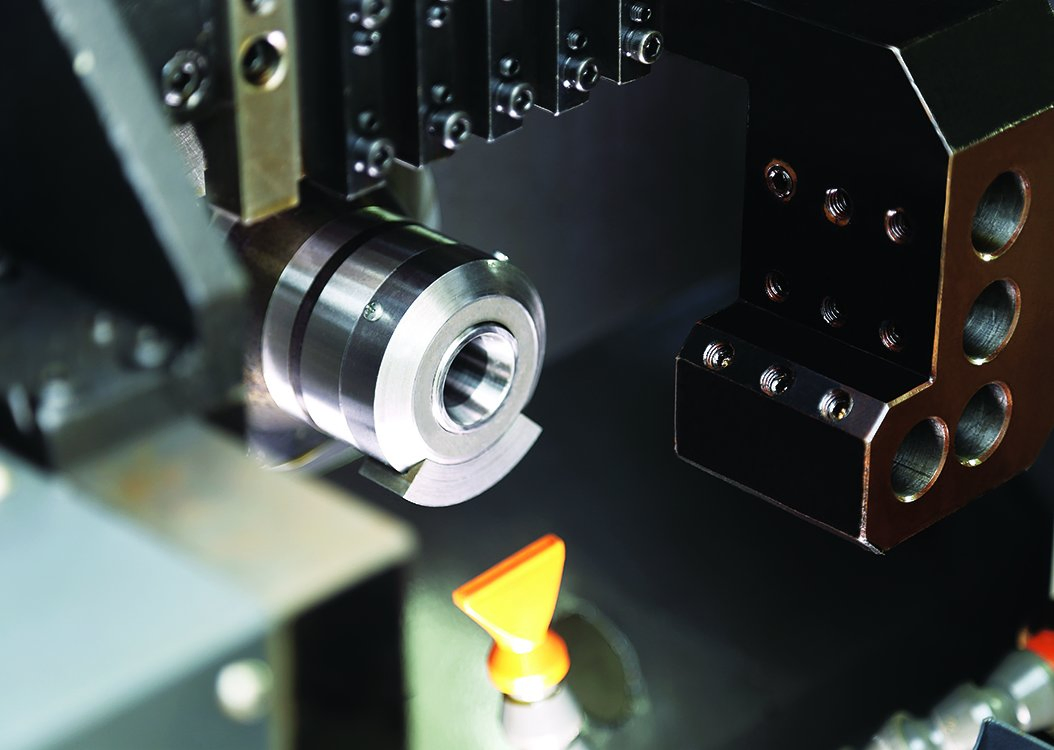

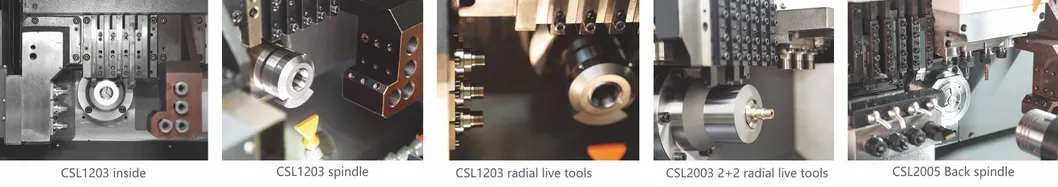

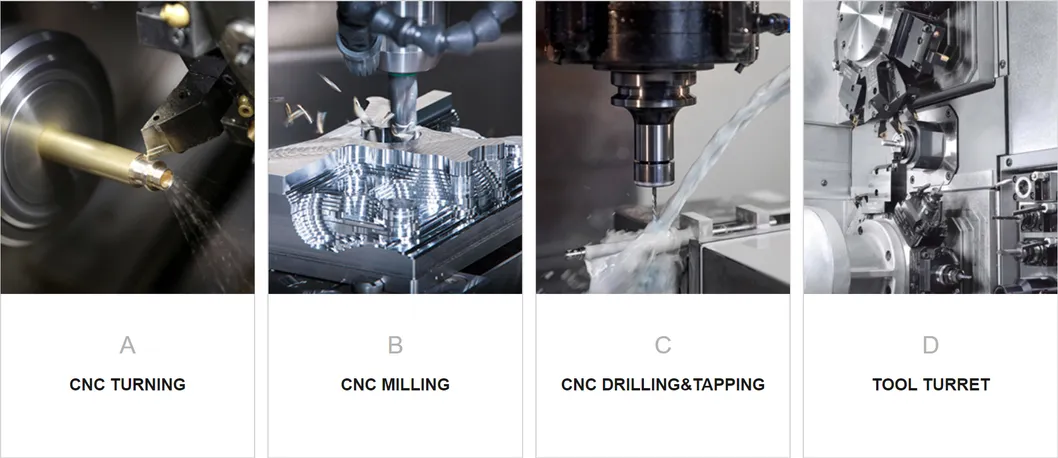

-Adopt gang type tool, can achieve various machining by side-mounted live tool and C axes

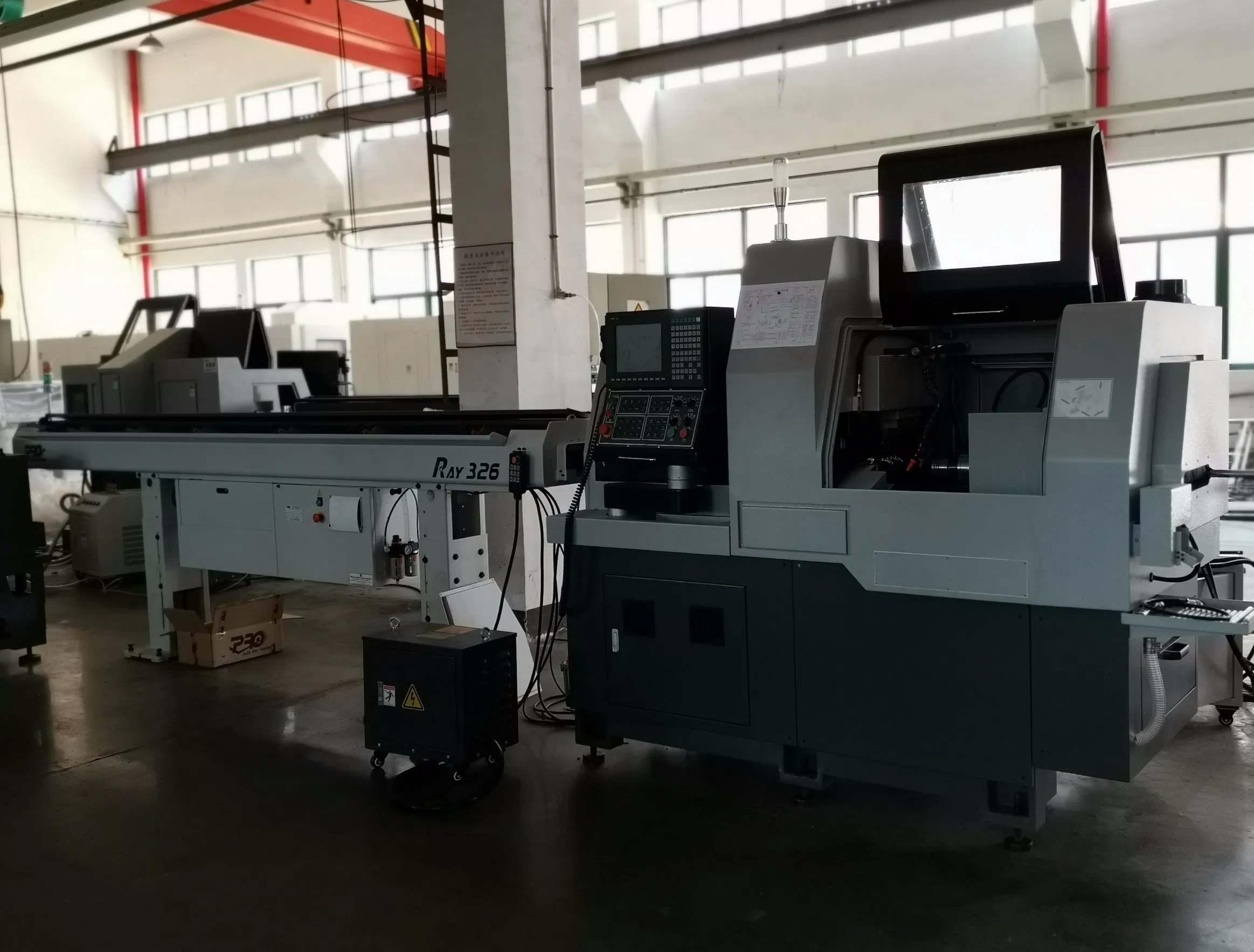

-After mount automatic bar feeder, can realize automatic machining
-Suitable for complex, small-sized,precise,slender axles workpiece machining
Details:
| Item | Unit | BL-CSL1203 | BL-CSL2003 | BL-CSL2005 | BL-CSL2605 | |
| Max. machineable bar dia. | mm | Φ12 | Φ20 | Φ20 | Φ24 | |
| Main spindle bore | mm | Φ16 | Φ25 | Φ25 | Φ26 | |
| Max. machineable length | Fixed guide bushing | mm | 140 | 200 | 200 | 200 |
| Rotary guide bushing | mm | 50 | 180 | 180 | 180 | |
| Guide bushless | mm | / | 50 | 50 | 50 | |
| Max. clamping dia. of back spindle | mm | / | / | Φ20 | Φ24 | |
| Max. face drilling dia. | mm | Φ7 | Φ10 | Φ10 | Φ10 | |
| Max. face tapping dia. | mm | M6 | M8 | M8 | M8 | |
| Main spindle speed | rpm | 8000 | 6000 | 6000 | 6000 | |
| Back spindle speed | rpm | / | / | 6000 | 6000 | |
| Live tool speed | rpm | 5000(opt.) | 5000 | 5000 | 5000 | |
| Rapid moving speed(X/Y/Z/X1/Z1) | m/min | 20/24/24 | 20/24/24 | 20/24/24/24/24 | 20/24/24/24/24 | |
| Spindle flopping | mm | ≤0.002 | ≤0.002 | ≤0.002 | ≤0.002 | |
| Repeat positioning accuracy | mm | ≤0.003 | ≤0.003 | ≤0.003 | ≤0.003 | |
| O.D. tool | mm | 5(10) | 5(12) | 5(12) | 5(12) | |
| Axial drilling tool | / | 4(ER11) | 4(ER16) | 4(ER16) | 4(ER16) | |
| Radial live tool | / | 3(ER11)(opt.) | 2(ER11)+2(ER16) | 2(ER11)+2(ER16) | 2(ER11)+2(ER16) | |
| Back drilling tool | / | / | / | 4(ER16) | 4(ER16) | |
| Main spindle power | kw | 3.7 | 4.2 | 4.2 | 4.2 | |
| Back spindle power | kw | / | / | 4.2 | 4.2 | |
| Side live tool motor power | kw | 0.4(opt.) | 0.75 | 0.75 | 0.75 | |
| Coolant pump | kw | 0.22 | 0.22 | 0.46 | 0.46 | |
| Overall size | mm | 1510×1000×1660 | 1600×1250×1760 | 2000×1300×1750 | 2000×1300×1750 | |
| N.W. | kg | 1200 | 2000 | 2500 | 2500 | |
Main parts list:
| Item | Brand |
| CNC controller | TAIWAN-SYNTEC |
| Spindle driver | TAIWAN-SYNTEC |
| Servo electric spindle | Own-made |
| Ball screw | TAIWAN-HIWIN |
| Linear guideway | TAIWAN HIWIN |
| Spindle and ball screw bearing | JAPAN-NSK |
| Lubrication system | JAPAN-HERG |
| Main electricity parts | FRANCE-SCHNEIDER |
| Pneumatic parts | TAWAN-AIRTAC |
| Nuts | TAIWAN-YINSH |
| Shaft coulping | GERMANY-KTR |
Standard configuration:
-SYNTEC 21TB/210TB CNC controller
-Fixed guide bushing
-Live tool
Other models choice:

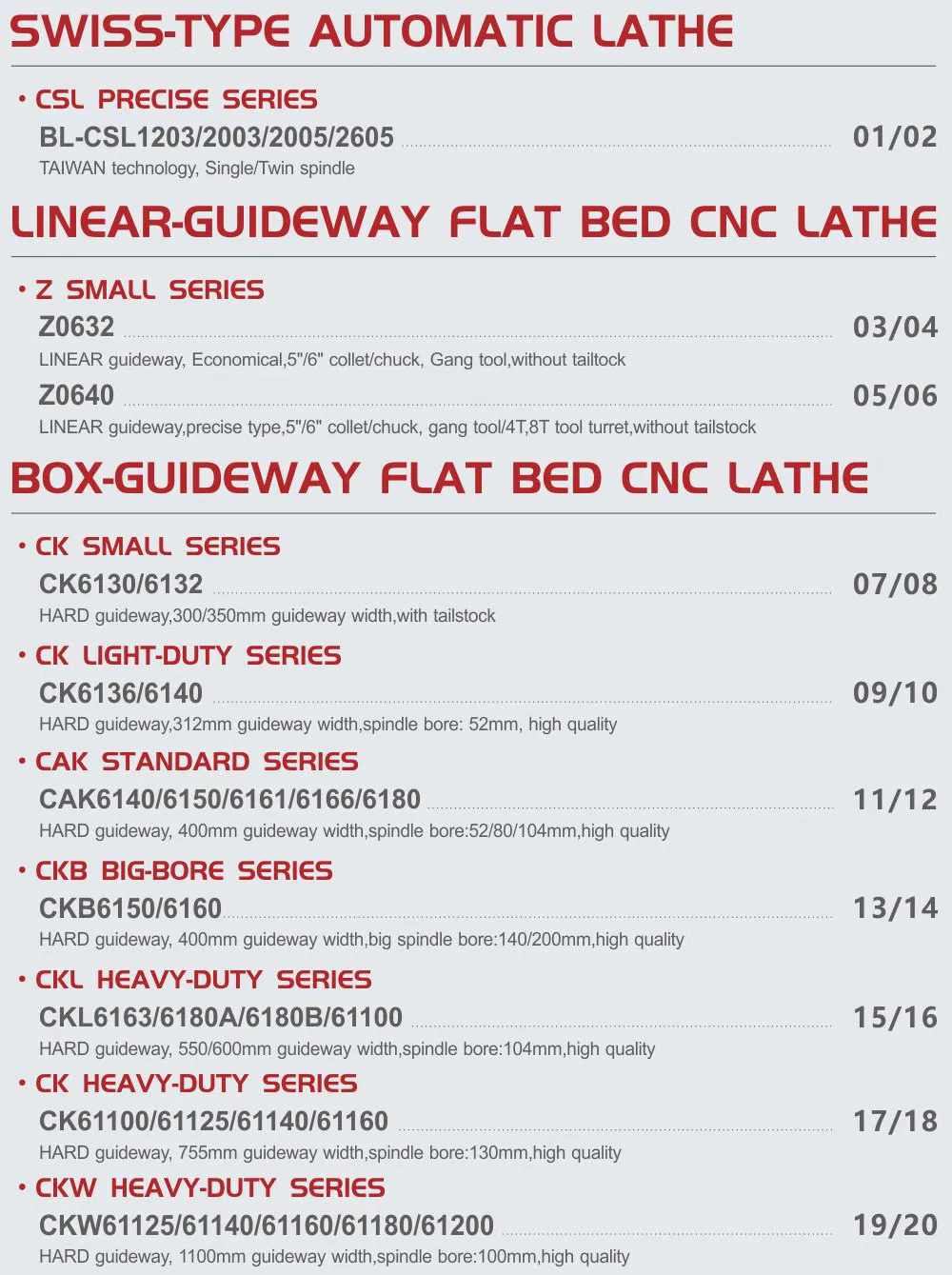

All our machines range:

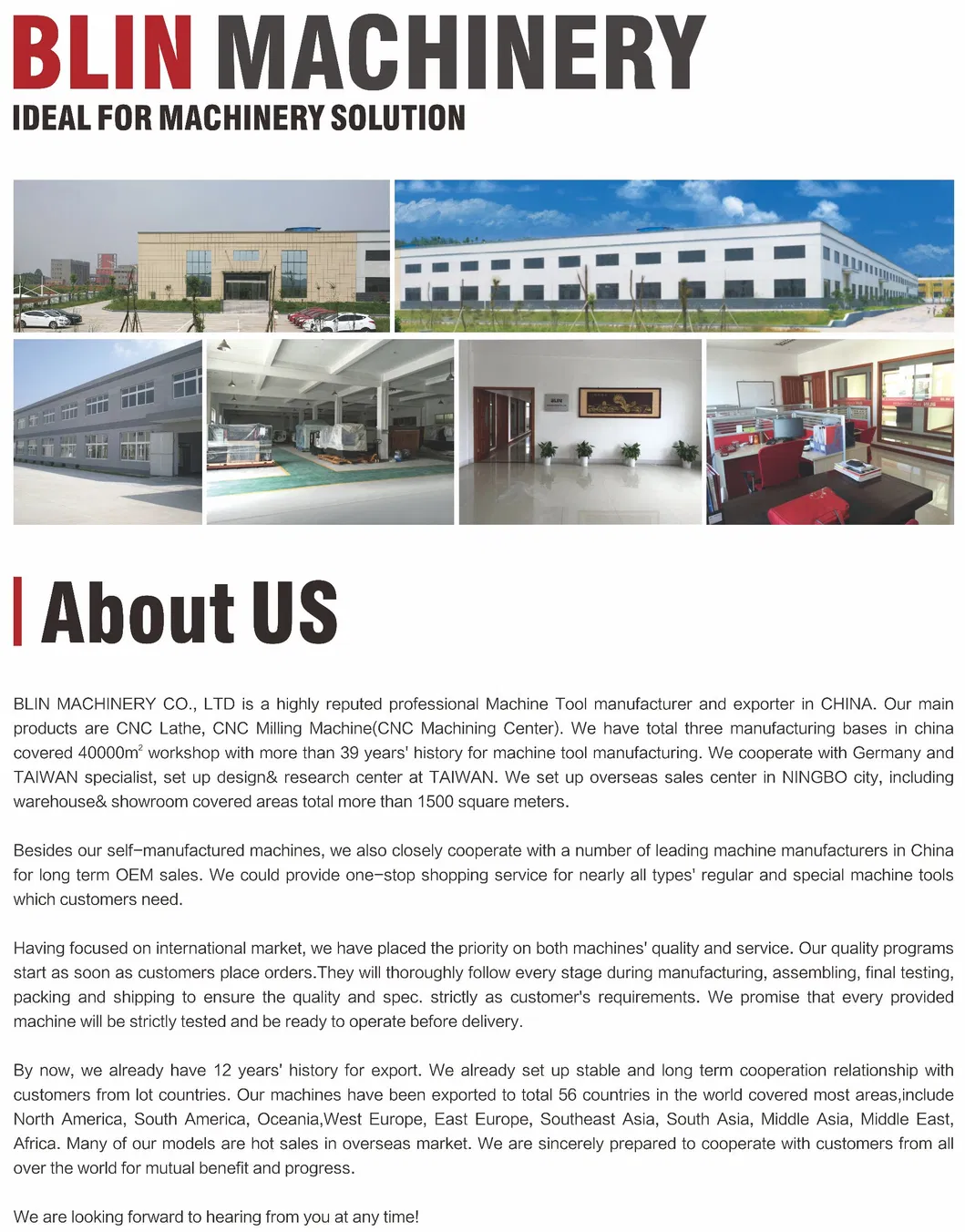

About Us:
