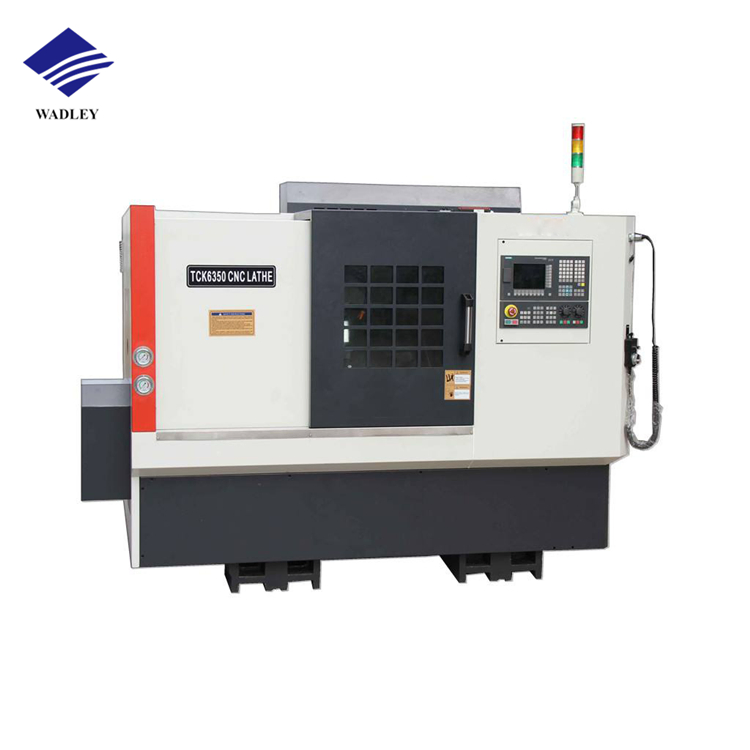

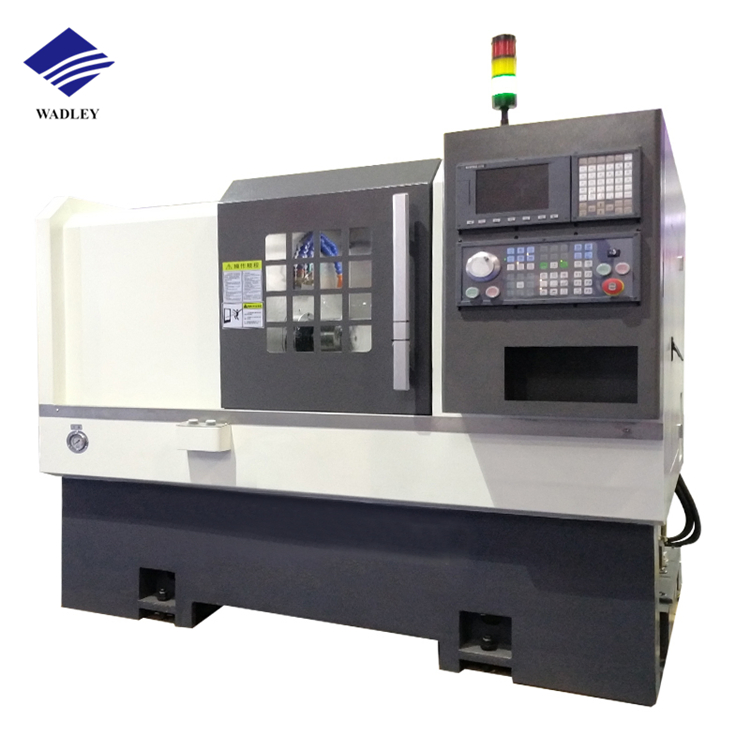

CNC Machinery Tck500 CNC Lathe Machine for Making Car Wheels
1. Product descriptionThe machine are the slant bed cnc machine tools of higher speed ,higher precision and higher reliability.The spindle is in unit structure ,servo main motor for high speed.The hydraulic chuck is employed for clamping the workpiece ,which makes the clamping by 5 angular ,3 of whi......
Send Inquiry
Product Description

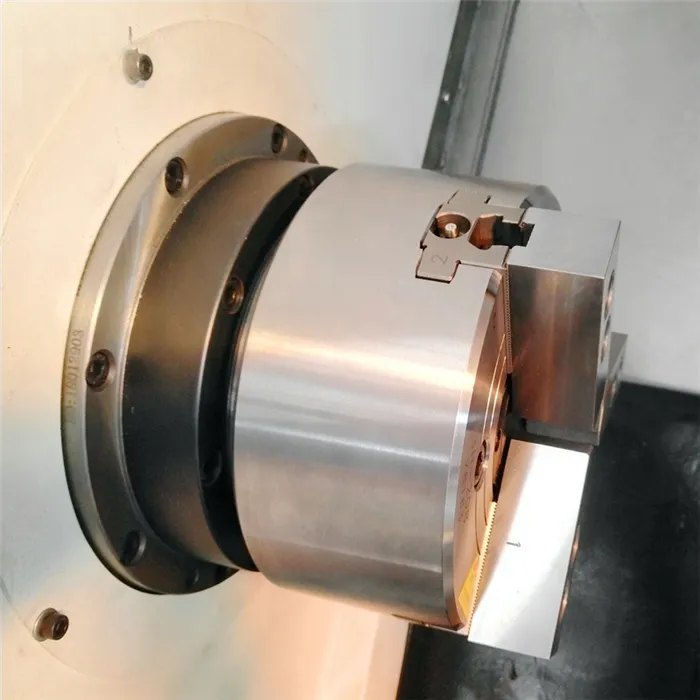

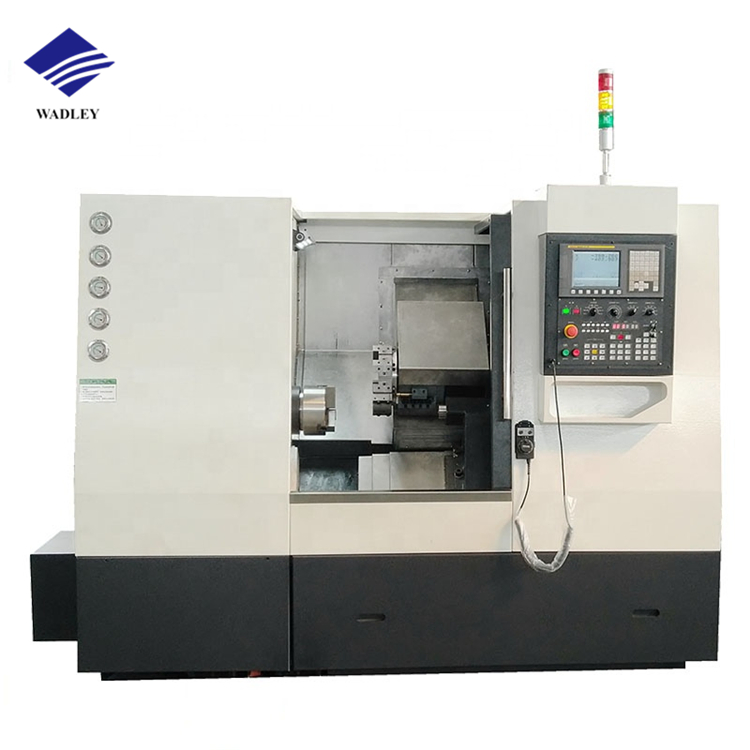

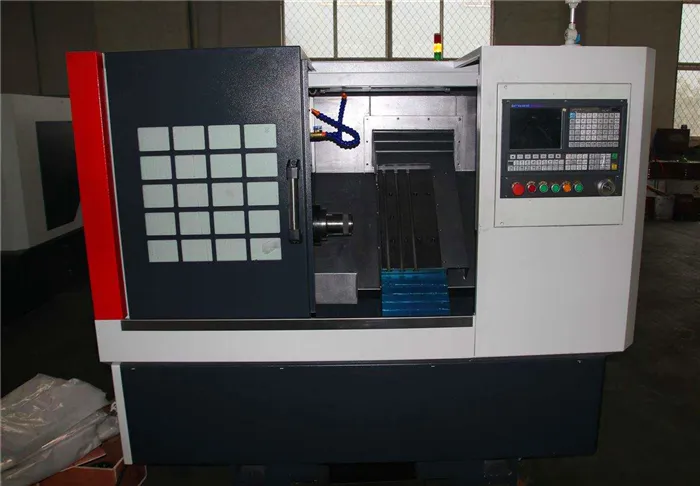

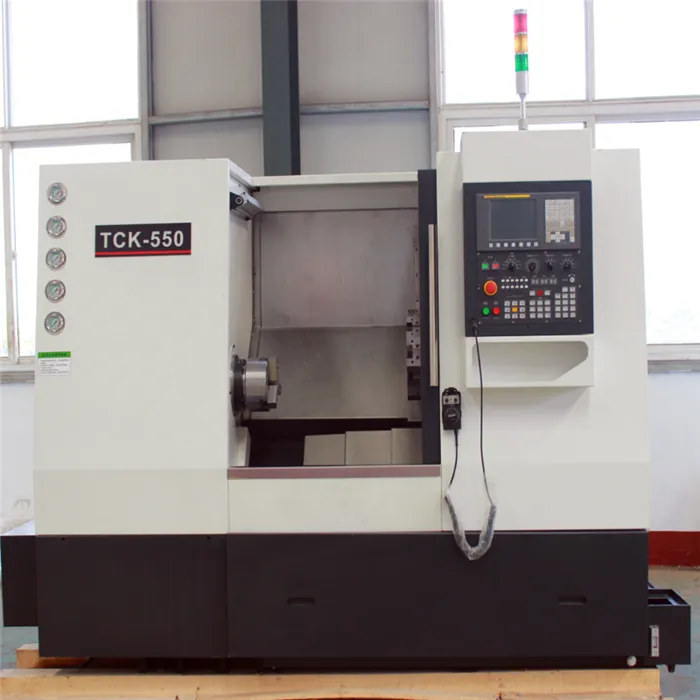

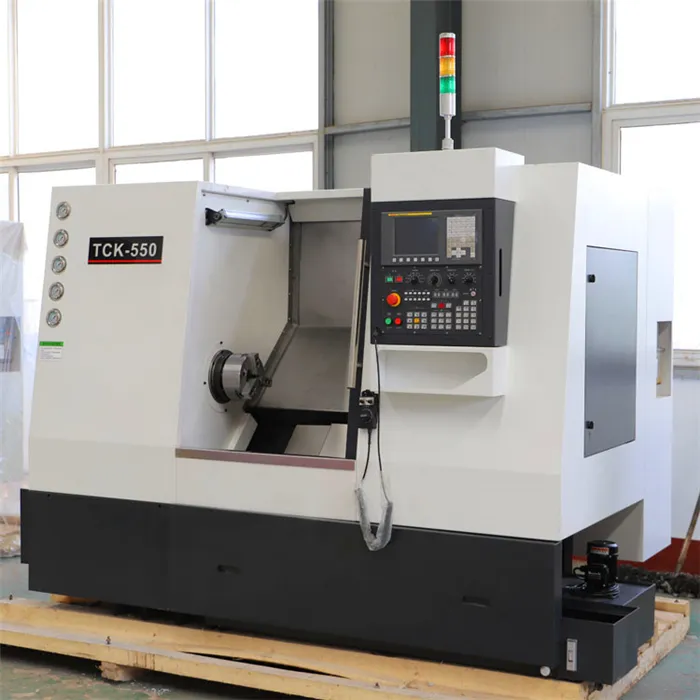

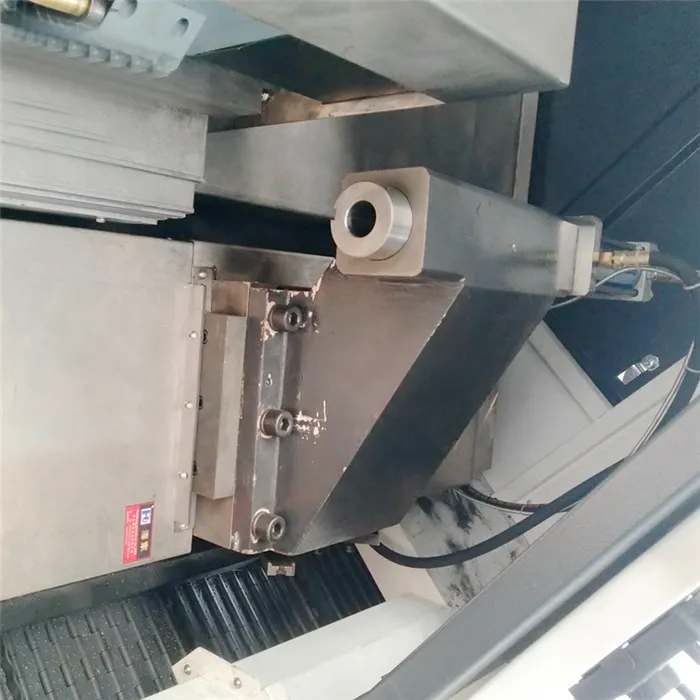

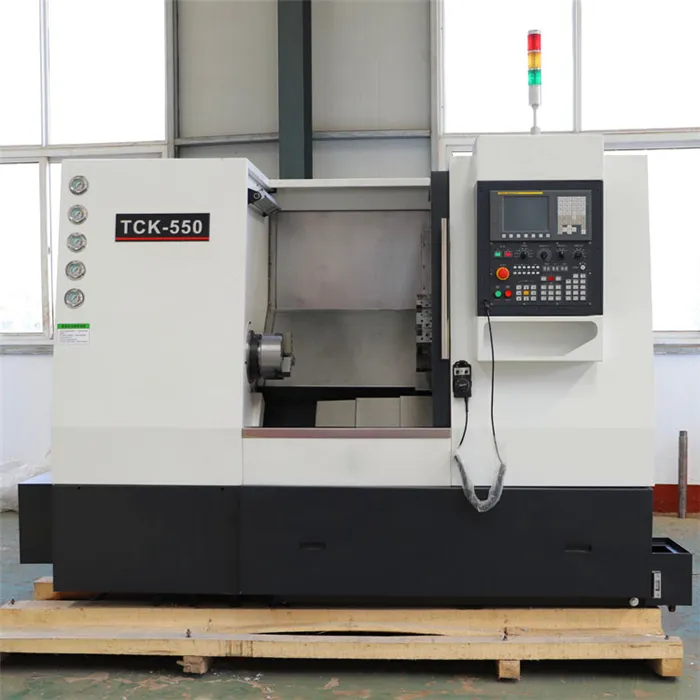

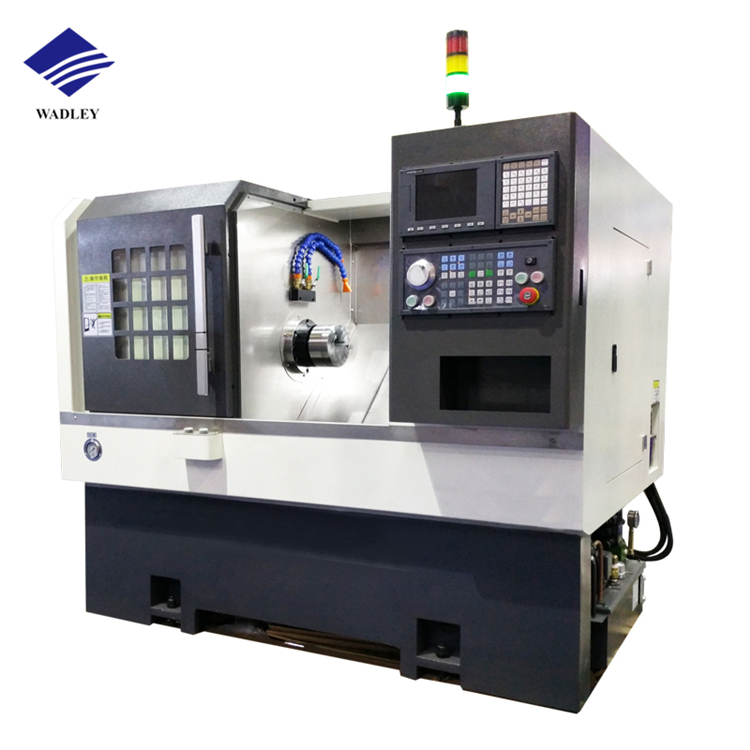

The machine are the slant bed cnc machine tools of higher speed ,higher precision and higher reliability.The spindle is in unit structure ,servo main motor for high speed.The hydraulic chuck is employed for clamping the workpiece ,which makes the clamping by 5 angular ,3 of which are placed in the front and 2 in the back.It makes the higher speed and higher rigidity .Machine adopts 30 degree oblique slide saddle and liner guide rail ,stronger in rigidity,faster in feeding speed and easier in chip removal .The X and Z axis screws are in the middle of the carriage ,well-distributed in force,smooth in movement ,higher in speed .
2. Machine details
| Specification | Unit | TCK420 | TCK500 | TCK520 |
| Max.swing over bed | mm | 420 | 500 | 520 |
| Max.swing over cross slide | mm | 200 | 220 | 320 |
| Max.processing length | mm | 400 | 500 | 500 |
| X/Z axis max.travel | mm | 160/400 | 220/500 | 220/500 |
| Spindle nose | A2-6 | A2-6 | A2-8 | |
| Spindle bore | mm | 66 | 66 | 80 |
| Bar capacity | mm | 50 | 50 | 60 |
| Max.spindle speed | rpm | 3000 | 3000 | 2500 |
| Chuck | in | 8 | 8 | 10 |
| Spindle motor power | kw | 5.5 | 7.5 | 7.5 |
| X/Z axis repeatability | mm | +/-0.003 | 0.003 | 0.003 |
| X/Z axis feed motor torque | N.M | 5/7.5 | 7.5/7.5 | 7.5/7.5 |
| X/Z rapid traverse | M/min | 12 | 10 | 10 |
| Tailstock travel | mm | 350 | 350 | 350 |
| Quill travel | mm | 90 | 90 | 100 |
| Tailstock taper | MT4 | MT5 | MT5 | |

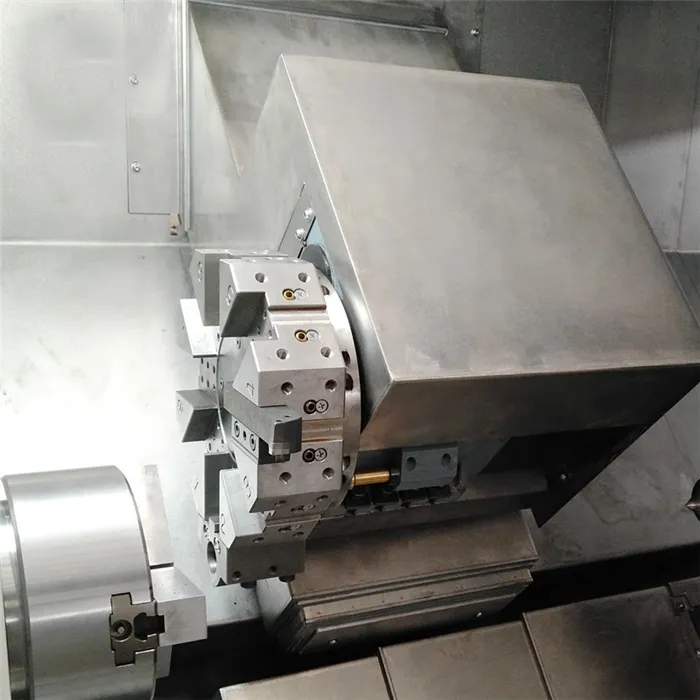

| Tool post type | mm | 8 station hydraulic turret | 8 station hydraulic turret | 8 station hydraulic turret |
| Tool post size | mm | 20x20 | 25x25 | 25x25 |
| Guide form | 30° degree | 30° degree | 30° degree | |
| Guide rail movement way | Linear guide rail | Linear guide rail | Linear guide rail | |
| Total power capacity | KVA | 11 | 15 | 15 |
| Machine dimensions(L*W*H) | mm | 2300*1500*1650 | 2450*1600*1700 | 2450*1600*1700 |
| Weight | kg | 3000 | 4000 | 4200 |
3. Feature
a. High processing precision and stable processing quality;
b. Multi-coordinate linkage can be performed to process parts with complex shapes;
c. When the machining parts are changed, generally only the NC program needs to be changed, which can save production preparation time;
d. The machine tool itself has high precision and rigidity, and can choose favorable processing amount and high productivity (usually 3~5 times of ordinary machine tools);
e. The degree of automation of the machine tool is high, which can reduce the labor intensity;
