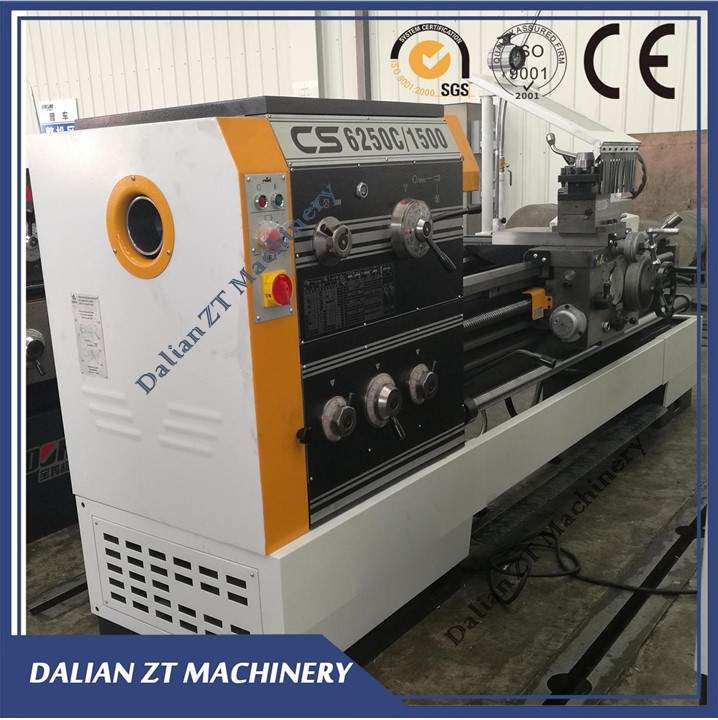

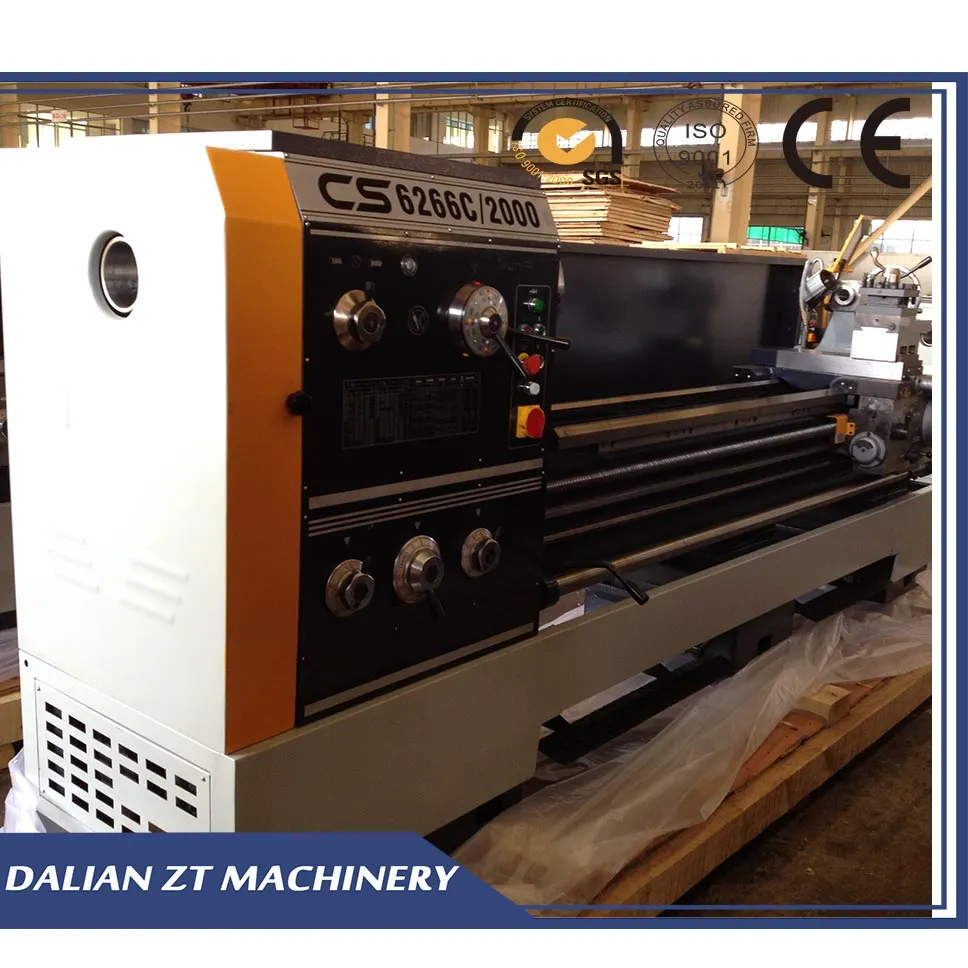

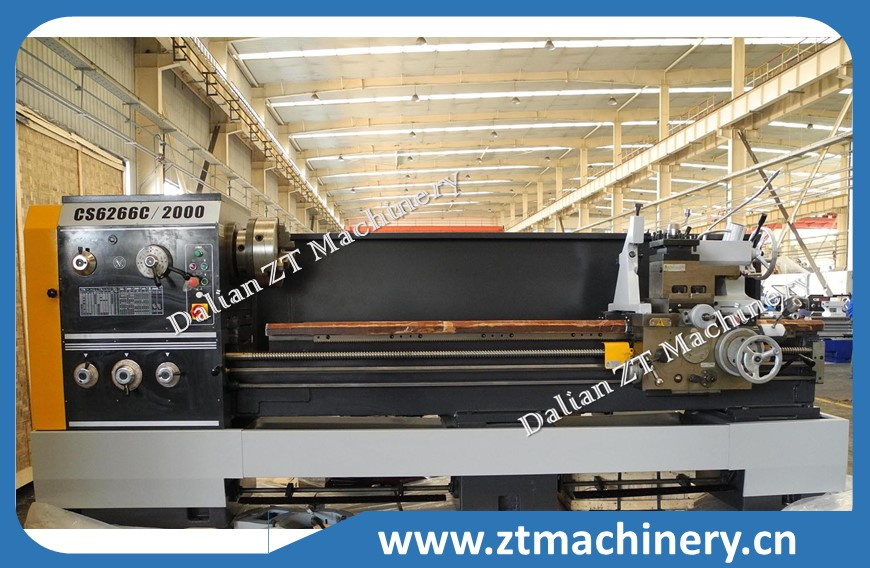

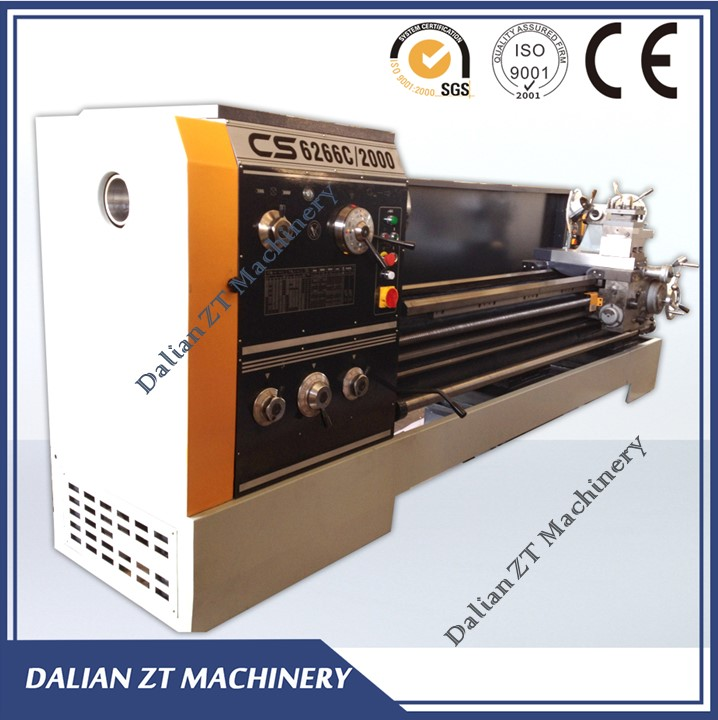

CS6266B CS6250B Horizontal Gap-bed 82mm Spindle Bore Lathe
CS6250C CS6266C Specifications ItemCS6250CCS6266CMax. Swing dia. Over bed500mm660mmMax. Swing dia. Over cross slide300mm420mmMax. Swing dia. Over gap710mm870mmEffective length in gap240mmMax. Workpiece length750/1000/1500/2000/3000mmMax. Turning length700/950/1450/1950/2950mmSpindle bore diameter ......
Send Inquiry
Product Description
CS6250C CS6266C Specifications
Standard Accessories:
3, 4-JAW CHUCK AND ADAPTER, 4-WAY TOOL POST, STEAD REST(120-260MM for CS6250B(C), CS6266B(C), , FOLLOW REST, FACE PLATE, DIRVE PLATE, FOOT BRAKE, FULL LENGTH SPLASH GUARD(SHORT TYPE ON 3M LATHE), LONGITUDINAL MECHANICAL STOP(WITHOUT ON 3M LATHE), HALOGEN LIGHT. CHUCK COVER, TOOL POST COVER, ALL STANDARD ACCESSORIES, LIGHT GRAY AND DARK GRAY COLOR. PACKING WITH WOODEN CASE FOR SHIPMENT.

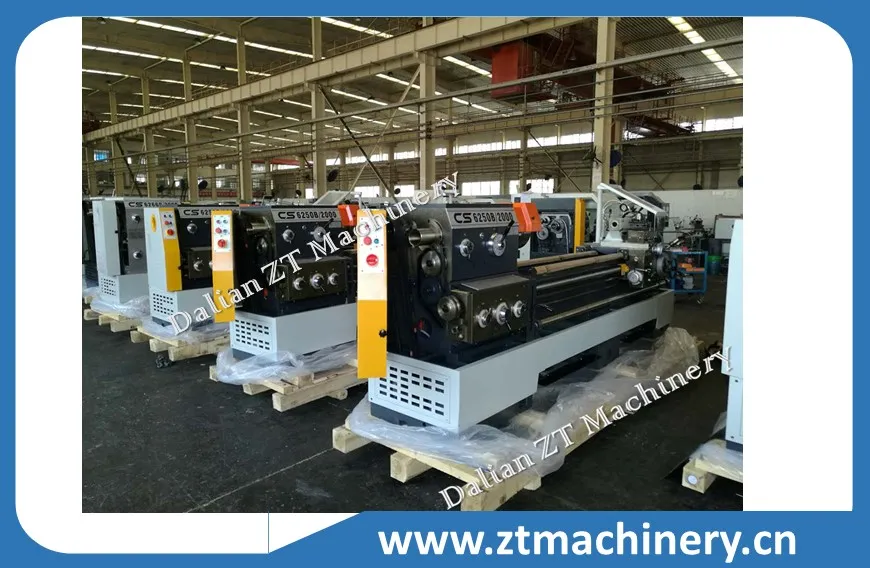

WORKSHOP
FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.
3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.
6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
| Item | CS6250C | CS6266C |
| Max. Swing dia. Over bed | 500mm | 660mm |
| Max. Swing dia. Over cross slide | 300mm | 420mm |
| Max. Swing dia. Over gap | 710mm | 870mm |
| Effective length in gap | 240mm | |
| Max. Workpiece length | 750/1000/1500/2000/3000mm | |
| Max. Turning length | 700/950/1450/1950/2950mm | |
| Spindle bore diameter | 105mm | |
| Taper of spindle bore | 113 | |
| Type of spindle nose | ISO702/II No.8 | |
| Spindle speeds | 12 steps; 36-1600r/min | |
| Tool section | 25x25mm | |
| X-axis feedratio | 50Hz:1.9rpm; 60Hz:2.3rpm | |
| Z-axis feedratio | 50Hz:4.5rpm;60Hz:5.4rpm | |
| X-axis feeds | 0.027-1.07 65kinds | |
| Z-axis feeds | 0.63-2.52 65kinds | |
| Metric threads range | 1-14mm 22kinds | |
| Inch threads range | 28-2 TPI 25 kinds | |
| Module thread range | 0.5-7mm 18kinds | |
| Diametric pitch threads | 56-4DP 24 kinds | |
| Tailstock quill diameter | Φ75mm | |
| Max. Travel of tailstock quill | 150 | |
| Taper of tailstock quill | Morse No.5 | |
| Main motor power | 7.5kW | |
| Coolant pump motor power | 0.12kW | |
Standard Accessories:
3, 4-JAW CHUCK AND ADAPTER, 4-WAY TOOL POST, STEAD REST(120-260MM for CS6250B(C), CS6266B(C), , FOLLOW REST, FACE PLATE, DIRVE PLATE, FOOT BRAKE, FULL LENGTH SPLASH GUARD(SHORT TYPE ON 3M LATHE), LONGITUDINAL MECHANICAL STOP(WITHOUT ON 3M LATHE), HALOGEN LIGHT. CHUCK COVER, TOOL POST COVER, ALL STANDARD ACCESSORIES, LIGHT GRAY AND DARK GRAY COLOR. PACKING WITH WOODEN CASE FOR SHIPMENT.

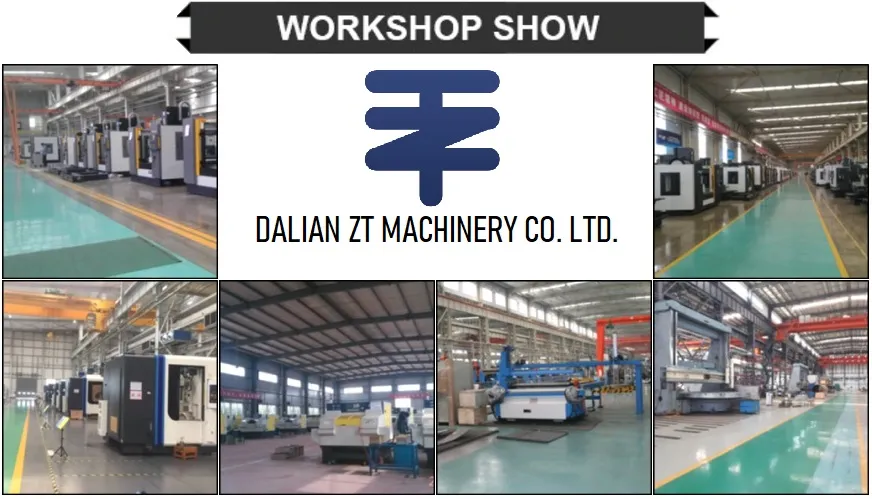

WORKSHOP
FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.
3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.
6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
