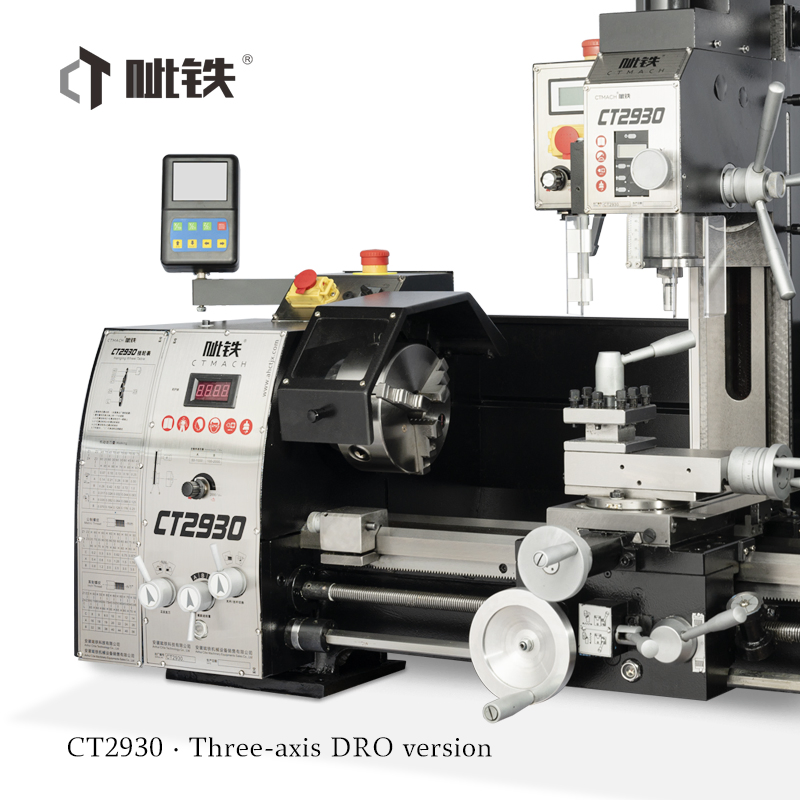

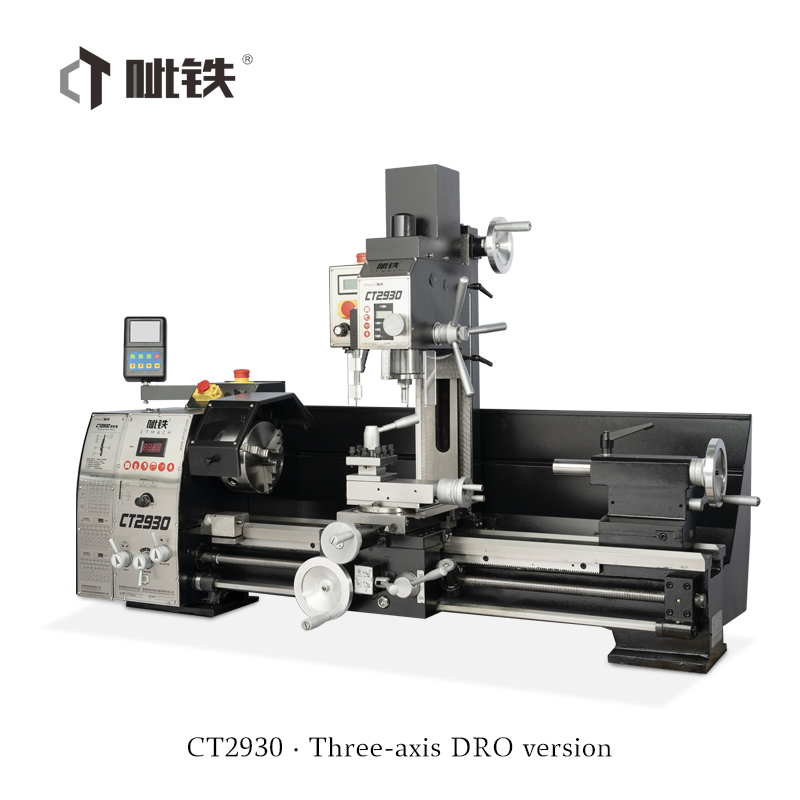

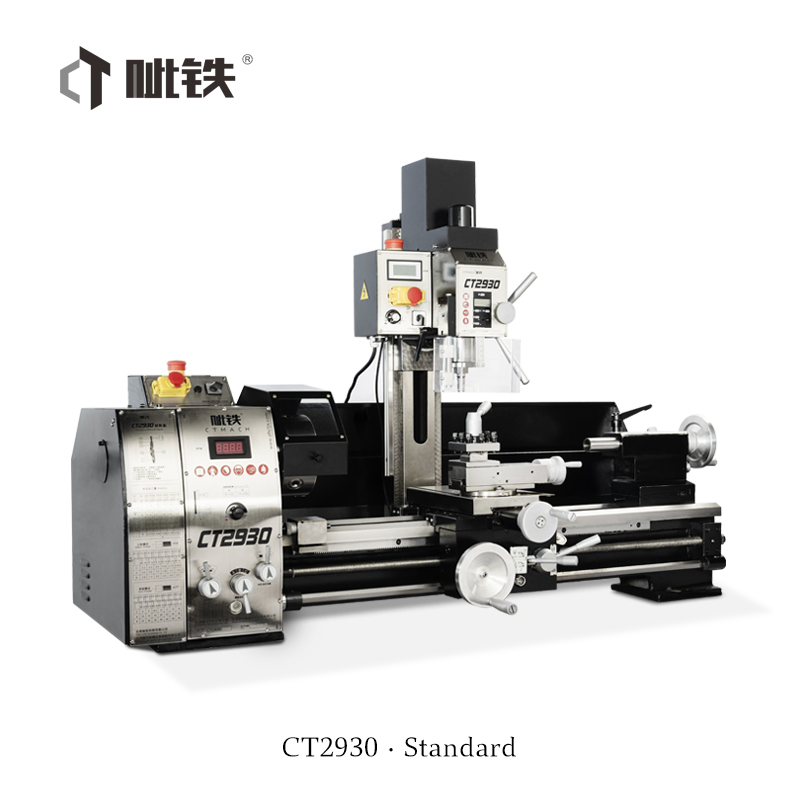

    CT2930 Variable Speed Mini Metal Lathe Mill Combo Machine with Speed Display in China
    • CT2930 Variable Speed Mini Metal Lathe Mill Combo Machine with Speed Display in ChinaCT2930 Variable Speed Mini Metal Lathe Mill Combo Machine with Speed Display in China
    • CT2930 Variable Speed Mini Metal Lathe Mill Combo Machine with Speed Display in ChinaCT2930 Variable Speed Mini Metal Lathe Mill Combo Machine with Speed Display in China
    • CT2930 Variable Speed Mini Metal Lathe Mill Combo Machine with Speed Display in ChinaCT2930 Variable Speed Mini Metal Lathe Mill Combo Machine with Speed Display in China
    • CT2930 Variable Speed Mini Metal Lathe Mill Combo Machine with Speed Display in ChinaCT2930 Variable Speed Mini Metal Lathe Mill Combo Machine with Speed Display in China

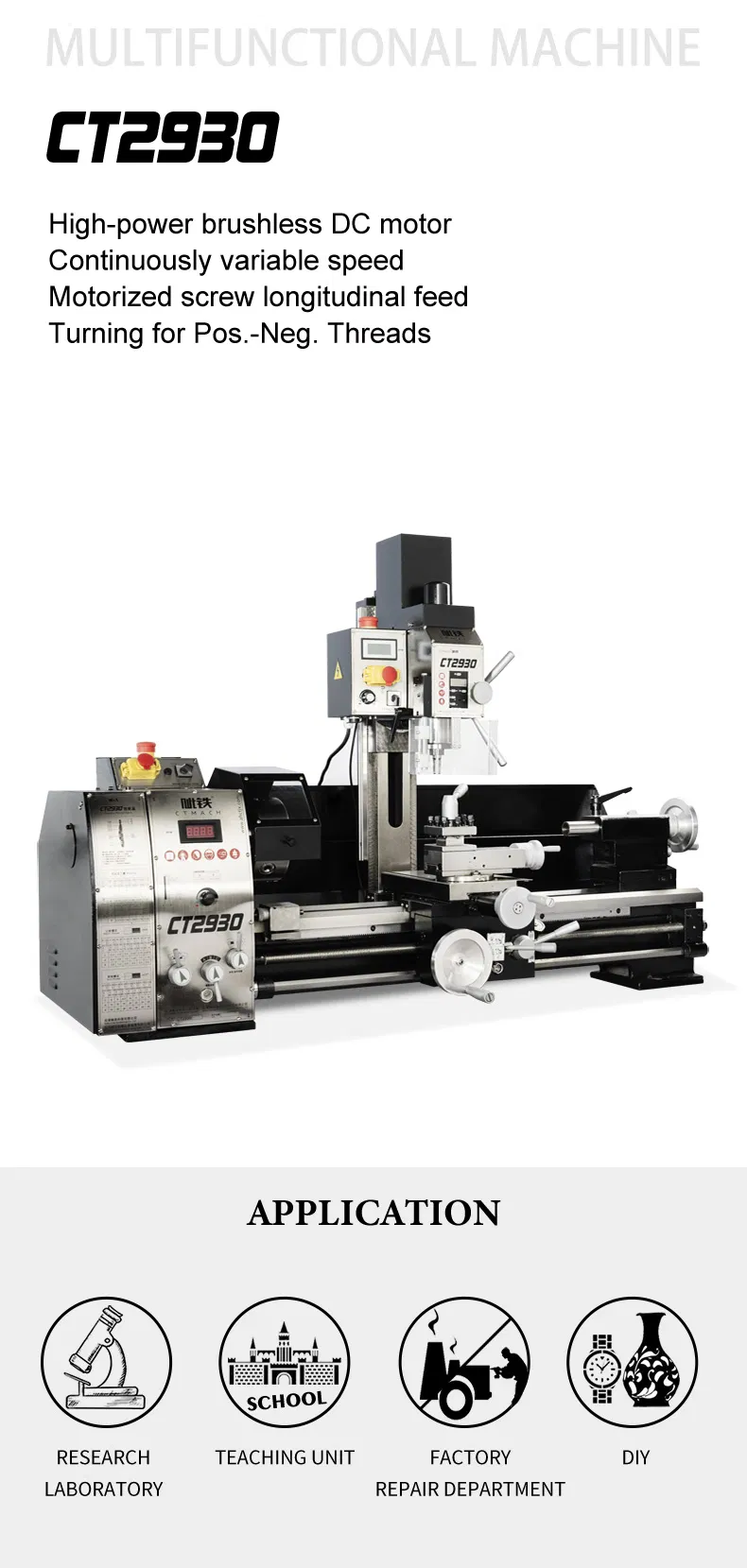

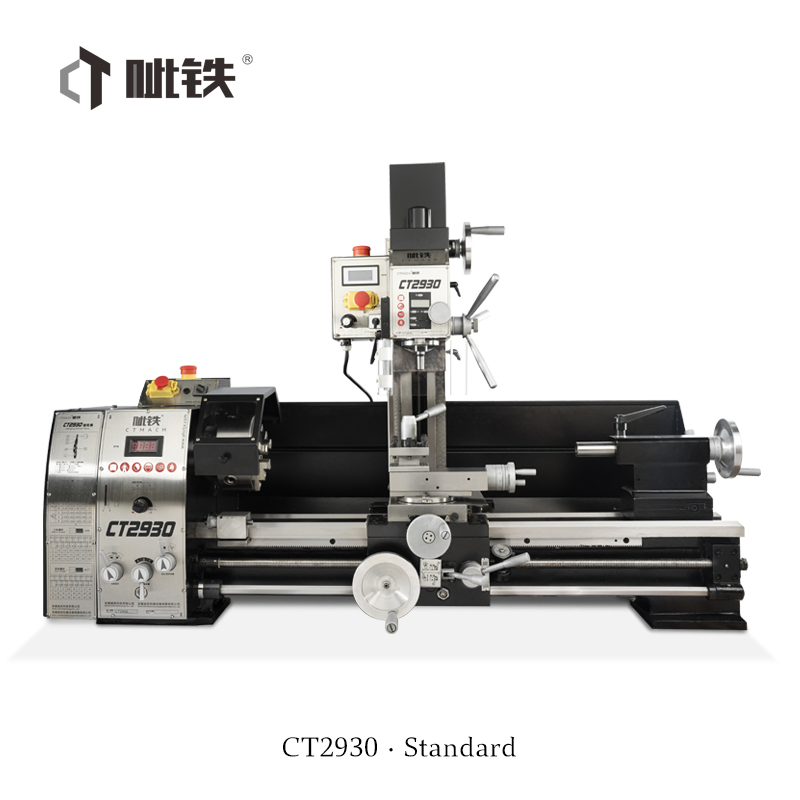

    CT2930 Variable Speed Mini Metal Lathe Mill Combo Machine with Speed Display in China

    Turning-parameters Max. swing over bed290mmMax. swing over cross slide165mmDistance between centers750mmSpindle taperMT5Spindle bore38mmMax. travel of tail-stock sleeve80mmTaper of tail-stockMT3Large carriage travel560mmMiddle carriage travel140mmSmall carriage travel80mmTransverse feed /Grade0.017~......

    Send Inquiry

    Product Description

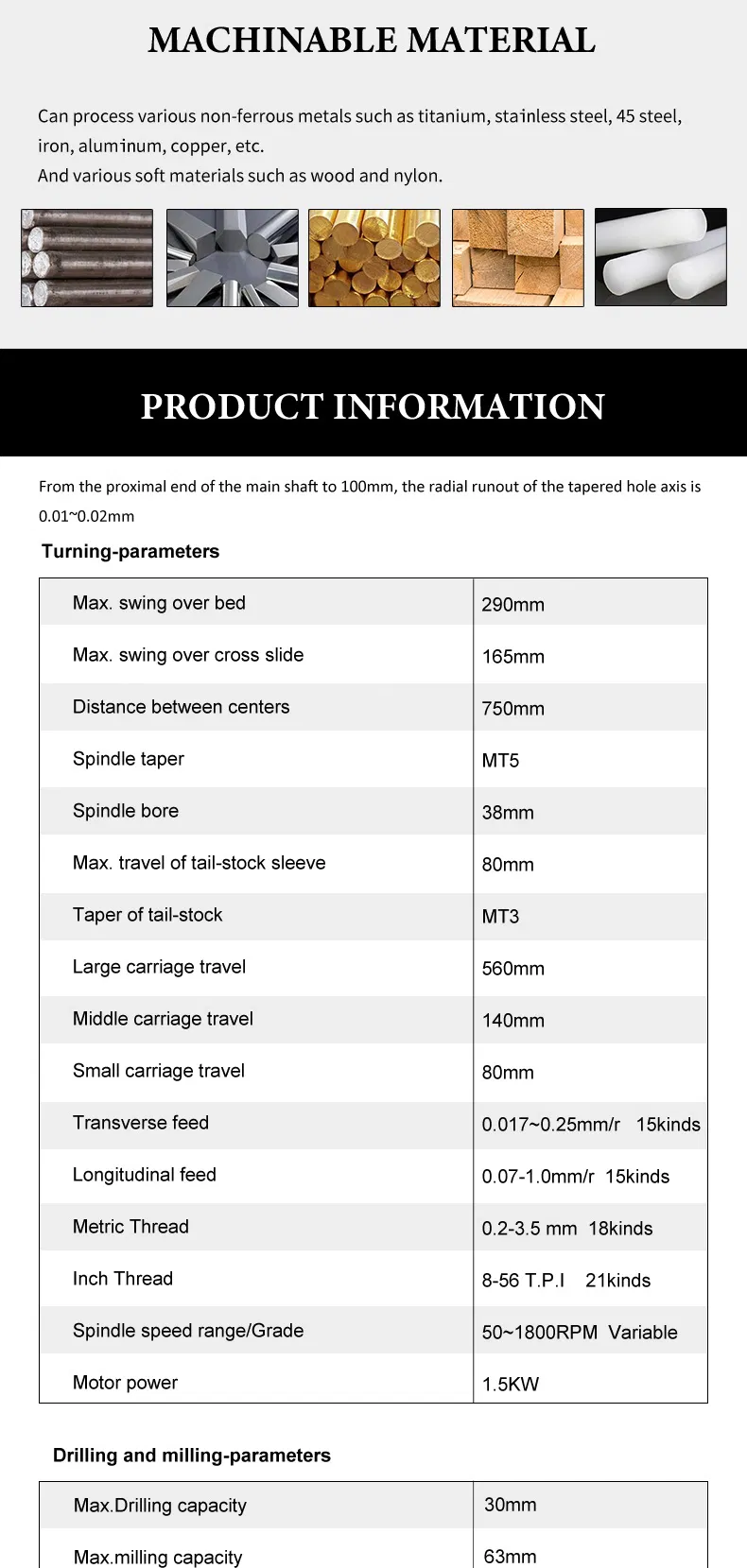

    Turning-parameters
    Max. swing over bed290mm
    Max. swing over cross slide165mm
    Distance between centers750mm
    Spindle taperMT5
    Spindle bore38mm

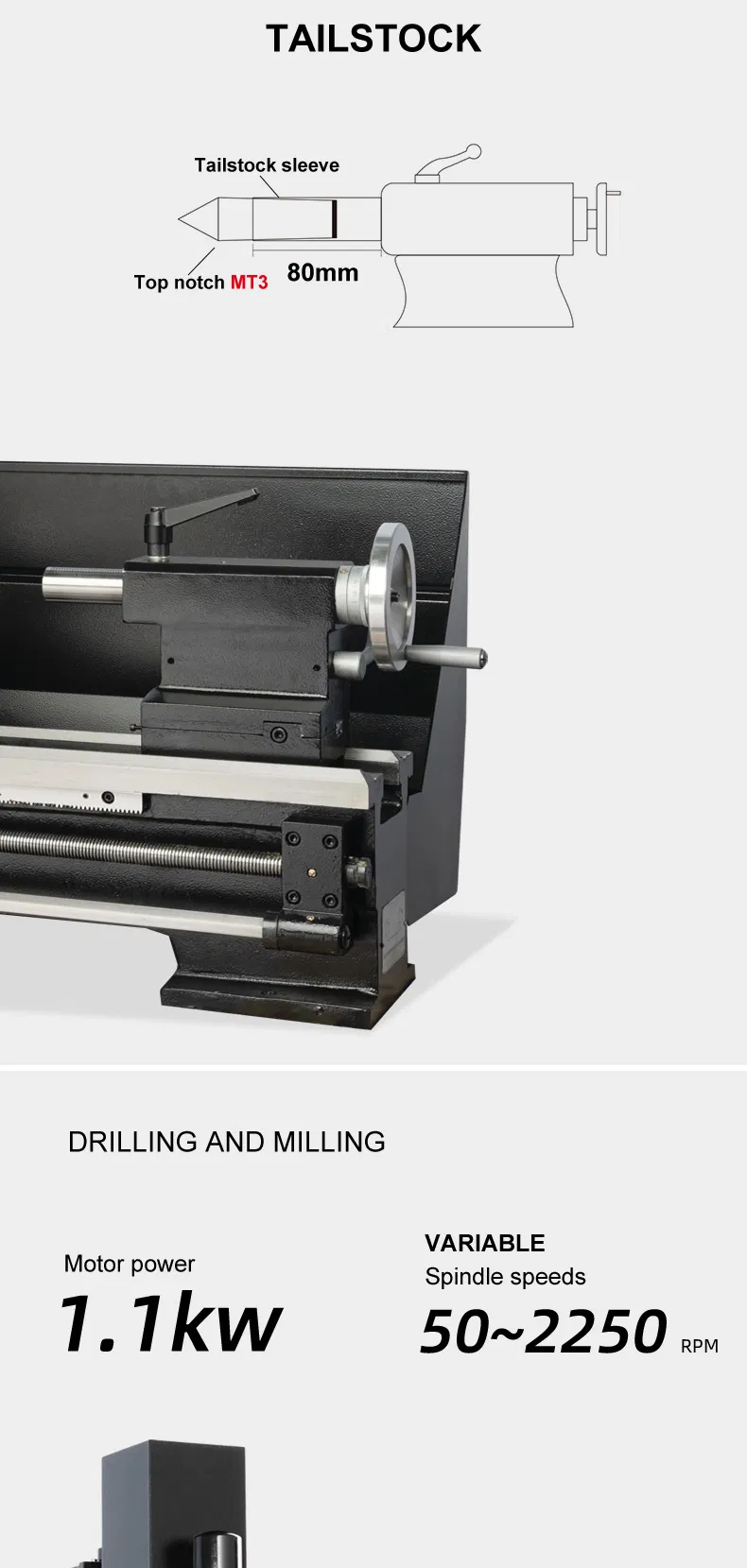

    Max. travel of tail-stock sleeve80mm
    Taper of tail-stockMT3
    Large carriage travel560mm
    Middle carriage travel140mm
    Small carriage travel80mm
    Transverse feed /Grade0.017~0.25mm/r(15kinds)
    Longitudinal feed /Grade0.07-1.0 mm/r(15kinds)
    Metric Thread/Grade0.2-3.5 mm  18
    Inch Thread/Grade8-56 T.P.I    21

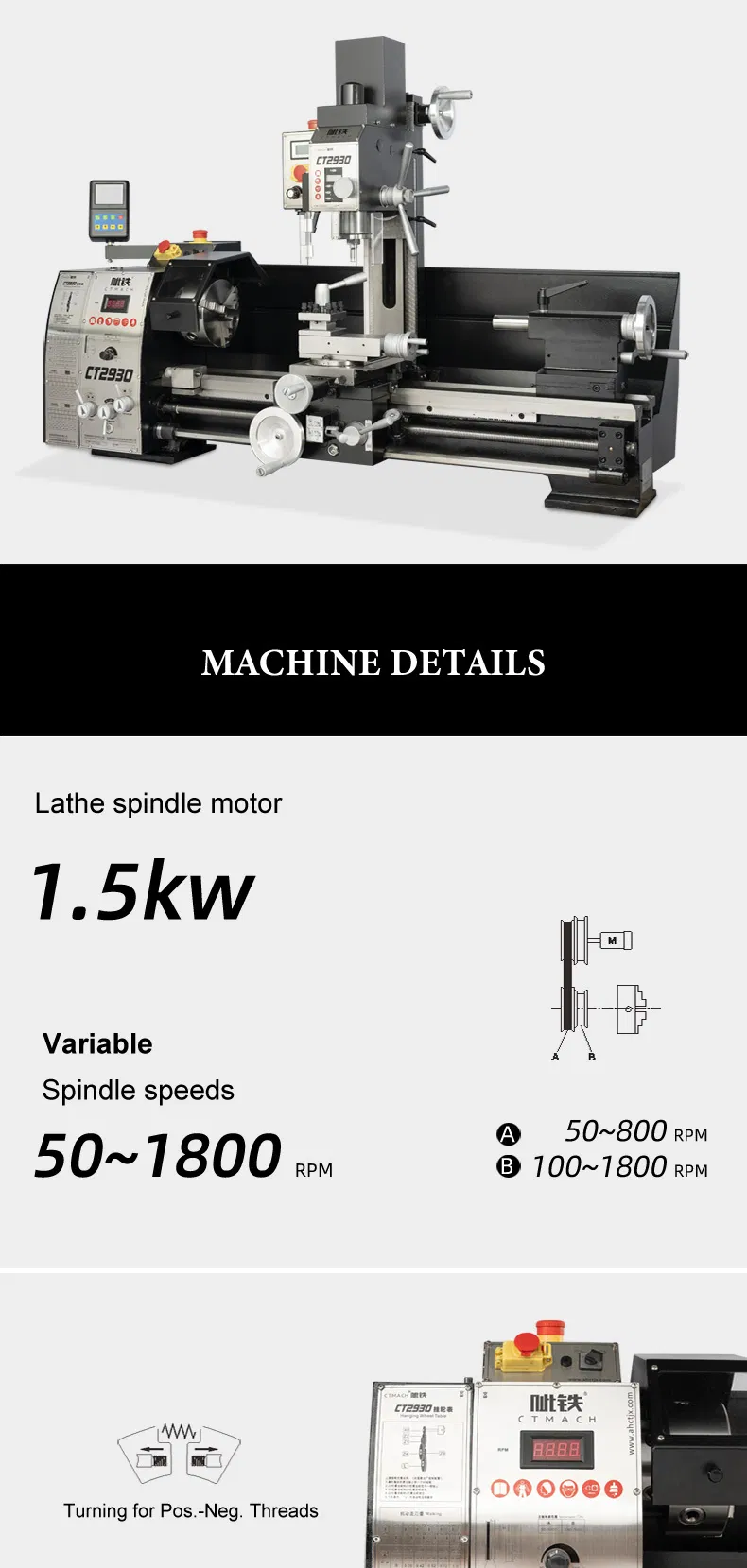

    Spindle speed range/grade50~1800RPM  Variable
    Motor power1.5KW
    Drilling and milling-parameters
    Max.Drilling capacity30mm
    Max.milling capacity63mm

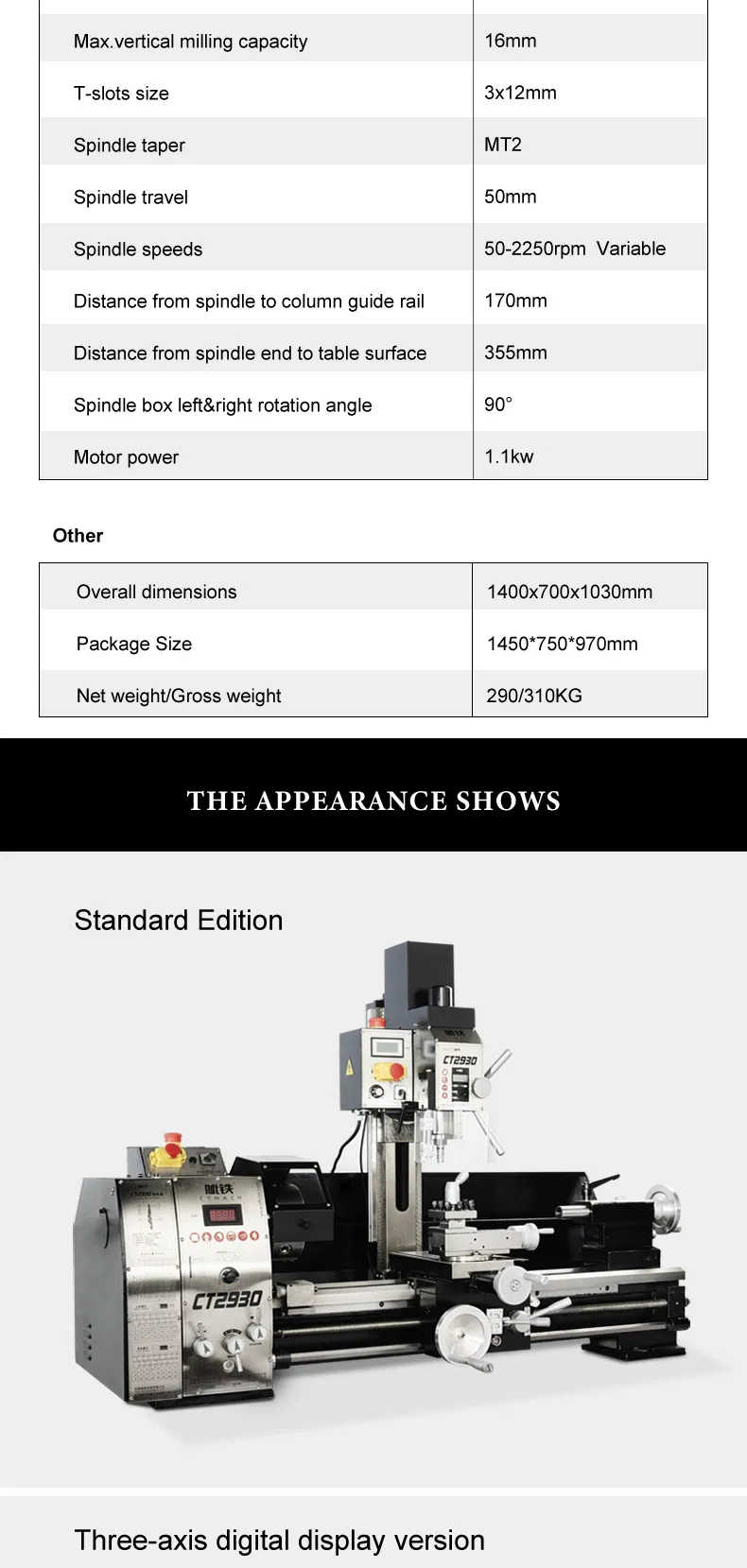

    Max.vertical milling capacity16mm
    T-slots size 3x12mm
    Spindle taper MT2
    Spindle travel 50mm
    Spindle speeds50-2250rpm  Variable
    Distance from spindle to column guide rail170mm
    Distance from spindle end to table surface 355mm

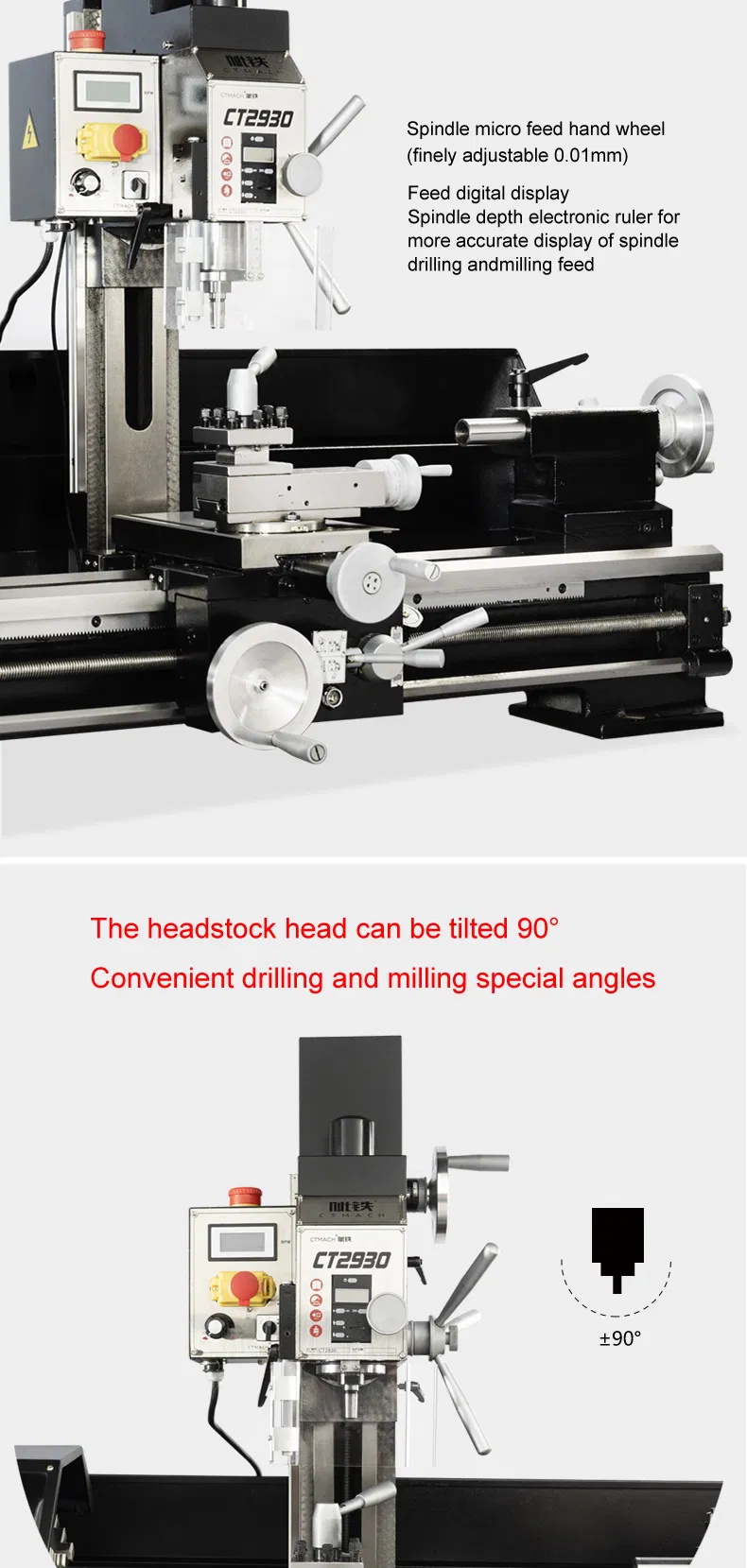

    Spindle box left&right rotation angle90°
    Motor power1.1kw
    other
    Overall dimensions1400x700x1030mm
    Package Size1450*750*970mm
    Net weight/Gross weight290/310KG
