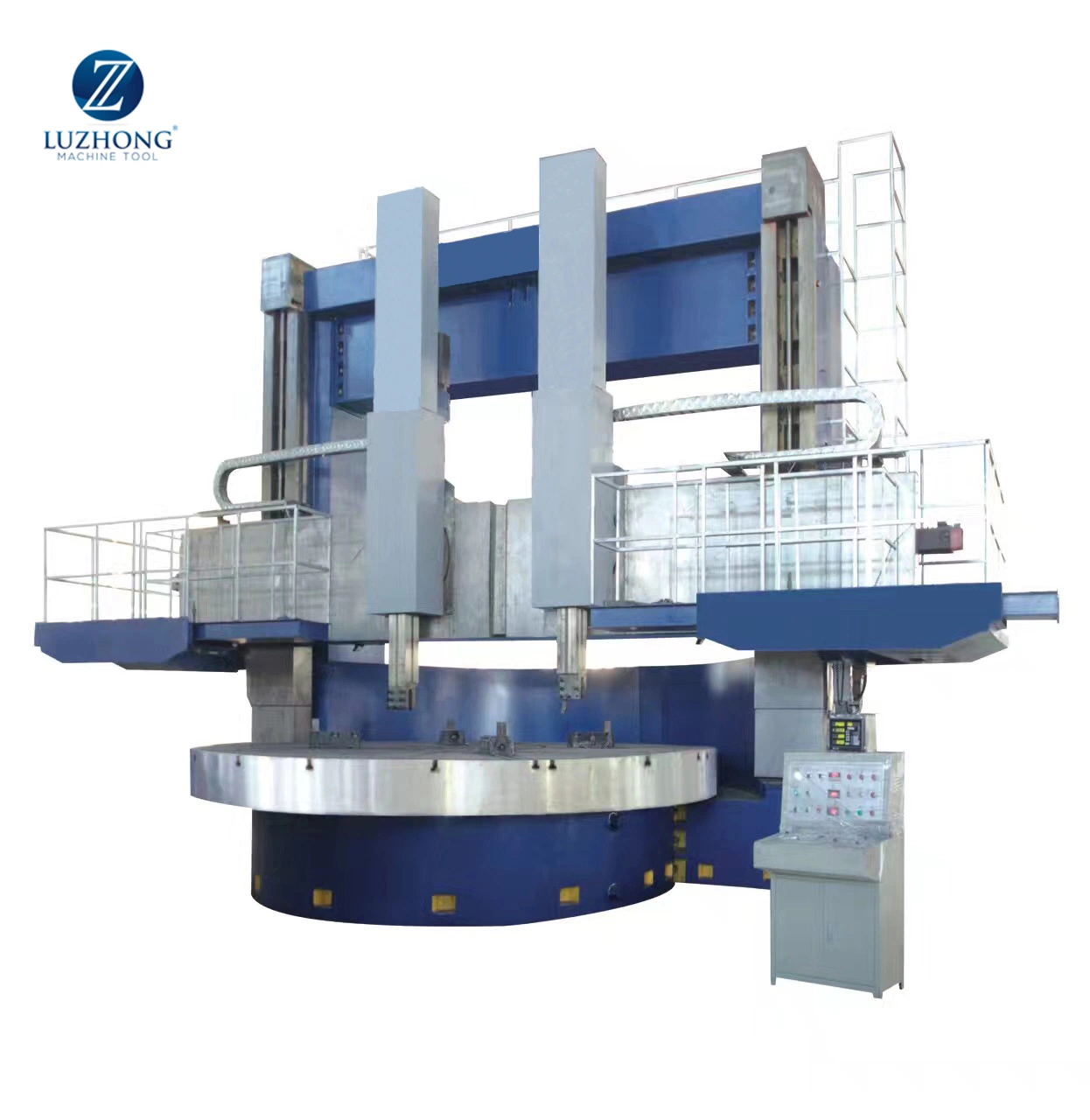

China Double column C5225/C5240/C5250/C5263 Vertical Lathe Machine

Product Description

Double cloumn C5225/C5240/C5250/C5263 Vertical Lathe Machine

Technical specifications:

Specification	Unit	C5225D	C5240D	C5250D	C5263D
Table diameter	mm	2250	3200	4500	5700
Max. turning diameter	mm	2500	4000	5000	6300
Max. height of workpiece	t	1600	1600	2000	3150
Max. weight of workpiece	mm	10	16	32	50
Table speed steps		16	16	16	16
Table speed range	r/min	2~63	2~63	0.5~40	0.5~40
Max.torque of table	kN·m	63	63	70	100
Max.cutting force of right vertical tool post	kN	35	35	35	40
Horizontal travel of right vertical tool post	mm	-50~1400	-50~2150	-50~2770	3450
Vertical travel of right ram	mm	1000	1000	1250	1600
Right vertical tool post feed range	mm/ min	0.24--145	0.24--145	0.2--145	0.2--145
Max.cutting force of left vertical tool post	kN	30	28	30	50
Horizontal travel of left vertical tool post	mm	-50~1400	-50~2150	-50~2770	3450
Vertical travel of left ram	mm	1000	1000	1250	1600
Left vertical tool post feed range	mm/ min	0.24--145	0.24-145	0.2--145	0.2--145
Swivel angle of vertical tool post	°	-30~+30	-30~+30	-15~+30
Ram section size	mm	255×200	255×200	240×240	240×240
Tool section size	mm	40×50	40×50	50×50	50×50
Vertical tool post rapid traverse	mm/ min	1550	1550	1550	2000
Max.travel of cross beam	mm	1250	1250	1650	2650
Cross beam lifting speed	mm/ min	350	350	310	350
Cross beam lifting motor power	kw	11	11	15	15
Main motor power	kw	AC55	AC55	AC70	AC90
Machine weight	Mm	34			90

Double column C5225/C5240/C5250/C5263 Vertical Lathe Machine

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
