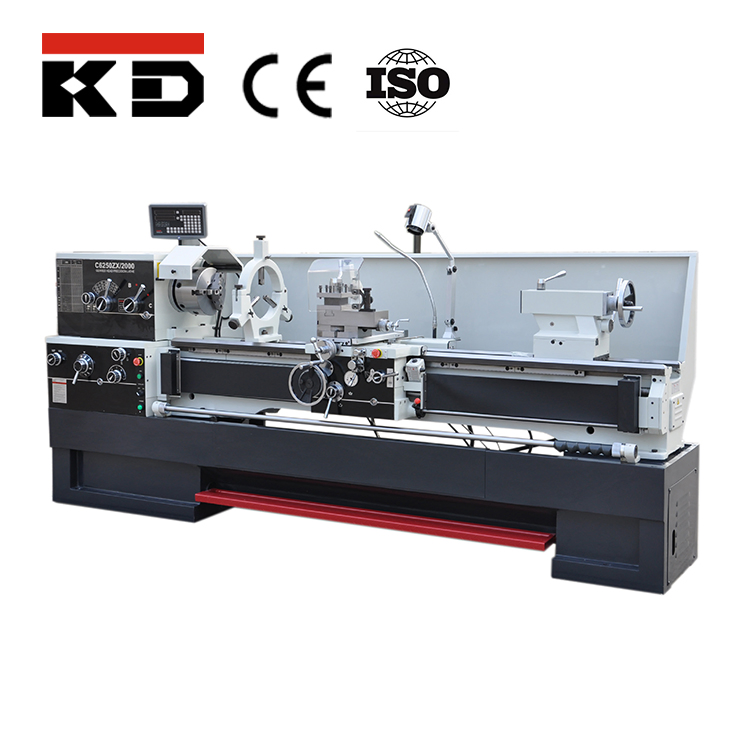

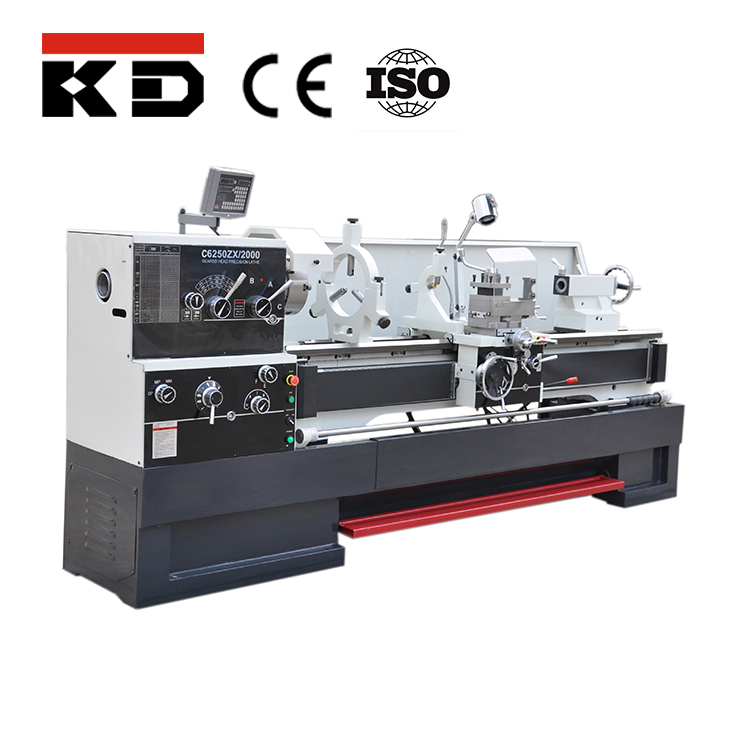

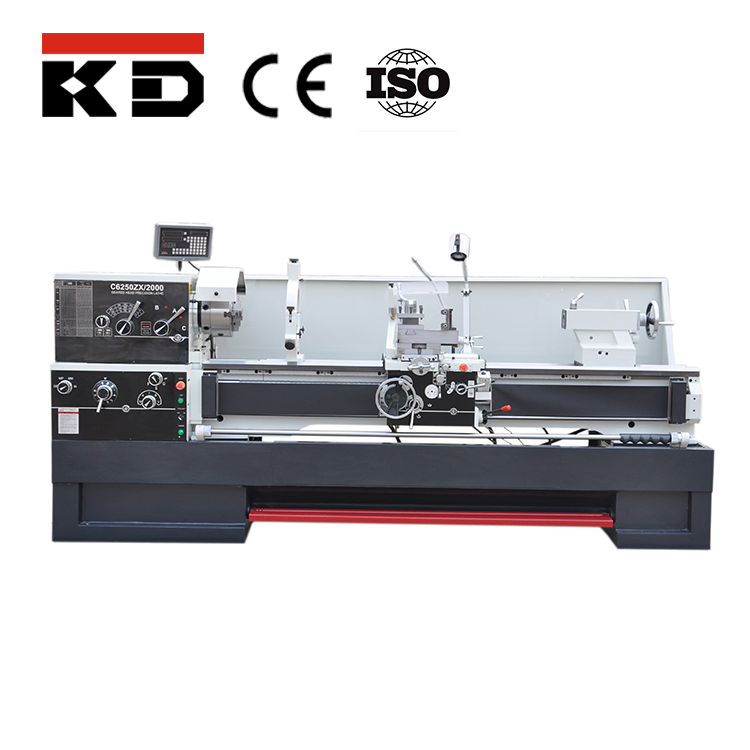

    Engine Gap Lathe Machine Gh- 1440zx
    • Engine Gap Lathe Machine Gh- 1440zxEngine Gap Lathe Machine Gh- 1440zx
    • Engine Gap Lathe Machine Gh- 1440zxEngine Gap Lathe Machine Gh- 1440zx
    • Engine Gap Lathe Machine Gh- 1440zxEngine Gap Lathe Machine Gh- 1440zx
    • Engine Gap Lathe Machine Gh- 1440zxEngine Gap Lathe Machine Gh- 1440zx

    Engine Gap Lathe Machine Gh- 1440zx

    FEATURES AT A GLANCEPRODUCT SPECIFICATIONS MODELSDC1440-EDC1460-EDC1640-EDC1660-EDC1840-EDC1860-EDC1880-EDC2040-EDC2060-EDC2080-ECAPACITY Max. swing over bed360mm400mm460mm500mmMax. swing over cross slide200mm250mm290mm330mmMax. swing over gap600mm660mm700mm740mmDistance between centers1000/1500m......

    Send Inquiry

    Product Description

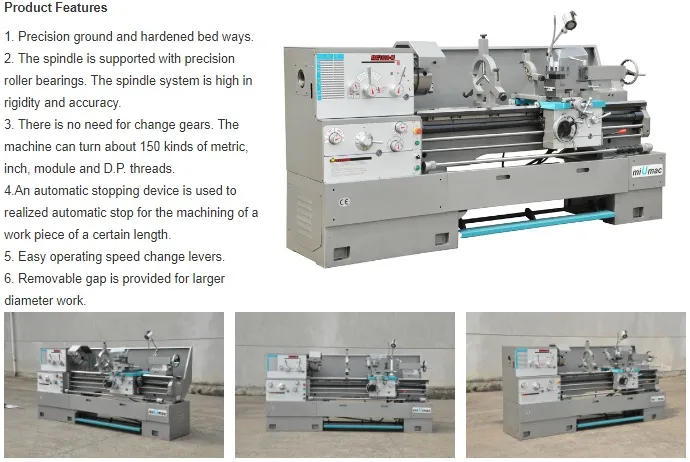

    FEATURES AT A GLANCE
    Engine Gap Lathe Machine Gh-1440zx
    PRODUCT SPECIFICATIONS
    MODELS
    DC1440-E
    DC1460-E
    DC1640-E
    DC1660-E
    DC1840-E
    DC1860-E
    DC1880-E
    DC2040-E
    DC2060-E
    DC2080-E
    CAPACITY




    Max. swing over bed
    360mm
    400mm
    460mm
    500mm
    Max. swing over cross slide
    200mm
    250mm
    290mm
    330mm
    Max. swing over gap
    600mm
    660mm
    700mm
    740mm
    Distance between centers
    1000/1500mm
    1000/1500/2000mm
    Max turning length
    850/1350mm
    850/1350/1850mm
    Bed with
    336mm
    HEADSTOCK




    Spindle bore
    80mm
    Spindle mount
    D1-8
    Taper bore of spindle
    MT-7
    Steps of spindle speed
    12
    Range of spindle speed
    42-1800rpm
    25-1800rpm
    GEARBOX




    Range of longitudinal feeds
    0.04-2.46mm
    Range of cross feeds
    0.02-1.23mm
    Number of inch threads
    61
    Range of inch threads
    1-5/8 - 72 T.P.I.
    Number of metric threads
    24
    Range of metric threads
    0.5-20mm
    Number of D.P threads
    45
    Range of D.P threads
    96-3 1/4D.P
    Number of module threads
    20
    Range of module threads
    0.25-10M.Pmm
    CARRIAGE




    Max. tool size
    25x25mm
    Max. compound slide travel
    130mm
    Max. cross slide travel
    280mm
    310mm
    TAILSTOCK




    Tailstock sleeve travel
    130mm
    Taper in tailstock sleeve
    MT-5
    OTHERS




    Main motor
    5.5kw (7.5HP)
    Net weight
    2250/2550kg
    2300/2600kg
    2350/2650/2900kg
    2750/3000/3250kg
    Overall dimension (LxWxH)
    2310/2810
    x1050x1310mm
    2310/2810
    x1050x1340mm
    2310/2810/3320
    x1050x1370mm
    2310/2810/3320
    x1050x1390mm

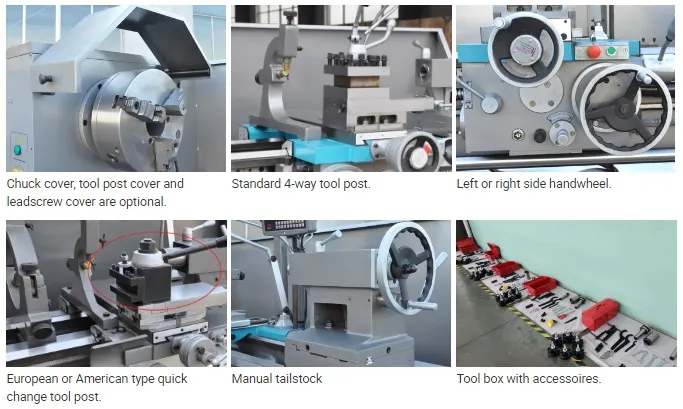

    PRODUCT CONFIGURATION
    Engine Gap Lathe Machine Gh-1440zx    Engine Gap Lathe Machine Gh-1440zx
