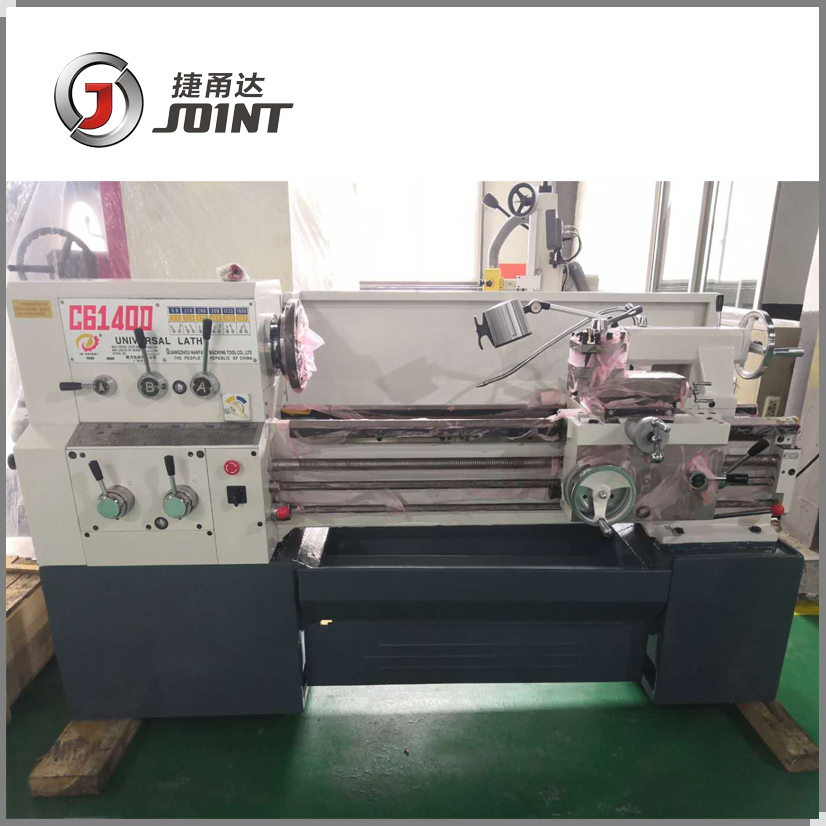

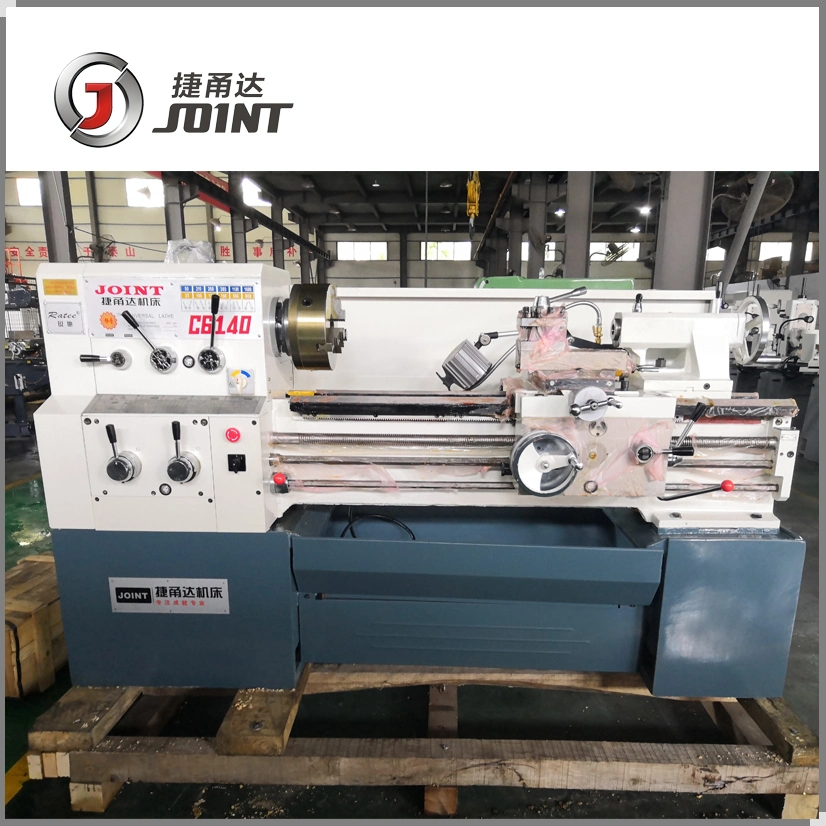

Flat Bed Small Turning Horizontal Metal Cutting Precision Engine Machine
Features1. The hardness of machine guide way is in above HRC52°, use high precision cnc guide way grinding machine machining, high durability for guide way, good precision for body machining.2. Lathe head box, feed box, sliding box use cnc machine center machining, ensure machining precision......
Send Inquiry
Product Description
1. The hardness of machine guide way is in above HRC52°, use high precision cnc guide way grinding machine machining, high durability for guide way, good precision for body machining.
2. Lathe head box, feed box, sliding box use cnc machine center machining, ensure machining precision of box.
3. Transmission gear usd cnc gear grinding machining, and noise test, low gear noise.
Specification
| Model | C6140D C6240D | ||
| Max swing over bed | mm | 400 | |
| Max work piece length | mm | 750, 1000, 1500 | |
| Bed rail width | mm | 320 | |
| Max turning diameter of work piece on tool holder | mm | 240 | |
| Maximum longitudinal travel of tool rest | mm | 630, 880, 1380 | |
| Maximum transverse travel of tool rest | mm | 220 | |
| Bar diameter | mm | 45 | |
| Maximum turning diameter of workpiece in saddle groove | mm | 580 | |
| Valid length of gap | mm | 200 | |
| Spindle center height | mm | 202 | |
| Spindle head connection | C6 | ||
| Through hole diameter of spindle | mm | 46 | |
| Taper of spindle inner hole | MT6 | ||
| Spindle rotation speed | r/min | 25-1600 | |
| Taper of inner hole of top sleeve | MT4 | ||
| Maximum movement in tip sleeve | mm | 130 | |
| Maximum lateral movement | mm | ±10 | |
| Thread | Inch system | 80-33/4N/1" | |
| Metric system | 0.45-20mm/r | ||
| Module | 0.25-10mm | ||
| Diameter pitch | 160-31/2DP | ||
| Motor specification | YD132M-8/4-B5 3-4.5KW | ||
| Belt specification | 4-A-1900mm/4-A-2000mm | ||
| Dimension (L*W*H) | 750mm | mm | 1950*950*1250 |
| 1000mm | mm | 2200*950*1250 | |
| 1500mm | mm | 2700*950*1250 | |
| Nei weight | 750mm | kg | 1400 |
| 1000mm | kg | 1500 | |
| 1500mm | kg | 1600 | |
Company Profile
Shenzhen Joint Technology Co., Ltd. specializes in R&D and manufacturing mold processing and machinery parts processing equipment, we developed high quality and high-tech research, development, manufacturing, service team and management system, and expanded products to more than 11 series from milling machines, to machine center,mechanical arm, automation. With the exceptional quality products and distinct brand reputation, our products are sold to more than 40 developed cities all over China, and also to more than 20 countries all over the world across Asia, Europe and America.Our company takes the high quality product as orientation, R&D ideas is to provide customers with the most suitable quality products, became a professional machine tool manufacturer with a complete product line of mould and parts processing machine tool and strong tailor-made design capability in China.
Core strengths
1. Standardize processes and operating mechanisms, high standards production and testing software and hardware - Ensure stable product supply and service support.
2. We insist in-depth research and technological precipitation for more than 20 years - Promote rapid innovation and progress in products and technology.
3. Comprehensive information management systems such as ERP and CRM - JOINT has formed a efficient operation and continuous improvement system.
4. Integrity, collaboration, innovation, and win-win spirit - we JOINT has established a strong and stable supply chain, and a large long-term win-win customer base.
Special advantages
1. Provide more practical customized products
2. Provide CNC product applications support
3. Provide integrated solution for auto production line
4. Provide integrated design of mold, and parts processing production line
Qualifications and honors
1. National High-tech Enterprose
2. Shenzhen famous brand "JOINT"
3. Member of China Quality Association
4. Member of China Machine Tools Association
5. Vice-chairmen of Shenzhen Machinery Association
6. CE certification on milling machine, grinidng machine and machine center.
7. More than 150 patents on invention, utility model patent and software copyright etc.
8. Guangdong famous trademark
FAQ
Q1: Are you trading company or manufacturer?
A1: We are factory.
Q2: What is your terms of payments?
A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?
A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.
Q4: What is the package? Is it suitable for shipment?
A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.
Q5: How long is the warranty for machines?
A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.
