Good Price Horizontal Metal Turning Lathe Machine Manufacturer
Good Price Horizontal Metal Turning Lathe Machine Manufacturer1.Product description:(1).Bed rail by super audio quenching and precision grinding.(2).Precision grinding of the main shaft box, low noise.(3).More thread type.(4).Electrical safety performance is good, high reliability.(5).With electroma......
Send Inquiry
Product Description

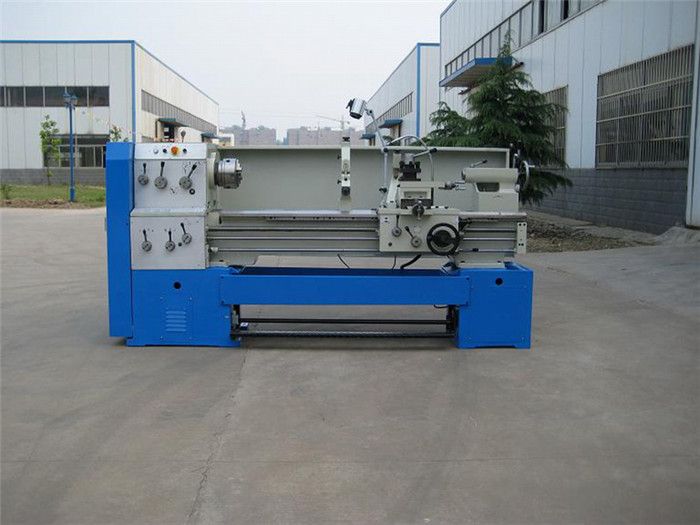

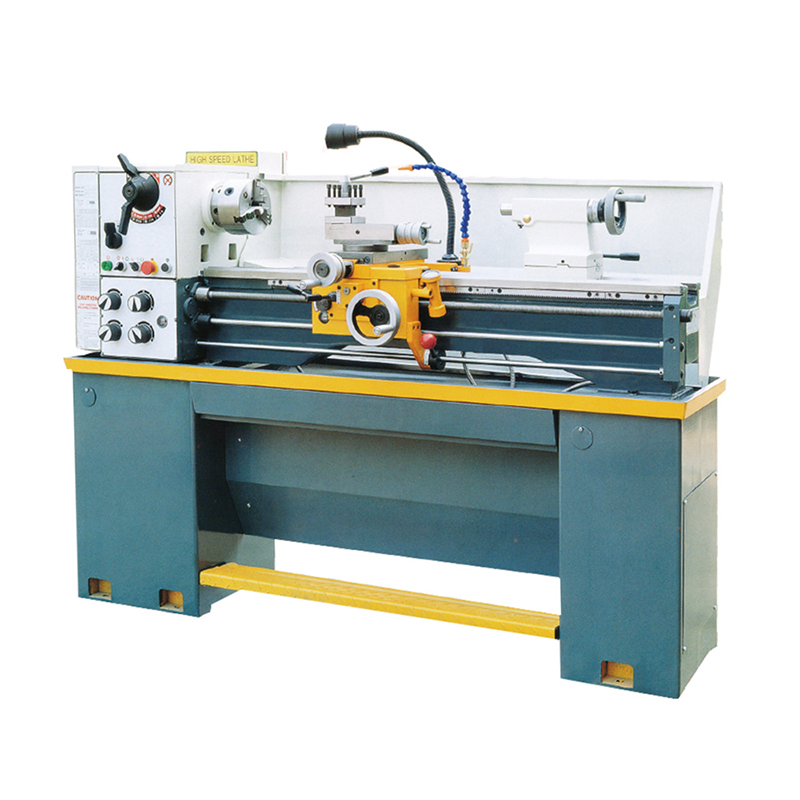

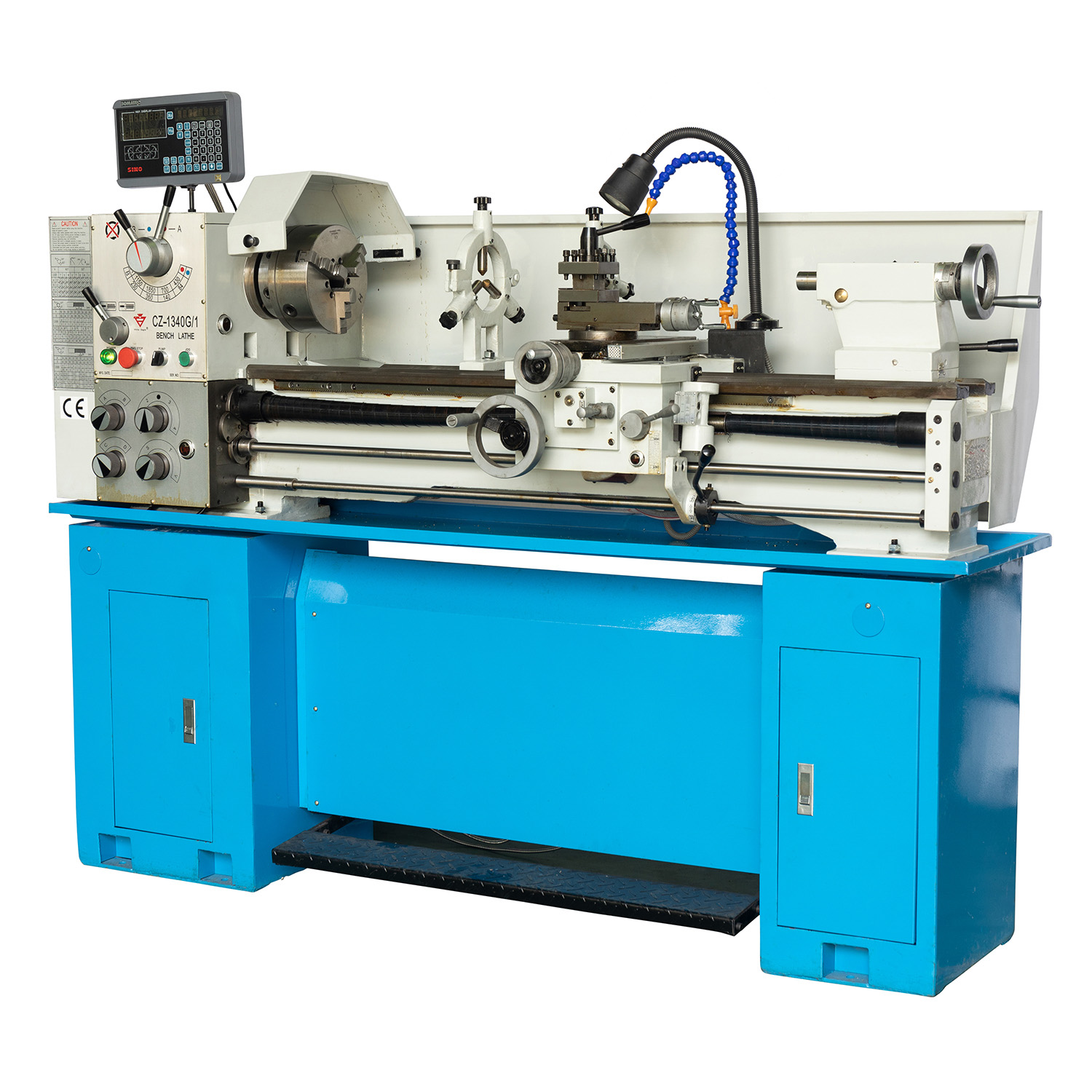

Good Price Horizontal Metal Turning Lathe Machine Manufacturer
1.Product description:
(1).Bed rail by super audio quenching and precision grinding.
(2).Precision grinding of the main shaft box, low noise.
(3).More thread type.
(4).Electrical safety performance is good, high reliability.
(5).With electromagnetic brake, the color of available options.
2.Product main technical Specifications:

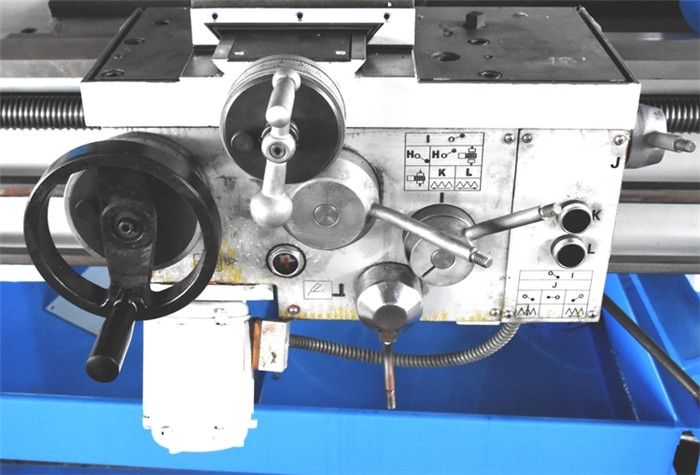

3.Details Pictures:
4.Packing and delivery:
5.FAQ:
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we're Made in China Gold Suppliers,
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q8.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
1.Product description:
(1).Bed rail by super audio quenching and precision grinding.
(2).Precision grinding of the main shaft box, low noise.
(3).More thread type.
(4).Electrical safety performance is good, high reliability.
(5).With electromagnetic brake, the color of available options.
2.Product main technical Specifications:
| Specifications | C6150 | |
| Capacity | Max.Swing over bed | 500mm |
| Max.rotating diameter | 300mm | |
| Center distance | 750,1000,1500,2000mm | |
| Spindle hole | 52mm(82mm) | |

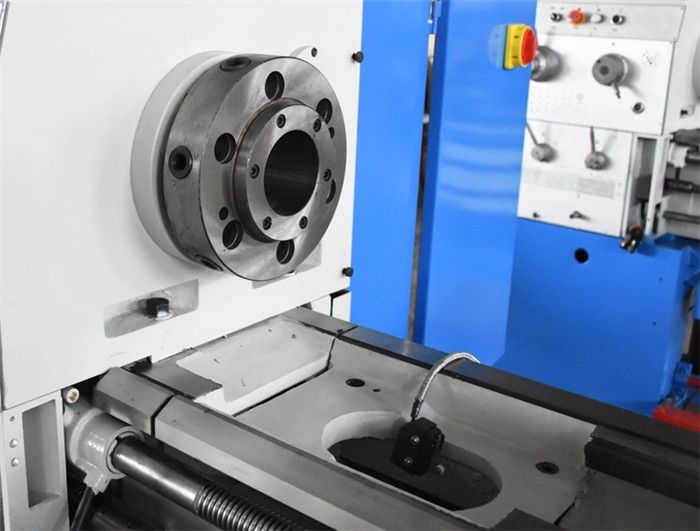

| Spindle | Spindle nose | ISO-C6(C8) |
| Spindle tap | MT6 | |

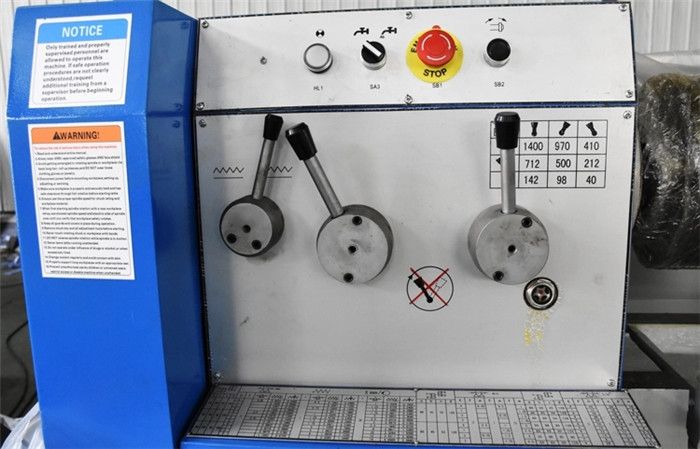

| Spindle speeds(number) | 36-1600rpm(12 Steps) | |
| Feed | Metric threads range(Kinds) | 0.5-14mm(18Kinds) |
| Inch threads range(Kinds) | 2-40/inch(28Kinds) | |
| Moudle threads range(Kinds) | 0.25-3.5mπ(17Kinds) | |
| Compound rest travel | 150mm | |
| Cross slide travel | 180mm | |
| Cross-section size of toolshank | 22×22mm | |

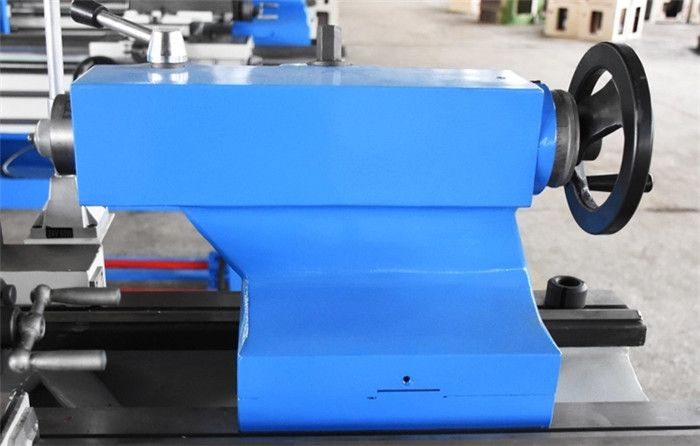

| Tailstock | Dia of tailstock sleeve | 75mm |
| Taper of tailstock sleeve | MT5 | |
| Travel of tailstock sleeve | 160mm | |
| Main motor power | 5.5/7.5KW | |
| Machine size (L*W*H mm) | Overall dimensions for 750mm | 2100×1150×1550mm |
| Overall dimensions for 1000mm | 2350×1150×1550mm | |
| Overall dimensions for 1500mm | 2850×1150×1550mm | |
| Overall dimensions for 2000mm | 3350×1150×1550mm | |
| Weight(kg) | Weight for 750mm | 1700kg |
| Weight for 1000mm | 1800kg | |
| Weight for 1500mm | 2000kg | |
| Weight for 2000mm | 2200kg | |

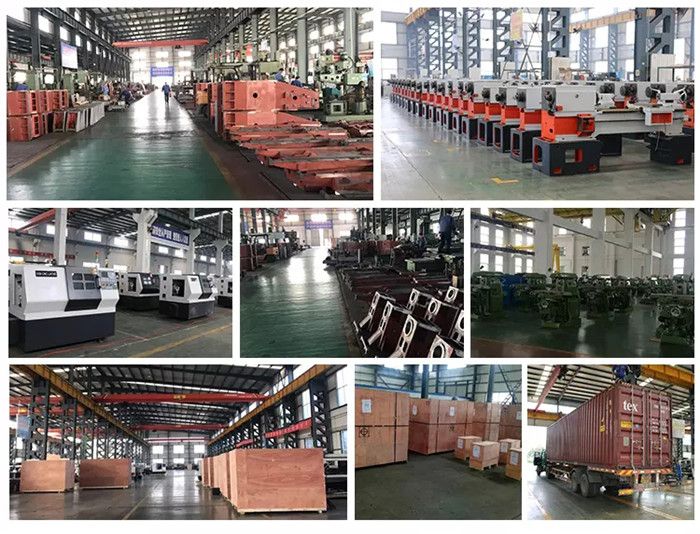

4.Packing and delivery:
5.FAQ:
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we're Made in China Gold Suppliers,
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q8.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
