    Hard Way 4-Way Tool Station 1440 Bench Lathe with Good PriceProduct DescriptionProduct Specifications MODELSC0632BC0636BCAPACITYMax. swing over bed330mm360mmMax. swing over gap476mm508mmMax. swing over slide185mm215mmWidth of bed186mmMax. length of workpiece (two centers)750/1000mmSPINDLESpindle nos......

    Send Inquiry

    Product Description

    Hard Way 4-Way Tool Station 1440 Bench Lathe with Good Price
    Product Description

    Hard Way 4-Way Tool Station 1440 Bench Lathe with Good Price

    Product Specifications



    MODELS
    C0632B
    C0636B
    CAPACITY
    Max. swing over bed
    330mm
    360mm
    Max. swing over gap
    476mm
    508mm
    Max. swing over slide
    185mm
    215mm
    Width of bed
    186mm
    Max. length of workpiece (two centers)
    750/1000mm
    SPINDLE
    Spindle nose
    D4
    Spindle bore
    Ф38mm
    Taper bore of spindle
    M.T.NO.5
    Steps of spindle speed
    8
    Range of spindle speed
    70~2000rpm
    FEED
    Range of longitudinal feeds
    0.0013-0.0173in/r (0.026~0.348mm/r)
    Range of cross feeds
    0.0005-0.00598in/r (0.007~0.094mm/r)
    THREADING
    Inch threads
    40~2 1/4 T.P.I/20 kinds
    Metric threads
    0.45-10mm/ 28kinds
    TAILSTOCK
    Travel of tailstock quill
    95mm
    Taper bore of tailstock quill
    M.T.NO.3
    OTHERS
    Main motor
    2HP(1.5KW)
    Net weight/Gross weight(1000mm)
    495/595kg
    510/610kg

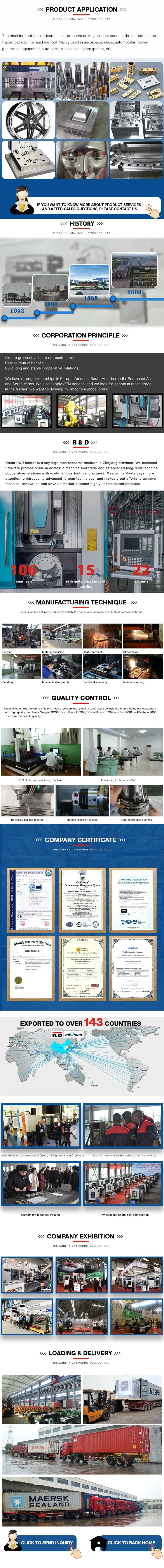

    Company Profile
